C9610-SUP-3 – Supervisor 3 Module – 51.2Tbps System – C9610R
0/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9610-SUP-3 Description

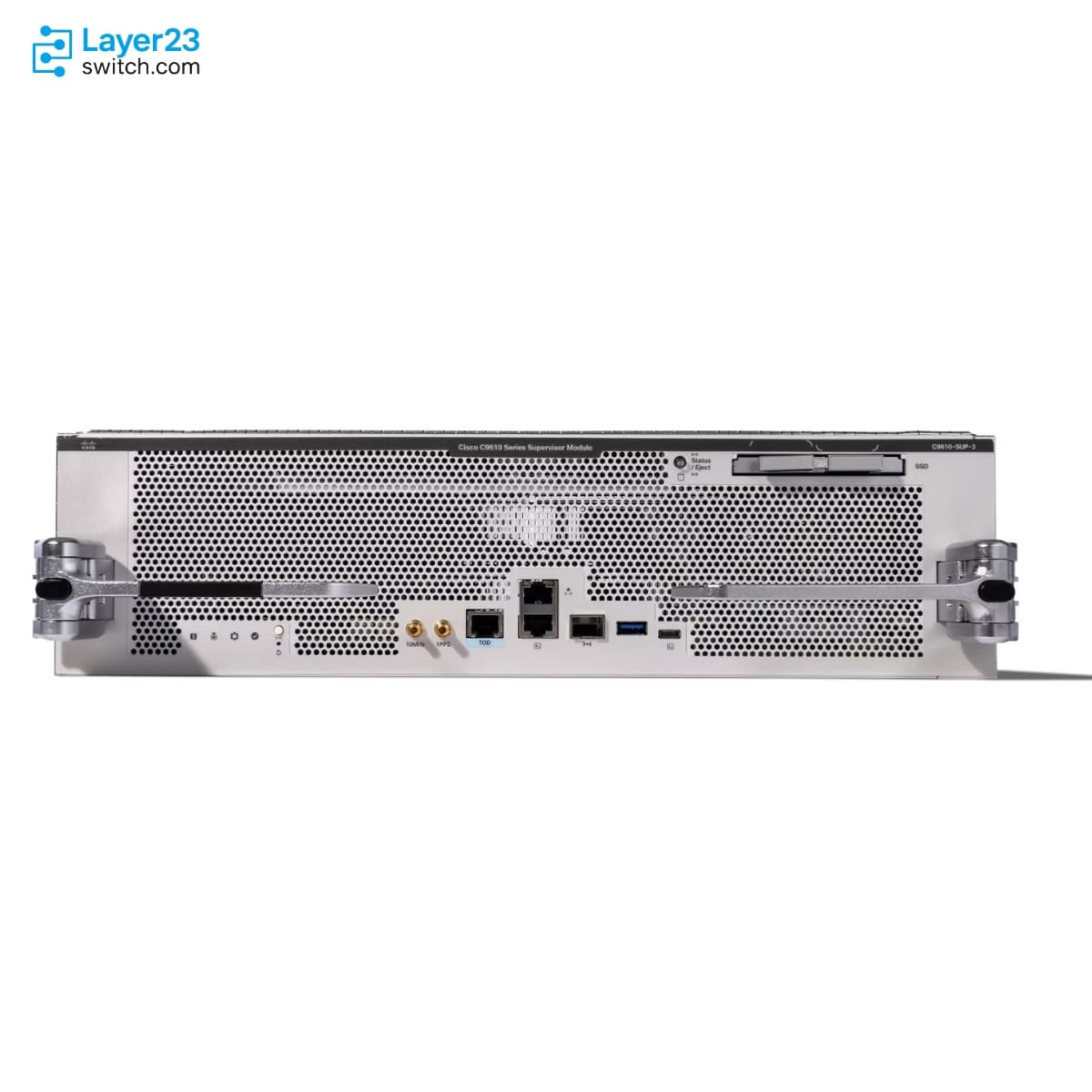

C9610-SUP-3 is the Cisco C9610 Supervisor 3 module for C9610R 10-slot chassis deployments.
This supervisor is the E100-based option for C9610R designs that need the C9610 control-plane, management, and switching-fabric role without moving to the higher-scale 3XL model. It should be selected before line cards, SSDs, optics, and software are priced, because the supervisor choice anchors the rest of the chassis design.
For quote review, confirm the supervisor quantity, matching redundant supervisor requirement, Cisco IOS XE release, line-card mix, SSD requirement, and optics plan. Layer23-Switch can help check price, stock, warranty support, shipping timing, and hardware compatibility.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9610-SUP-3 |
|
Product family |
Cisco C9610 Series Smart Switches |
|
Product type |
Supervisor 3 module |
|
Cisco ordering description |
Cisco C9610 Series Smart Switches Supervisor 3 module |
|
Supported chassis |
Cisco C9610R |
|
Dedicated supervisor slots |
Slots 5 and 6 |
|
Redundant supervisor support |
Supported with two supervisor engine modules |
|
Redundant supervisor requirement |
Use the same supervisor type in a redundant C9610R chassis |
|
ASICs |
4 x Cisco Silicon One E100 and 1 x Q200L |
|
System switching capacity |
Up to 51.2 Tbps; 25.6 Tbps full-duplex |
|
Forwarding rate |
Up to 15.6 Bpps |
|
DRAM |
32 GB DDR4 |
|
SSD capacity |
Up to 960 GB SATA SSD local storage |
|
Packet buffer |
256 MB; 4 x 64 MB |
|
Minimum software release |
Cisco IOS XE 17.18.1 and later |
|
Dimensions |
4.30 x 16.64 x 18.78 in. (10.92 x 42.27 x 47.69 cm) |
|
Weight |
31.1 lb (14.1 kg) |
Application Scenarios
Use C9610-SUP-3 when a C9610R chassis needs the Supervisor 3 module as an explicit part of a modular campus core or distribution build. Do not assume the chassis line covers the supervisor requirement; the order should separately show supervisor quantity, line cards, power supplies, fan trays, optics, and software subscription coverage.
Select this SKU when the design requires two C9610-SUP-3 modules in slots 5 and 6 for supervisor redundancy. Cisco documentation says C9610-SUP-3 and C9610-SUP-3XL must not be mixed in the same chassis, so the installed or ordered pair should be checked before purchase.
Choose C9610-SUP-3 for C9610R designs focused on medium-large Layer 2 and Layer 3 forwarding scale, ACL and Flexible NetFlow scale, and standard 256 MB packet buffering rather than the larger route and buffer scale of C9610-SUP-3XL.
Product Comparison
|
Parameter |
C9610-SUP-3 | |
|---|---|---|
|
Product family |
Cisco C9610 Series Smart Switches |
Cisco C9610 Series Smart Switches |
|
Product type |
Supervisor 3 module |
Supervisor 3XL module |
|
Supported chassis |
Cisco C9610R |
Cisco C9610R |
|
Dedicated supervisor slots |
Slots 5 and 6 |
Slots 5 and 6 |
|
ASICs |
4 x Cisco Silicon One E100 and 1 x Q200L |
4 x Cisco Silicon One K100 and 1 x Q200L |
|
System switching capacity |
Up to 51.2 Tbps; 25.6 Tbps full-duplex |
Up to 51.2 Tbps; 25.6 Tbps full-duplex |
|
Forwarding rate |
Up to 15.6 Bpps |
Up to 15.6 Bpps |
|
DRAM |
32 GB |
32 GB |
|
SSD capacity |
Up to 960 GB |
Up to 960 GB |
|
Total MAC addresses |
Up to 128,000 |
Up to 128,000 |
|
IPv4 routes |
Up to 1,000,000 |
Up to 2,000,000 |
|
IPv6 routes |
Up to 500,000 |
Up to 1,000,000 |
|
Packet buffer |
256 MB; 4 x 64 MB |
256 MB plus 8 GB |
|
Minimum software release |
Cisco IOS XE 17.18.1 |
Cisco IOS XE 17.18.1 |
|
Weight |
31.1 lb (14.1 kg) |
31.1 lb (14.1 kg) |
- C9610-SUP-3 and C9610-SUP-3XL share the same C9610R supervisor slots, system switching capacity, forwarding rate, DRAM, SSD capacity, and module weight.
- C9610-SUP-3 is the tighter fit when the project needs C9610R supervisor redundancy but does not require the higher route scale and deeper buffer profile documented for C9610-SUP-3XL.
- C9610-SUP-3XL should be quoted separately when the design needs the larger IPv4 or IPv6 route scale and the additional 8 GB buffer resource shown in Cisco’s supervisor comparison.
- Commercial review should keep C9610-SUP-3 quantity separate from chassis availability. A usable quote needs the correct supervisor pair, Cisco IOS XE target, compatible line cards, optics, warranty support, and shipping date checked as one configuration.
Selection Guide
1. Match the supervisor model to the existing chassis plan
Select C9610-SUP-3 when the C9610R design, installed spare requirement, or replacement order specifically calls for Supervisor 3 rather than Supervisor 3XL.
2. Keep redundant supervisors identical
For a two-supervisor chassis, confirm that both modules are C9610-SUP-3. Mixing C9610-SUP-3 with C9610-SUP-3XL is not a supported steady configuration in Cisco documentation.
3. Check scale before choosing between SUP-3 and SUP-3XL
Use the route scale, packet buffer, ACL scale, and Flexible NetFlow requirements to decide whether C9610-SUP-3 is enough or whether the quote should move to C9610-SUP-3XL.
4. Validate the surrounding bill of materials
Treat the supervisor as the control point for the C9610R hardware stack. Confirm chassis availability, supported line cards, any C9610-LC-ADPT adapter use, Cisco IOS XE 17.18.1 or later, subscription coverage, SSD requirement, optics, warranty support, and destination shipping before the order is released.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
Confirm C9610-SUP-3 |
Separates Supervisor 3 from the higher-scale C9610-SUP-3XL model |
|
Chassis |
Confirm Cisco C9610R |
Cisco documents C9610-SUP-3 for the C9610R 10-slot chassis |
|
Supervisor Slots |
Confirm slots 5 and 6 |
The module is installed only in the dedicated C9610R supervisor slots |
|
Redundant Pair |
Confirm both supervisors are C9610-SUP-3 when redundancy is required |
A mixed C9610-SUP-3 and C9610-SUP-3XL chassis is not supported |
|
Software Release |
Confirm Cisco IOS XE 17.18.1 or later |
Cisco lists 17.18.1 as the minimum software requirement |
|
Line Cards |
Confirm native C9610 line cards and any adapter-based Catalyst 9600 line cards |
Line-card compatibility affects the final hardware and optics quote |
|

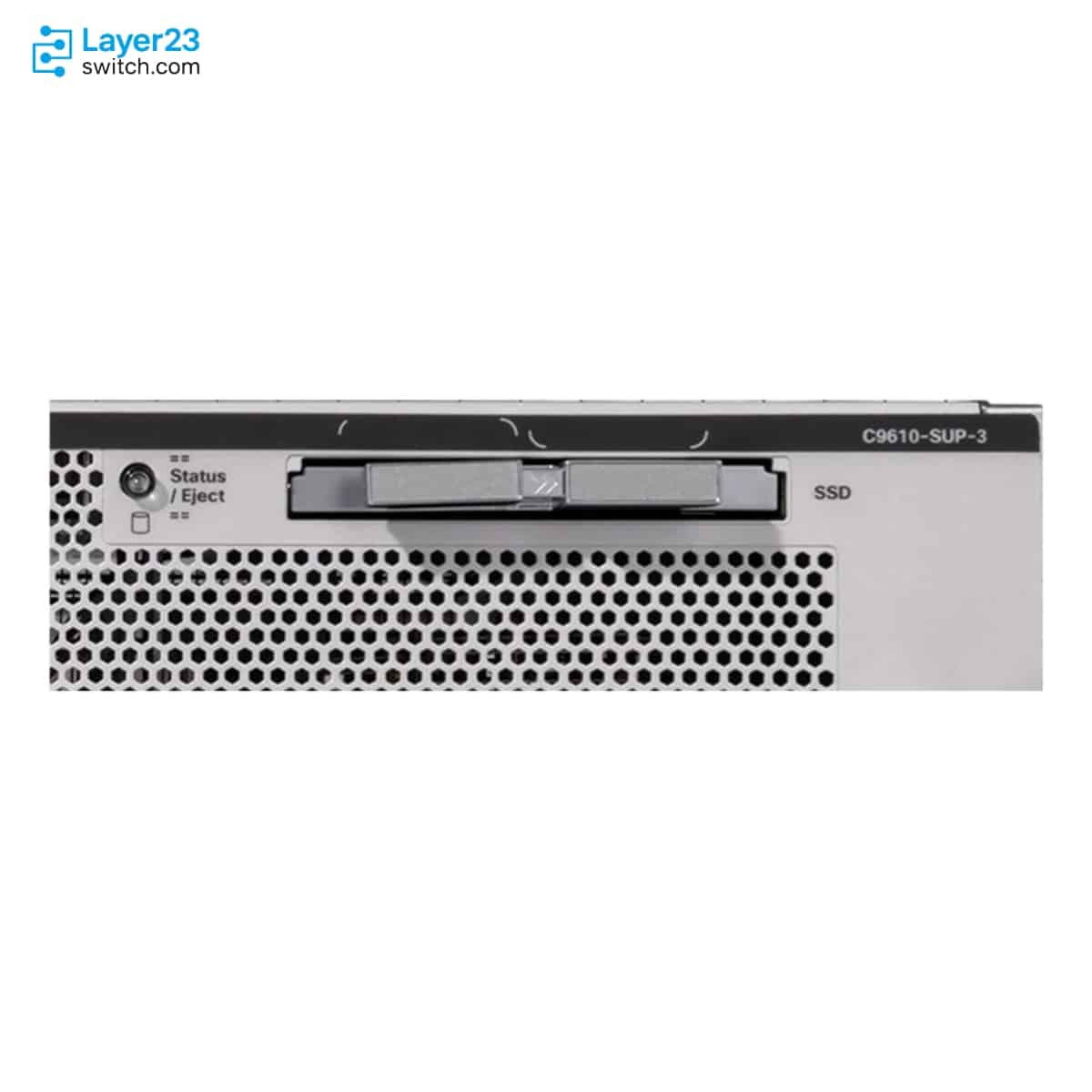

SSD Plan |
Confirm whether SATA SSD storage is required |
Cisco documents up to 960 GB local SSD storage for the supervisor platform |
|
Scale Requirement |
Confirm route, ACL, NetFlow, and buffer requirements |
These values determine whether SUP-3 is enough or SUP-3XL should be quoted |
|
Purchase Details |
Confirm price, stock status, warranty support, quote validity, and shipping destination |
Layer23-Switch can align module availability with the approved C9610R configuration |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Cisco | Product ID | C9610-SUP-3 |
| Product family | Cisco C9610 Series Smart Switches | Product type | Supervisor 3 module |
| Cisco ordering description | Cisco C9610 Series Smart Switches Supervisor 3 module | Ordering form | C9610-SUP-3 (=) |
| Supported chassis | Cisco C9610R | Dedicated supervisor slots | Slots 5 and 6 |
| Redundant supervisor support | Supported with two supervisor engine modules | Redundant supervisor requirement | Same supervisor type in the chassis |
| Forwarding ASICs | 4 x Cisco Silicon One E100 | Fabric ASIC | 1 x Cisco Silicon One Q200L |
| System switching capacity | Up to 51.2 Tbps; 25.6 Tbps full-duplex | Forwarding rate | Up to 15.6 Bpps |
| Per-slot bandwidth context | Up to 6.4 Tbps per line-card slot | DRAM | 32 GB DDR4 |
| SSD capacity | Up to 960 GB SATA SSD local storage | Packet buffer | 256 MB; 4 x 64 MB |
| Total MAC addresses | Up to 128,000 | VLAN IDs | 4094 |
| IPv4 routes | Up to 1,000,000 | IPv6 routes | Up to 500,000 |
| ARP entries | Up to 128,000 | NDP entries | Up to 128,000 |
| IGMP and MLD snooping entries | Up to 16,000 | Multicast routes | Up to 32,000 |
| Jumbo frames | 9216 bytes | Minimum software release | Cisco IOS XE 17.18.1 and later |
| Native line card compatibility | C9610-LC-32CD and C9610-LC-40YL4CD | Adapter-based line card compatibility | C9600-LC-40YL4CD, C9600-LC-48TX, C9600X-LC-32CD, and C9600X-LC-56YL4C with C9610-LC-ADPT |
| Management interfaces | RJ-45 Ethernet management, 10G SFP+ management, RJ-45 console, USB-C console, and USB Type A host | Timing interfaces | 10 MHz DIN, 1PPS DIN, and TOD PTP RJ-45 |
| Dimensions | 4.30 x 16.64 x 18.78 in. (10.92 x 42.27 x 47.69 cm) | Module rack units | 2.5 RU |
| Weight | 31.1 lb (14.1 kg) | MTBF | 223,220 hours |
| Operating temperature | 23 to 113 deg F (-5 to 45 deg C) at sea level; 23 to 104 deg F (-5 to 40 deg C) up to 6,000 ft | Storage temperature | -40 to 158 deg F (-40 to 70 deg C) |
| Relative humidity | 10% to 95%, noncondensing | Altitude | -197 to 9843 ft (-60 to 3000 m) |
