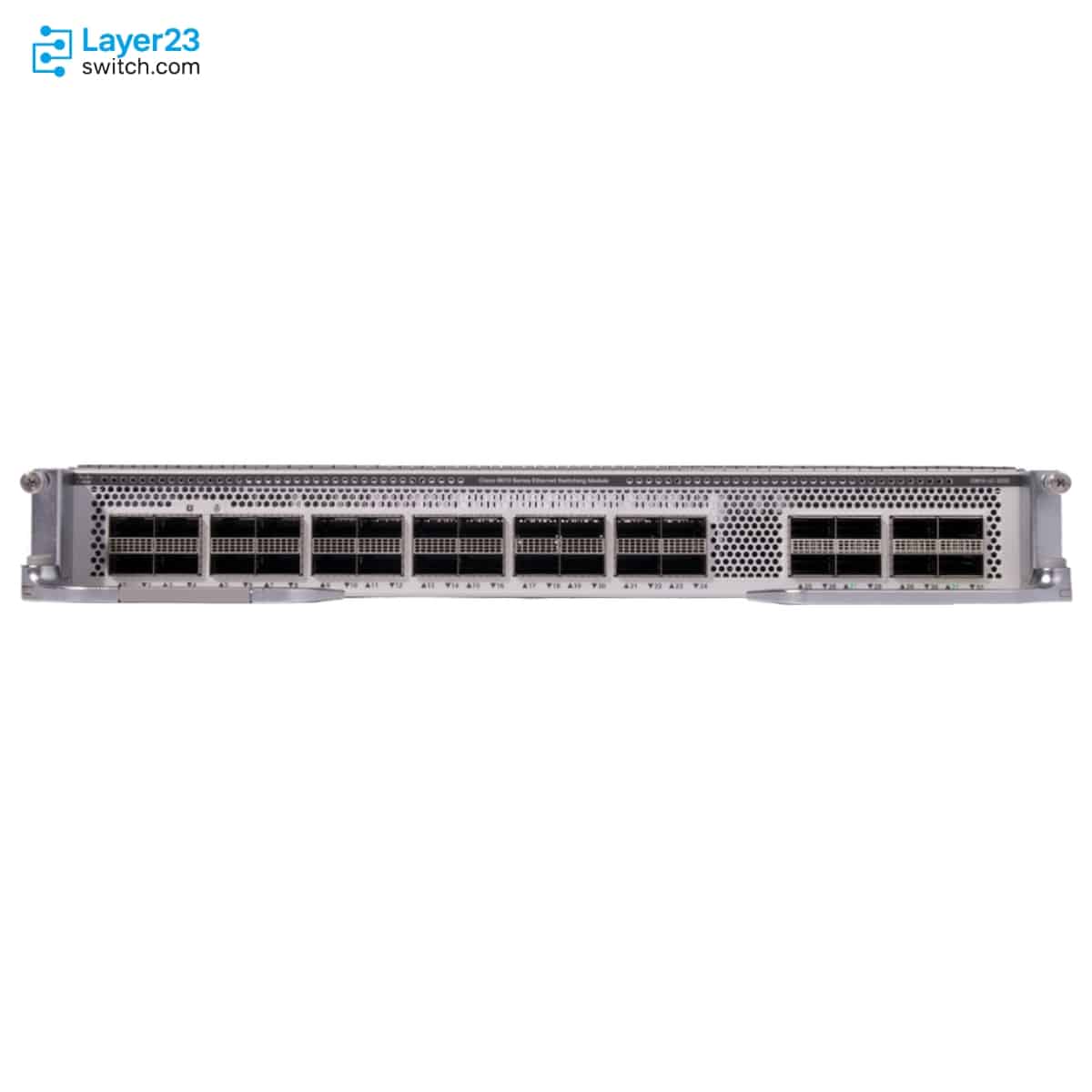

C9610-LC-32CD – 30x100G QSFP28 Ports – 2x400G QSFP-DD Ports – C9610R Line Card
0/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9610-LC-32CD Description
C9610-LC-32CD is a native Cisco C9610 line card for C9610R chassis builds that need dense 100G/40G QSFP28 ports plus QSFP-DD uplink capacity.
This card is a strong fit when the C9610R port plan is centered on QSFP aggregation or core links instead of SFP56 access density. It should be planned with C9610-SUP-3 or C9610-SUP-3XL, the target line-card slots, and the Cisco IOS XE release that supports the hardware.
Before ordering, confirm the C9610R chassis, supervisor pair, slot plan, QSFP28 optics, QSFP-DD optics, 200G requirements, and software release. Layer23-Switch can help check price, stock, warranty coverage, shipping timing, and optics compatibility for the final quote.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9610-LC-32CD |
|
Product family |
Cisco C9610 Series Smart Switches |
|
Product type |
Combo line card |
|
Cisco ordering description |
Cisco C9610 Series Smart Switches combo line card |
|
Native chassis |
Cisco C9610R |
|
Supervisor compatibility |
C9610-SUP-3 and C9610-SUP-3XL |
|
Supported line-card slots |
Slots 1, 2, 3, 4, 7, 8, 9, and 10 |
|
QSFP28 ports |
30 ports supporting 100G/40G |
|
QSFP-DD ports |
2 ports supporting 400G/100G/40G |
|
Cisco ordering port profile |
30 ports 100/40G QSFP28; 2 ports 400/200/100G QSFP-DD |
|
Documented port modes |
32 x 100G; 28 x 100G plus 1 x 400G; 24 x 100G plus 2 x 400G |
|
Bandwidth per slot |
6.4 Tbps per slot; 3.2 Tbps full-duplex |
|
Minimum software release |
Cisco IOS XE 17.18.1 |
|
AC-input power |
495 W |
|
DC-output power requested |
450 W |
|
Heat dissipation |
1689 BTU/hr |
|
Weight |
13.45 lb (6.1 kg) |
Application Scenarios
Use C9610-LC-32CD when a C9610R chassis needs a QSFP-heavy line card for 100G or 40G core, distribution, or aggregation links and the design does not require SFP56 port density on the same module.
Select this line card when the port plan includes QSFP-DD 400G uplinks from a C9610R system. Cisco documents operating modes that preserve 100G density while allowing one or two 400G QSFP-DD connections.
Choose C9610-LC-32CD when the project wants a native C9610 line card instead of installing a Catalyst 9600 Series line card through the C9610-LC-ADPT adapter.
Product Comparison
|
Parameter |
C9610-LC-32CD | ||
|---|---|---|---|
|
Product family |
Cisco C9610 Series Smart Switches |
Cisco C9610 Series Smart Switches |
Cisco Catalyst 9600 Series Switches |
|
Product type |
Combo line card |
Combo line card |
Combo line card |
|
C9610R installation |
Native C9610 line card |
Native C9610 line card |
Requires C9610-LC-ADPT adapter |
|
QSFP28 ports |
30 x 100G/40G |
Not the primary port type |
30 x 100G/40G |
|
SFP56 ports |
Not the primary port type |
40 x 50G/25G/10G/1G |
Not the primary port type |
|
QSFP56 ports |
Not the primary port type |
2 x 200G/100G/40G |
Not the primary port type |
|
QSFP-DD ports |
2 x 400G/100G/40G |
2 x 400G/200G/100G/40G |
2 x 400G/100G/40G |
|
Supervisor compatibility |
C9610-SUP-3 and C9610-SUP-3XL |
C9610-SUP-3 and C9610-SUP-3XL |
C9610-SUP-3 and C9610-SUP-3XL with adapter |
|
Supported C9610R slots |
1, 2, 3, 4, 7, 8, 9, and 10 |
1, 2, 3, 4, 7, 8, 9, and 10 |
1, 2, 3, 4, 7, 8, 9, and 10 with adapter |
|
Bandwidth per slot |
6.4 Tbps per slot; 3.2 Tbps full-duplex |
6.4 Tbps per slot; 3.2 Tbps full-duplex |
6.4 Tbps per slot; 3.2 Tbps full-duplex |
|
Minimum software release |
Cisco IOS XE 17.18.1 |
Cisco IOS XE 17.18.1 |
Cisco IOS XE 17.18.1 |
|
AC-input power |
495 W |
466 W |
495 W |
|
DC-output power requested |
450 W |
420 W |
450 W |
|
Heat dissipation |
1689 BTU/hr |
1590 BTU/hr |
1689 BTU/hr |
|
Weight |
13.45 lb (6.1 kg) |
13.89 lb (6.3 kg) |
8.71 lb (3.95 kg) |
- C9610-LC-32CD is the native C9610 option for QSFP-heavy designs where 100G/40G density and 400G QSFP-DD uplinks are the main requirement.
- C9610-LC-40YL4CD is the better native C9610 comparison when the same chassis needs 50G/25G/10G/1G SFP56 density plus QSFP uplinks.
- C9600X-LC-32CD is close in port role, but C9610R use requires the C9610-LC-ADPT adapter, so it should be checked separately in migration or installed-base quotes.
- For price and stock checks, treat optics, supervisor selection, software release, adapter use, support coverage, and global shipping as separate approval items.
Selection Guide
1. Choose it for QSFP-heavy C9610R designs
Select C9610-LC-32CD when the design requires a native C9610R line card with high-density 100G/40G QSFP28 capacity and documented QSFP-DD 400G modes.
2. Choose 40YL4CD when SFP56 density matters
Move to C9610-LC-40YL4CD when the port plan is mostly 50G, 25G, or 10G SFP56 connections and only a smaller QSFP uplink block is required.
3. Separate native line cards from adapter-based line cards
When comparing C9610-LC-32CD with C9600X-LC-32CD, confirm whether the project is ordering a native C9610 line card or reusing a Catalyst 9600X line card through C9610-LC-ADPT.
4. Validate optics and software before purchase
Confirm Cisco-supported QSFP28 and QSFP-DD optics, the required 400G or 200G mode, Cisco IOS XE release, and supervisor module type before the bill of materials is approved.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
Confirm C9610-LC-32CD |
Separates the native C9610 32CD line card from the C9600X-LC-32CD adapter-based option |
|
Chassis |
Confirm Cisco C9610R |
This line card is documented for the C9610R modular chassis |
|
Supervisor Module |
Confirm C9610-SUP-3 or C9610-SUP-3XL |
Cisco lists both supervisor modules as compatible with this line card |
|
Slot Plan |
Confirm slots 1, 2, 3, 4, 7, 8, 9, or 10 |
The line card must be placed in supported C9610R line-card slots |
|
Software Release |
Confirm Cisco IOS XE 17.18.1 or later support context |
Cisco documents 17.18.1 as the minimum release for C9610-LC-32CD |
|
QSFP28 Media |
Confirm 100G or 40G QSFP28 optics and cable choices |
The majority of the line-card capacity is built around QSFP28 ports |
|
QSFP-DD Media |
Confirm 400G, 100G, or required 200G optic availability |
QSFP-DD speed support must match Cisco optics availability and project port mode |
|
Adapter Handling |
Confirm whether C9610-LC-ADPT is absent or intentionally used elsewhere |
Native C9610-LC-32CD orders should not be confused with Catalyst 9600X line cards using an adapter |
|
Purchase Details |
Confirm price, stock status, warranty support, and destination shipping |
Layer23-Switch can align the commercial quote with the technical bill of materials |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Cisco | Product ID | C9610-LC-32CD |
| Product family | Cisco C9610 Series Smart Switches | Product type | Combo line card |
| Cisco ordering description | Cisco C9610 Series Smart Switches combo line card | Ordering form | C9610-LC-32CD (=) |
| Native chassis | Cisco C9610R | Supervisor compatibility | C9610-SUP-3 and C9610-SUP-3XL |
| Supported line-card slots | Slots 1, 2, 3, 4, 7, 8, 9, and 10 | Bandwidth per slot | 6.4 Tbps per slot; 3.2 Tbps full-duplex |
| QSFP28 ports | 30 ports supporting 100G/40G | QSFP-DD ports | 2 ports supporting 400G/100G/40G |
| Cisco ordering port profile | 30 ports 100/40G QSFP28; 2 ports 400/200/100G QSFP-DD | Documented 100G mode | 100G connectivity on all 32 ports |
| Documented 400G mode 1 | 100G connectivity on 28 ports and 1 x 400G on the QSFP-DD port in a port group | Documented 400G mode 2 | 100G connectivity on 24 ports and 2 x 400G on the QSFP-DD ports in both port groups |
| Minimum software release | Cisco IOS XE 17.18.1 | Optics requirement | Cisco-supported pluggable optics required for fiber-optic line-card operation |
| AC-input power | 495 W | DC-output power requested | 450 W |
| Current at 90V | 5.6 A | Current at 120V | 4.2 A |
| Current at 180V | 2.8 A | Current at 240V | 2.1 A |
| Heat dissipation | 1689 BTU/hr | Weight | 13.45 lb (6.1 kg) |
Get More Information
Need pricing, stock, or shipping details for the C9610-LC-32CD ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
