Which Catalyst 9600 chassis accept C9600-PWR-2KWDC?

C9600-PWR-2KWDC installs in the Catalyst 9606R chassis, which has four power supply bays and needs a minimum of two supplies. It fits only the C9606R power supply bays, and no other Catalyst 9600 host is listed in the datasheet.

Can C9600-PWR-2KWDC be mixed with AC modules in one C9606R?

Yes, but only when every module has equal wattage and the AC input is 220V. The rule applies in combined mode and in N+1 redundant mode, where one supply is reserved for redundancy.

Can C9600-PWR-2KWDC share a C9606R with AC modules on 110V feeds?

No. Mixing AC and DC modules requires the AC input to be 220V, and AC supplies cannot mix 110V and 220V inputs in the same chassis. A site with only 110V AC feeds cannot install AC modules next to C9600-PWR-2KWDC, so wire the AC side for 220V first.

How much does each added C9600-PWR-2KWDC contribute in Combined mode?

Each additional C9600-PWR-2KWDC adds about 90 percent of its capacity in Combined mode, which is the default. In N+1 mode one module is held as spare, so the loss of one DC module is tolerated. Choose the mode before you size the PoE budget for the chassis.

Does C9600-PWR-2KWDC have its own on/off switch in the C9606R?

Yes, each power supply has its own on/off switch. The Catalyst 9606R has four power supply slots, and Combined is the default redundancy mode. Switch the module off before you remove it, so the chassis can rebalance the load across the remaining modules without a surprise.

What DC hold-up time does C9600-PWR-2KWDC provide?

C9600-PWR-2KWDC provides 5 ms of DC output hold-up, per Table 4 of the Catalyst 9600 datasheet. Check that figure against the DC plant switchover time and the cable run before you approve the design, because a longer interruption drops the module output.

C9600-PWR-2KWDC – 2000W DC PSU – Catalyst 9600 – DC 70A Cord

Name: C9600-PWR-2KWDC - Cisco Catalyst 9600 2000W DC Power Supply
Brand: Cisco
SKU: C9600-PWR-2KWDC
Price: 3604.00 USD
Availability: InStock
Rating: 4.33 (3 reviews)

Brand: Cisco Category: Catalyst 9600 Switches Model: C9600-PWR-2KWDC

Rated 4.33 out of 5 based on 3 customer ratings

4.33 reviews6 Questions

List Price: ~~$7,561.18~~ 52% OFF

$3,604.00

Price Alert

In StockShips in as little as 1 business day Brand New

Related models

Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policyExpress Shipping2-6 Business Daysvia UPS, FedEx, DHL and more

Trusted & Secure Payments

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded

Customers

Units shipped

Countries

Inventory You Can See

Cisco stock on hand

Models ready to ship

Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

Advance replacement for in-stock models
New unit for dead-on-arrival
14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

C9600-PWR-2KWDC Description

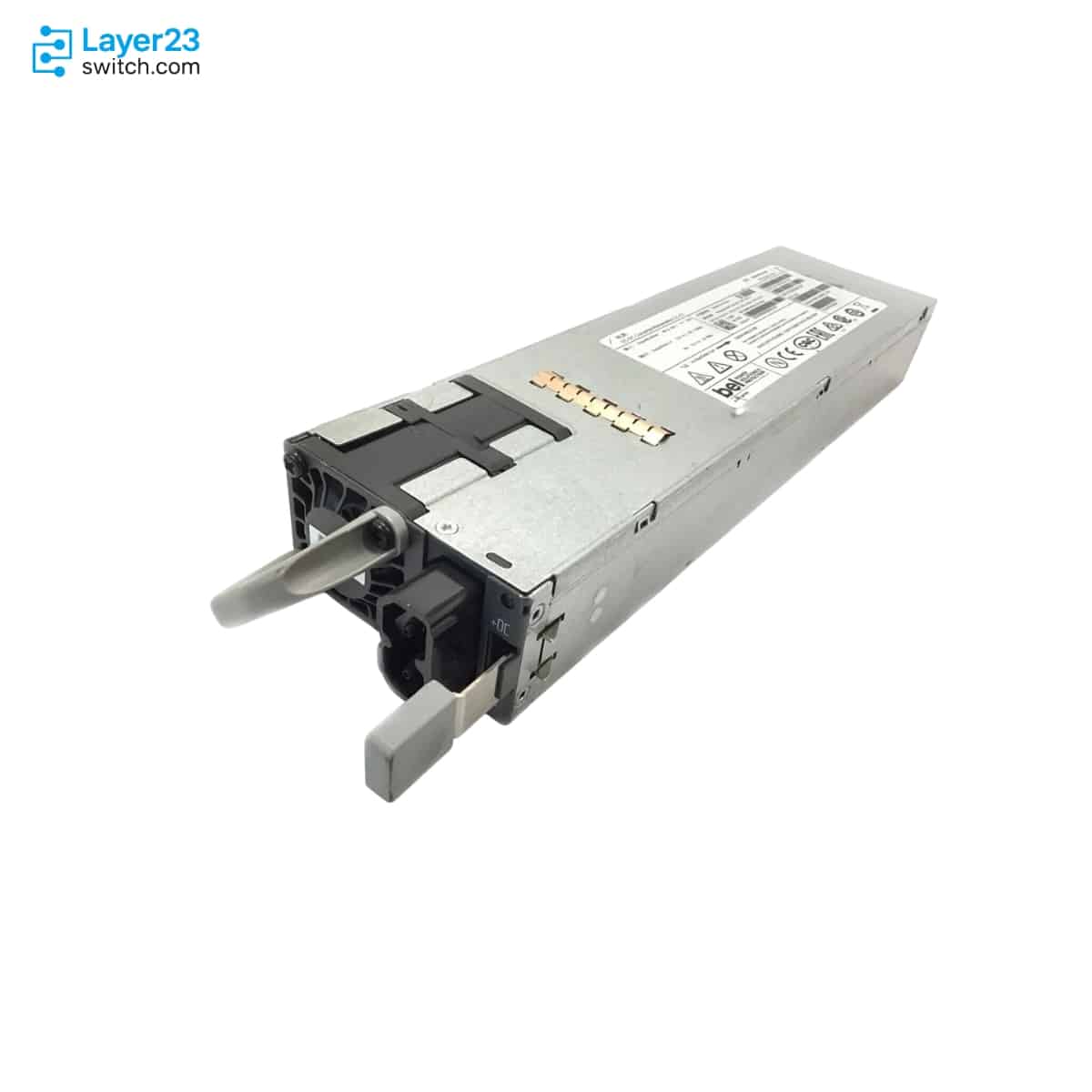

The C9600-PWR-2KWDC is a Cisco Catalyst 9600 Series 2000W DC power supply module for the Catalyst 9606R chassis. The module takes -40 to -72 VDC input at up to 60A per input, delivers 2000W of 12V output at 167A and cools front to rear. DC and AC modules can share a chassis only when every module has the same wattage and the AC input is 220V.

Quick Specs

Parameter	Specification
Product ID	C9600-PWR-2KWDC
Cisco ordering form	C9600-PWR-2KWDC (=)
Product type	2000W DC power supply module
Supported chassis	Cisco Catalyst 9606R
Chassis PSU bays	Four power-supply bays
Input type	DC
DC input voltage range	-40 to -72 VDC, with extended range to -75 VDC
Max power rating	2000W
12V output capacity	2000W; 12Vmain at 167A
DC input current	Maximum 60A per DC input at -40 VDC input
Power cord path	PWR-2KW-DC-CBL, DC 70A
Power supply modes	Combined mode and N+1 redundant mode

Application Scenarios

DC-Fed Equipment Room

In a facility with a DC power plant in the -40 to -72 VDC range, the module powers a Catalyst 9606R from DC input and carries a 70A-rated cord.

N+1 DC Redundancy

A Catalyst 9606R with two or more of these modules can run in N+1 redundant mode, with one module held in reserve while the others carry the chassis load.

Product Comparison

Parameter	C9600-PWR-2KWDC	C9600-PWR-2KWAC	C9600-PWR-3KWAC
Max power rating	2000W	2000W	3000W
Input voltage range and frequency	-40VDC to -72VDC	90VAC to 140VAC and 180VAC to 264VAC, 47 to 63 Hz	90VAC to 140VAC and 180VAC to 264VAC, 47 to 63 Hz
Input current	Maximum 60A per DC input at -40VDC input	10.5A max at 115VAC (1050W); 10.5A max at 230VAC (2000W)	17.6A max at 115VAC (1500W); 17.6A max at 230VAC (3000W)
Output ratings	12Vmain at 167A (2000W)	12Vmain at 88A (1050W); 12Vmain at 167A (2000W)	12Vmain at 125A (1500W); 12Vmain at 250A (3000W)
Power supply efficiency	92% (typical)	94% (typical)	94% (typical)

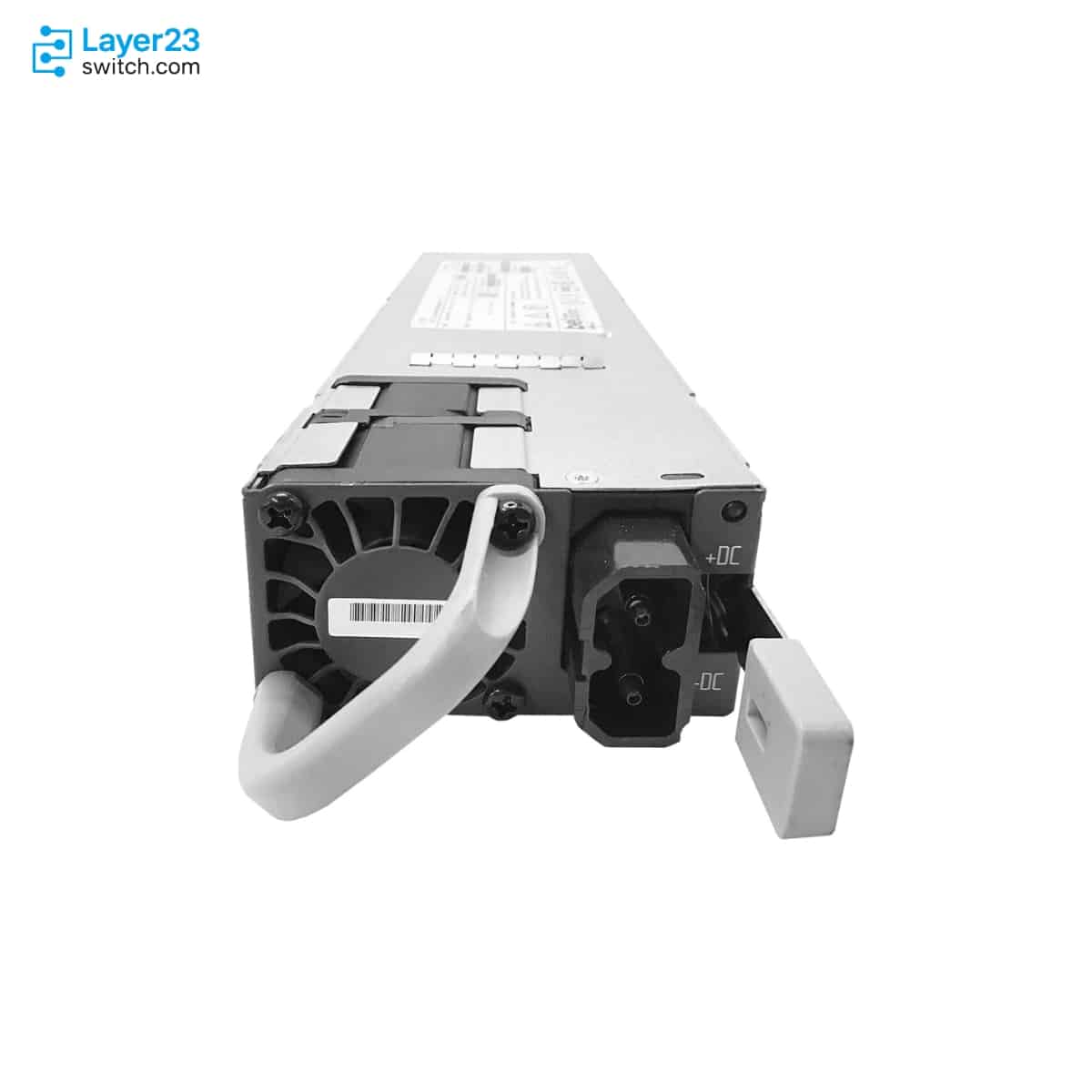

Power-supply input receptacles	Amphenol C10-638976-000	AC IEC 60320 C16	AC IEC 60320 C20

C9600-PWR-2KWDC is the only DC module in this group, taking -40 to -72 VDC at up to 60A per input and delivering 2000W, while C9600-PWR-2KWAC and C9600-PWR-3KWAC are AC modules for 90 to 140 VAC or 180 to 264 VAC feeds. A site on AC power orders C9600-PWR-2KWAC for 2000W at 180 to 264 VAC, or C9600-PWR-3KWAC when each module must supply 3000W. AC and DC modules can share a chassis only when the AC input is 220V and every module has the same wattage, which rules out C9600-PWR-3KWAC beside C9600-PWR-2KWDC.

Ordering Checklist

Catalyst 9600 hosts: Install the module in a Catalyst 9600 Series C9606R chassis, which supports 3000W AC, 2000W AC and 2000W DC power supplies. It fits only the C9606R power-supply bays, and no other Catalyst 9600 host is listed in the datasheet.

Specifications

Parameter	Specification	Parameter	Specification
Product ID	C9600-PWR-2KWDC	Cisco ordering form	C9600-PWR-2KWDC (=)
Cisco ordering description	Cisco Catalyst 9600 Series 2000W DC Power Supply	Supported chassis	Cisco Catalyst 9606R
Product type	2000W DC power supply module	Chassis PSU bays	Four
Minimum C9606R PSU count	Two	Input type	DC
DC input voltage	-40 to -72 VDC, with extended range to -75 VDC	Max power rating	2000W
12V output capacity	For 12VDC output: 2000W	Output rating	12Vmain at 167A
DC input current	Maximum 60A per DC input at -40 VDC input	Power supply efficiency	92 percent typical
Output holdup time	5 ms with 1200W output	Input receptacle	Amphenol C10-638976-000
Power cord rating	DC 70A	DC power cord	PWR-2KW-DC-CBL
DC cord length range	9.84 to 14 ft (3.0 to 4.293 m)	Cooling airflow	Minimum 9.5 CFM at 100 percent load
Module airflow	Front-to-rear airflow	DC-input protection	DC-input reversal protection up to the full input voltage rating
Power supply modes	Combined mode and N+1 redundant mode	Combined mode rule	Equal-wattage PSUs; AC/DC mix only if AC input is 220V
N+1 mode rule	One PSU is reserved for redundancy	Operating temperature	-5C to 45C
Heat dissipation	932 BTU/hr maximum	Weight	1.28 kg (2.82 lb)
Unused bay cover	C9606-PWR-BLANK=	AC/DC mix boundary	AC and DC may be mixed only under Cisco-documented equal-wattage and 220V AC conditions
