FPR3105-ASA-K9 Description
FPR3105-ASA-K9 is a Cisco Secure Firewall 3105 ASA firewall appliance in the Cisco Secure Firewall 3100 Series, supplied as a 1RU chassis for deployments that run Cisco Secure ASA software.
The main procurement distinction is the 3105 ASA scale point. FPR3105-ASA-K9 keeps the ASA orderable identity and 3105 performance row, while FPR3105-NGFW-K9 is the Threat Defense orderable PID and FPR3110-ASA-K9 moves the ASA buyer to the next 3100 Series capacity tier.
Quote review should confirm the ASA PID, target ASA and ASDM release, optional security context license need, 8 RJ-45 plus 8 1/10G SFP fixed-port plan, selected 3100 Series network module, 400W AC or DC power plan, regional power cords, warranty support, price, and shipping destination.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
FPR3105-ASA-K9 |
|
Product family |
Cisco Secure Firewall 3100 Series |
|
Product type |
Cisco Secure Firewall 3105 ASA appliance |
|
Security software role |
Cisco Secure ASA |
|
Form factor |
1RU |
|
Fixed data ports |
8 x RJ-45 and 8 x 1/10G SFP fixed ports |
|
Network module slot |
One removable network module slot |
|
Supported module profile |
8 x 1/10G network module options |
|
Storage |
1 x 900 GB SSD with 1 spare slot |
|
Power supply configuration |
Ships with one 400W AC power supply; dual AC optional; DC optional |
|
Stateful inspection firewall throughput |
10 Gbps |
|
ASA multiprotocol firewall throughput |
9 Gbps |
|
Concurrent firewall connections |
1.5 million |
Product Performance
Key Features
Cisco identifies FPR3105-ASA-K9 as the Secure Firewall 3105 ASA appliance, keeping the BOM aligned to Cisco Secure ASA rather than the Threat Defense orderable PID.
The 3105 hardware profile includes eight RJ-45 fixed ports and eight fixed SFP interfaces for 1G or 10G fiber planning on the base appliance.
The chassis provides one removable network module slot, and Cisco lists 1G and 10G module options that should be matched to the interface plan before ordering.
The 3105 is the first ASA model in the Secure Firewall 3100 performance table, with lower throughput and connection scale than the 3110 ASA row.
Cisco states that Secure Firewall 3105 support begins with Cisco Secure Firewall ASA 9.19 and later, making release planning part of the quote check.
The 3105 ships with one 400W AC power supply and can be ordered with a second supply for redundancy, so the power design should be settled before the firewall line is approved.
Application Scenarios
Choose FPR3105-ASA-K9 when the approved design stays on Cisco Secure ASA and the sizing file maps to the 3105 throughput, connection, VPN, and security-context entries.
Use this SKU when the base appliance needs eight RJ-45 interfaces, eight 1/10G SFP interfaces, and one 3100 Series network-module slot for additional ports.
Select the ASA PID when asset standards, migration plans, or operational approval name Cisco Secure ASA instead of the FPR3105-NGFW-K9 Threat Defense appliance.
Product Comparison
|
Parameter |
FPR3105-ASA-K9 | ||
|---|---|---|---|
|
Product family |
Secure Firewall 3100 Series |
Secure Firewall 3100 Series |
Secure Firewall 3100 Series |
|
Cisco PID description |
Cisco Secure Firewall 3105 ASA Appliance, 1RU |
Cisco Secure Firewall 3105 Appliance with Threat Defense software |
Cisco Secure Firewall 3110 ASA Appliance, 1RU |
|
Firewall model |
Secure Firewall 3105 |
Secure Firewall 3105 |
Secure Firewall 3110 |
|
Security software role |
Cisco Secure ASA |
Threat Defense / NGFW |
Cisco Secure ASA |
|
Form factor |
1RU |
1RU |
1RU |
|
Fixed data ports |
8 x RJ-45 and 8 x 1/10G SFP |
8 x RJ-45 and 8 x 1/10G SFP |
8 x RJ-45 and 8 x 1/10G SFP |
|
Network module slot |
1 |
1 |
1 |
|
ASA stateful firewall throughput |
10 Gbps |
Not an ASA SKU |
18 Gbps |
|
ASA multiprotocol firewall throughput |
9 Gbps |
Not an ASA SKU |
15 Gbps |
|
Concurrent firewall connections |
1.5 million |
Not an ASA SKU |
2 million |
|
New connections per second |
150000 |
Not an ASA SKU |
300000 |
|
ASA IPsec VPN throughput |
5.5 Gbps |
Not an ASA SKU |
8 Gbps |
|
Maximum VPN peers |
2000 |
Not an ASA SKU |
3000 |
|
Security contexts |
2 included; 100 maximum |
Not an ASA SKU |
2 included; 100 maximum |
|
Clustering |
No clustering on 3105 |
No clustering on 3105 model |
8 chassis |
|
Power supply configuration |
Single 400W AC; dual AC optional; DC optional |
Single 400W AC; dual AC optional; DC optional |
Single 400W AC; dual AC optional; DC optional |
- In a FPR3105-ASA-K9 vs FPR3105-NGFW-K9 comparison, the hardware model stays at Secure Firewall 3105, but the orderable software role changes from Cisco Secure ASA to Threat Defense / NGFW.
- The FPR3105-ASA-K9 difference from FPR3110-ASA-K9 is the ASA capacity row: the 3110 raises stateful throughput, multiprotocol throughput, connection scale, new-connection rate, VPN throughput, VPN peers, and clustering support.
- For buyers comparing FPR3105-ASA-K9 vs FPR3105-NGFW-K9 vs FPR3110-ASA-K9, which model to choose should follow the required security software role first and the ASA sizing row second.
Selection Guide
1. Confirm the ASA orderable identity first
Choose FPR3105-ASA-K9 only when the firewall standard calls for Cisco Secure ASA on a Secure Firewall 3105 appliance.
2. Use the 3105 ASA row for entry 3100 sizing
Select this model when 10 Gbps stateful inspection throughput, 9 Gbps multiprotocol throughput, or 1.5 million concurrent firewall connections fit the approved design.
3. Compare FPR3110-ASA-K9 when scale or clustering changes
Move to FPR3110-ASA-K9 when the BOM requires the higher ASA throughput values, higher VPN peer count, higher new-connection rate, or clustering support shown for the 3110.
4. Keep release and expansion planning together
Verify ASA 9.19 or later, the matching ASDM path, optional security context licensing, fixed-port optics, 3100 Series network module choice, and power-cord selection before quote approval.
Ordering Checklist
|
Review Area |
Required Decision |
Source-Based Risk |
|---|---|---|
|
Exact orderable PID |
Confirm FPR3105-ASA-K9 rather than FPR3105-NGFW-K9 |
Cisco lists separate ASA and Threat Defense PIDs for the 3105 appliance |
|
ASA software plan |
Confirm Cisco Secure Firewall ASA 9.19 or later and a compatible ASDM release |
Cisco states the Secure Firewall 3105 first supports ASA 9.19 and later |
|
Security context licensing |
Decide whether the included contexts are enough or add 3100 Series ASA context licenses |
The ordering guide lists optional 5-context and 10-context add-on SKUs for ASA |
|
Fixed-port media |
Match RJ-45 copper and 1/10G SFP optics to the cabling plan |
The 3105 fixed-port profile is lower than the 3130 and 3140 25G-capable profile |
|
Network module choice |
Select a Cisco-listed 3100 Series module that fits the 3105 interface requirement |
Ordering a 25G, 40G, or 100G expansion plan without model support can break the BOM |
|
Power design |
Confirm one AC supply, optional second AC supply, or DC supply plan plus regional power cords |
The 3105 does not ship with dual AC supplies by default |
|
Commercial review |
Review price, availability, warranty support, and shipping destination after technical signoff |
Buying terms should follow the confirmed ASA PID, modules, licenses, optics, and power plan |
Optional Add-ons
|
Model |
Description |
|---|---|
|
FPR3K-XNM-8X10G |
3100 Series 8-port 1G/10G SFP+ network module |
|
FPR3K-XNM-8X1GF |
8-port 10/100/1000Base-T hardware bypass network module |
|
FPR3K-XNM-6X10SRF |
6-port 10G SFP SR multimode hardware bypass network module |
|
FPR3K-XNM-6X10LRF |
6-port 10G SFP LR single-mode hardware bypass network module |
|
L-FPR3K-ASASC-10= |
Cisco Secure Firewall 3100 add-on 10 security context licenses |
|
L-FPR3K-ASASC-5= |
Cisco Secure Firewall 3100 add-on 5 security context licenses |
|
L-FPR3K-ENC-K9= |
Strong encryption license for ASA on Cisco Secure Firewall 3100 Series |
|
FPR3K-PWR-AC-400= |
Cisco Secure Firewall 3100 Series 400W AC power supply |
|
FPR3K-FAN= |
Cisco Secure Firewall 3100 Series fan tray |
|
FPR3K-SSD900= |
Cisco Secure Firewall 3100 Series 900 GB SSD |
|
FPR3K-SLIDE-RAILS= |
Cisco Secure Firewall 3100 Series slide rail kit |

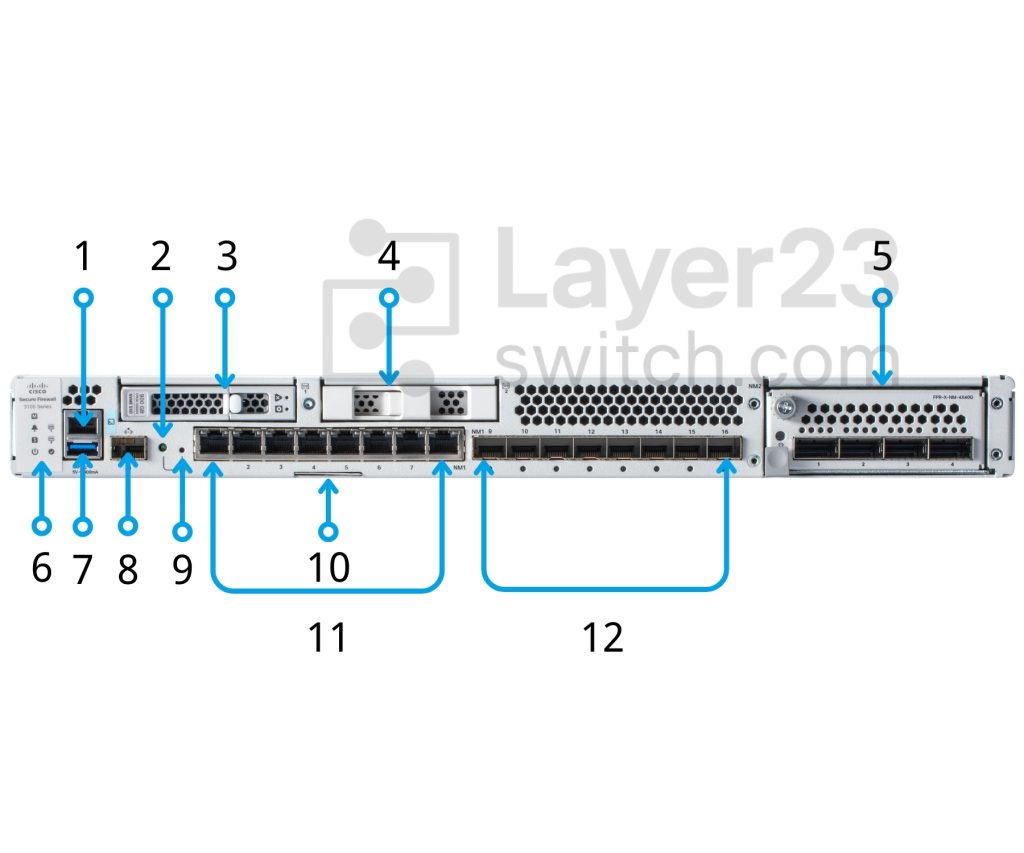

Front View
|
1 |
RJ-45 console port |
2 |
Recessed factory reset button |
|
3 |
SSD-1 |
4 |
SSD-2 |
|
5 |
Network module (NM-2) |
6 |
System LEDs |
|
7 |
Type A USB 3.1 port |
8 |
Gigabit Ethernet management port:Secure Firewall Threat Defense—Management 0 (also referred to as Management 1/1 and Diagnostic 1/1)ASA—Management 1/1 |
|
9 |
Reset button LED |
10 |
Pullout asset card with chassis serial number, getting started guide QR code, and LTP QR code |
|
11 |
Eight fixed RJ-45 ports (NM-1)RJ-45 ports named Ethernet 1/1 through 1/8 left to right; for a list of supported SFPs. |
12 |
Eight fixed SFP+ ports (NM-1)SFP+ ports named Ethernet 1/9 through 1/16 left to right; for a list of supported SFPs. |

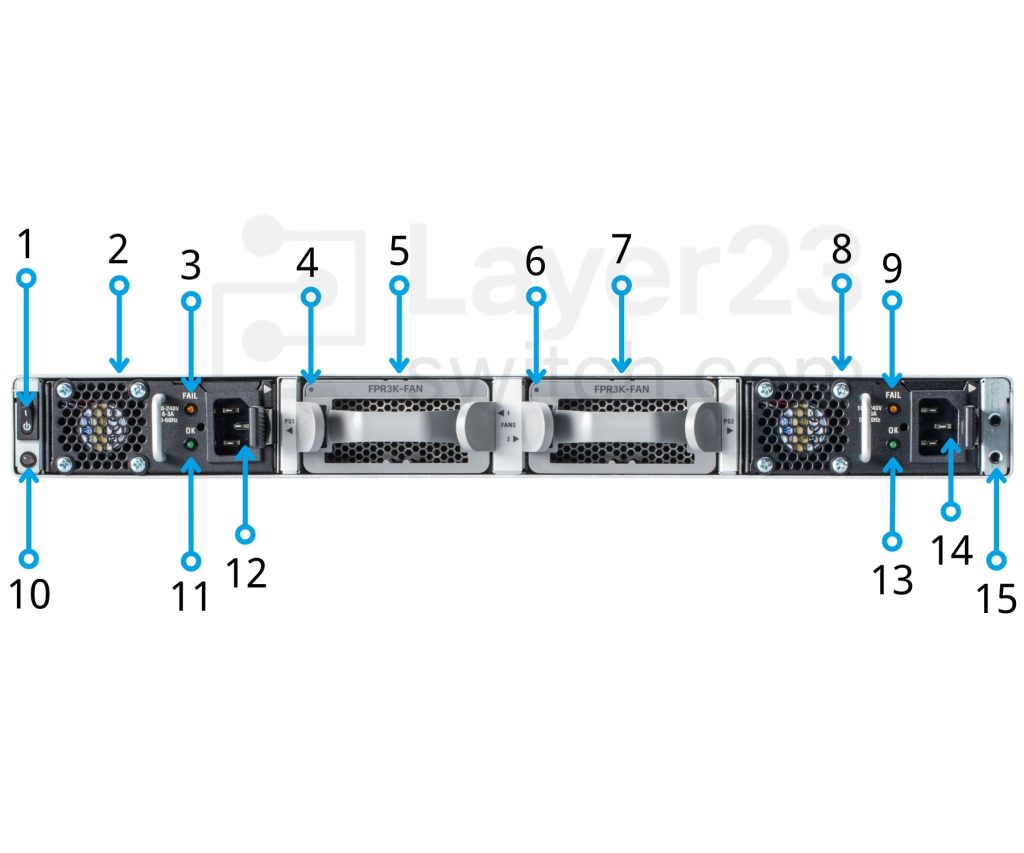

Rear View
|
1 |
Power on/off switch |
2 |
Power supply module (PSU-1) |
|
3 |
Power supply module FAIL LED (PSU-1) |
4 |
Fan module LED (FAN-1) |
|
5 |
Fan module (FAN-1) |
6 |
Fan module LED (FAN-2) |
|
7 |
Fan module (FAN-2) |
8 |
Power supply module (PSU-2) |
|
9 |
Power supply module FAIL LED (PSU-2) |
10 |
Chassis power LEDNote This power LED has the same behavior as the front panel LED. See Front Panel LEDs for more information. |
|
11 |
Power supply module OK LED (PSU-1) |
12 |
Power supply module connector (PSU-1) |
|
13 |
Power supply module OK LED (PSU-2) |
14 |
Power supply module connector (PSU-2) |
|
15 |
Two-post grounding padNote The two-post grounding lug and two screws are included in the accessory kit. |
— |
Specifications
Packaging weight and dimensions included:| Weight | 26.04 kg |
|---|---|
| Dimensions | 78 × 57 × 23 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | FPR3105-ASA-K9 | Product Family | Cisco Secure Firewall 3100 Series |
| Product Type | Cisco Secure Firewall 3105 ASA appliance | Firewall Model | Secure Firewall 3105 |
| Security Software Role | Cisco Secure ASA | Minimum ASA Release | ASA 9.19 and later |
| Form Factor | 1RU | Dimensions | 1.75 x 17 x 20 in. (4.4 x 43.3 x 50.8 cm) |
| Airflow | Front to rear; I/O side to non-I/O side | Fixed RJ-45 Ports | 8 x 10M/100M/1GBASE-T Ethernet interfaces |
| Fixed SFP Ports | 8 x 1/10 Gigabit Ethernet SFP interfaces | Maximum Ethernet Ports | Up to 24 total Ethernet ports with network module |
| Network Module Slot | One removable network module slot | 3105 Optional Interface Profile | 10G SFP+ options |
| Management Port | 1 x 1/10G SFP management port | Console Port | 1 x RJ-45 serial console |
| USB Port | 1 x USB Type-A port | Storage | 1 x 900 GB SSD with 1 spare slot |
| Fan Modules | 2 hot-swappable dual fan modules | Power Supply Configuration | Single 400W AC; dual 400W AC optional; DC optional |
| Power Redundancy | Available when an extra power supply is ordered | AC Input Voltage | 100 to 240V AC |
| AC Maximum Output Power | 400W | DC Input Voltage | -48V to -60VDC |
| DC Maximum Output Power | 400W | Stateful Inspection Firewall Throughput | 10 Gbps |
| Multiprotocol Firewall Throughput | 9 Gbps | Concurrent Firewall Connections | 1.5 million |
| New Connections Per Second | 150000 | IPsec VPN Throughput | 5.5 Gbps |
| Maximum VPN Peers | 2000 | Security Contexts | 2 included; 100 maximum |
| High Availability | Active/active and active/standby | Clustering | No clustering on 3105 |
| ASA Centralized Management | Cisco Security Manager or Cisco Defense Orchestrator | Local Management | Adaptive Security Device Manager |
| Rack Mount | Standard 19-inch square-hole rack | Operating Temperature | 32 to 104F (0 to 40C) |
| Sound Pressure | 65 dBA typical; 74 dBA maximum | Power Redundancy Rule | Order an extra power supply for redundancy |
