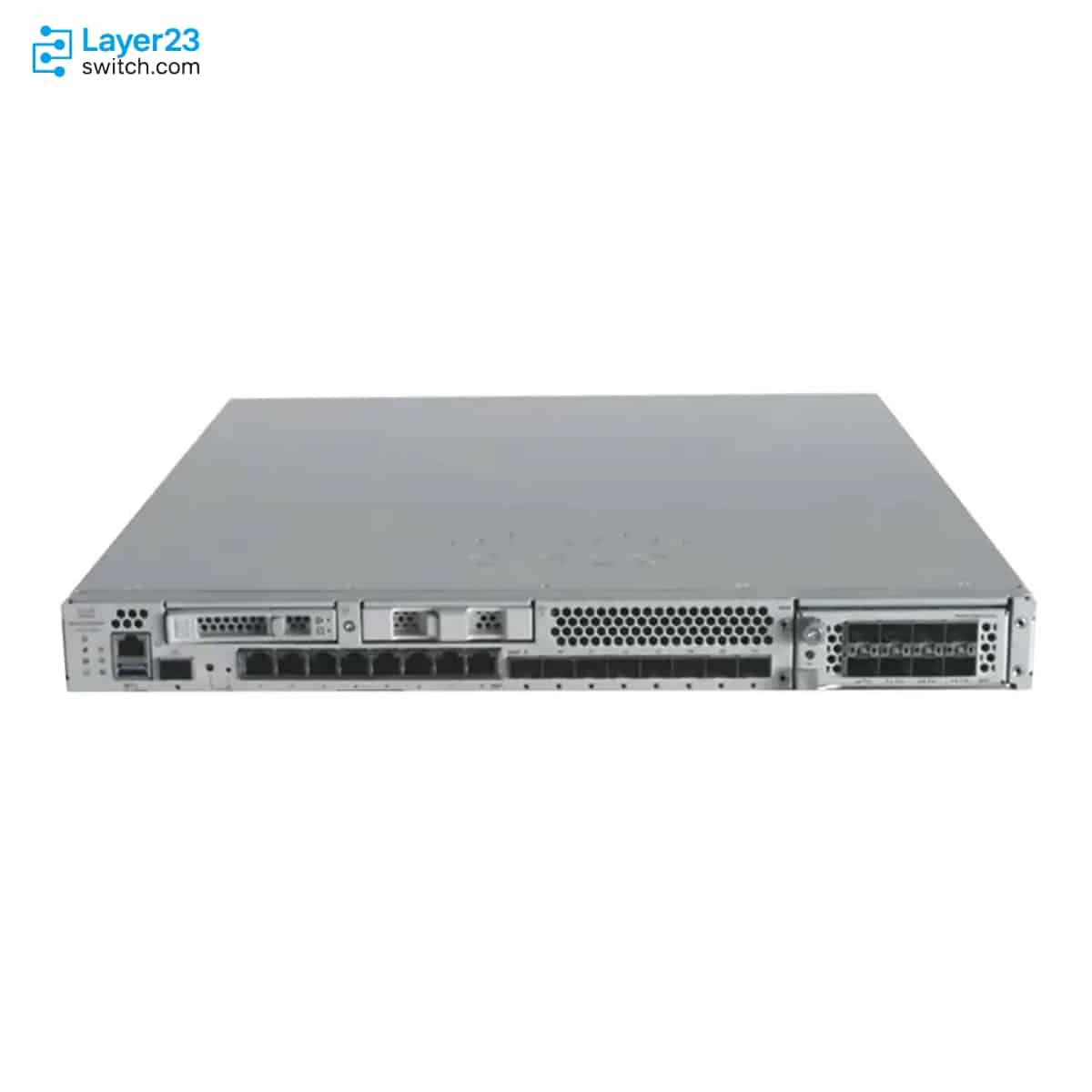

FPR3130-ASA-K9 – 42G ASA Firewall – 8×1/10/25G SFP – 1RU 3130 Chassis
0/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
FPR3130-ASA-K9 Description
FPR3130-ASA-K9 is a Cisco Secure Firewall 3130 ASA firewall appliance in the Cisco Secure Firewall 3100 Series, ordered as a 1RU chassis for deployments that run Cisco Secure ASA software.
The key buying distinction is the ASA orderable role. FPR3130-ASA-K9 keeps the 3130 hardware tier and ASA sizing profile, while FPR3130-NGFW-K9 is the next-generation firewall orderable PID for Threat Defense software and FPR3140-ASA-K9 moves the ASA buyer to the higher 3140 capacity row.
Quote review should confirm the exact ASA PID, ASA and ASDM release plan, optional security context license need, fixed 1G RJ-45 and 1/10/25G SFP interface plan, network module type, 400W power supply choice, power cords, warranty support, price, and shipping destination before the firewall BOM is released.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
FPR3130-ASA-K9 |
|
Product family |
Cisco Secure Firewall 3100 Series |
|
Product type |
Cisco Secure Firewall 3130 ASA appliance |
|
Security software role |
Cisco Secure ASA |
|
Form factor |
1RU |
|
Fixed data ports |
8 x RJ-45 and 8 x 1/10/25G SFP fixed ports |
|
Network module bay |
1 removable network module slot |
|
Supported module speeds |
1G 10G 25G 40G and 100G options for 3130 and 3140 |
|
Storage |
1 x 900 GB SSD with 1 spare slot |
|
Power supply configuration |
Dual 400W AC; single or dual 400W DC optional |
|
Stateful inspection firewall throughput |
42 Gbps |
|
ASA multiprotocol firewall throughput |
39 Gbps |
|
Concurrent firewall connections |
6 million |
Product Performance
Key Features
Cisco identifies FPR3130-ASA-K9 as the Secure Firewall 3130 ASA chassis, so the quote should preserve the ASA role when the approved design is not an FTD or NGFW order.
The 3130 hardware row includes eight RJ-45 fixed ports and eight fixed SFP interfaces that support 1G, 10G, or 25G planning for the fiber side of the appliance.
The 3100 chassis provides one removable network module slot, letting buyers add Cisco-listed 1G, 10G, 25G, 40G, or 100G module options when the interface plan requires expansion.
The 3130 ASA row raises capacity above the 3120 while staying below the 3140, which keeps model selection tied to throughput, connection, and VPN-peer targets.
The 3130 hardware specification uses dual 400W AC power with 1+1 redundancy, while DC power remains an optional plan that must be matched to the site power design.
Cisco’s ASA compatibility and ordering references make ASDM pairing, optional security context licenses, and strong-encryption licensing part of the technical purchase review.
Application Scenarios
Choose FPR3130-ASA-K9 when the design is staying on Cisco Secure ASA and the sizing file maps to the 3130 ASA throughput, connection, and VPN-peer entries.
Use this SKU when the base firewall needs fixed RJ-45 copper plus fixed 1/10/25G SFP ports, with one module bay available for a Cisco-listed expansion module.
Select the ASA PID when asset standards, migration plans, or operational approvals name Cisco Secure ASA instead of the FPR3130-NGFW-K9 Threat Defense orderable identity.
Product Comparison
|
Parameter |
FPR3130-ASA-K9 | ||
|---|---|---|---|
|
Product family |
Secure Firewall 3100 Series |
Secure Firewall 3100 Series |
Secure Firewall 3100 Series |
|
Cisco PID description |
Cisco Secure Firewall 3130 ASA chassis 1 RU |
Cisco Secure Firewall 3130 next generation firewall chassis 1 RU |
Cisco Secure Firewall 3140 ASA chassis 1 RU |
|
Firewall model |
Secure Firewall 3130 |
Secure Firewall 3130 |
Secure Firewall 3140 |
|
Security software role |
Cisco Secure ASA |
Threat Defense / NGFW |
Cisco Secure ASA |
|
Form factor |
1RU |
1RU |
1RU |
|
Fixed data ports |
8 x RJ-45 and 8 x 1/10/25G SFP |
8 x RJ-45 and 8 x 1/10/25G SFP |
8 x RJ-45 and 8 x 1/10/25G SFP |
|
Network module bay |
1 |
1 |
1 |
|
ASA stateful firewall throughput |
42 Gbps |
Not an ASA SKU |
49 Gbps |
|
ASA multiprotocol firewall throughput |
39 Gbps |
Not an ASA SKU |
43 Gbps |
|
Concurrent firewall connections |
6 million |
Not an ASA SKU |
10 million |
|
New connections per second |
875000 |
Not an ASA SKU |
1.1 million |
|
ASA IPsec VPN throughput |
14 Gbps |
Not an ASA SKU |
17 Gbps |
|
Maximum VPN peers |
15000 |
Not an ASA SKU |
20000 |
|
Security contexts |
2 included; 100 maximum |
Not an ASA SKU |
2 included; 100 maximum |
|
Power supply configuration |
Dual 400W AC; 400W DC optional |
Dual 400W AC; 400W DC optional |
Dual 400W AC; 400W DC optional |
- In a FPR3130-ASA-K9 vs FPR3130-NGFW-K9 comparison, the hardware model stays at Secure Firewall 3130, but the orderable software role changes from Cisco Secure ASA to Threat Defense / NGFW.
- The FPR3130-ASA-K9 difference from FPR3140-ASA-K9 is the ASA capacity row: the 3140 increases stateful firewall throughput, multiprotocol throughput, connection scale, new-connection rate, VPN throughput, and VPN peer count.
- For buyers comparing FPR3130-ASA-K9 vs FPR3130-NGFW-K9 vs FPR3140-ASA-K9, which model to choose should follow the approved software role first and the ASA sizing row second.
Selection Guide
1. Start with the software image requirement
Choose FPR3130-ASA-K9 only when the approved design calls for the Cisco Secure Firewall 3130 ASA appliance rather than a Threat Defense / NGFW orderable PID.
2. Use the 3130 ASA row for firewall sizing
Select this model when 42 Gbps stateful inspection throughput, 39 Gbps multiprotocol throughput, or 6 million concurrent firewall connections match the sizing file.
3. Compare FPR3140-ASA-K9 for more headroom
Move to FPR3140-ASA-K9 when the BOM requires the higher ASA values shown for throughput, connections, new connections per second, IPsec VPN, or VPN peers.
4. Validate module and software dependencies together
Confirm ASA and ASDM compatibility, optional security context licensing, fixed-port optics, selected network-module release needs, transceiver release needs, and power-cord selection before quote approval.
Ordering Checklist
|
Review Area |
Required Decision |
Source-Based Risk |
|---|---|---|
|
Exact orderable PID |
Confirm FPR3130-ASA-K9 rather than FPR3130-NGFW-K9 |
Cisco lists separate ASA and next-generation firewall PIDs for the 3130 chassis |
|
ASA software plan |
Confirm target ASA release and compatible ASDM version |
Cisco ASA compatibility is listed per Secure Firewall 3130 model and release family |
|
Security context licensing |
Decide whether the included contexts are enough or add 3100 Series ASA context licenses |
The ordering guide lists optional 5-context and 10-context add-on SKUs for ASA |
|
Fixed-port media |
Match RJ-45 copper and 1/10/25G SFP optics to the cabling design |
The fixed ports support specific Cisco transceiver families and release baselines |
|
Network module choice |
Select the required 1G 10G 25G 40G or 100G 3100 Series module |
Some high-speed network modules are limited to the 3130 and 3140 and can require later ASA releases |
|
Power design |
Confirm dual 400W AC or optional 400W DC plan plus regional power cords |
The 3130 power profile depends on PSU type and site input power |
|
Commercial review |
Review price, availability, warranty support, and shipping destination after technical signoff |
Buying terms should follow the confirmed ASA PID, modules, licenses, optics, and power plan |
Optional Add-ons
|
Model |
Description |
|---|---|
|
FPR3K-XNM-8X10G |
3100 Series 8-port 1G/10G SFP+ network module |
|
FPR3K-XNM-8X25G |
3100 Series 8-port 1/10/25G SFP network module |
|
FPR3K-XNM-4X40G |
3100 Series 4-port 40G QSFP+ network module |
|
FPR3K-XNM-2X100G |
3100 Series 2-port 100G QSFP28 network module |
|
FPR3K-XNM-8X1GF |
8-port 10/100/1000Base-T hardware bypass network module |
|
FPR3K-XNM-6X10SRF |
6-port 10G SFP SR multimode hardware bypass network module |
|
FPR3K-XNM-6X10LRF |
6-port 10G SFP LR single-mode hardware bypass network module |
|
L-FPR3K-ASASC-10= |
Cisco Secure Firewall 3100 add-on 10 security context licenses |
|
L-FPR3K-ASASC-5= |
Cisco Secure Firewall 3100 add-on 5 security context licenses |
|
L-FPR3K-ENC-K9= |
Strong encryption license for ASA on Cisco Secure Firewall 3100 Series |
|
FPR3K-PWR-AC-400= |
Cisco Secure Firewall 3100 Series 400W AC power supply |
|
FPR3K-SSD900= |
Cisco Secure Firewall 3100 Series 900 GB SSD |
|
FPR3K-SLIDE-RAILS= |
Cisco Secure Firewall 3100 Series slide rail kit |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | FPR3130-ASA-K9 | Product Family | Cisco Secure Firewall 3100 Series |
| Product Type | Cisco Secure Firewall 3130 ASA appliance | Firewall Model | Secure Firewall 3130 |
| Security Software Role | Cisco Secure ASA | Form Factor | 1RU |
| Dimensions | 1.75 x 17 x 20 in. (4.4 x 43.3 x 50.8 cm) | Airflow | Front to rear; I/O side to non-I/O side |
| Fixed RJ-45 Ports | 8 x 10M/100M/1GBASE-T Ethernet interfaces | Fixed SFP Ports | 8 x 1/10/25 Gigabit Ethernet SFP interfaces |
| Maximum Ethernet Ports | Up to 24 total Ethernet ports with network module | Network Module Slot | One removable network module slot named NM-2 |
| 3130 / 3140 Module Options | 8 x 1/10/25G, 4 x 40G, and 2 x 100G options | Management Port | 1 x 1/10G SFP management port |
| Console Port | 1 x RJ-45 serial console | USB Port | 1 x USB 3.0 Type-A port |
| Storage | 1 x 900 GB SSD with 1 spare slot | Fan Modules | 2 hot-swappable dual fan modules |
| Power Supply Configuration | Dual 400W AC; single or dual 400W DC optional | Power Redundancy | 1+1 AC or DC with dual supplies |
| AC Input Voltage | 100 to 240V AC | AC Maximum Output Power | 400W |
| DC Input Voltage | -48V to -60VDC | DC Maximum Output Power | 400W |
| Stateful Inspection Firewall Throughput | 42 Gbps | Multiprotocol Firewall Throughput | 39 Gbps |
| Concurrent Firewall Connections | 6 million | New Connections Per Second | 875000 |
| IPsec VPN Throughput | 14 Gbps | Projected IPsec VPN with Offload | 28 Gbps with ASA 9.18 |
| Maximum VPN Peers | 15000 | Security Contexts | 2 included; 100 maximum |
| High Availability | Active/active and active/standby | Clustering | 8 chassis |
| ASA Centralized Management | Cisco Security Manager or Cisco Defense Orchestrator | Local Management | Adaptive Security Device Manager |
| Fixed Port First Supported Release | Threat Defense 7.1 / ASA 9.17 for 3110 3120 3130 and 3140 | ASA Compatibility Reference | ASA and ASDM compatibility listed per Secure Firewall 3130 model |
| Operating Temperature | 32 to 104F (0 to 40C) | Operating Humidity | 10 to 85% noncondensing |
| Operating Altitude | 10000 ft maximum | Sound Pressure | 65 dBA typical; 74 dBA maximum |
