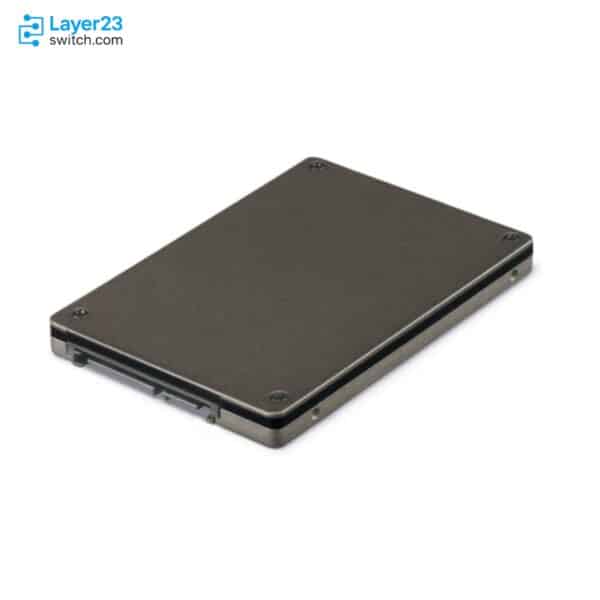

FPR3K-SSD900 Description
The FPR3K-SSD900 is a Cisco Secure Firewall 3100 Series 900 GB NVMe SSD module for Secure Firewall 3105, 3110, 3120, 3130 and 3140 appliances. Each chassis has two SSD slots that take one NVMe 900 GB drive apiece, with one drive installed in slot 1 by default and slot 2 reserved for an optional software RAID1 drive. SSDs cannot be swapped between platforms, so a drive from another firewall series such as the 2100 Series does not work in a 3100.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
FPR3K-SSD900 |
|
Product type |
NVMe SSD module |
|
Cisco PID description |
900 GB SSD |
|
Supported platform family |
Cisco Secure Firewall 3100 |
|
Supported appliance models |
Secure Firewall 3105, 3110, 3120, 3130, and 3140 |
|
SSD slot capacity |
Two SSD slots, one NVMe 900-GB SSD per slot |
|
Default storage layout |
One 900-GB SSD installed in slot 1 |
|
Optional second slot |
Reserved for software RAID1 |
|
Hot-swap rule |
Hot swapping supported with two SSDs and required RAID removal procedure |
|
Drive identifiers |
disk0: and disk1: |
|
Related spare PID |
FPR3K-SSD900= |
Application Scenarios
A Secure Firewall 3100 whose internal drive has been pulled from service can take this module in slot 1 with the same 900 GB NVMe capacity as the factory drive.
An internet-edge firewall that needs mirrored storage can add the module in slot 2, where the two drives form a software RAID1 set at boot and a drive can be hot-swapped after it is removed from the RAID with the CLI procedure.
Product Comparison
|
Parameter |
FPR3K-SSD900 |
FPR3K-SSD-BLANK |
FPR3K-SSD-BLANK= |
|---|---|---|---|
|
Module type |
NVMe SSD module |
SSD blank slot carrier |
SSD blank slot carrier |
|
SSD storage |
900 GB |
Not applicable |
Not applicable |
|
Interface |
NVMe |
Not applicable |
Not applicable |
|
Supported chassis models |
Secure Firewall 3105, 3110, 3120, 3130, 3140 |
Secure Firewall 3105, 3110, 3120, 3130, 3140 |
Secure Firewall 3105, 3110, 3120, 3130, 3140 |
|
Software RAID1 member |
Yes, in slot 2 |
Not applicable |
Not applicable |
|
Spare unit |
No |
No |
Yes |
FPR3K-SSD900 is the 900 GB NVMe SSD for Secure Firewall 3100 appliances, while FPR3K-SSD-BLANK is only a blank slot carrier that holds no storage. FPR3K-SSD-BLANK= is the spare ordering form of the same carrier. A purchase that needs storage, such as the second SSD slot that Cisco reserves for software RAID1, must be FPR3K-SSD900 rather than either carrier PID. The carrier PIDs suit only a slot that is meant to stay empty.
Ordering Checklist
- Secure Firewall 3100 hosts: Confirm the host is a Secure Firewall 3105, 3110, 3120, 3130 or 3140 appliance, such as FPR3120-NGFW-K9. SSDs cannot be swapped between platforms, so an SSD from another firewall series, such as the 2100 Series, cannot be used in a 3100.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | FPR3K-SSD900 | Product type | NVMe SSD module |
| Cisco PID description | 900 GB SSD | Supported platform family | Cisco Secure Firewall 3100 |
| Supported appliance models | Secure Firewall 3105, 3110, 3120, 3130, and 3140 | SSD slot count | Two SSD slots |
| SSD capacity per slot | One NVMe 900-GB SSD | Default installed SSD | One 900-GB SSD installed in slot 1 |
| Second SSD slot role | Reserved for optional software RAID1 | RAID behavior | Two installed SSDs form a RAID when the appliance boots |
| Drive identifiers | disk0: and disk1: | Hot-swap support | Supported with two SSDs and required RAID removal procedure |
| Single SSD service rule | Do not remove the only SSD while the firewall is powered on | Platform swap rule | SSDs cannot be swapped between different platforms |
| SSD component weight | 0.11 kg (0.25 lb) | Spare SSD PID | FPR3K-SSD900= |
| Related blank carrier PID | FPR3K-SSD-BLANK |
Get More Information
Need pricing, stock, or shipping details for the FPR3K-SSD900 ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What type of NVMe SSD module is FPR3K-SSD900?
-
Which appliance models support FPR3K-SSD900?
-
How are the SSD slots arranged for FPR3K-SSD900?
-
Does FPR3K-SSD900 support hot swapping?
-
Can FPR3K-SSD900 be replaced by FPR3K-SSD-BLANK?
-
When is a second FPR3K-SSD900 required?
