FPR4225-NGFW-K9 – 80G NGFW – 8x25G SFP28 Data + 2x25G SFP28 Mgmt – 4200 – NGFW Firewall
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
FPR4225-NGFW-K9 Description

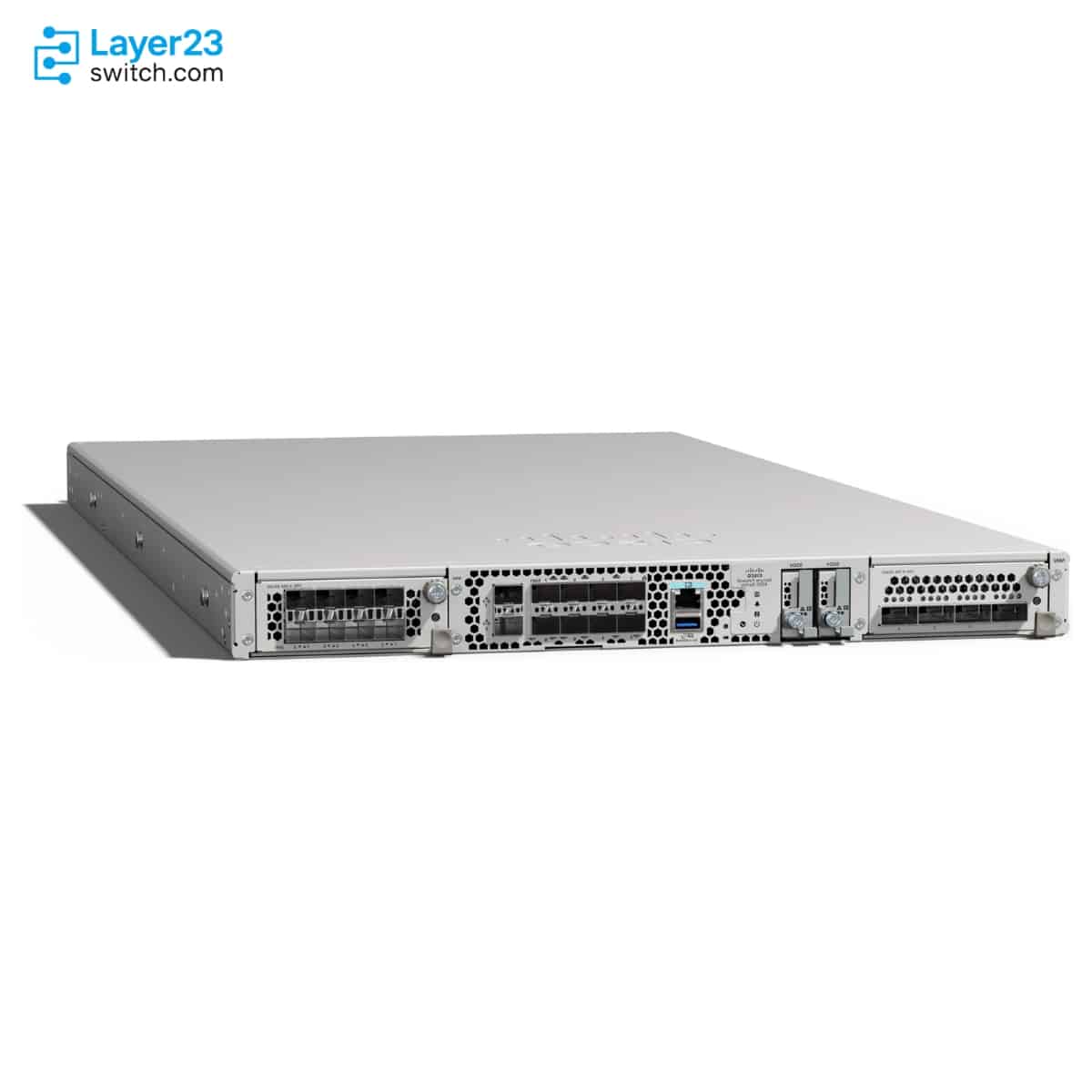

FPR4225-NGFW-K9 is a Cisco Secure Firewall 4225 NGFW appliance in the Secure Firewall 4200 Series, built as a 1RU firewall platform for Threat Defense deployments at firewall edge, VPN, and security-services aggregation points. The chassis provides eight fixed 1/10/25G SFP28 fiber data ports, two 1/10/25G SFP28 management ports, two hot-swappable network module slots, 512 GB of system memory, and 80 Gbps FW + AVC + IPS throughput, with the 4225 Threat Defense row also listing 30 million concurrent sessions with AVC and 600K new connections per second with AVC.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
FPR4225-NGFW-K9 |
|
Product type |
Cisco Secure Firewall 4225 NGFW appliance |
|
Firewall model |
Secure Firewall 4225 |
|
Security software role |
Cisco Secure Firewall Threat Defense / NGFW |
|
Minimum Threat Defense release |
7.4.0 introduction for Secure Firewall 4215, 4225, and 4245 |
|
Management model |
Firewall Management Center or Cisco Defense Orchestrator |
|
Form factor |
1RU |
|
System memory |
512 GB |
|
Fixed data ports |
8 x 1/10/25G SFP28 fixed fiber ports |
|
Management ports |
2 x 1/10/25G SFP28 ports |
|
Network module slots |
2 hot-swappable slots |
|
FW + AVC + IPS throughput |
80 Gbps |
|
IPsec VPN throughput |
80 Gbps |
Product Performance
Key Features
Cisco identifies FPR4225-NGFW-K9 as the Secure Firewall 4225 next generation firewall chassis, keeping it distinct from the 4225 ASA and NGIPS orderable PIDs.
The 4225 row provides 80 Gbps FW + AVC + IPS throughput, 30 million AVC sessions, and 80 Gbps IPsec VPN throughput for designs that need more capacity than the 4215 NGFW entry.
Cisco release notes state that Secure Firewall 4200 devices must be managed with Firewall Management Center and do not support device manager, so management planning is part of the purchase check.
Eight fixed 1/10/25G SFP28 fiber ports create the starting data-interface layout before optional network modules are selected for additional speeds or hardware-bypass use cases.
The 4200 chassis supports two hot-swappable network module slots, with Cisco-listed options covering 1G, 10G, 25G, 40G, 100G, 200G, 400G, and fail-to-wire modules.
The 4225 hardware profile uses dual AC power supplies with 1+1 redundancy, so the quote should match rack voltage and country-specific power-cord requirements.
Application Scenarios
Choose FPR4225-NGFW-K9 when the design file specifies a Secure Firewall 4225 NGFW appliance and the expected inspection load maps to Cisco’s 80 Gbps Threat Defense entries.
Select this PID when operations, licensing, and management are planned around Threat Defense instead of the FPR4225-ASA-K9 ASA appliance identity.
Use this model when eight fixed 1/10/25G SFP28 ports are required at the base appliance and the BOM may add Cisco-listed network modules for higher-speed or fail-to-wire links.
Product Comparison
|
Parameter |
FPR4225-NGFW-K9 | |||
|---|---|---|---|---|
|
Cisco PID description |
Secure Firewall 4225 NGFW appliance 1RU |
Secure Firewall 4215 NGFW appliance 1RU |
Secure Firewall 4245 NGFW appliance 1RU |
Secure Firewall 4225 ASA appliance 1RU |
|
Firewall model |
Secure Firewall 4225 |
Secure Firewall 4215 |
Secure Firewall 4245 |
Secure Firewall 4225 |
|
Security software role |
Threat Defense / NGFW |
Threat Defense / NGFW |
Threat Defense / NGFW |
Cisco Secure ASA |
|
Form factor |
1RU |
1RU |
1RU |
1RU |
|
System memory |
512 GB |
256 GB |
1 TB |
512 GB |
|
Fixed data ports |
8 x 1/10/25G SFP28 |
8 x 1/10/25G SFP28 |
8 x 1/10/25G SFP28 |
8 x 1/10/25G SFP28 |
|
Management ports |
2 x 1/10/25G SFP28 |
2 x 1/10/25G SFP28 |
2 x 1/10/25G SFP28 |
2 x 1/10/25G SFP28 |
|
Network module slots |
2 |
2 |
2 |
2 |
|
Storage |
Two 1.8 TB SSDs in RAID1 |
Two 1.8 TB SSDs in RAID1 |
Two 1.8 TB SSDs in RAID1 |
Two 1.8 TB SSDs |
|
FW + AVC + IPS throughput |
80 Gbps |
65 Gbps |
140 Gbps |
Not an ASA table metric |
|
NGIPS throughput |
80 Gbps |
65 Gbps |
140 Gbps |
Not an ASA table metric |
|
Maximum concurrent sessions with AVC |
30 million |
15 million |
60 million |
Not an ASA table metric |
|
New connections per second with AVC |
600K |
350K |
800K |
Not an ASA table metric |
|
IPsec VPN throughput |
80 Gbps |
45 Gbps |
140 Gbps |
60 Gbps under ASA table |
|
Maximum VPN peers |
25000 |
20000 |
30000 |
25000 |
|
Management model |
Firewall Management Center or Cisco Defense Orchestrator |
Firewall Management Center or Cisco Defense Orchestrator |
Firewall Management Center or Cisco Defense Orchestrator |
Cisco Security Manager, ASDM, or Cisco Defense Orchestrator |
|
AC power supply ordering |
Two 1900W AC modules ship |
One 1900W AC ships; second optional for redundancy |
Two 1900W AC modules ship |
Two 1900W AC modules ship |
- In a FPR4225-NGFW-K9 vs FPR4215-NGFW-K9 comparison, the shared 1RU 4200 chassis layout stays the same, but FPR4225-NGFW-K9 moves to 512 GB memory, 80 Gbps FW + AVC + IPS throughput, 30 million AVC sessions, and 600K new connections with AVC.
- The FPR4225-NGFW-K9 difference from FPR4245-NGFW-K9 is capacity range: FPR4245-NGFW-K9 increases memory to 1 TB, FW + AVC + IPS throughput to 140 Gbps, AVC sessions to 60 million, and IPsec VPN throughput to 140 Gbps.
- For FPR4225-NGFW-K9 vs FPR4225-ASA-K9, the hardware model is the 4225, but the orderable software role changes from Threat Defense / NGFW to Cisco Secure ASA.
- Buyers comparing FPR4225-NGFW-K9 against the 4215, 4245, or ASA alternative should choose the model whose table row matches the approved software role, management method, throughput, session scale, VPN peer count, and power plan.
Selection Guide
1. Start with the orderable software role
Select FPR4225-NGFW-K9 only when the BOM names the Secure Firewall 4225 NGFW appliance or a Threat Defense operating model.
2. Use 4225 values for NGFW sizing
Pick this SKU when the sizing document requires 80 Gbps FW + AVC + IPS throughput, 30 million AVC sessions, 600K new connections per second with AVC, or 80 Gbps IPsec VPN throughput.
3. Compare neighboring 4200 models by capacity
Stay with FPR4215-NGFW-K9 for a lower 4215 scale row, and move to FPR4245-NGFW-K9 only when the design calls for the higher 4245 memory, session, throughput, or VPN values.
4. Keep management and hardware choices aligned
Confirm Firewall Management Center planning, Smart Account association, supported optics, selected network modules, redundant power, and regional power cords before approving the quote.
Ordering Checklist
|
Review Area |
Required Decision |
Source-Based Risk |
|---|---|---|
|
Exact chassis PID |
Confirm FPR4225-NGFW-K9 rather than FPR4225-ASA-K9 or FPR4225-NGIPS-K9 |
Cisco lists separate 4225 orderable identities for NGFW, ASA, and NGIPS roles |
|
Threat Defense management |
Confirm Firewall Management Center or approved centralized management in the deployment plan |
Cisco release notes state Secure Firewall 4200 devices do not support device manager |
|
Smart Licensing |
Associate the order with the end customer’s Smart Account before completion |
Cisco ordering guidance includes Smart Software Licensing before the FPR4225-NGFW-K9 ordering path |
|
Fixed-port optics |
Choose supported SFP, SFP+, SFP28, DAC, or GLC-TE media for fixed and management ports |
The 4200 hardware guide separates fixed data ports and management-port transceiver planning |
|
Network module mix |
Match each module bay to the needed 1G, 10G, 25G, 40G, 100G, 200G, 400G, or fail-to-wire module |
Network module selection affects supported optics, release checks, and interface counts |
|
Power and cords |
Verify rack voltage and country-specific C21 or jumper cords for the dual AC supplies |
The 4225 uses dual AC power supplies and Cisco lists supported power-cord options separately |
Optional Add-ons
|
Model |
Description |
|---|---|
|
FPR4K-XNM-8X10G |
8-port 1/10-Gbps SFP+ network module |
|
FPR4K-XNM-8X25G |
8-port 1/10/25-Gbps network module |
|
FPR4K-XNM-4X40G |
4-port 40-Gbps QSFP/QSFP+ network module |
|
FPR4K-XNM-2X100G |
2-port 100-Gbps QSFP56/QSFP28/QSFP network module |
|
FPR4K-XNM-4X200G |
4-port 40/100/200-Gbps QSFP28/QSFP network module |
|
FPR4K-XNM-2X400G |
2-port 200/400-Gbps QSFP-DD network module |
|
FPR4K-XNM-8X1GF |
8-port 1000Base-T hardware bypass network module |
|
FPR4K-XNM-6X10SRF |
6-port 10-Gbps SFP SR multimode hardware bypass network module |
|
FPR4K-XNM-6X10LRF |
6-port 10-Gbps SFP LR single-mode hardware bypass network module |
|
FPR4K-XNM-6X25SRF |
6-port 25-Gbps SFP SR multimode hardware bypass network module |
|
FPR4K-XNM-6X25LRF |
6-port 25-Gbps SFP LR single-mode hardware bypass network module |
|
FPR4200-PWR-AC |
Cisco Secure Firewall 4200 Series AC power supply |
|
FPR4200-SSD1800 |
Cisco Secure Firewall 4200 Series 1.8 TB SSD |
|
FPR4200-FAN |
Dual fan module |
|
FPR4200-SLD-RAILS |
Slide rail kit |
|
FPR4200-CBL-MGMT |
Cable management brackets |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | FPR4225-NGFW-K9 | Product Type | Cisco Secure Firewall 4225 NGFW appliance |
| Firewall Model | Secure Firewall 4225 | Security Software Role | Cisco Secure Firewall Threat Defense / NGFW |
| Minimum Threat Defense Release | 7.4.0 introduction for Secure Firewall 4215, 4225, and 4245 | Management Model | Firewall Management Center or Cisco Defense Orchestrator |
| Device Manager Support | Not supported for Secure Firewall 4200 Threat Defense | Form Factor | 1RU |
| Rack Mount | 4-post EIA-310-D rack with slide rails | Airflow | Front to rear; I/O side to non-I/O side |
| System Memory | 512 GB | Storage | Two 1.8 TB NVMe SSD slots; ships with two 1.8 TB SSDs in RAID1 |
| Fixed Data Ports | 8 x 1/10/25-Gbps SFP28 fixed fiber ports | Fixed Port Names | Ethernet 1/1 through Ethernet 1/8 |
| Management Ports | 2 x 1/10/25-Gbps SFP28 ports | Threat Defense Management Port Names | Management 0 and Management 1 |
| Network Module Slots | 2 hot-swappable slots | Supported Module Speeds | 1G 10G 25G 40G 100G 200G and 400G module options |
| Console Port | 1 x RJ-45 serial port | FW + AVC Throughput | 80 Gbps |
| FW + AVC + IPS Throughput | 80 Gbps | NGIPS Throughput | 80 Gbps |
| Maximum Concurrent Sessions with AVC | 30 million | New Connections Per Second with AVC | 600K |
| TLS Hardware Decryption Throughput | 30 Gbps | IPsec VPN Throughput | 80 Gbps |
| Maximum VPN Peers | 25000 | Multi-Instance Count | 15 |
| High Availability | Active/active with clustering and active/standby | Clustering | Up to 16 chassis |
| Application Visibility and Control | Standard; supports more than 4000 applications | Cisco Secure IPS | Available |
| Cisco Malware Defense | Available | URL Filtering Categories | More than 120 |
| URL Filtering Database | More than 280 million categorized URLs | Power Supplies | Dual 1900W for 220 AC or 1200W for 110 AC |
| Redundancy | 1+1 | AC Input Voltage | 100 to 120 VAC low line or 200 to 240 VAC high line |
| AC Frequency | 50/60 Hz nominal | AC Maximum Input Power | 870 W for 4225 |
| AC Efficiency | More than 90 percent Platinum | Fan Modules | Three dual fan modules; hot-swappable |
| Chassis Weight | 43 lb (19.5 kg) with 2 power supplies, 2 network modules, and 3 fan modules | Chassis Dimensions | 1.73 x 16.89 x 32.0 in. (4.39 x 42.9 x 81.28 cm) |
| Operating Temperature | 32 to 104F (0 to 40C) | Operating Humidity | 5 to 95% noncondensing |
| Operating Altitude | 10000 ft maximum | Sound Pressure | <=78 dBA typical; <=84 dBA maximum |
| Sound Power | <=87 dB typical; <=92 dB maximum |
