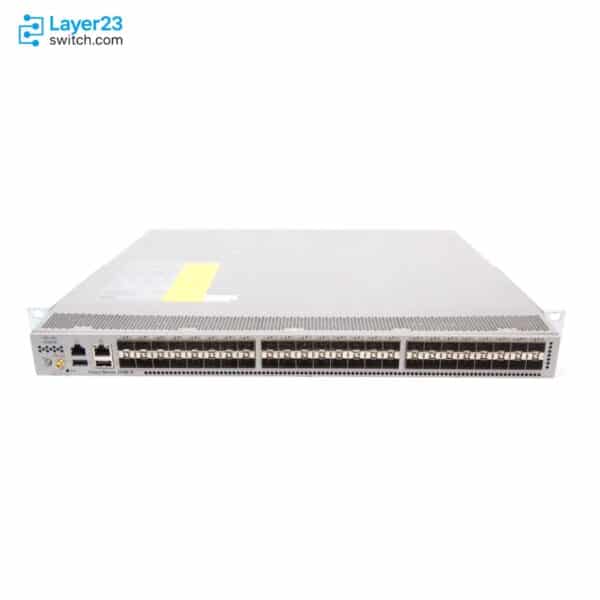

N3K-C3548P-XL – 48×1/10G SFP+ Ports – 1RU Nexus 3548-XL – 16GB XL Profile
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
N3K-C3548P-XL Description
The N3K-C3548P-XL is a Cisco Nexus 3548-XL data center switch from the Nexus 3500 platform, built as a 1RU top-of-rack switch for low-latency 10G server access, trading and HPC networks. The switch has 48 fixed SFP+ ports at 1 or 10 Gbps, 960 Gbps of switching capacity, 720 mpps of forwarding and 16 GB each of system memory and bootflash. All 48 ports are enabled without an upgrade license.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
N3K-C3548P-XL |
|
Product type |
1RU data center switch |
|
Cisco model |
Nexus 3548-XL Switch |
|
Data ports |
48 fixed SFP+ ports |
|
Port speed |
1 or 10 Gbps SFP+ |
|
Switching capacity |
960 Gbps |
|
Forwarding rate |
720 mpps |
|
System memory |
16 GB |
|
Bootflash memory |
16 GB |
|
Cooling and power design |
Dual redundant power supplies and four hot-swappable fans with forward or reversed airflow |
Product Performance
Key Features
All 48 SFP+ ports run at 1 or 10 Gbps with no upgrade license. The same chassis in 24-port form needs the N3548-24P-UPG= license to reach this count.
The XL models pair a faster 2.5 GHz CPU with 16 GB of system memory and 16 GB of bootflash. The X models carry 4 GB and 4 GB.
Switching capacity is 960 Gbps and forwarding is 720 mpps, with Layer 2 and Layer 3 traffic at line rate on all ports. MTU can be set up to 9216 bytes.
Port-side exhaust uses the blue-handled fans and supplies, and port-side intake uses the red-handled ones. Mixing directions in one chassis defeats the rack airflow plan.
Two hot-swappable power supplies and four individual fans with 3+1 redundancy keep the switch running through a single part failure. Typical draw is 112W and maximum is 213W.
Layer 2 is built in, while routing needs the N3548-BAS1K9 base license. N3548-LAN1K9 adds LAN Enterprise features on top of it, and N3548-ALGK9 adds Algo Boost.
Application Scenarios
In a top-of-rack position, the switch connects up to 48 servers over SFP+ at 10G, with line-rate Layer 2 and Layer 3 forwarding on every port.
Latency-sensitive clusters use the switch as a flat 1/10G access layer, where its 960 Gbps of capacity and 720 mpps of forwarding keep all ports at line rate.
Racks that exhaust hot air at the port side or draw cold air in at the port side can run the switch with fans and power supplies chosen for that direction.
Product Comparison
|
Parameter |
N3K-C3548P-XL |
N3K-C3548P-10GX | |
|---|---|---|---|
|
Enabled SFP+ ports |
48 |
24 |
48 |
|
Port speeds |
1 or 10 Gbps |
1 or 10 Gbps |
1 or 10 Gbps |
|
Port expansion |
Not applicable |
N3548-24P-UPG= adds 24 ports (48 total) |
Not applicable |
|
Switching capacity |
960 Gbps |
480 Gbps |
960 Gbps |
|
Forwarding rate |
720 mpps |
360 mpps |
720 mpps |
|
Buffer size |
18 MB total (6 MB shared among 16 ports) |
18 MB total (6 MB shared among 16 ports) |
18 MB total (6 MB shared among 16 ports) |
|
System memory |
16 GB |
16 GB |
4 GB |
|
Bootflash memory |
16 GB |
16 GB |
4 GB |
|
Airflow |
Port-side exhaust or port-side intake |
Port-side exhaust or port-side intake |
Port-side exhaust or port-side intake |
N3K-C3548P-XL has all 48 SFP+ ports on the order line at 960 Gbps and 720 mpps, while N3K-C3524P-XL enables 24 ports at 480 Gbps and 360 mpps. A rack that only needs 24 active ports can start on N3K-C3524P-XL and expand to 48 later with the N3548-24P-UPG= license, so N3K-C3548P-XL fits designs that need all 48 ports from the first purchase. N3K-C3548P-10GX has the same 48 ports and throughput but only 4 GB of system memory and 4 GB of bootflash against 16 GB and 16 GB, so choose an XL model when the 16 GB profile is required.
Ordering Checklist
- Airflow direction: Order fans NXA-FAN-30CFM-F with N2200-PAC-400W or N2200-PDC-400W for port-side exhaust, or NXA-FAN-30CFM-B with N2200-PAC-400W-B or N3K-PDC-350W-B for port-side intake. Fans and power supplies of opposite directions push air against each other, and the blue or red handle colors are the only visual check.
- Layer 3 license: Add N3548-BAS1K9 for routing; N3548-LAN1K9 adds LAN Enterprise and needs the Base license; N3548-ALGK9 is for Algo Boost. The default system license covers Layer 2 only.
- Power supply type: Choose AC (N2200-PAC-400W or -B) or DC (N2200-PDC-400W or N3K-PDC-350W-B), plus the AC cord for the destination country. DC supplies ship without a power cord outside Argentina, Brazil and Japan, and AC cord PIDs differ by country.
- Rack-mount kit: Add N3K-C3064-ACC-KIT= or NXK-ACC-KIT-1RU for a 19-inch rack. Neither kit includes the eight 10-32 or 12-24 mounting screws, and a non-19-inch rack needs a separate bracket kit.
Optional Add-ons
|
Model |
Description |
|---|---|
|
N3548-BAS1K9 |
Nexus 3000 Layer 3 Base License |
|
N3548-LAN1K9 |
Nexus 3548 Layer 3 LAN Enterprise License, requires N3K-BAS1K9 |
|
N3548-ALGK9 |
Nexus 3500 Algo Boost License |
|
NDB-FX-SWT-K9 |
License for Tap/SPAN aggregation using Cisco Nexus Data Broker |
|
N2200-PAC-400W |
400W AC power supply, forward airflow, port-side exhaust |
|
N2200-PAC-400W-B |
400W AC power supply, reversed airflow, port-side intake |
|
N2200-PDC-400W |
400W DC power supply, forward airflow, port-side exhaust |
|
350W DC power supply, reversed airflow, port-side intake | |
|
NXA-FAN-30CFM-F |
Individual fan, forward airflow, port-side exhaust |
|
NXA-FAN-30CFM-B |
Individual fan, reversed airflow, port-side intake |
|
Nexus 3548 accessory kit, same as Nexus 3064 |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | N3K-C3548P-XL | Cisco model | Nexus 3548-XL Switch |
| Product type | 1RU data center switch | Order description | Nexus 3548-XL Switch, 48 SFP+ |
| Data ports | 48 fixed SFP+ ports | Port speed | 1 or 10 Gbps |
| Management port | One 10/100/1000-Mbps management port | Console port | One RS-232 serial console port |
| USB ports | Two USB ports | Timing port | One 1-PPS timing port with RF1.0/2.3 QuickConnect connector type |
| Switching capacity | 960 Gbps | Forwarding rate | 720 mpps |
| Line-rate support | Layer 2 and Layer 3 on all ports | Maximum MTU | Up to 9216 bytes |
| System memory | 16 GB | Bootflash memory | 16 GB |
| Power supply slots | 2 redundant power supplies | Power supply selection | N2200-PAC-400W 400W AC, N2200-PAC-400W-B 400W AC, N2200-PDC-400W 400W DC, or N3K-PDC-350W-B 350W DC selected by airflow and input type |
| Input voltage | 100 to 240 VAC | Input frequency | 50 to 60 Hz |
| Power supply efficiency | 89 to 91% at 220V | Typical operating power | 112W |
| Maximum power | 213W | Typical heat dissipation | 383 BTUs per hour |
| Maximum heat dissipation | 727 BTUs per hour | Cooling schemes | Forward airflow or reversed airflow |
| Fan modules | Four hot-swappable fans with 3+1 redundancy | Dimensions | 1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm) |
| Weight | 17.4 lb (7.9 kg) | Operating temperature | 32 to 104 F (0 to 40 C) |
| Storage temperature | -40 to 158 F (-40 to 70 C) | Operating humidity | 10 to 85% noncondensing |
| Nonoperating humidity | 5 to 95% noncondensing | Altitude | 0 to 10,000 ft (0 to 3000 m) |
| VLAN scale | Up to 4096 VLANs | ACL entries | 4096 |
| EtherChannels | 24 | Ports per EtherChannel | 24 |
| Buffer size | 6 MB shared among 16 ports, 18 MB total | Supported NX-OS package reference | nxos64-msll image for 3500-XL switches in Release 10.6(3)F |
