N3K-C36180YC-R Description

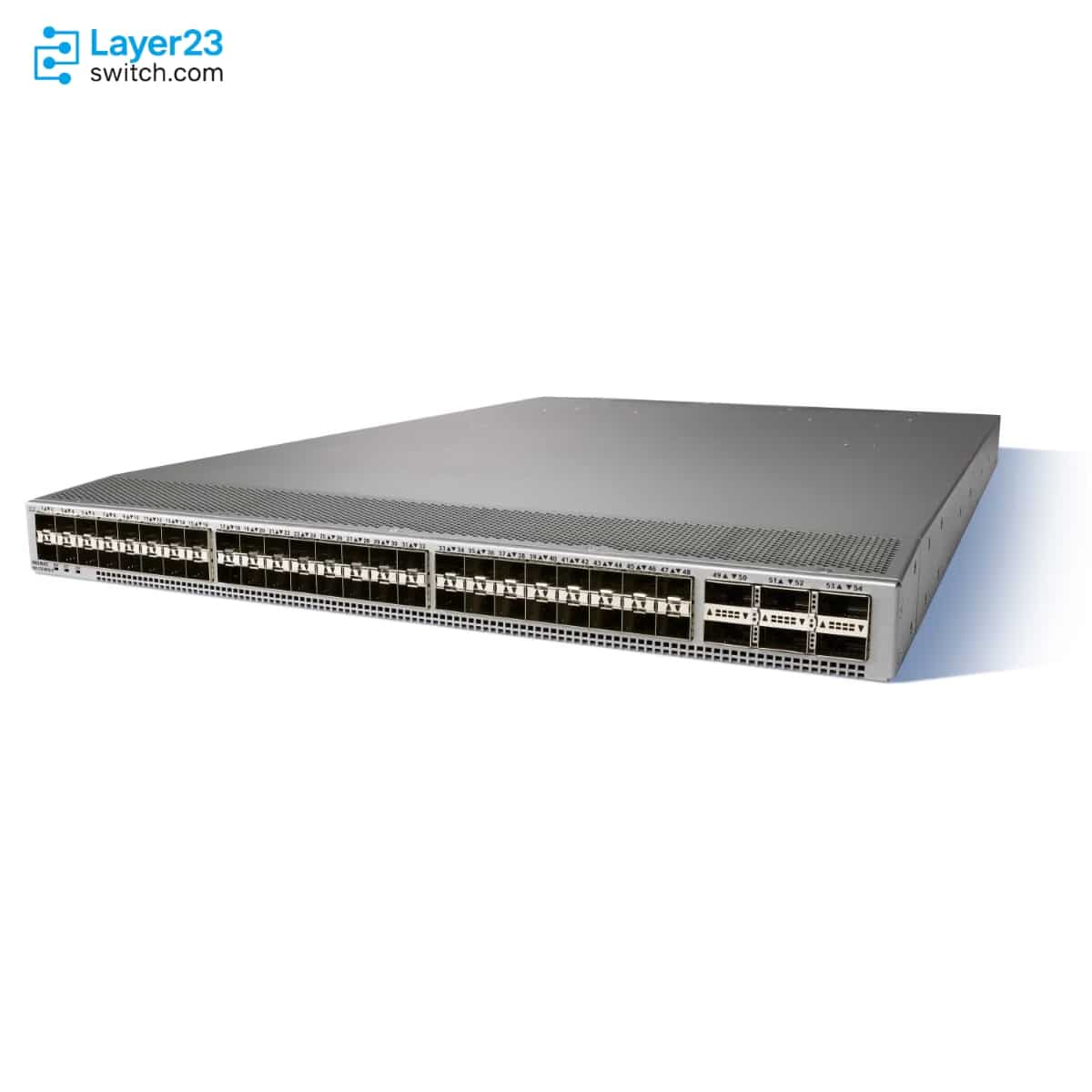

The N3K-C36180YC-R is a Cisco Nexus 36180YC-R data center switch from the Nexus 3600 Series, built as a 1RU fixed switch for aggregation, IP storage, DMZ and edge routing. The switch has 48 SFP ports at 1, 10 or 25 Gbps and 6 QSFP28 ports at 40 or 100 Gbps, with 1.8 Tbps of switching capacity, up to 1.67 bpps of forwarding and an 8 GB buffer. MACsec runs at wire rate on all 6 QSFP28 ports.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
N3K-C36180YC-R |
|
Product type |
1RU fixed-form-factor data center switch |
|
Form factor |
1RU |
|
Data ports |
48 x 1/10/25G SFP |
|
QSFP28 ports |
6 x 40/100G QSFP28 |
|
Switching capacity |
1.8 Tbps |
|
Forwarding rate |
Up to 1.67 bpps |
|
Buffer size |
8 GB |
|
DRAM |
32 GB |
|
Power supply design |
2 redundant AC or DC power supplies |
|
Airflow options |
Port-side exhaust or port-side intake |
Product Performance
Key Features
Forty-eight SFP ports run natively at 1, 10 or 25 Gbps, and six QSFP28 ports run at 40 or 100 Gbps. One 1RU chassis covers both the server edge and the uplinks.
All six QSFP28 ports encrypt at wire rate. Encrypted 40G or 100G transport therefore needs no separate encryption device.
Each QSFP28 port can split into 4 x 25G or 4 x 10G lanes. A port facing lower-speed gear then connects to four separate links.
The 8 GB buffer is paired with 256,000 LPM routes, 750,000 MAC addresses and 750,000 IP host entries. Those figures suit aggregation and edge-routing roles.
The 1100W supplies and two fan modules are hot-swappable, and a fan module must be swapped within 1 minute. One supply is enough to run the switch, with the second for redundancy.
Full OSPF, EIGRP and BGP are enabled by the N3K-LAN1K9 license. The Nexus 3600 Series follows the Nexus 9000 licensing scheme.
Application Scenarios
A data center aggregation layer can terminate 1G, 10G and 25G endpoints on the SFP ports and send traffic upstream over the QSFP28 ports at 40G or 100G.
Storage-facing racks use the switch as the access layer for 10G and 25G arrays and hosts, relying on its 8 GB buffer to absorb bursty east-west traffic.
At the edge of a data center, the switch carries Layer 3 routing with the Enhanced Layer 3 license, and MACsec on the QSFP28 uplinks encrypts links to neighboring sites or devices.
Product Comparison
|
Parameter |
N3K-C36180YC-R | ||
|---|---|---|---|
|
Downlink ports |
48 SFP ports (1, 10 or 25 Gbps) |
Not applicable |
24 enabled SFP+ ports (1 or 10 Gbps), 48 with N3548-24P-UPG= |
|
Uplink ports |
6 QSFP28 ports (40 or 100 Gbps) |
36 QSFP28 ports (40 or 100 Gbps) |
Not applicable |
|
QSFP28 breakout |
4 x 25G or 4 x 10G |
4 x 10G or 4 x 25G |
Not applicable |
|
Switching capacity |
1.8 Tbps |
7.2 Tbps |
480 Gbps |
|
Forwarding rate |
Up to 1.67 bpps |
Up to 3.34 bpps |
360 mpps |
|
Buffer size |
8 GB |
16 GB |
18 MB total (6 MB shared among 16 ports) |
|
MACsec |
6 QSFP28 ports |
8 QSFP28 ports |
Not published |
|
Enhanced Layer 3 license |
N3K-LAN1K9 |
N3K-LAN1K9 (ordering table lists N3K-LAN1K9XL) |
N3524-LAN1K9 |
|
Airflow |
Port-side exhaust or port-side intake |
Port-side exhaust or port-side intake |
Port-side exhaust or port-side intake |
N3K-C36180YC-R has 48 SFP ports for 1G, 10G or 25G plus 6 QSFP28 ports at 1.8 Tbps and 8 GB of buffer, while N3K-C3636C-R has 36 QSFP28 ports at 7.2 Tbps and 16 GB of buffer. Racks full of 10G or 25G servers with a few 40G or 100G uplinks fit N3K-C36180YC-R; fabrics that need 36 ports of native 40G or 100G, or 4 x 10G and 4 x 25G breakout on every port, move to N3K-C3636C-R. If the project is limited to 1G and 10G SFP+ at 480 Gbps, N3K-C3524P-XL is the smaller option, with 24 enabled ports that can be expanded to 48. Enhanced Layer 3 on N3K-C36180YC-R is the N3K-LAN1K9 license.
Ordering Checklist
- Airflow direction: Order NXA-FAN-65CFM-PE with NXA-PAC-1100W-PE2 or NXA-PHV-1100W-PE for port-side exhaust, or NXA-FAN-65CFM-PI with NXA-PAC-1100W-PI2 or NXA-PHV-1100W-PI for port-side intake. Exhaust and intake are separate fan and power supply PIDs, and the chassis row does not say which are included.
- Power supply type: Choose AC (NXA-PAC-1100W-PE2 or -PI2) or Platinum HV-AC-DC (NXA-PHV-1100W-PE or -PI) on both positions. High-voltage and normal supplies cannot be mixed, and the ordering table lists no DC-only PID.
- Layer 3 license: Add N3K-LAN1K9 if full OSPF, EIGRP and BGP routing is needed. The Nexus 3600 platform uses the Nexus 9000 licensing scheme, so routing is not part of the base chassis.
Optional Add-ons
|
Model |
Description |
|---|---|
|
N3K-LAN1K9 |
Cisco Nexus N3K-C36180YC-R Enhanced Layer 3 license |
|
NXA-FAN-65CFM-PI |
Nexus fan, 65CFM, port-side intake airflow |
|
NXA-FAN-65CFM-PE |
Nexus fan, 65CFM, port-side exhaust airflow |
|
NXA-PAC-1100W-PE2 |
Nexus AC 1100W power supply, port-side exhaust |
|
NXA-PAC-1100W-PI2 |
Nexus AC 1100W power supply, port-side intake |
|
NXA-PHV-1100W-PI |
Nexus 1100W Platinum HV-AC-DC power supply, port-side intake airflow |
|
NXA-PHV-1100W-PE |
Nexus 1100W Platinum HV-AC-DC power supply, port-side exhaust airflow |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | N3K-C36180YC-R | Cisco model | Nexus 36180YC-R |
| Product type | 1RU fixed-form-factor switch | Order description | Nexus 36180YC-R, 48p 10/25G and 6p QSFP28 |
| Primary role | Data center aggregation switching | Rack units | 1RU |
| Data ports | 48 SFP ports, native 1/10/25 Gigabit Ethernet | QSFP28 ports | 6 QSFP28 ports, native 40/100 Gigabit Ethernet |
| QSFP28 breakout | 4 x 25G or 4 x 10G modes | MACSec support | Wire-rate MACSec on all 6 QSFP28 ports |
| Switching capacity | 1.8 Tbps | Forwarding rate | Up to 1.67 bpps |
| Line-rate support | Layer 2 and Layer 3 on all ports for packets bigger than 115B | Maximum MTU | Up to 9216 bytes |
| Buffer size | 8 GB | DRAM | 32 GB |
| Bootflash memory | 128 GB | MAC address scale | 750,000 |
| VLAN scale | 4096 VLANs | Ingress ACL entries | 7000 |
| Maximum LPM routes | 256,000 | IP host entries | 750,000 |
| Layer 3 multicast entries | 128,000 | EtherChannels | 256 with vPC |
| Ports per EtherChannel | 32 | Management port | RJ-45 management port and SFP management port |
| Console port | 1 RS-232 serial console port | USB port | 1 USB port |
| Power supply selection | NXA-PAC-1100W-PE2 1100W AC, NXA-PAC-1100W-PI2 1100W AC, NXA-PHV-1100W-PE 1100W, or NXA-PHV-1100W-PI 1100W selected by airflow and input type | Power supply types | AC forward/reverse airflow or DC port-side exhaust |
| Power supply mixing rule | Both power supplies must be AC or both must be DC | Typical operating power | 383 W |
| Maximum power consumption | 771 W | AC input voltage | 100 to 240 VAC |
| AC input frequency | 50 to 60 Hz | Power supply efficiency | 89 to 91% at 220V |
| Cooling airflow | Forward port-side exhaust or reverse port-side intake | Fan modules | 2 fan modules |
| Fan replacement note | Hot-swappable, must swap within 1 minute | Dimensions | 1.72 x 17.3 x 26.85 in. (4.4 x 43.9 x 68.2 cm) |
| Weight | 12.3 kg (27.1 lb) | Operating temperature | 32 to 104 F (0 to 40 C) |
| Storage temperature | -40 to 158 F (-40 to 70 C) | Operating humidity | 10 to 85% noncondensing |
| Operating altitude | Up to 13,123 ft | Layer 3 license PID | N3K-LAN1K9 |
| Enhanced Layer 3 features | Full OSPF, EIGRP, and BGP | NX-OS package reference | nxos64-msll image for Nexus 3600 fixed switches in Release 10.6(3)F |
| AC PSU support from NX-OS 10.3(3)F | NXA-PAC-750W-PE and NXA-PAC-750W-PI | Transceiver support reference | Cisco Transceiver Module compatibility matrix |
