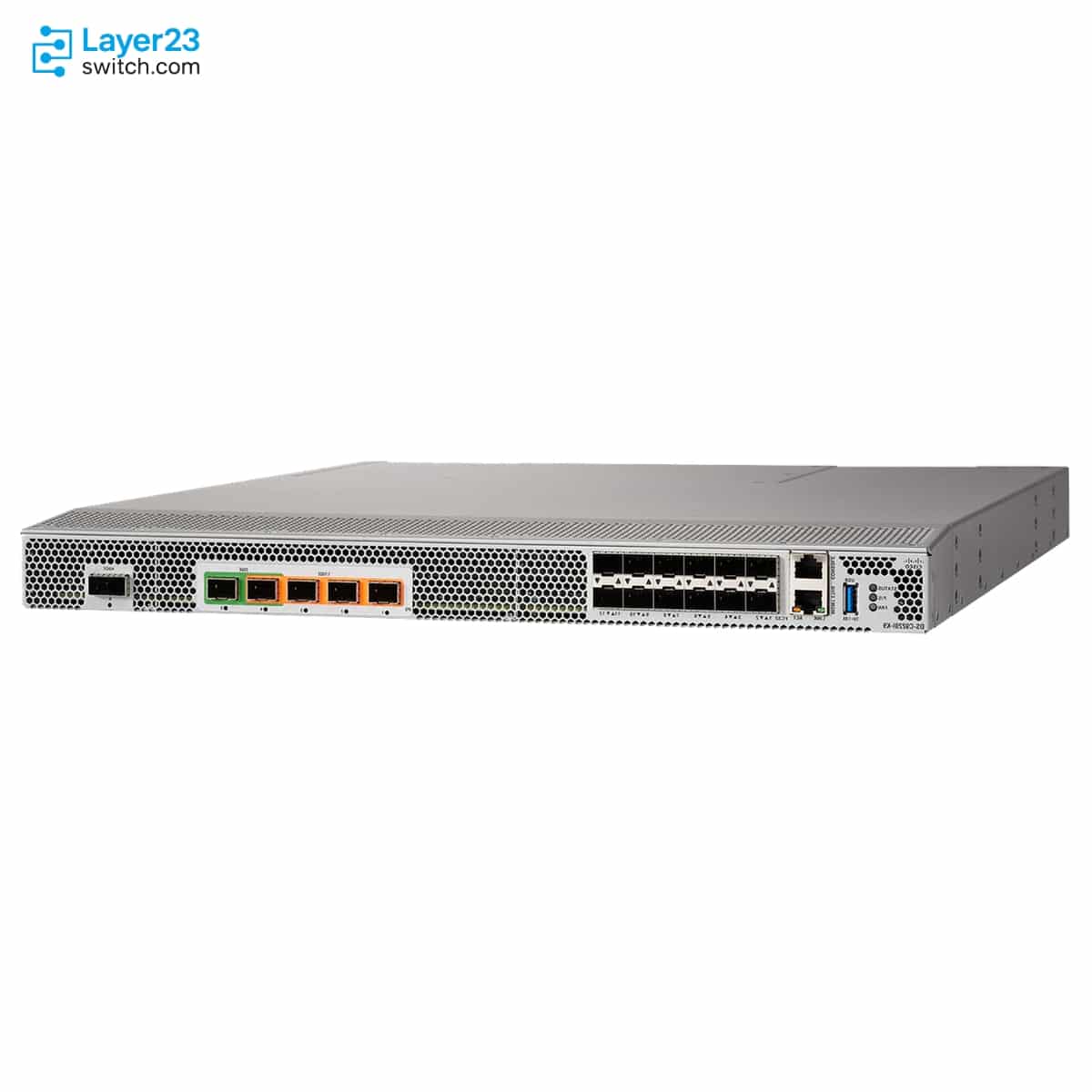

DS-C9220I-12PIK9 – 12x32G FC Ports – 6x IPS Ports – Intake SAN Switch
Shop Expert-Recommended Accessories for the DS-C9220I-12PIK9
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4Original price was: $1,213.85.$91.68Current price is: $91.68. -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $1,260.58.$95.80Current price is: $95.80. -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $633.46.$59.00Current price is: $59.00. -
QSFP-40G-CSR4
40G CSR4 QSFP - MPO MMF - 300m OM3Original price was: $3,653.72.$237.00Current price is: $237.00.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
DS-C9220I-12PIK9 Description
The DS-C9220I-12PIK9 is a Cisco MDS 9220i multiservice fabric switch for Fibre Channel SANs and FCIP storage links in racks that pull air in through the port side. The 1RU switch has 12 32G Fibre Channel ports, six IPS ports with 1/10/25/40 Gbps options, 384 Gbps of Fibre Channel forwarding capacity and two 500W AC power supplies. Fans and power supplies must also be port-side intake, and 25G IPS operation is not supported in Cisco MDS 9000 NX-OS Release 8.5(1).
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
DS-C9220I-12PIK9 |
|
Product type |
Multiprotocol fixed SAN switch |
|
Order configuration |
Advanced configuration with 12x FC ports and 6x IPS 1/10/25/40 Gbps ports |
|
Airflow |
Port-side intake |
|
Form factor |
Fixed 1RU switch |
|
Fibre Channel ports |
12 x 32 Gbps line-rate Fibre Channel ports |
|
Fibre Channel speed support |
4, 8, 16, and 32 Gbps autosensing |
|
IPS ports |
6 IPS ports with 1/10/25/40 Gbps speed options |
|
Fibre Channel forwarding capacity |
384 Gbps |
|
IPS forwarding capacity |
80 Gbps |
|
Software compatibility |
Cisco MDS 9000 NX-OS Release 8.5(1) or later |
|
Power supplies and fans |
Redundant hot-swappable power supplies and fan modules |
|
Supported Cisco optics |
SFP, SFP+, or QSFP+ transceivers and cables supported by Cisco MDS 9220i |
Product Performance
Key Features
All 12 Fibre Channel ports and six IPS ports are enabled when the switch is installed, so no port-upgrade license enters the plan.
Air flows front to back, entering at the port side. Fan and power supply modules of the exhaust type raise an alarm and force a shutdown, so every module must be the intake type.
The 12 ports run 4, 8, 16 or 32 Gbps and add up to 384 Gbps of forwarding capacity. Up to 12 physical links bundle into one PortChannel.
The IPS ports cover 1, 10, 25 and 40 Gbps, with up to three FCIP tunnels per 1/10G port and four on the 40G port. NX-OS 8.5(1) does not support the 25G speed.
The SAN Extension over IP package is included, so FCIP and compression work on the IPS ports without a separate software line.
The switch holds two 500W AC supplies and four fan modules, all replaceable while running. Maximum system power is 280W and heat output is 897 BTU/hr.
Application Scenarios
A production data center copies storage to a recovery site over FCIP, using the six IPS ports and the 40G port for up to four tunnels.
In racks that draw air in through the port side, the switch connects servers and arrays to the SAN over 12 line-rate 32G Fibre Channel ports.
A branch office or department consolidates its storage traffic on one 1RU switch and trunks to the main fabric over PortChannels of up to 12 links.
Product Comparison
|
Parameter |
DS-C9220I-12PIK9 | |||
|---|---|---|---|---|
|
Enabled Fibre Channel ports |
12 |
12 |
4 |
4 |
|
Fibre Channel port speed |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
|
Enabled IPS ports |
6 |
6 |
2 |
2 |
|
IPS port speed |
1/10/25/40 Gbps |
1/10/25/40 Gbps |
1 Gbps |
1 Gbps |
|
Airflow |
Port-side intake |
Port-side exhaust |
Port-side intake |
Port-side exhaust |
|
Upgrade license to enable all ports |
Not applicable |
Not applicable |
M9220I-UPGK9 |
M9220I-UPGK9 |
|
Minimum software release |
Cisco MDS 9000 NX-OS 8.5(1) |
Cisco MDS 9000 NX-OS 8.5(1) |
Cisco MDS 9000 NX-OS 8.5(1) |
Cisco MDS 9000 NX-OS 8.5(1) |
DS-C9220I-12PIK9 is the advanced port-side intake order of the MDS 9220i, with 12 Fibre Channel ports and 6 IPS ports enabled at 1/10/25/40 Gbps, while DS-C9220I-4PIK9 is the same intake chassis enabled for 4 Fibre Channel ports and 2 IPS ports at 1 Gbps. A SAN that needs every port from day one orders DS-C9220I-12PIK9; DS-C9220I-4PIK9 suits a smaller start and reaches the full port set later with the M9220I-UPGK9 license. Racks that exhaust air through the port side need DS-C9220I-12PEK9 for the advanced scope or DS-C9220I-4PEK9 for the base scope, because fans and power supplies must match the chassis airflow. All four orders require Cisco MDS 9000 NX-OS Release 8.5(1) or later, and 25G IPS operation is not supported in that release.
Ordering Checklist
- Airflow-matched spares: Order fan DS-C32S-FAN-I= and power supply DS-CAC-500W-I= for port-side intake; DS-CAC-1200W= is bidirectional but supplied only as a spare. Opposite-airflow fans shut the switch down in 10 to 15 seconds and opposite-airflow power supplies in about 10 minutes.
- Power cords: Order a country-specific cord such as CAB-9K10A-UK or CAB-9K12A-NA separately for the C16 inlet on each power supply. Cords are separate lines, and the wrong regional cord leaves a supply unpowered.
- Upgrade license: Leave M9220I-UPGK9 off the order, since 12 FC and 6 IPS ports are already enabled. The license is for base 4P switches, and adding it here pays for ports that are already active.
- Optional software: SAN Extension over IP is included; M9200ENT1K9 (Enterprise Package) and DCNM-SAN-M92-K9 or DCNM-S-M92XK9 are separate lines. Adding an included package duplicates it, and leaving out an optional one means it is absent at delivery.
- Optics: Add 32G Fibre Channel optics such as DS-SFP-FC32G-SW or DS-SFP-FC32G-LW, and IPS optics such as SFP-10G-SR or QSFP-40G-SR4. The switch ships without transceivers, and only Cisco-branded modules are supported.
Optional Add-ons
|
Model |
Description |
|---|---|
|
DS-C32S-FAN-I= |
MDS 32G switch fan module spare for port-side intake airflow that Cisco lists as working with the 9220I switch |
|
DS-CAC-500W-I= |
MDS 9100 500W AC PSU port-side intake spare that Cisco lists as working with the 9220I switch |
|
DS-CAC-1200W= |
1200W AC power supply with bidirectional airflow listed by Cisco as a spare |
|
DS-9220I-KIT-CSCO(=) |
MDS 9220 accessory kit for Cisco listed in the Cisco ordering table |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DS-C9220I-12PIK9 | Product series | Cisco MDS 9200 Series Multiservice Switches |
| Product type | Multiprotocol fixed SAN switch | Order configuration | Advanced configuration with 12x FC and 6x IPS 1/10/25/40 Gbps |
| Airflow | Port-side intake | Comparable exhaust SKU | DS-C9220I-12PEK9 |
| Comparable base intake SKU | DS-C9220I-4PIK9 | Rack units | Fixed 1RU chassis |
| Fibre Channel ports | 12 x 32 Gbps line-rate Fibre Channel ports | Fibre Channel port speed | 4, 8, 16, and 32 Gbps autosensing and optionally configurable |
| IPS ports | 6 IPS ports with 1/10/25/40 Gbps speed options | IPS physical layout | 3 x 1/10G IPS ports, 1 x 1/10/25G IPS port, 1 x 25G IPS port, and 1 x 40G IPS port |
| Fibre Channel forwarding capacity | 384 Gbps | IPS forwarding capacity | 80 Gbps |
| PortChannel support | Up to 12 physical links | FCIP tunnels | Up to 3 per 1/10G port or 4 per 40G port |
| Extended buffer-to-buffer credits | Up to 8191 extended credits with 500 default credits | Software compatibility | Cisco MDS 9000 NX-OS Release 8.5(1) or later |
| DCNM support | Cisco MDS 9000 NX-OS Release 11.5.1 or later for Cisco DCNM support | 25G speed caveat | 25G speed is not supported in Cisco MDS NX-OS Release 8.5(1) |
| Included software package | Cisco MDS 9000 SAN Extension over IP Package included with the Cisco MDS 9220i switch | Optional software packages | Cisco MDS 9000 Family Enterprise Package and Cisco DCNM SAN Advanced license |
| Mainframe feature set | Mainframe feature set supported for Cisco MDS 9220i starting 9.4.1a and included in the base NX-OS software with 9.4.1a | Management access | CLI, SNMPv3, DCNM, NX-API, Cisco MDS 9000 Family CLI, out-of-band Ethernet, serial console, and in-band IP over Fibre Channel |
| Management Ethernet port | 1 x 10/100/1000 Mbps RJ45 Ethernet management port | Console port | RS-232 serial console port |
| USB port | USB port listed on the chassis component view | Power supply options | Redundant hot-swappable power supplies |
| Fan modules | Hot-swappable fan modules with integrated temperature and power management | Airflow matching rule | The direction of PSU airflow must match the direction of the fan module airflow |
| Intake fan module spare | DS-C32S-FAN-I= listed for port-side intake airflow and working with the 9220I switch | Intake PSU spare | DS-CAC-500W-I= listed as MDS 9100 500W AC PSU port-side intake and working with the 9220I switch |
| Default power supply | DS-CAC-500W-I 500W AC port-side intake power supply; two supplies in the order configuration | AC input voltage for 500W PSU | 100 to 240 VAC |
| AC input frequency | 50 to 60 Hz nominal | Maximum power consumption | 280W maximum for the Cisco MDS 9220i Fabric Switch |
| Heat dissipation | 897 BTU/hr | Dimensions | 1.72 x 17.3 x 20.11 in. (4.36 x 43.94 x 51.07 cm) excluding PSU, fan module handles, and USB stick |
| Weight | 9.8 kg (21.61 lb) including two PSUs and four fans, excluding optical modules | Operating temperature | 32 to 104F (0 to 40C) |
| Storage temperature | -40 to 158F (-40 to 70C) | Operating humidity | 10 to 90 percent noncondensing |
| Storage humidity | 10 to 95 percent noncondensing | Operating altitude | -197 to 6500 ft (-60 to 2000 m) |
| Transceiver support | Cisco-supported SFP, SFP+, or QSFP+ transceivers and cables | Transceiver rule | Use only Cisco SFP, SFP+, or QSFP+ transceivers in Cisco MDS 9220i switches |
