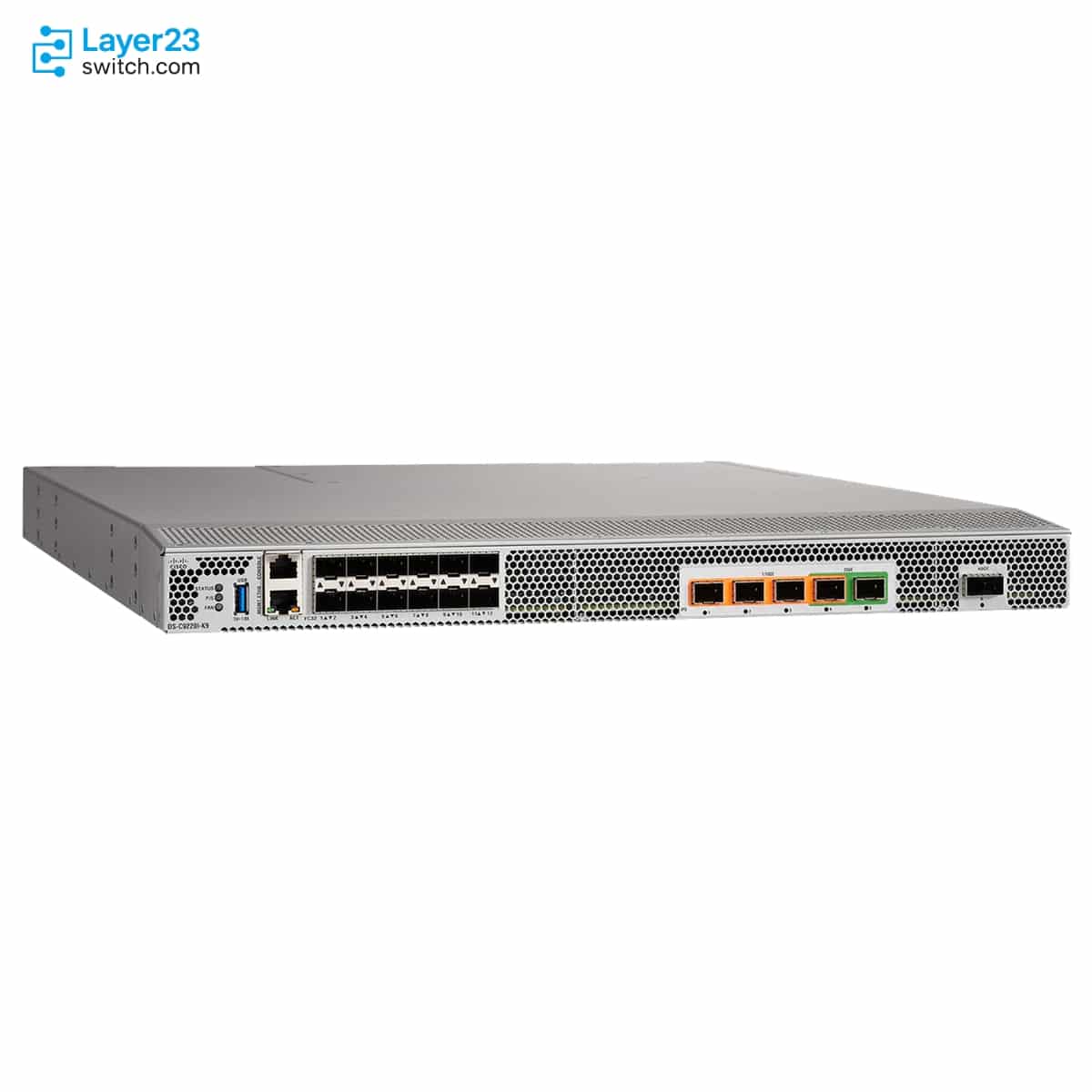

DS-C9220I-4PIK9 Description
The DS-C9220I-4PIK9 is a Cisco MDS 9220i multiservice fabric switch for compact SAN deployments with port-side intake airflow that need a low starting port count and FCIP on the same box. The 1RU switch enables four 32G Fibre Channel ports and two IPS ports at 1 Gbps, and includes the SAN Extension over IP package. The M9220I-UPGK9 license is required to enable all 12 Fibre Channel ports and six IPS ports.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
DS-C9220I-4PIK9 |
|
Product series |
Cisco MDS 9200 Series Multiservice Switches |
|
Product type |
Multiprotocol fixed SAN switch |
|
Order configuration |
Base configuration with 4x FC ports and 2x IPS 1 Gbps ports |
|
Airflow |
Port-side intake |
|
Form factor |
Fixed 1RU switch |
|
Enabled Fibre Channel ports |
4 x 32-Gbps Fibre Channel ports |
|
Fibre Channel speed support |
4/8/16/32-Gbps autosensing and optionally configurable |
|
Enabled IPS ports |
2 x IPS ports at 1 Gbps in the base configuration |
|
Upgrade path |
M9220I-UPGK9 enables all ports to 12x FC and 6x IPS 1/10/25/40 Gbps |
|
Minimum software release |
Cisco MDS 9000 NX-OS Release 8.5(1) or later |
|
Included software package |
Cisco MDS 9000 SAN Extension over IP Package |
|
Intake spare fan |
DS-C32S-FAN-I= listed as working with the 9220I switch |
Product Performance
Key Features
Four Fibre Channel ports and two 1 Gbps IPS ports are active at delivery, which covers a small fabric without paying for unused ports.
The M9220I-UPGK9 license raises the switch to 12 Fibre Channel ports and six IPS ports with 1/10/25/40 Gbps options. No hardware swap is involved.
Air enters at the port side, and fans and power supplies must be the intake type. All fan modules in the switch must share one airflow type.
The SAN Extension over IP package is part of the switch, so FCIP and compression are available on the IPS ports from the first day.
The Fibre Channel ports negotiate 4, 8, 16 or 32 Gbps and bundle up to 12 physical links into one PortChannel.
The switch runs on one 500W AC supply and gains redundancy with a second. Maximum system power is 280W.
Application Scenarios
A small site attaches a handful of hosts and a storage array to a Fibre Channel fabric using the four enabled 32G ports.
A remote office sends backup traffic to a central data center over FCIP on the two 1 Gbps IPS ports, with no separate SAN extension appliance.
In a rack that draws air in through the port side, the switch begins with four active ports and enables all 12 Fibre Channel and six IPS ports when storage demand grows.
Product Comparison
|
Parameter |
DS-C9220I-4PIK9 | |||
|---|---|---|---|---|
|
Enabled Fibre Channel ports |
4 |
4 |
12 |
12 |
|
Fibre Channel port speed |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
4/8/16/32 Gbps autosensing |
|
Enabled IPS ports |
2 |
2 |
6 |
6 |
|
IPS port speed |
1 Gbps |
1 Gbps |
1/10/25/40 Gbps |
1/10/25/40 Gbps |
|
Airflow |
Port-side intake |
Port-side exhaust |
Port-side intake |
Port-side exhaust |
|
Upgrade license to enable all ports |
M9220I-UPGK9 |
M9220I-UPGK9 |
Not applicable |
Not applicable |
|
Minimum software release |
Cisco MDS 9000 NX-OS 8.5(1) |
Cisco MDS 9000 NX-OS 8.5(1) |
Cisco MDS 9000 NX-OS 8.5(1) |
Cisco MDS 9000 NX-OS 8.5(1) |
DS-C9220I-4PIK9 is the base port-side intake order of the MDS 9220i, with 4 Fibre Channel ports and 2 IPS ports at 1 Gbps enabled, while DS-C9220I-12PIK9 is the same intake chassis with 12 Fibre Channel ports and 6 IPS ports enabled at 1/10/25/40 Gbps. A SAN that starts small orders DS-C9220I-4PIK9 and adds M9220I-UPGK9 later to enable all ports; one that needs the full set at purchase orders DS-C9220I-12PIK9 instead. Racks that exhaust air through the port side need DS-C9220I-4PEK9 for the base scope or DS-C9220I-12PEK9 for the advanced scope, because fans and power supplies must match the chassis airflow. All four orders require Cisco MDS 9000 NX-OS Release 8.5(1) or later, and 25G IPS operation is not supported in that release.
Ordering Checklist
- Switch or spare: Order DS-C9220I-4PIK9 for a new switch; DS-C9220I-4PIK9= is the spare line. The spare PID is a separate line item from the switch itself.
- Airflow-matched spares: Order fan DS-C32S-FAN-I= and power supply DS-CAC-500W-I= for port-side intake; DS-CAC-1200W= is bidirectional but supplied only as a spare. Opposite-airflow fans shut the switch down in 10 to 15 seconds and opposite-airflow power supplies in about 10 minutes.
- Port activation: Add M9220I-UPGK9 only if all 12 FC and 6 IPS ports are needed. The base order enables 4 FC and 2 IPS ports at 1 Gbps, and the other ports stay unusable without the license.
- Power cords: Order a country-specific cord such as CAB-9K10A-UK or CAB-9K12A-NA separately for the C16 inlet on each power supply. Cords are separate lines, and the wrong regional cord leaves a supply unpowered.
- Optional software: SAN Extension over IP is included; M9200ENT1K9 (Enterprise Package) and DCNM-SAN-M92-K9 or DCNM-S-M92XK9 are separate lines. Adding an included package duplicates it, and leaving out an optional one means it is absent at delivery.
- Optics: Add 32G Fibre Channel optics such as DS-SFP-FC32G-SW or DS-SFP-FC32G-LW, and IPS optics such as SFP-10G-SR or QSFP-40G-SR4. The switch ships without transceivers, and only Cisco-branded modules are supported.
Optional Add-ons
|
Model |
Description |
|---|---|
|
M9220I-UPGK9 |
MDS 9220i upgrade license to enable all ports to 12x FC and 6x IPS 1/10/25/40 Gbps |
|
DS-C32S-FAN-I= |
MDS 32G switch fan module spare for port-side intake airflow that Cisco lists as working with the 9220I switch |
|
DS-CAC-500W-I= |
MDS 9100 500W AC PSU spare for port-side intake airflow that Cisco lists as working with the 9220I switch |
|
DS-CAC-1200W= |
1200W AC power supply with bidirectional airflow listed by Cisco as a spare |
|
DS-9220I-KIT-CSCO(=) |
MDS 9220 accessory kit for Cisco listed in the Cisco ordering table |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DS-C9220I-4PIK9 | Product series | Cisco MDS 9200 Series Multiservice Switches |
| Product type | Multiprotocol fixed SAN switch | Order configuration | Base configuration with 4x FC ports and 2x IPS 1 Gbps ports |
| Airflow | Port-side intake | Comparable exhaust SKU | DS-C9220I-4PEK9 |
| Comparable advanced intake SKU | DS-C9220I-12PIK9 | Rack units | Fixed 1RU chassis |
| Base Fibre Channel ports | 4 x 32-Gbps Fibre Channel ports enabled | Platform Fibre Channel port capability | Up to 12 ports of 32-Gbps Fibre Channel with the Cisco MDS 9220i upgrade license |
| Fibre Channel port speed | 4/8/16/32-Gbps autosensing and optionally configurable | Base IPS ports | 2 IPS ports running at 1 Gbps in the base configuration |
| Full IPS port capability | 6 IPS ports with 1/10/25/40 Gbps speed options after the Cisco MDS 9220i upgrade license | Upgrade license | M9220I-UPGK9 enables all ports to 12x FC and 6x IPS 1/10/25/40 Gbps |
| PortChannel support | Up to 12 physical links | FCIP tunnels | Up to 3 per 1/10G port or 4 per 40G port on supported MDS 9220i IPS ports |
| Extended buffer-to-buffer credits | Up to 8191 extended credits with 500 default credits | Minimum software release | Cisco MDS 9000 NX-OS Release 8.5(1) or later |
| 25G speed caveat | 25G speed is not supported in Cisco MDS NX-OS Release 8.5(1) | Included software package | Cisco MDS 9000 SAN Extension over IP Package included with the Cisco MDS 9220i switch |
| Management access | Cisco MDS 9000 Family CLI, Cisco DCNM, SNMPv3, NX-API, onboard Python, serial console, management Ethernet, and in-band IP over Fibre Channel | Management Ethernet port | 1 x 10/100/1000 Mbps RJ45 Ethernet management port |
| Console port | RS-232 serial console port | USB port | USB port listed on the chassis component view |
| Power supply options | Hot-swappable power supplies with one operating PSU minimum and redundancy when two PSUs are installed | Fan modules | Four hot-swappable fan modules with redundancy when four fan modules are installed |
| Fan airflow rule | All fan modules in the switch must be of the same airflow type | PSU airflow rule | The direction of PSU airflow must match the direction of the fan module airflow |
| Intake fan module spare | DS-C32S-FAN-I= listed for port-side intake airflow and working with the 9220I switch | Intake PSU spare | DS-CAC-500W-I= listed as MDS 9100 500W AC PSU port-side intake and working with the 9220I switch |
| Default power supply | DS-CAC-500W-I 500W AC port-side intake power supply; two supplies in the order configuration | AC input voltage for 500W PSU | 100 to 240 VAC |
| AC input frequency | 50 to 60 Hz nominal | Typical power consumption | 240W listed in the Cisco data sheet |
| Maximum power consumption | 280W maximum for the Cisco MDS 9220i Fabric Switch | Heat dissipation | 897 BTU/hr |
| Dimensions | 1.72 x 17.3 x 20.11 in. (4.36 x 43.94 x 51.07 cm) excluding PSU, fan module handles, and USB stick | Weight | 9.8 kg (21.61 lb) including two PSUs and four fans, excluding optical modules |
| Operating temperature | 32 to 104F (0 to 40C) | Storage temperature | -40 to 158F (-40 to 70C) |
| Operating humidity | 10 to 90 percent noncondensing | Storage humidity | 10 to 95 percent noncondensing |
| Operating altitude | -197 to 6500 ft (-60 to 2000 m) | Transceiver support | Cisco-supported SFP, SFP+, or QSFP+ transceivers and cables |
| Transceiver rule | Use only Cisco SFP, SFP+, or QSFP+ transceivers in Cisco MDS 9220i switches |
Quality Certifications
Customer Reviews
Questions & Answers
-
How many ports are active on DS-C9220I-4PIK9, and how are more added?
-
Which Fibre Channel speeds does DS-C9220I-4PIK9 support?
-
Does DS-C9220I-4PIK9 need an Enterprise license for IPsec?
-
Can DS-C9220I-4PIK9 carry iSCSI traffic on its IPS ports?
-
How many extended buffer-to-buffer credits can DS-C9220I-4PIK9 allocate?
-
How much heat does DS-C9220I-4PIK9 release in the rack?
