C9400-LC-48XS – 48x 10G SFP+ or 1G SFP Ports – Supervisor 2 Required – Catalyst 9400 Line Card
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9400-LC-48XS Description
The C9400-LC-48XS is the Cisco Catalyst 9400 Series 48-Port 10 Gigabit Ethernet (SFP+) line card, a single-slot fiber module that supports 48 ports of 10GE SFP+ or 48 ports of 1GE SFP with both optic types usable at the same time on the same card without restrictions. Cisco positions it for high-performance, high-density 10 Gigabit Ethernet aggregation in the campus and as a core switch in small to medium-sized networks, and for enterprise backbone and collapsed access deployments where ports must migrate from 1GE to 10GE in phases rather than all at once. The card is one of the Supervisor 2 class modules: it requires C9400X-SUP-2 or C9400X-SUP-2XL and will not operate with C9400-SUP-1, C9400-SUP-1XL or C9400-SUP-1XL-Y, which puts a supervisor decision alongside every order. Bandwidth per slot reads 480 Gbps at 1:1 oversubscription with C9400X-SUP-2XL and 240 Gbps at 2:1 with C9400X-SUP-2 across all three chassis, and the card scales to 384 ports in a fully loaded C9410R while drawing a maximum rated 250 W, carrying MACsec-256 in hardware and jumbo frames to 9216 bytes from Cisco IOS XE 17.8 onward.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9400-LC-48XS |
|
Ports |
Up to 48 ports of 10GE SFP+ or 48 ports of 1GE SFP, usable simultaneously without restrictions |
|
Supervisor requirement |
C9400X-SUP-2 or C9400X-SUP-2XL only; not supported on C9400-SUP-1, C9400-SUP-1XL or C9400-SUP-1XL-Y |
|
Bandwidth per slot |
480 Gbps at 1:1 with C9400X-SUP-2XL, 240 Gbps at 2:1 with C9400X-SUP-2, on all three chassis |
|
Compatible chassis |
C9404R, C9407R and C9410R, scaling from 48 to 96, 240 and 384 ports respectively |
|
Security and frames |
IEEE 802.1AE MACsec-256 in hardware, jumbo frames to 9216 bytes |
|
Maximum rated power |
250 W |
|
Physical form |
Occupies one chassis slot, 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
|
Minimum software release |
Cisco IOS XE 17.8 |
Application Scenarios
Installed where access-layer switches hand off at 10G over fiber and 48 of those links must land on one slot of a modular chassis.
Deployed as the core switching point in small to medium-sized networks, terminating enterprise backbone links on a chassis that already carries a Supervisor 2 class engine.
Racked where part of the fiber plant still runs at 1GE and the rest has moved to 10GE, with SFP and SFP+ optics mixed on the same card during the transition.
Product Comparison
|
Parameter |
C9400-LC-48XS | ||
|---|---|---|---|
|
Port count and media |
48 SFP+ or SFP fiber |
24 SFP+ or SFP fiber |
48 RJ-45 copper |
|
Port speeds |
10 GE or 1 GE |
10 GE or 1 GE |
10GBASE-T, 5G/2.5G multigigabit, 1000M/100M |
|
Supervisor requirement |
C9400X-SUP-2 or C9400X-SUP-2XL only |
All five supervisor engines |
C9400X-SUP-2 or C9400X-SUP-2XL only |
|
Oversubscription with C9400X-SUP-2 |
2:1 |
1:1 |
2:1 |
|
Minimum software release |
Cisco IOS XE 17.8 |
Cisco IOS XE 16.6.2 |
Cisco IOS XE 17.13.1 |
|
Maximum rated power |
250 W |
200 W |
270 W |
|
Rated MTBF |
420,073 hours |
545,080 hours |
1,214,080 hours |
- The supervisor requirement is the sharpest divide in this group. C9400-LC-24XS runs on all five engines, while C9400-LC-48XS and C9400-LC-48TX both demand C9400X-SUP-2 or C9400X-SUP-2XL, so a chassis on an older engine reaches 10G fiber only through the 24-port card and only at half the port count.
- Doubling ports from C9400-LC-24XS to C9400-LC-48XS costs oversubscription on the smaller engine: the 24-port card stays 1:1 under C9400X-SUP-2 while this card runs 2:1, so 48 ports on a C9400X-SUP-2 chassis are 48 contended ports, and only C9400X-SUP-2XL restores 1:1.
- Against C9400-LC-48TX the trade is media rather than speed. Both cards carry 48 ports at 10G and both need the same engine class, but the copper card reaches 1,214,080 hours MTBF against 420,073 here and adds multigigabit fallback speeds, while this card terminates fiber and mixes 1GE optics on the same slot.
- For deciding which SKU to order, settle the physical medium first since fiber and copper do not substitute, then confirm the installed engine can accept a Supervisor 2 class card, and only then weigh 24 against 48 ports against the oversubscription each engine produces.
Selection Guide
1. Forty-Eight 10G Fiber Ports Carry An Engine Cost
C9400-LC-48XS cannot seat in a chassis running C9400-SUP-1, C9400-SUP-1XL or C9400-SUP-1XL-Y, so an installed base on those engines faces a supervisor purchase alongside the card; C9400-LC-24XS delivers 10G SFP+ on the same chassis with no engine change at half the port count.
2. Full Rate Only Arrives With Supervisor 2XL
Under C9400X-SUP-2 this card runs 2:1 oversubscribed at 240 Gbps per slot, and only C9400X-SUP-2XL lifts it to 480 Gbps at 1:1; a design that has budgeted the cheaper engine should size the aggregate link load for contention rather than assume line rate on all 48 ports.
3. Mixed Optic Speeds On One Slot
SFP+ and SFP modules run together on this card without restrictions, which lets a partially migrated fiber plant terminate 1GE and 10GE runs in the same slot; splitting those runs across a 1G card and a 10G card would consume two slots for the same terminations.
4. Where Copper Changes The Answer Entirely
C9400-LC-48TX carries the same 48 ports at 10G under the same Supervisor 2 class requirement but terminates RJ-45 copper with multigigabit fallback and reaches 1,214,080 hours MTBF; where the horizontal plant is copper, this fiber card is not a substitute at any port count.
5. Two Hundred Fifty Watts Across Eight Slots
At 250 W maximum rated power, eight of these cards in a C9410R present a far larger facility figure than eight 200 W C9400-LC-24XS cards, so a chassis whose power supply count is already fixed may reach its supply ceiling before its slot ceiling.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Supervisor engine class |
Confirm the target chassis holds C9400X-SUP-2 or C9400X-SUP-2XL. |
The card is not supported on C9400-SUP-1, C9400-SUP-1XL or C9400-SUP-1XL-Y and will not come into service on those engines. |
|
Software image floor |
Confirm the chassis runs Cisco IOS XE 17.8 or later. |
A chassis staged below that release will not bring the card into service even with a supported engine. |
|
Free line-card slot |
Confirm an unused line-card slot exists in the target C9404R, C9407R or C9410R. |
The card takes one full slot, and supervisor slots cannot accept line cards. |
|
SFP+ and SFP module line items |
Confirm the 10G and 1G optics are ordered separately and appear on the Cisco device support tables for this platform. |
The line card ships without optics, and an unlisted transceiver may be rejected by the host port. |
|
Aggregate link load |
Confirm the planned traffic against 240 Gbps per slot if the chassis runs C9400X-SUP-2 rather than C9400X-SUP-2XL. |
The card is 2:1 oversubscribed on the smaller engine, so a design sized at line rate will contend under load. |
|
Facility power headroom |
Confirm the chassis power budget absorbs 250 W per card across the planned card count. |
This is one of the higher-draw fiber cards in the family and can exhaust the supply budget before the slot budget. |
|
Fiber type and reach |
Confirm the installed fiber plant matches the mode and reach of the chosen optics at both 1G and 10G. |
Mixing optic speeds on one card does not relax the fiber plant requirements of either speed. |

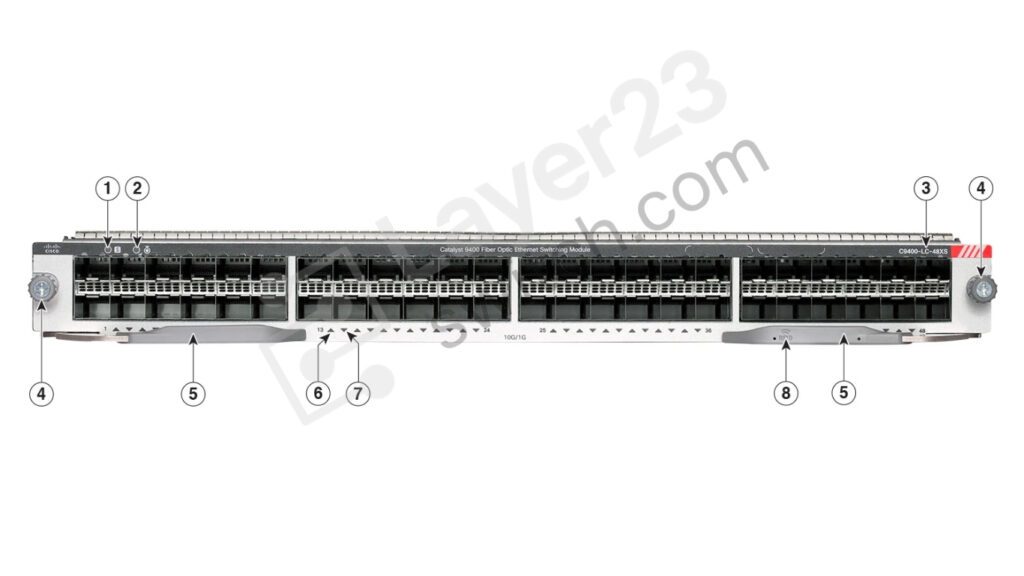

Front View
|
1 |
STATUS LED |
5 |
Ejector levers |
|---|---|---|---|
|
2 |
LOCATE (blue beacon) LED |
6 |
PORT LINK LED for the port in the top row |
|
3 |
Model or product number |
7 |
PORT LINK LED for the port in the bottom row |
|
4 |
Captive installation screws |
8 |
Line card Radio Frequency Identifier (RFID) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9400-LC-48XS | Cisco ordering description | Cisco Catalyst 9400 Series 48-Port 10 Gigabit Ethernet (SFP+), spare part number C9400-LC-48XS= |
| Port count | Up to 48 ports | Port speed and media | 48 ports of 10GE SFP+ or 48 ports of 1GE SFP, with SFP+ and SFP usable simultaneously on the same card without restrictions |
| Supervisor requirement | C9400X-SUP-2 or C9400X-SUP-2XL; not supported on C9400-SUP-1, C9400-SUP-1XL or C9400-SUP-1XL-Y | Compatible chassis | C9404R, C9407R and C9410R |
| Bandwidth per slot with C9400X-SUP-2XL | 480 Gbps at 1:1 oversubscription on all three chassis | Bandwidth per slot with C9400X-SUP-2 | 240 Gbps at 2:1 oversubscription on all three chassis |
| Port scaling by chassis | 48 to 96 ports in C9404R, 48 to 240 ports in C9407R and 48 to 384 ports in C9410R | Positioned deployments | High-performance high-density 10 Gigabit Ethernet aggregation in the campus, core switching in small to medium-sized networks, and enterprise backbone and collapsed access deployments |
| Encryption | IEEE 802.1AE MACsec-256 capability in hardware | Frame handling | Layer 2 to Layer 4 jumbo frame support up to 9216 bytes |
| Forwarding architecture | Functionally transparent; packet processing, queuing, buffering and QoS run on the supervisor engine, with dedicated bandwidth from each line-card slot to the supervisor | Maximum rated power | 250 W |
| Typical power draw | Approximately 40 to 75 percent of the maximum rated value | Rated MTBF | 420,073 hours |
| Minimum software release | Cisco IOS XE 17.8 | Physical dimensions (H x W x D) | 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm), occupying one chassis slot |
| Standards | IEEE 802.3z, 802.3x, 802.3ab, 802.3bt, 802.3at, 802.3af, 802.3az, 802.3bz and 802.3an | EtherChannel | 10 Gigabit EtherChannel on all 10 Gbps ports, Gigabit EtherChannel on all 1000 Mbps ports, IEEE 802.3ad LACP and PaGP, 16 ports per tuple with LACP and 8 with PaGP, and EtherChannel across line cards |
| Operating temperature | 23 to 113 degrees F (-5 to +45 degrees C) up to 6,000 feet and 23 to 104 degrees F (-5 to +40 degrees C) up to 10,000 feet, with 0 degrees C minimum ambient for cold startup | Short-term exceptional conditions | 23 to 131 degrees F (-5 to +55 degrees C) up to 6,000 feet and 23 to 122 degrees F (-5 to +50 degrees C) up to 10,000 feet |
| Storage temperature | -40 to 158 degrees F (-40 to 70 degrees C) | Relative humidity | 10 to 95 percent, noncondensing |
| Operating altitude | -60 to 3000m | Safety certifications | UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1 and IEEE 802.3, with fiber optic lasers rated Class 1 |
| EMC certifications | 47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN55024 and TCVN 7317 | RoHS compliance | ROHS5 |
| Optics support reference | Supported optical modules and their minimum software releases are published in the Cisco transceiver module device support tables rather than in the line card data sheet |
