C9400-LC-48UX – 24x mGig + 24x1G RJ-45 – UPOE 60W – Catalyst 9400 Line Card
3/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

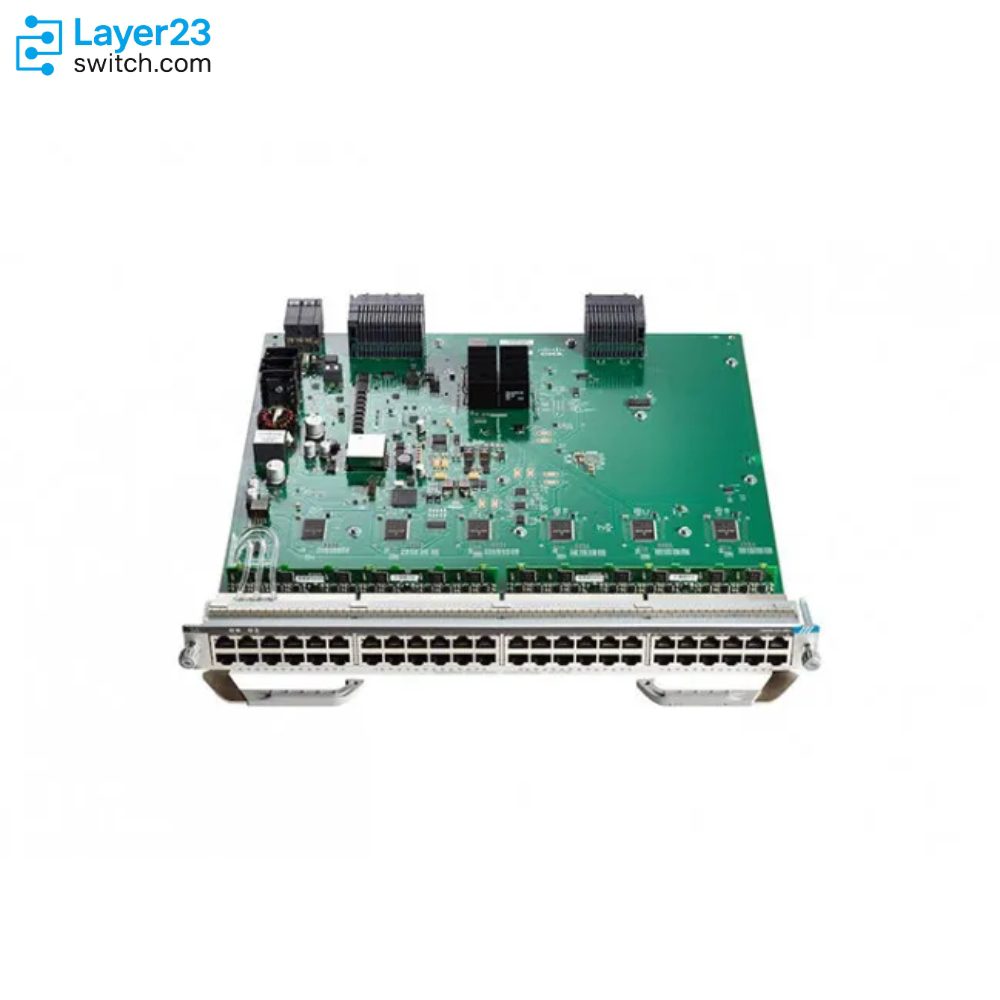

C9400-LC-48UX Description
C9400-LC-48UX is a Cisco Catalyst 9400 Series multigigabit UPOE line card for Catalyst 9400 chassis builds that need powered copper access in both gigabit and multigigabit port groups.
The order-critical detail is the port map. Ports 1 to 24 are 10/100/1000 UPOE ports, and ports 25 to 48 are UPOE multigigabit ports for 100M, 1G, 2.5G, 5G, and 10GBASE-T copper. C9400-LC-48UX therefore sits between the all-1G C9400-LC-48U and the higher-power C9400-LC-48HX, which changes both PoE class and supervisor requirements.
Before the SKU is released into a quote, match the chassis to Catalyst 9404R, 9407R, or 9410R, keep the module out of supervisor slots, verify Cisco IOS XE 16.6.2 or later, and size the power supplies against the expected 60W UPOE endpoint mix.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9400-LC-48UX |
|
Spare PID |
C9400-LC-48UX= |
|
Product family |
Cisco Catalyst 9400 Series |
|
Product type |
48-port UPOE multigigabit RJ-45 line card |
|
Supported chassis |
Cisco Catalyst 9404R, 9407R, and 9410R |
|
Port count |
48 |
|
Port layout |
Ports 1-24 are 10/100/1000 UPOE; ports 25-48 are multigigabit UPOE |
|
Multigigabit speeds |
100M, 1G, 2.5G, 5G, and 10GBASE-T on 24 ports |
|
Port type |
RJ-45 UPOE with IEEE 802.3at, IEEE 802.3af, and Cisco pre-standard PoE |
|
Cisco UPOE capability |
Up to 60W per port on each of 48 ports |
|
Maximum line-card bandwidth |
240 Gbps full duplex non-blocking traffic |
|
Minimum software release |
Cisco IOS XE Software Release 16.6.2 or later |
|
Supervisor compatibility |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
Application Scenarios
C9400-LC-48UX fits a Catalyst 9400 access closet where one module must carry 24 standard gigabit copper endpoints and a separate block of 24 mGig copper endpoints.
This SKU is a candidate when refreshed access points or other powered RJ-45 devices need mGig connectivity with Cisco UPOE, while the design remains in the 60W class rather than the 90W UPOE+ class.
The line card keeps support for the documented SUP-1 and SUP-2 families, so it can extend a Catalyst 9404R, 9407R, or 9410R design when the all-gigabit C9400-LC-48U port profile is too narrow.
Product Comparison
|
Parameter |
C9400-LC-48UX | ||
|---|---|---|---|
|
Product family |
Cisco Catalyst 9400 Series |
Cisco Catalyst 9400 Series |
Cisco Catalyst 9400 Series |
|
Product type |
48-port UPOE multigigabit line card |
48-port UPOE line card |
48-port UPOE+ 10G multigigabit line card |
|
Port count |
48 |
48 |
48 |
|
Port speed |
24 multigigabit 100M/1G/2.5G/5G/10GBASE-T ports and 24 10/100/1000 ports |
48 10/100/1000 ports |
48 10GBASE-T, 5G/2.5G multigigabit, and 1000M/100M ports |
|
Port type |
RJ-45 UPOE IEEE 802.3at, IEEE 802.3af, and Cisco pre-standard PoE |
RJ-45 UPOE IEEE 802.3at, IEEE 802.3af, and Cisco pre-standard PoE |
RJ-45 UPOE+ IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, and Cisco pre-standard PoE |
|
Powered-port class |
Cisco UPOE up to 60W per port |
Cisco UPOE up to 60W per port |
Cisco UPOE+ up to 90W per port |
|
Minimum software release |
Cisco IOS XE 16.6.2 or later |
Cisco IOS XE 16.6.1 or later |
Cisco IOS XE 17.8.1 or later |
|
Supervisor compatibility |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
C9400X-SUP-2 and C9400X-SUP-2XL only |
|
Maximum line-card bandwidth |
240 Gbps |
48 Gbps |
480 Gbps |
|
Catalyst 9404R port density |
48 / 96 |
48 / 96 |
48 / 96 |
|
Catalyst 9407R port density |
48 / 240 |
48 / 240 |
48 / 240 |
|
Catalyst 9410R port density |
48 / 384 |
48 / 384 |
48 / 384 |
|
Max rated power |
240 W |
65 W |
270 W |
- In a C9400-LC-48UX vs C9400-LC-48U comparison, the table-backed difference is copper speed: C9400-LC-48UX adds 24 multigigabit UPOE ports while C9400-LC-48U keeps all 48 ports at 10/100/1000.
- The C9400-LC-48UX vs C9400-LC-48HX difference is both power class and supervisor scope. C9400-LC-48UX stays with 60W Cisco UPOE and supports the listed SUP-1 and SUP-2 families, while HX is a 90W UPOE+ 10G mGig card limited to SUP-2 or SUP-2XL.
- For a C9400-LC-48UX comparison, which model to choose starts with the required mix of 1G and mGig copper ports, then the endpoint power class, software release, and supervisor already approved in the chassis design.
Selection Guide
1. Match the module to the exact port map
Add C9400-LC-48UX only when the BOM calls for 24 multigigabit copper ports plus 24 10/100/1000 RJ-45 ports on one UPOE line card.
2. Keep C9400-LC-48U for a pure gigabit layer
C9400-LC-48U is the cleaner fit when all 48 copper endpoints stay at 10/100/1000 and the 24-port mGig block would not be used.
3. Escalate to HX only for 90W and all-port 10G mGig
C9400-LC-48HX belongs in the comparison when the project needs UPOE+ power and 10G multigigabit capability across every port, with SUP-2 or SUP-2XL in the chassis plan.
4. Tie the purchase check to chassis readiness
Do not treat the module as a standalone spare: the order depends on Cisco IOS XE 16.6.2 or later, a non-supervisor slot, compatible supervisor hardware, and a power plan that matches the powered-device load.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Basis |
Buyer Check |
|---|---|---|
|
UPOE power class |
C9400-LC-48UX supports up to 60W power per port on each of its 48 ports |
Match endpoint classes to Cisco UPOE rather than assuming 90W UPOE+ support |
|
Port group planning |
Ports 1-24 are 1G UPOE and ports 25-48 are mGig UPOE |
Place mGig endpoints on the correct port range before finalizing cabling and patch plans |
|
Chassis power budget |
Cisco directs power-budget estimates to the Cisco Power Calculator for PoE configurations |
Size power supplies against the expected powered-device mix and redundancy mode |
|
Software-managed PoE controls |
Cisco lists per-port power measurement, maximum power setting per port, and PoE Power Configuration |
Keep software policy and endpoint power limits aligned with the deployed IOS XE release |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact PID |
C9400-LC-48UX or spare PID C9400-LC-48UX= |
Identifies the mixed 1G and mGig UPOE card rather than a 48U or 48HX variant |
|
Chassis family |
Catalyst 9404R, 9407R, or 9410R |
Keeps the line card inside the Catalyst 9400 modular chassis set documented by Cisco |
|
Port placement |
mGig endpoints assigned to ports 25-48 |
Avoids placing a 10G copper endpoint on the 1G-only port group |
|
Supervisor module |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, or C9400X-SUP-2XL |
Matches the supervisor list in the installation note |
|
Software release |
Cisco IOS XE 16.6.2 or later |
Meets the minimum software requirement for this specific line card |
|
Slot placement |
Open non-supervisor module slot |
Follows the installation rule for payload module placement |
|
Power plan |
Power-supply configuration for the expected UPOE load |
Links the 60W endpoint count to chassis power capacity and redundancy mode |

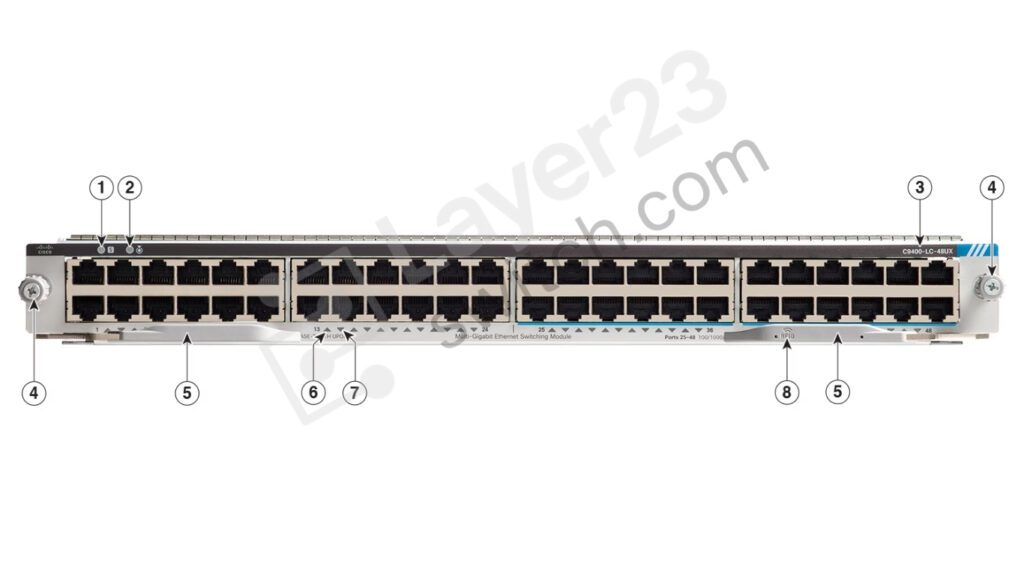

Front View
|
1 |
STATUS LED |
5 |
Ejector levers |
|---|---|---|---|
|
2 |
LOCATE (blue beacon) LED |
6 |
PORT LINK LED for the port in the top row |
|
3 |
Model or product number |
7 |
PORT LINK LED for the port in the bottom row |
|
4 |
Captive installation screws |
8 |
Line card Radio Frequency Identifier (RFID) |
Specifications
Packaging weight and dimensions included:| Weight | 15.24 kg |
|---|---|
| Dimensions | 58 × 54 × 19 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Cisco | Product ID | C9400-LC-48UX |
| Spare PID | C9400-LC-48UX= | Product family | Cisco Catalyst 9400 Series |
| Product type | Line card | Cisco ordering description | Cisco Catalyst 9400 Series 48-Port UPOE w/ 24p mGig 24p RJ-45 |
| Supported chassis | Catalyst 9404R, 9407R, and 9410R | Supervisor compatibility | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
| Port count | 48 | Port layout | 24 10/100/1000 UPOE ports and 24 multigigabit UPOE ports |
| 1G port range | Ports 1 to 24 | mGig port range | Ports 25 to 48 |
| Multigigabit port speeds | 100M, 1G, 2.5G, 5G, and 10GBASE-T | Port type | RJ-45 UPOE IEEE 802.3at, IEEE 802.3af, and Cisco pre-standard PoE |
| Cisco UPOE capability | Up to 60W per port on each of 48 ports | Minimum software release | Cisco IOS XE Software Release 16.6.2 or later |
| Maximum line-card bandwidth | 240 Gbps full duplex non-blocking traffic | Installation slot rule | Any non-supervisor module slot |
| Catalyst 9404R port density | 48 / 96 | Catalyst 9407R port density | 48 / 240 |
| Catalyst 9410R port density | 48 / 384 | Energy Efficient Ethernet | Supported |
| MACsec capability | IEEE 802.1AE MACsec-256 capability in hardware | Jumbo frame support | Layer 2 to Layer 4 jumbo frame support up to 9216 bytes |
| PTP readiness | Hardware ready for IEEE 1588 and IEEE 802.1as | Cisco Phone Discovery | Supported |
| PoE cable loss management | Supported | Per-port power measurement | Supported through software configuration |
| Maximum power setting per port | Supported through software configuration | PoE Power Configuration | Supported up to 60W per port |
| Power delivery | Direct power delivery from backplane | RFID tag | Built-in front-facing passive UHF RFID tag |
| Max rated power | 240 W | Rated MTBF | 469,550 hours |
| AC-input power allocated | 267 W | DC-output power requested | 240 W |
| Current at 90V | 2.96 A | Current at 120V | 2.22 A |
| Current at 180V | 1.48 A | Current at 240V | 1.11 A |
| Heat dissipation | 910 BTU/hr | Weight | 8.3 lb (3.8 kg) |
Get More Information
Need pricing, stock, or shipping details for the C9400-LC-48UX ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is C9400-LC-48UX used for with 24 mGig UPOE, 10GBASE-T, and 24 1G ports?
-
How many multigigabit and 1G ports does C9400-LC-48UX have?
-
Does C9400-LC-48UX support UPOE+?
-
How is C9400-LC-48UX different from C9400-LC-48HX?
-
When does C9400-LC-48UX fit Wi-Fi AP mGig access?
-
What slot bandwidth limit applies to C9400-LC-48UX mGig UPOE?
-
When is C9400-LC-48UX the wrong line card?
-
What 24 mGig UPOE and slot bandwidth details matter for C9400-LC-48UX?
