C9400-LC-48HN Description

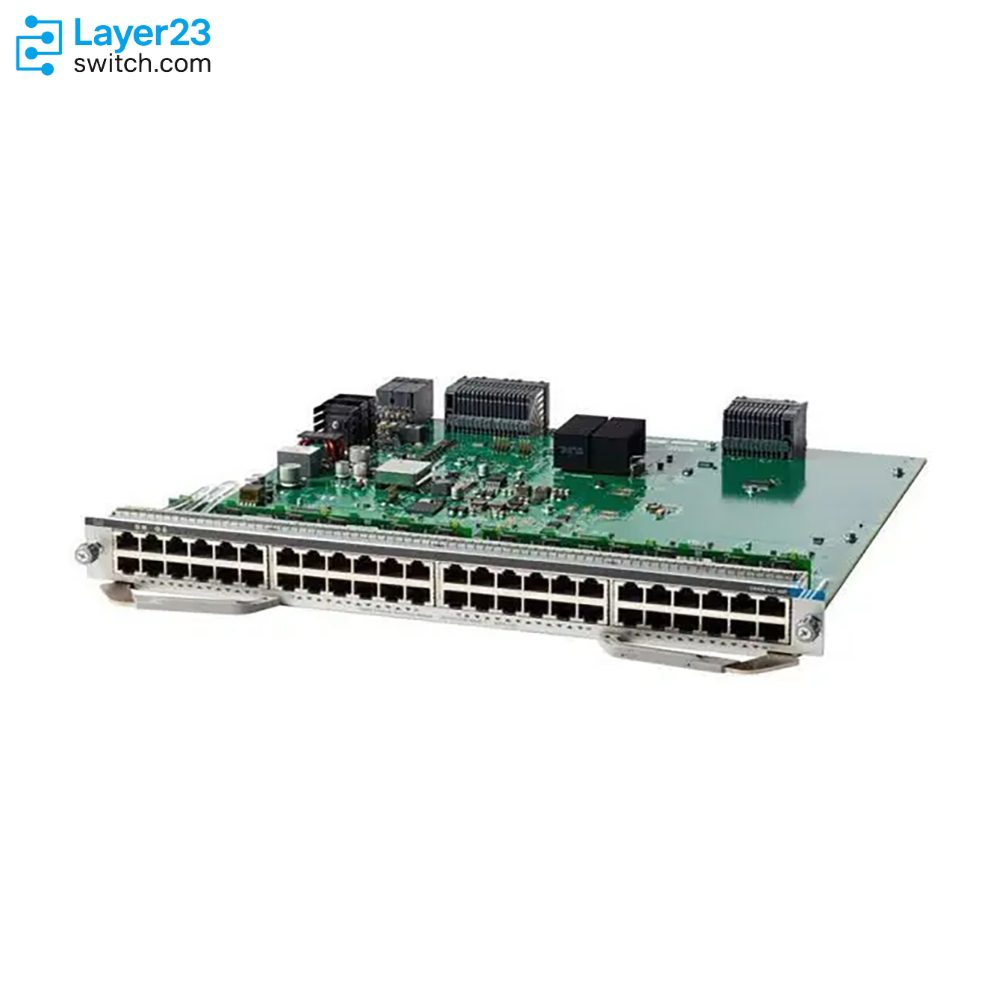

The C9400-LC-48HN is a 48-port UPOE+ line card designed for the Cisco Catalyst 9400 Series modular switches. Supporting up to 90W per port via IEEE 802.3bt (UPOE+), it’s ideal for powering high-demand endpoints such as Wi-Fi 6/6E access points, pan-tilt-zoom (PTZ) cameras, and thin clients. As a next-gen model, it offers superior energy efficiency and enhanced security with hardware-based MACsec encryption. Compatible with all Catalyst 9400 Series chassis and powered by Cisco IOS XE, the C9400-LC-48HN delivers the high performance and reliability required by enterprise-grade core and aggregation layer deployments. Also known by synonyms such as Catalyst 9400 48-port UPOE+ card or 48-port C9400 high-power line card, this module ensures scalable, secure, and intelligent LAN deployments.

Product Performance

Ethernet Ports
Maximum Bandwidth
PoE Support

Quick Spec

Attribute

Description

Model

C9400-LC-48HN

Port Configuration

48 × Multigigabit RJ-45 ports (5G/2.5G/1G/100 Mbps), non-blocking UPOE+

Maximum Bandwidth

240 Gbps full-duplex, nonblocking traffic

Minimum Software Version

Cisco IOS XE Bengaluru 17.5.1 or later

Slot Density (Min/Max ports)

• Catalyst 9404R: 48 / 96• Catalyst 9407R: 48 / 240• Catalyst 9410R: 48 / 384

Supervisor Compatibility

C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, C9400X-SUP-2XL

PoE Support

UPOE+ up to 90 W per port; IEEE 802.3af/at/bt and Cisco pre-standard PoE; PoE Cable Loss Management

Key Applications

Wi-Fi 6/6E access, digital signage, security cameras, IoT-enabled environments

Key Features

Non-blocking Multigigabit Performance

Supports 48 × 5G/2.5G/1G/100 Mbps RJ-45 ports with a full-duplex switching capacity of 240 Gbps per slot.

High-Power UPOE+ Support

Hardware-accelerated UPOE+ delivers up to 90 W per port simultaneously, covering IEEE 802.3bt/at/af and Cisco pre-standard PoE for the most demanding powered devices.

Precision Time Protocol Ready

Hardware-ready for IEEE 1588/802.1as to ensure precise time synchronization for video, audio, and industrial applications.

Jumbo-Frame & MACsec Capability

Enables Layer 2–4 jumbo frames up to 9,216 bytes and hardware-based MACsec encryption (IEEE 802.1AE) for secure, high-throughput deployments.

Broad Supervisor Compatibility

Seamlessly integrates with all Catalyst 9400 supervisor engines—SUP-1, SUP-1XL, SUP-1XL-Y, SUP-2, and SUP-2XL—for flexible chassis configurations.

Energy Efficiency & Advanced Power Management

Features Energy Efficient Ethernet (802.3az), per-port power measurement, PoE Emergency Shutdown by priority levels, and PoE Cable Loss Management for optimal power utilization.

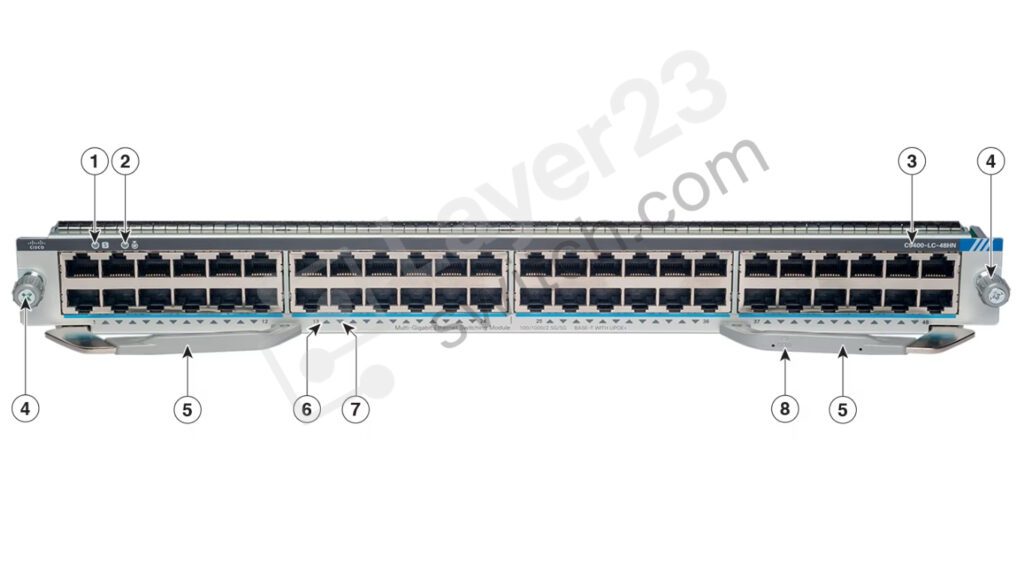

Front View

C9400-LC-48HN

1

STATUS LED

5

Ejector levers

2

LOCATE (blue beacon) LED

6

PORT LINK LED for the port in the top row

3

Model or product number

7

PORT LINK LED for the port in the bottom row

4

Captive installation screws

8

Line card Radio Frequency Identifier (RFID)

C9400-LC-48HN Slot Bandwidth by SUP & Chassis

Supervisor Engine

Chassis

Per-Slot Bandwidth

Oversubscription

C9400X-SUP-2XL

C9404R

480 Gbps

1:1

C9407R

480 Gbps

1:1

C9410R

480 Gbps

1:1

C9400X-SUP-2

C9404R

240 Gbps

1:1

C9407R

240 Gbps

1:1

C9410R

240 Gbps

1:1

C9400-SUP-1XL / 1XL-Y

C9404R

240 Gbps

1:1

C9407R

120 Gbps

2:1

C9410R

80 Gbps

3:1

C9400-SUP-1

C9404R

80 Gbps

3:1

C9407R

80 Gbps

3:1

C9410R

80 Gbps

3:1

Product Comparison

Parameter

C9400-LC-48HN

C9400-LC-48H

C9400-LC-24XS

Ports

48 × RJ-45

48 × RJ-45

24 × SFP+

Port Speed

100M/1G/2.5G/5G

1G

10G

PoE Type

UPOE+

UPOE+

N/A

Power per Port

90W

90W

N/A

Slot Bandwidth

Up to 480 Gbps

Up to 480 Gbps

Up to 480 Gbps

MACsec Support

Yes (256-bit)

Yes (256-bit)

Yes (256-bit)

Supervisor Support

SUP-1XL/2/2XL

SUP-1XL/2/2XL

SUP-2/2XL

MTBF

422,690 hours

434,450 hours

456,110 hours

RFID Tag

Yes

Yes

Yes

IOS XE Requirement

17.5.1+

16.9.1+

17.3.1+

Energy Efficiency

IEEE 802.3az supported

IEEE 802.3az supported

IEEE 802.3az supported

Line Card Supervisor Module Compatibility Overview

–

C9400-SUP-1

C9400-SUP-1XL

C9400-SUP-1XL-Y

C9400X-SUP-2

C9400X-SUP-2XL

C9400-LC-12QC

No

No

No

Yes

Yes

C9400-LC-24S

Yes

Yes

Yes

Yes

Yes

C9400-LC-24XS

Yes

Yes

Yes

Yes

Yes

C9400-LC-24XY

No

No

No

Yes

Yes

C9400-LC-48H

Yes

Yes

Yes

Yes

Yes

C9400-LC-48HN

Yes

Yes

Yes

Yes

Yes

C9400-LC-48HX

No

No

No

Yes

Yes

C9400-LC-48P

Yes

Yes

Yes

Yes

Yes

C9400-LC-48S

Yes

Yes

Yes

Yes

Yes

C9400-LC-48T

Yes

Yes

Yes

Yes

Yes

C9400-LC-48TX

No

No

No

Yes

Yes

C9400-LC-48U

Yes

Yes

Yes

Yes

Yes

C9400-LC-48UX

Yes

Yes

Yes

Yes

Yes

C9400-LC-48XS

No

No

No

Yes

Yes

Specifications

Parameter Specification Parameter Specification
Model C9400-LC-48HN Description 48-port, 5G/2.5G/1G/100 Mbps Multigigabit RJ-45 UPOE+ line card supporting up to 90 W per port
Port Speed & Type 5G/2.5G/1G/100 Mbps BASE-T; IEEE 802.3bt/at/af; Cisco pre-standard PoE PoE Support UPOE+ up to 90 W per port; PoE+; PoE
Maximum Bandwidth 240 Gbps full-duplex, non-blocking traffic Minimum Software Version Cisco IOS XE Bengaluru 17.5.1 or later
Port Density • C9404R: 48 / 96
• C9407R: 48 / 240
• C9410R: 48 / 384		 Supervisor Compatibility C9400-SUP-1; C9400-SUP-1XL; C9400-SUP-1XL-Y; C9400X-SUP-2; C9400X-SUP-2XL
Jumbo Frames Layer 2–4 up to 9 216 bytes MACsec Encryption IEEE 802.1AE (MACsec-256) hardware acceleration
Precision Time Protocol Hardware-ready for IEEE 1588/802.1as Energy Efficiency IEEE 802.3az (EEE); PoE Cable Loss Management
Advanced Power Features Per-port power measurement; max-power-per-port config; front-facing passive RFID tag MTBF 422,690 hours
Max Rated Power 175 W (for facility power planning) Operating Temp. 23 to 131 °F (–5 to 55 °C) up to 6,000 ft; 23 to 122 °F (–5 to 50 °C) up to 10,000 ft
Storage Temp. –40 to 158 °F (–40 to 70 °C) Relative Humidity 10 to 95 %, non-condensing
Operating Altitude –60 to 3,000 m Safety Certifications UL 60950-1; CAN/CSA-C222.2 No. 60950-1; EN 60950-1; IEC 60950-1; AS/NZS 60950.1; IEEE 802.3
EMI Certifications 47 CFR Part 15; CISPR22 Class A; EN 300 386 V1.6.1; EN 55022 Class A; EN 55032 Class A;
CISPR 32 Class A; EN 61000-3-2; EN 61000-3-3; ICES-003 Class A; TCVN 7189 Class A;
V-3 Class A; CISPR24; EN 300 386; EN 55024; TCVN 7317		 RoHS Compliance RoHS 5
Ideal Use Cases Wi-Fi 6/6E access; digital signage; security cameras; IoT-enabled environments

Get More Information

Discover unbeatable prices and fast shipping for the C9400-LC-48HN Access the detailed C9400-LC-48HN datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via Live chat or email us at [email protected]

Quality Certifications

Customer Reviews

Write A Review
5.0
(11 reviews)
5 Stars
11
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
    Supply Chain
    Posted on 25/10/2025
    Verified Buyer
    5.0

    Import to the UK was smooth. Documentation was perfect.

    Ororo Munroe
    Posted on 18/06/2025
    Verified Buyer
    5.0

    Shipping was lightning fast. Impressive service.

    Data Center Mgr
    Posted on 12/02/2025
    Verified Buyer
    5.0

    Arrived brand new in sealed box. Seals were intact. Very satisfied.

    Max King
    Posted on 20/05/2024
    Verified Buyer
    5.0

    Great value for a high-performance line card. Support from Layer23-switch.com was excellent.

    Tyler Hayes
    Posted on 12/04/2024
    Verified Buyer
    5.0

    Plug and play in our C9400 chassis. Performance is stable and reliable, zero downtime since install.

Questions & Answers

  • What are the first checks if the 48HN ports refuse power negotiation?

    Verify the chassis has sufficient PoE budget, check cabling quality (Cat5e or better), and use 'show power inline' to view port errors.

  • Which mounting clips come with the 48HN module?

    The accessory kit includes mounting ears, screws, dust caps, and cable management brackets.

  • How does the 48HN 5G multigig card differ from the 48H UPOE+?

    The 48HN supports up to 5G speeds with 90W UPOE+, while the 48H targets slightly lower speeds and different power profiles.

  • Is there a fiber-optic alternative to the 48HN multigig card?

    Yes, the C9400-LC-24XS or 48XS offer SFP+ and QSFP+ fiber interfaces for high-speed uplinks.

  • Which campus-edge deployments benefit most from 48HN?

    Ideal for education, healthcare, or enterprise edge switches needing high PoE power and moderate multigig speeds.

  • Which LEDs show 48HN emergency shutdown states?

    Amber or red port LEDs indicate shutdown from power or temperature errors; check 'show logging' for the root cause.

  • How to hot-swap a 48HN card without dropping PoE devices?

    Ensure redundant supervisor, pull the module gently, insert replacement, and confirm port and power status via CLI.

  • Which copper cable specs work reliably for 5G on the 48HN?

    Use Cat5e for up to 2.5G, Cat6 or Cat6A for 5G operation.

  • How can I confirm 90 W per-port on the 48HN?

    Connect a 90W device and use 'show power inline' to confirm full allocation and negotiation.

  • Can I mix 48HN ports with other PoE cards in the same chassis?

    Yes, mixed PoE and multigig cards are supported as long as total power budget is managed.

  • Which spare parts are included with the 48HN?

    Dust covers, mounting screws, cable managers, and a quick guide.

  • How do I reset per-port PoE priority on the 48HN?

    Use 'power inline priority' CLI command to adjust per-port power allocation.

  • What daily checks ensure stable 48HN operation?

    Monitor power draw, clear vents, check logs for errors, and periodically reboot if needed.

  • Does the 48HN support reach-extend for long runs?

    Yes, with the correct cable quality and supported PDs, extended Ethernet can be achieved.

  • Which CLI commands show 48HN temperature?

    'show environment' and 'show platform' display real-time temperature metrics.
