Which supervisor engines does C9404R-48U-BNDL-A support, and can it run two?

C9404R-48U-BNDL-A supports C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2 and C9400X-SUP-2XL, in dedicated slots 2 and 3. A second supervisor adds redundancy and must be the same engine type as the first. Order it as a /2 PID such as C9400-SUP-1/2.

Which power supplies and redundancy modes does C9404R-48U-BNDL-A support?

C9404R-48U-BNDL-A has 4 power supply bays for C9400-PWR-3200ACT, C9400-PWR-3200AC, C9400-PWR-2100AC or C9400-PWR-3200DC modules, with quantity set by the redundancy mode. Supported modes are N+N, N+1 and combined. On a 115VAC feed the 3200W AC module delivers about 1560W.

What happens in C9404R-48U-BNDL-A if two fans in the C9404-FAN tray fail?

If two or more of the 8 fans fail, the whole tray runs at full speed after one minute and must be replaced. If one fan fails, the other fans in the same row speed up. The C9404-FAN tray is nonredundant as a unit and can be serviced from the front or the rear, per the Catalyst 9400 hardware installation guide.

How many 90W ports can C9404R-48U-BNDL-A reach with C9400-LC-48HX cards?

The C9404R chassis reaches 96 ports at 90W when both line-card slots hold C9400-LC-48HX cards. That needs C9400X-SUP-2 or C9400X-SUP-2XL and fully loaded 3200W supplies in combined mode. The bundled C9400-LC-48U is a 60W card, so it is not part of that count and would be replaced by a second C9400-LC-48HX.

Does C9400-LC-48U in C9404R-48U-BNDL-A reach line rate on C9400-SUP-1?

Yes. The 48-port 1G cards such as C9400-LC-48U need only 48G per slot, and C9400-SUP-1 gives 80 Gbps per line-card slot in this chassis. These cards run at line rate on every supervisor, so a newer engine does not raise their speed.

How much PoE can a line-card slot of C9404R-48U-BNDL-A draw?

The C9404R chassis is capable of about 4800W per slot, and current line cards draw up to 4320W. The output pool of the power supplies is shared between data and PoE. The number of supplies and the redundancy mode therefore set the PoE that is actually available to the bundled C9400-LC-48U.

C9404R-48U-BNDL-A – 48x1G UPOE Ports – 2880W PoE Budget per Slot – DNA Advantage

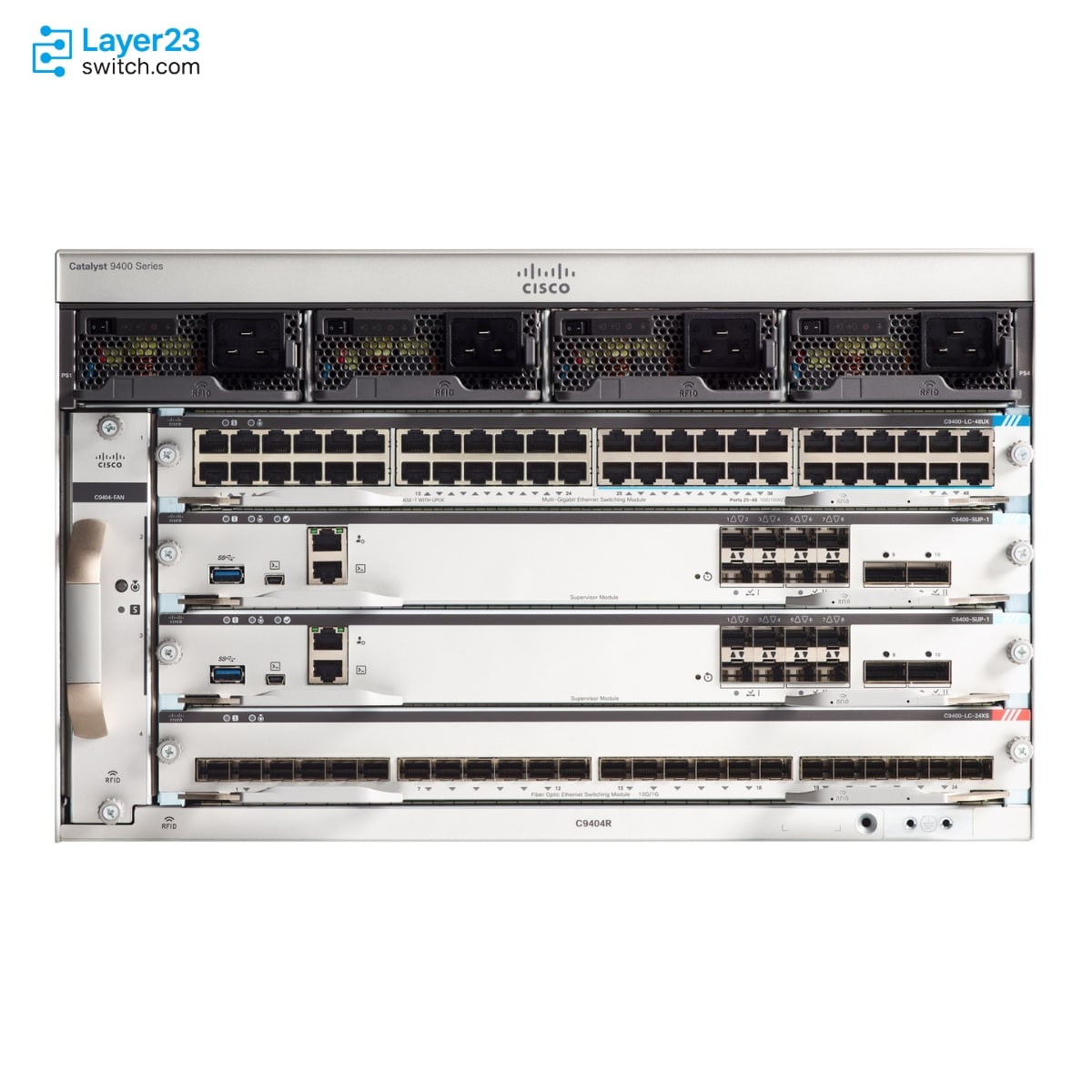

Name: C9404R-48U-BNDL-A - Cisco Catalyst 9404R 48-Port UPOE Bundle
Brand: Cisco
SKU: C9404R-48U-BNDL-A
Price: 8393.75 USD
Availability: InStock
Rating: 5 (3 reviews)

Brand: Cisco Category: Catalyst 9400 Switches Model: C9404R-48U-BNDL-A

Rated 5 out of 5 based on 3 customer ratings

5.03 reviews6 Questions

List Price: ~~$21,631.28~~ 61% OFF

$8,393.75

Price Alert

In StockShips in as little as 1 business day Brand New

Related models

Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policyExpress Shipping2-6 Business Daysvia UPS, FedEx, DHL and more

Trusted & Secure Payments

Shop Expert-Recommended Accessories for the C9404R-48U-BNDL-A

Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.

C9400-LC-48H
48x 10/100/1000 RJ-45 UPOE+ Ports - 90W Per Port - Catalyst 9400 Line Card
Original price was: $11,568.61.Current price is: $4,857.75.
C9400-LC-48P
48x1G RJ-45 - PoE+ 30W - Catalyst 9400 Line Card
Original price was: $9,451.48.Current price is: $4,973.35.
C9400-LC-48T
48x1G RJ-45 - Data Only - Catalyst 9400 Line Card
Original price was: $8,997.80.Current price is: $3,037.90.
C9400-LC-48U
48x1G RJ-45 - Cisco UPOE 60W - Catalyst 9400 Line Card
Original price was: $11,568.61.Current price is: $1,626.05.
C9400-LC-12QC
12x 40G QSFP+ or 4x 100G QSFP28 Ports - Supervisor 2 Required - Cat 9400 Line Card
Original price was: $39,615.36.Current price is: $17,384.11.
C9400-LC-24XS
24x 10G SFP+ or 1G SFP Ports - All Supervisors - Catalyst 9400 Line Card
Original price was: $30,849.62.Current price is: $5,501.20.
C9400-LC-24XY
20x 25G SFP28 + 4x 10G SFP+ Ports - Supervisor 2 Required - Cat 9400 Line Card
Original price was: $37,473.99.Current price is: $16,444.87.
C9400-LC-48S
48x 1G SFP Fiber Ports - Nonblocking - Catalyst 9400 Line Card
Original price was: $31,504.92.Current price is: $10,443.10.
C9400-PWR-3200AC
3200W AC PSU - Catalyst 9400 - Platinum
Original price was: $2,570.81.Current price is: $560.00.
C9400-PWR-2100AC
2100W AC PSU - Catalyst 9400 - Platinum Rated
Original price was: $2,570.81.Current price is: $1,090.00.
C9400-PWR-3200DC
3200W DC Power Supply - Catalyst 9400
Original price was: $3,780.58.Current price is: $2,202.00.

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded

Customers

Units shipped

Countries

Inventory You Can See

Cisco stock on hand

Models ready to ship

Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

Advance replacement for in-stock models
New unit for dead-on-arrival
14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

C9404R-48U-BNDL-A Description

The C9404R-48U-BNDL-A is a Cisco Catalyst 9400 Series modular switch bundle for wiring closets that power phones, access points and cameras over UPOE. The 4-slot C9404R chassis has two line-card slots, two supervisor slots and four power supply bays in 6 RU, and the included C9400-LC-48U card supplies 48 10/100/1000 ports at up to 60W each. The -A suffix carries Cisco DNA Advantage, and the supervisor slots accept supervisor engines only, never line cards.

Quick Specs

Parameter	Specification
Product ID	C9404R-48U-BNDL-A
Product type	Modular access switch bundle
Cisco ordering description	Catalyst 9400 Series 4 slot, Sup, 1xC9400-LC-48U, DNA-A LIC
Chassis	C9404R
Chassis form factor	4-slot modular chassis
Included line card	C9400-LC-48U
Downlink ports	48 x RJ-45
Downlink speeds	10/100/1000 Mbps
PoE support	PoE, PoE+, and Cisco UPOE
Cisco UPOE per-port power	Up to 60 W
Supervisor slots	2 slots
Power supply slots	4 bays
Fan modules	C9404-FAN, 8-fan tray

Product Performance

Included 1G RJ-45 UPOE Access

Cisco UPOE Per-Port Power Class

Maximum C9404R 1G UPOE Density

Key Features

Four Slots In Six Rack Units

The C9404R holds two line cards and two supervisors in 6 RU and 39.0 lb with its fan tray, so a closet with limited rack height can still host a modular switch.

48 UPOE Ports In The Bundle

The included C9400-LC-48U supplies 48 10/100/1000 RJ-45 ports with PoE, PoE+ and Cisco UPOE at up to 60W per port.

Second Line-Card Slot

Slots 1 and 4 take line cards, and the second slot raises the chassis to 96 UPOE ports. Until then it needs a slot cover, since empty slots stay open.

Slot Bandwidth Follows The Supervisor

The supervisor sets the per-slot rate on the C9404R: 80 Gbps with C9400-SUP-1, 240 Gbps with C9400-SUP-1XL, C9400-SUP-1XL-Y or C9400X-SUP-2, and 480 Gbps with C9400X-SUP-2XL. Redundant supervisors must be the same engine type.

Four Power Supply Bays

The bays take 3200W AC, 2100W AC or 3200W DC modules in N+N, N+1 or combined mode. On a 115VAC feed the 3200W AC module delivers about 1560W, which cuts the UPOE budget available to 48 ports.

Cisco DNA Advantage Tier

The Advantage tier brings ThousandEyes and Cisco Spaces Extend licenses with the DNA subscription, which runs 3, 5 or 7 years. The tier must match the Network Advantage stack license on the switch.

Application Scenarios

Closet For Phones, APs And Cameras

In a floor wiring closet, the bundle powers IP phones, wireless access points and cameras from 48 UPOE ports at up to 60W each. Traffic from all of them leaves through the supervisor uplinks.

Building Aggregation Room

A building that collects several access switches can use the open line-card slot for a fiber card such as the 24-port 10 Gigabit C9400-LC-24XS beside the copper card, so one chassis serves both roles.

Closet With Redundant Supervisors

A closet that cannot tolerate a supervisor failure fills both supervisor slots with matching engines, so forwarding continues through a switchover while the 48 UPOE ports stay powered.

Product Comparison

Parameter	C9404R-48U-BNDL-A	C9404R-48U-BNDL-E	C9407R-96U-BNDL-A
Total number of slots	4	4	7
Line-card slots	2	2	5
Maximum PoE per slot	4320W	4320W	4320W
Number of power supply bays	4	4	8
Rack units	6 RU	6 RU	10 RU
Included C9400-LC-48U line cards	1	1	2
10/100/1000BASE-T (RJ-45) with UPOE ports, maximum	96	96	240
Default PoE budget	None; set by the selected power supplies	None; set by the selected power supplies	None; set by the selected power supplies
Cisco DNA license	Cisco DNA Advantage	Cisco DNA Essentials	Cisco DNA Advantage

C9404R-48U-BNDL-A and C9404R-48U-BNDL-E share the same 4-slot chassis and one C9400-LC-48U with 48 UPOE ports, and differ only in license tier: Cisco DNA Advantage here, Cisco DNA Essentials in C9404R-48U-BNDL-E. A site that can run on the Essentials tier orders C9404R-48U-BNDL-E, and one that needs Advantage stays on this bundle. When 96 UPOE ports are needed on day one, C9407R-96U-BNDL-A ships two C9400-LC-48U line cards in a 7-slot chassis with 5 line-card slots, 8 power supply bays and room for up to 240 ports, against 2 line-card slots, 4 bays and 96 ports here.

Ordering Checklist

Redundant supervisor: Order a second supervisor as a /2 PID, such as C9400-SUP-1/2 or C9400X-SUP-2XL/2, for the second of the two supervisor slots, 2 and 3. Line cards cannot go in supervisor slots, so redundancy needs its own line.
Power supplies: Select C9400-PWR-3200AC, C9400-PWR-2100AC or C9400-PWR-3200DC for the 4 bays, with quantity set by the redundancy mode. The 115VAC range derates the 3200W AC supply to 1560W.
Second line-card slot: The bundle fills one of the two line-card slots (1 and 4) with C9400-LC-48U; add another line card or C9400-S-BLANK= to cover the open slot.
Chassis-specific kits: Order C9404-FAN=, C9404-ACC-KIT= and C9404-RACK-19-KIT=; no shelf install kit is listed for this chassis. These kits are per chassis size and do not carry across the 7 and 10 slot chassis.

Optional Add-ons

Model	Description
C9400-PWR-3200AC	Cisco Catalyst 9400 Series 3200W AC power supply
C9400-PWR-3200DC	Cisco Catalyst 9400 Series 3200W DC power supply
C9400X-SUP-2XL/2	Cisco Catalyst 9400 Series redundant Supervisor 2XL module option
C9400-LC-24XS	Cisco Catalyst 9400 Series 24-port 10 Gigabit Ethernet SFP+ line card

Specifications

Parameter	Specification	Parameter	Specification
Product ID	C9404R-48U-BNDL-A	Product type	Modular access switch bundle
Cisco ordering description	Catalyst 9400 Series 4 slot, Sup, 1xC9400-LC-48U, DNA-A LIC	Network license	Cisco DNA Advantage
Chassis	C9404R	Chassis slots	4 total slots
Supervisor slots	2 slots, dedicated to supervisor engines	Line-card slots	2 slots, dedicated to line cards
Included line card	C9400-LC-48U	Included downlink ports	48 RJ-45 ports
Downlink speeds	10/100/1000 Mbps	PoE standards	PoE, PoE+, and Cisco UPOE
Cisco UPOE per-port power	Up to 60 W per port	Maximum C9404R UPOE density	96 10/100/1000BASE-T UPOE ports
Line card bandwidth on C9404R	80, 240, or 480 Gbps per slot depending on supervisor engine	Jumbo frames	9216 bytes on C9400-LC-48U
Supervisor support	C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, C9400X-SUP-2XL	Power supply slots	4 bays
Power supply options	C9400-PWR-2100AC, C9400-PWR-3200AC, C9400-PWR-3200ACT, C9400-PWR-3200DC	Fan modules	C9404-FAN, 8 fans
Dimensions	10.47 x 17.30 x 16.30 in. (26.53 x 43.94 x 41.40 cm)	Rack units	6 RU
Weight	17.2 kg (39.0 lb), with fan tray	Mounting	19-inch rack compatible
Power supply selection	C9400-PWR-3200AC 3200W AC, C9400-PWR-2100AC 2100W AC, or C9400-PWR-3200DC 3200W DC selected during chassis configuration	PoE power budget	Configuration-dependent; C9400-LC-48U supports up to 2880W per line-card slot
Expanded PoE budget	Up to 2880W per C9400-LC-48U line-card slot with selected C9400 power supply configuration

Quality Certifications

Customer Reviews

Write A Review

5.0

Rated 5 out of 5

(3 reviews)

5 Stars

3

4 Stars

0

3 Stars

0

2 Stars

0

1 Stars

0

Joshua Sanchez

Posted on 18/02/2026

Verified Buyer

Rated 5 out of 5

5.0

Had a quick question weeks after delivery. They remembered the order and helped right away.

Emily Boyd

Posted on 06/02/2026

Verified Buyer

Rated 5 out of 5

5.0

Layer23 shipped ahead of the quoted lead time. Pleasant surprise.

Diane Myers

Posted on 08/12/2025

Verified Buyer

Rated 5 out of 5

5.0

Returned for our second order within weeks. No regrets.

Questions & Answers

Which supervisor engines does C9404R-48U-BNDL-A support, and can it run two?
C9404R-48U-BNDL-A supports C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2 and C9400X-SUP-2XL, in dedicated slots 2 and 3. A second supervisor adds redundancy and must be the same engine type as the first. Order it as a /2 PID such as C9400-SUP-1/2.
Which power supplies and redundancy modes does C9404R-48U-BNDL-A support?
C9404R-48U-BNDL-A has 4 power supply bays for C9400-PWR-3200ACT, C9400-PWR-3200AC, C9400-PWR-2100AC or C9400-PWR-3200DC modules, with quantity set by the redundancy mode. Supported modes are N+N, N+1 and combined. On a 115VAC feed the 3200W AC module delivers about 1560W.
What happens in C9404R-48U-BNDL-A if two fans in the C9404-FAN tray fail?
If two or more of the 8 fans fail, the whole tray runs at full speed after one minute and must be replaced. If one fan fails, the other fans in the same row speed up. The C9404-FAN tray is nonredundant as a unit and can be serviced from the front or the rear, per the Catalyst 9400 hardware installation guide.
How many 90W ports can C9404R-48U-BNDL-A reach with C9400-LC-48HX cards?
The C9404R chassis reaches 96 ports at 90W when both line-card slots hold C9400-LC-48HX cards. That needs C9400X-SUP-2 or C9400X-SUP-2XL and fully loaded 3200W supplies in combined mode. The bundled C9400-LC-48U is a 60W card, so it is not part of that count and would be replaced by a second C9400-LC-48HX.
Does C9400-LC-48U in C9404R-48U-BNDL-A reach line rate on C9400-SUP-1?
Yes. The 48-port 1G cards such as C9400-LC-48U need only 48G per slot, and C9400-SUP-1 gives 80 Gbps per line-card slot in this chassis. These cards run at line rate on every supervisor, so a newer engine does not raise their speed.
How much PoE can a line-card slot of C9404R-48U-BNDL-A draw?
The C9404R chassis is capable of about 4800W per slot, and current line cards draw up to 4320W. The output pool of the power supplies is shared between data and PoE. The number of supplies and the redundancy mode therefore set the PoE that is actually available to the bundled C9400-LC-48U.
