C9400-LC-48P – 48x1G RJ-45 – PoE+ 30W – Catalyst 9400 Line Card
6/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

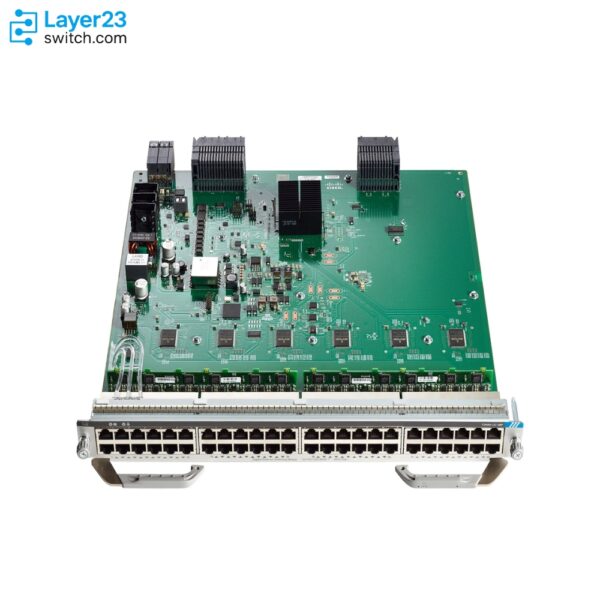

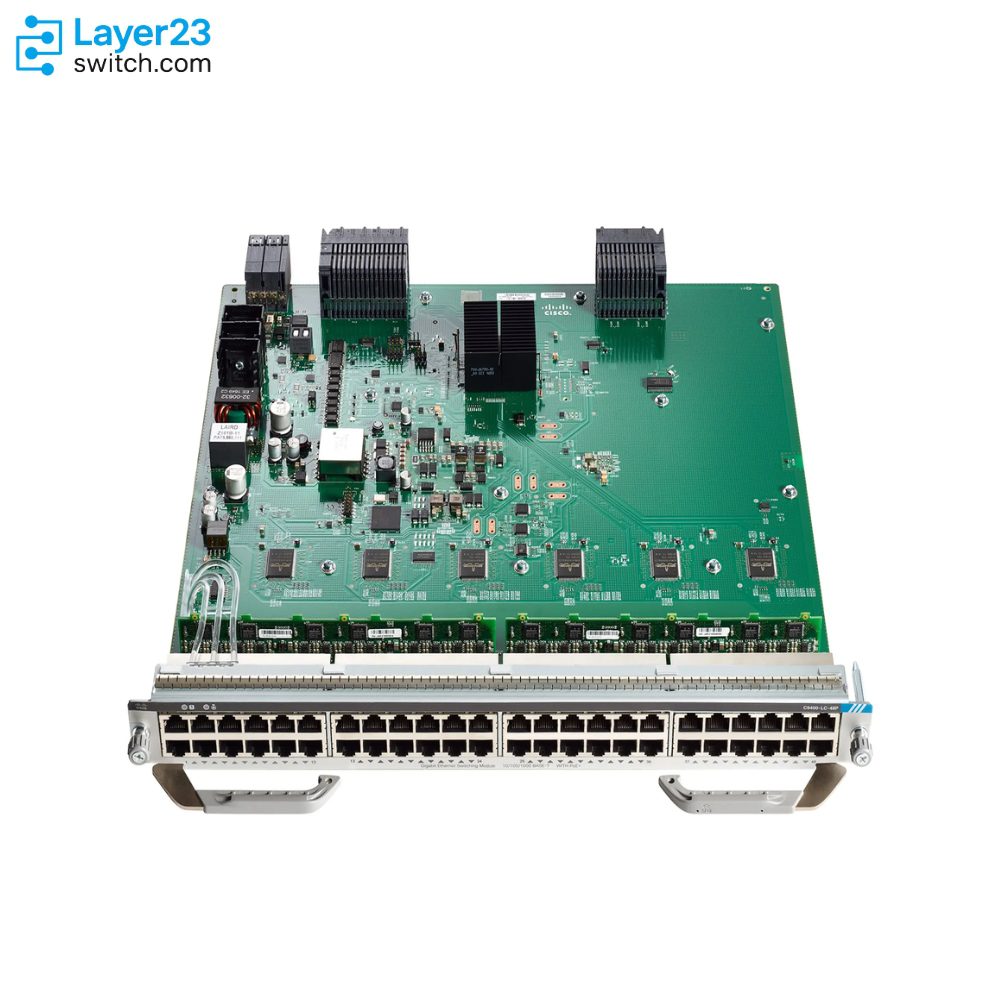

C9400-LC-48P Description
C9400-LC-48P is a Cisco Catalyst 9400 Series PoE+ line card with 48 nonblocking 10/100/1000 RJ-45 access ports for modular campus and branch switching.
This SKU belongs in a 1G copper access design that needs IEEE 802.3af/at PoE+ rather than a data-only card. Compared with C9400-LC-48T, it adds powered-endpoint support; compared with C9400-LC-48U, it stays in the 30W PoE+ class instead of the 60W Cisco UPOE class.
For quote review, verify the Catalyst 9404R, 9407R, or 9410R chassis, compatible supervisor module, Cisco IOS XE 16.8.1 or later software, non-supervisor slot placement, and chassis power budget for 30W endpoint loads.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9400-LC-48P |
|
Spare PID |
C9400-LC-48P= |
|
Product family |
Cisco Catalyst 9400 Series |
|
Product type |
48-port PoE+ RJ-45 line card |
|
Port count |
48 |
|
Port speed |
10/100/1000M |
|
Port type |
RJ-45 PoE+ with IEEE 802.3at, IEEE 802.3af, and Cisco pre-standard support |
|
PoE capability |
Up to 30W on all ports in the line card |
|
Maximum bandwidth |
48 Gbps full duplex non-blocking traffic |
|
Minimum software release |
Cisco IOS XE 16.8.1 or later |
|
Supervisor compatibility |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
|
Installation slot rule |
Any non-supervisor module slot |
|
Max rated power |
65 W |
Application Scenarios
Use C9400-LC-48P when a modular Catalyst 9400 access switch needs another 48 10/100/1000 RJ-45 ports with PoE+ for standard powered endpoints.
Select this line card when the BOM must separate PoE+ endpoint ports from a C9400-LC-48T style data-only copper requirement.
Choose the 48P model when endpoint power requirements fit the 30W PoE+ class. Review C9400-LC-48U or C9400-LC-48H when the design calls for 60W or 90W powered-device support.
Product Comparison
|
Parameter |
C9400-LC-48P | |||
|---|---|---|---|---|
|
Product family |
Cisco Catalyst 9400 Series |
Cisco Catalyst 9400 Series |
Cisco Catalyst 9400 Series |
Cisco Catalyst 9400 Series |
|
Product type |
48-port PoE+ line card |
48-port RJ-45 data line card |
48-port UPOE line card |
48-port UPOE+ line card |
|
Port count |
48 |
48 |
48 |
48 |
|
Port speed |
10/100/1000M |
10/100/1000M |
10/100/1000M |
10/100/1000M |
|
Port type |
RJ-45 PoE+ IEEE 802.3at/af and Cisco pre-standard support |
RJ-45 data ports |
RJ-45 UPOE IEEE 802.3at/af and Cisco pre-standard support |
RJ-45 UPOE+ IEEE 802.3bt/at/af and Cisco pre-standard support |
|
Powered-port class |
PoE+ up to 30W on all ports |
Not listed as a PoE line card |
Cisco UPOE up to 60W per port |
Cisco UPOE+ up to 90W on all ports |
|
Minimum software release |
Cisco IOS XE 16.8.1 or later |
Cisco IOS XE 16.6.1 or later |
Cisco IOS XE 16.6.2 or later |
Cisco IOS XE 16.12.1 or later |
|
Supervisor compatibility |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
|
Maximum bandwidth |
48 Gbps full duplex non-blocking traffic |
48 Gbps full duplex non-blocking traffic |
48 Gbps full duplex non-blocking traffic |
48 Gbps full duplex non-blocking traffic |
|
Catalyst 9404R port density |
48 / 96 |
48 / 96 |
48 / 96 |
48 / 96 |
|
Catalyst 9407R port density |
48 / 240 |
48 / 240 |
48 / 240 |
48 / 240 |
|
Catalyst 9410R port density |
48 / 384 |
48 / 384 |
48 / 384 |
48 / 384 |
|
Max rated power |
65 W |
65 W |
65 W |
65 W |
- In a C9400-LC-48P vs C9400-LC-48T comparison, the table-backed difference is powered access: C9400-LC-48P supports PoE+ while C9400-LC-48T is the 48-port RJ-45 data line card.
- The C9400-LC-48P difference from C9400-LC-48U is the powered-port class; C9400-LC-48P is the 30W PoE+ model while C9400-LC-48U is the 60W Cisco UPOE model.
- For buyers comparing C9400-LC-48P vs C9400-LC-48H, the main comparison point is PoE level: C9400-LC-48H moves to UPOE+ with 90W support and a higher minimum Cisco IOS XE baseline.
- The which model to choose decision should start with whether the access BOM needs no PoE, 30W PoE+, 60W Cisco UPOE, or 90W Cisco UPOE+.
Selection Guide
1. Choose it for 48-port 1G PoE+
Select C9400-LC-48P when the Catalyst 9400 bill of materials needs 48 RJ-45 10/100/1000 access ports with PoE+ support up to 30W.
2. Use C9400-LC-48T for data-only copper
Move to C9400-LC-48T only when the project needs the same 48-port 10/100/1000 RJ-45 access density without PoE.
3. Review higher-power UPOE variants separately
Compare C9400-LC-48U or C9400-LC-48H when powered devices require the 60W Cisco UPOE or 90W Cisco UPOE+ classes instead of 30W PoE+.
4. Validate power and software before staging
Confirm Cisco IOS XE 16.8.1 or later, the approved supervisor module, non-supervisor slot placement, and chassis power supplies before the line card is added to a quote.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Basis |
Buyer Check |
|---|---|---|
|
PoE+ port class |
C9400-LC-48P supports up to 30W per port on each of its 48 ports |
Match powered endpoints to IEEE 802.3af or IEEE 802.3at requirements |
|
Port power control |
Cisco lists maximum power setting per port and PoE cable loss management |
Confirm PoE policy and cable-loss assumptions before approving endpoint counts |
|
Chassis power sizing |
Cisco directs buyers to use the Cisco Power Calculator for PoE configuration estimates |
Size the Catalyst 9400 power supplies against the real powered-device mix |
|
Software dependency |
Cisco documents Cisco IOS XE 16.8.1 or later for this line card |
Keep the software baseline aligned before installing or downgrading chassis software |
Ordering Checklist
|
Review Area |
Confirm |
Procurement Risk |
|---|---|---|
|
PID and spare marker |
C9400-LC-48P or C9400-LC-48P= |
Avoids mixing the 30W PoE+ card with the 48T data, 48U UPOE, or 48H UPOE+ variants |
|
Chassis and slot plan |
Catalyst 9404R, 9407R, or 9410R with an open non-supervisor module slot |
Keeps the module in a supported Catalyst 9400 payload slot |
|
Supervisor match |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, or C9400X-SUP-2XL |
Aligns the order with Cisco’s supervisor compatibility matrix |
|
Software image |
Cisco IOS XE 16.8.1 or later |
Prevents installation on software below the documented line-card baseline |
|
PoE budget |
Expected IEEE 802.3af or IEEE 802.3at endpoint count plus chassis power supply configuration |
Keeps the quote tied to real powered-device load instead of port count alone |
|
Alternate 1G card |
C9400-LC-48T for no PoE, C9400-LC-48U for 60W, or C9400-LC-48H for 90W |
Matches the BOM to the required powered-port class |
Front View
|
1 |
STATUS LED |
5 |
Ejector levers |
|---|---|---|---|
|
2 |
LOCATE (blue beacon) LED |
6 |
PORT LINK LED for the port in the top row |
|
3 |
Model or product number |
7 |
PORT LINK LED for the port in the bottom row |
|
4 |
Captive installation screws |
8 |
Line card Radio Frequency Identifier (RFID) |
Specifications
Packaging weight and dimensions included:| Weight | 15.24 kg |
|---|---|
| Dimensions | 58 × 54 × 19 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Cisco | Product ID | C9400-LC-48P |
| Spare PID | C9400-LC-48P= | Product family | Cisco Catalyst 9400 Series |
| Product type | Line card | Cisco ordering description | Cisco Catalyst 9400 Series 48-Port POE+ 10/100/1000 RJ-45 line card |
| Supported chassis | Catalyst 9404R, 9407R, and 9410R | Supervisor compatibility | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
| Port count | 48 | Port speed | 10/100/1000M |
| Port type | RJ-45 PoE+ IEEE 802.3at, IEEE 802.3af, and Cisco pre-standard | PoE capability | Up to 30W on all ports in the line card |
| Maximum bandwidth | 48 Gbps full duplex non-blocking traffic | Minimum software release | Cisco IOS XE 16.8.1 or later |
| Installation slot rule | Any non-supervisor module slot | Support restriction | No other restrictions listed in the line card installation note |
| Catalyst 9404R port density | 48 / 96 | Catalyst 9407R port density | 48 / 240 |
| Catalyst 9410R port density | 48 / 384 | Bandwidth with C9400-SUP-1 | 80 Gbps per slot with 1:1 oversubscription |
| Bandwidth with C9400-SUP-1XL or C9400-SUP-1XL-Y | 240 Gbps on C9404R, 120 Gbps on C9407R, and 80 Gbps on C9410R with 1:1 oversubscription | Bandwidth with C9400X-SUP-2 | 240 Gbps per slot with 1:1 oversubscription |
| Bandwidth with C9400X-SUP-2XL | 480 Gbps per slot with 1:1 oversubscription | Energy Efficient Ethernet | IEEE 802.3az support |
| MACsec capability | IEEE 802.1AE MACsec-256 capability in hardware | Jumbo frame support | Layer 2 to Layer 4 jumbo frame support up to 9216 bytes |
| PTP readiness | Hardware ready for IEEE 1588 and 802.1as | PoE features | Maximum power setting per port, PoE cable loss management, and EnergyWise 3.0 |
| Max rated power | 65 W | AC-input power allocated | 72 W |
| Heat dissipation | 246 BTU/hr | Weight | 6.6 lb (3.0 kg) |
| Rated MTBF | 980,440 hours | RFID tag | Built-in front-facing passive UHF RFID tag |
