C9407R-96U-BNDL-E Description

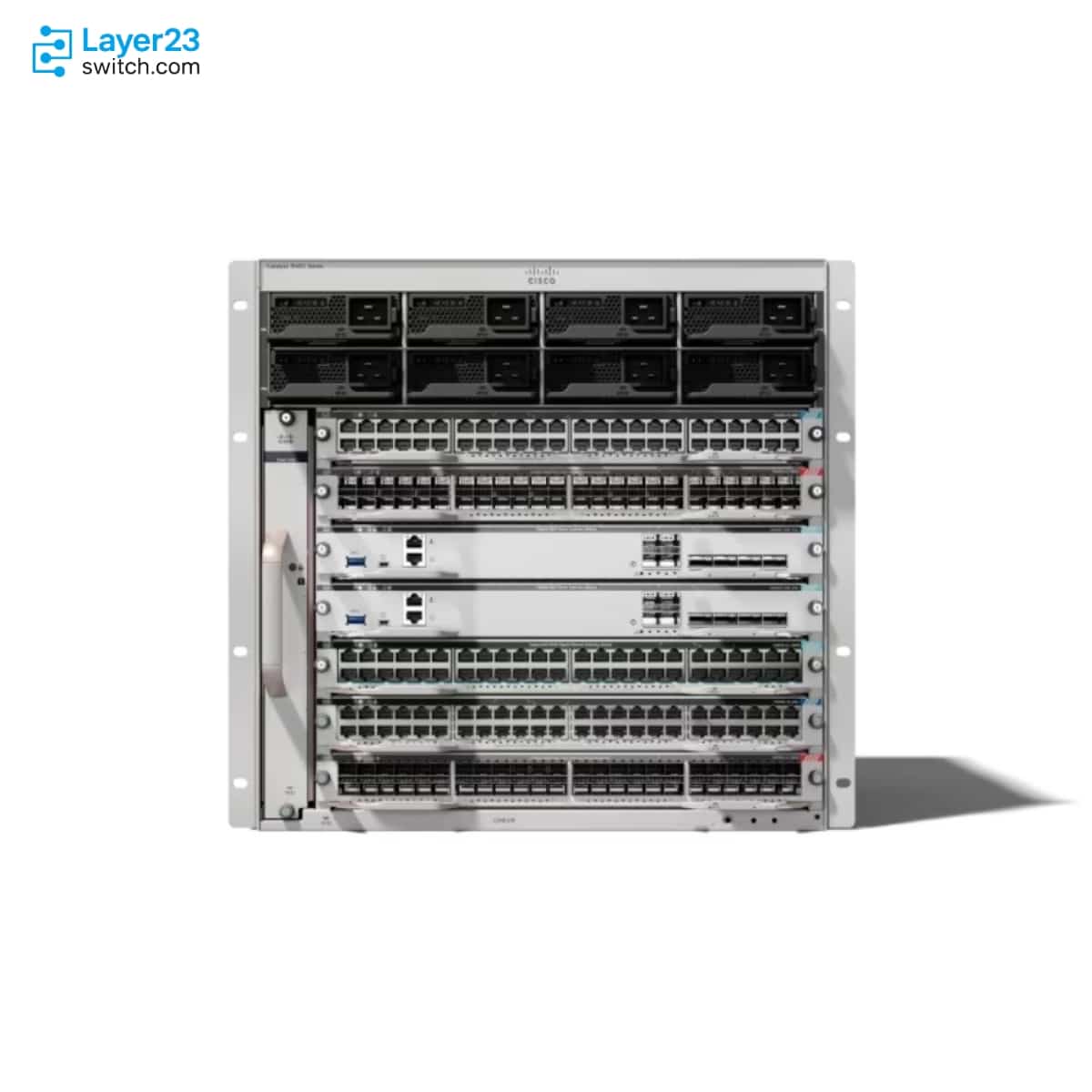

The C9407R-96U-BNDL-E is a Cisco Catalyst 9400 Series modular access switch bundle for campus wiring closets that power phones, access points and cameras over UPOE. The 7-slot C9407R chassis has five line-card slots, two supervisor slots, eight power supply bays and 10 RU of height, and its two C9400-LC-48U line cards provide 96 10/100/1000 RJ-45 ports with UPOE up to 60 W each. The bundle includes the C9400-SUP-1XL supervisor, which gives 120 Gbps per line-card slot in this chassis, and carries Cisco DNA Essentials licensing.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9407R-96U-BNDL-E |
|
Product type |
Modular access switch bundle |
|
Cisco ordering description |
Catalyst 9400 Series 7 slot, Sup, 2xC9400-LC-48U, DNA-E LIC |
|
Chassis |
C9407R |
|
Chassis form factor |
7-slot modular chassis |
|
Included supervisor engine |
C9400-SUP-1XL |
|
Included line cards |
2 x C9400-LC-48U |
|
Downlink ports |
96 x RJ-45 |
|
Downlink speeds |
10/100/1000 Mbps |
|
PoE support |
PoE, PoE+, and Cisco UPOE |
|
Cisco UPOE per-port power |
Up to 60 W |
|
Power supply slots |
8 bays |
|
Fan modules |
C9407-FAN, 12-fan tray |
Product Performance
Key Features
Supervisors take slots 3 and 4, which leaves slots 1, 2 and 5 to 7 for line cards. The chassis is 10 RU and weighs 63.0 lb (28.58 kg) with its C9407-FAN fan tray.
Two C9400-LC-48U cards give 96 10/100/1000 RJ-45 ports with PoE, PoE+ and Cisco UPOE at up to 60 W per port. A fully populated C9407R reaches 240 such ports.
A C9400-LC-48U drawing 60 W on every port needs 2,880W, so the power supply count and redundancy mode have to be sized together. Eight bays take 3200W AC, 2100W AC or 3200W DC supplies in N+N, N+1 or combined mode.
C9400-SUP-1XL gives each line-card slot of the C9407R 120 Gbps. C9400X-SUP-2 raises it to 240 Gbps and C9400X-SUP-2XL to 480 Gbps.
The -E bundle carries Cisco DNA Essentials, where the -A bundle on the same chassis and line cards carries DNA Advantage.
Three line-card slots remain after the two included cards. Cards such as C9400-LC-48XS, C9400-LC-24XY or C9400-LC-48HX need C9400X-SUP-2 or C9400X-SUP-2XL, and C9400-S-BLANK= covers any slot left empty.
Application Scenarios
In the main closet of a multi-storey building, the chassis feeds phones, wireless access points and cameras on several floors from 96 UPOE ports that deliver up to 60 W each.
A central equipment room can start with 96 access ports and grow toward the 240-port ceiling of the chassis, which takes 10 RU where several fixed switches would otherwise be stacked.
At a smaller campus, the chassis can serve as access and core in one device, and a second supervisor in the other dedicated supervisor slot adds 1+1 redundancy with NSF/SSO.
Product Comparison
|
Parameter |
C9407R-96U-BNDL-E | ||
|---|---|---|---|
|
Total number of slots |
7 |
7 |
10 |
|
Line-card slots |
5 |
5 |
8 |
|
Included line cards |
2 x C9400-LC-48U, 96 UPOE ports |
2 x C9400-LC-48U, 96 UPOE ports |
2 x C9400-LC-48U, 96 UPOE ports |
|
Maximum 10/100/1000BASE-T (RJ-45) with UPOE ports |
240 |
240 |
384 |
|
Bandwidth per line-card slot with C9400-SUP-1XL |
120 Gbps |
120 Gbps |
80 Gbps |
|
Default PoE budget |
None; power supplies are selected separately |
None; power supplies are selected separately |
None; power supplies are selected separately |
|
Maximum PoE per slot |
4320W |
4320W |
4320W |
|
Rack units |
10 RU |
10 RU |
13 RU |
|
License tier |
Cisco DNA Essentials |
Cisco DNA Advantage |
Cisco DNA Essentials |
C9407R-96U-BNDL-E and C9410R-96U-BNDL-E carry the same two C9400-LC-48U line cards, 96 UPOE ports and DNA Essentials tier, but the C9407R chassis has five line-card slots and stops at 240 ports, while C9410R-96U-BNDL-E has eight slots and 384 ports. Sites that expect to outgrow 240 access ports should start on C9410R-96U-BNDL-E. Slot rate also follows the chassis: C9400-SUP-1XL gives 120 Gbps per slot in C9407R against 80 Gbps in the 10-slot chassis, and only C9400X-SUP-2 or C9400X-SUP-2XL lifts either to 240 or 480 Gbps. Projects that need the DNA Advantage tier move to C9407R-96U-BNDL-A, which keeps the same chassis and line cards.
Ordering Checklist
- Redundant supervisor: Add the /2 PID of the bundled supervisor, for example C9400-SUP-1XL/2 or C9400X-SUP-2/2, for slot 4; the first supervisor sits in slot 3. A second supervisor gives 1+1 redundancy, and line cards are not supported in supervisor slots.
- Added line cards: C9400-LC-48HX, C9400-LC-48XS, C9400-LC-24XY, C9400-LC-12QC and C9400-LC-48TX need C9400X-SUP-2 or C9400X-SUP-2XL. C9400-SUP-1, C9400-SUP-1XL and C9400-SUP-1XL-Y support only nine line cards, so these five cannot be added on those supervisors.
- Power supplies: Choose per bay between C9400-PWR-3200AC, C9400-PWR-2100AC and C9400-PWR-3200DC, with C9400-PWR-3200ACT as the Titanium option. Supplies are separate lines, and the 8 bays follow the redundancy mode.
- Chassis kits: Order C9407-FAN=, C9407-ACC-KIT=, C9407-RACK-19-KIT= and C9407-SHELF-KIT=. These kits are specific to the chassis slot count and do not carry over from other chassis.
- Blank covers: Add C9400-S-BLANK= for empty line-card slots and C9400-PWR-BLANK= for empty power bays. The bundle fills two line-card slots, so the remaining slots and unused bays need cover lines.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Cisco Catalyst 9400 Series 3200W AC power supply | |
|
Cisco Catalyst 9400 Series 3200W DC power supply | |
|
Cisco Catalyst 9400 Series 24-port 10 Gigabit Ethernet SFP+ line card | |
|
Cisco Catalyst 9400 Series 48-port Gigabit Ethernet SFP line card |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9407R-96U-BNDL-E | Product type | Modular access switch bundle |
| Cisco ordering description | Catalyst 9400 Series 7 slot, Sup, 2xC9400-LC-48U, DNA-E LIC | Network license | Cisco DNA Essentials |
| Chassis | C9407R | Chassis slots | 7 total slots |
| Supervisor slots | 2 slots, slots 3 and 4 | Line-card slots | 5 slots, slots 1, 2, and 5 to 7 |
| Included supervisor engine | C9400-SUP-1XL | Included line cards | 2 x C9400-LC-48U |
| Included downlink ports | 96 RJ-45 ports | Downlink speeds | 10/100/1000 Mbps |
| PoE standards | PoE, PoE+, and Cisco UPOE | Cisco UPOE per-port power | Up to 60 W per port |
| C9400-LC-48U software minimum | Cisco IOS XE 16.6.1 or later | Line card bandwidth on C9407R | 120 Gbps per slot with C9400-SUP-1XL |
| Jumbo frames | Up to 9216 bytes on C9400-LC-48U | Maximum C9407R UPOE density | 240 C9400-LC-48U ports |
| Power supply slots | 8 bays | Power supply options | C9400-PWR-2100AC, C9400-PWR-3200AC, C9400-PWR-3200ACT, C9400-PWR-3200DC |
| Fan modules | C9407-FAN, 12 fans | Mounting | 19-inch rack compatible |
| Dimensions | 17.41 x 17.30 x 16.30 in. (44.22 x 43.94 x 41.40 cm) | Rack units | 10 RU |
| Weight | 28.58 kg (63.0 lb), with fan tray | Chassis airflow | Right to left for standard rack mount; front to back for NEBS-compliant rack mount |
| Power supply selection | C9400-PWR-3200AC 3200W AC, C9400-PWR-2100AC 2100W AC, or C9400-PWR-3200DC 3200W DC selected during chassis configuration | PoE power budget | Configuration-dependent; C9400-LC-48U supports up to 2880W per line-card slot |
| Expanded PoE budget | Up to 2880W per C9400-LC-48U line-card slot with selected C9400 power supply configuration |
Quality Certifications
Customer Reviews
Questions & Answers
-
Which supervisor engine is included in C9407R-96U-BNDL-E, and can it run two?
-
Which power supplies and redundancy modes does C9407R-96U-BNDL-E support?
-
How many fans are in the C9407-FAN tray of C9407R-96U-BNDL-E and how is it serviced?
-
How many 90W ports can C9407R-96U-BNDL-E supply with C9400-LC-48HN cards?
-
What are the width and depth of C9407R-96U-BNDL-E?
-
Do the C9400-LC-48U cards in C9407R-96U-BNDL-E reach line rate on C9400-SUP-1XL?
