C9410-FAN – 9410R Fan Tray – 16 Fans – Catalyst 9400 Spare
0/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9410-FAN Description

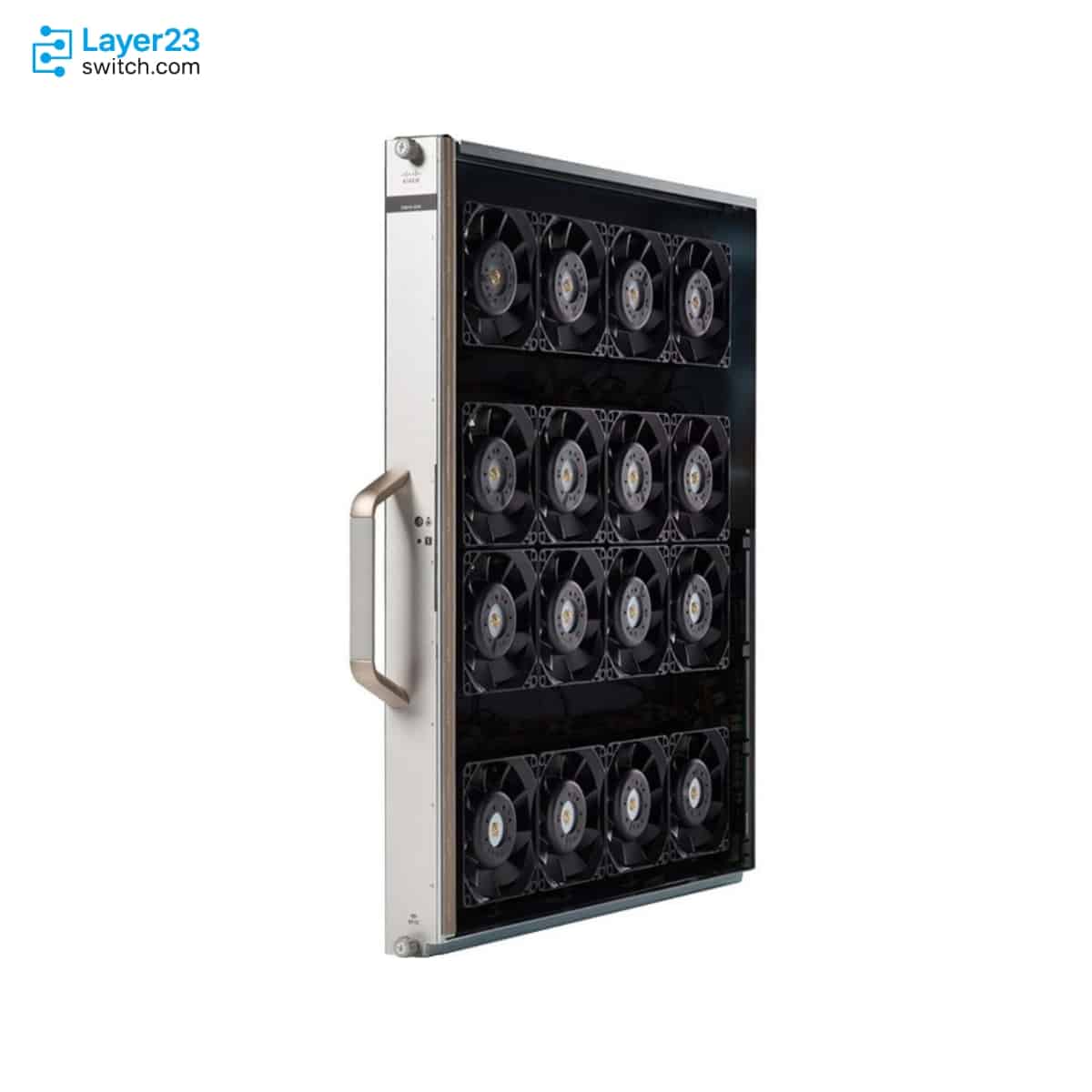

C9410-FAN is the Cisco Catalyst 9400 Series fan tray assembly for the Catalyst 9410R 10-slot modular chassis, used when the largest Catalyst 9400 chassis needs its matching cooling FRU.
This SKU should be handled as a chassis-specific service part. Cisco identifies C9410-FAN with 16 individual fans, a four-row layout, 1190 CFM minimum airflow at full fan throttle, and higher power and heat values than the C9404R and C9407R fan trays.
Use C9410-FAN for Catalyst 9410R replacement, spare stocking, or new chassis order validation. Before purchase, confirm the exact chassis, whether an equals-suffix spare PID is needed, service access, stock availability, warranty support, and delivery timing with Layer23-Switch.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9410-FAN |
|
Spare PID |
C9410-FAN= |
|
Product family |
Cisco Catalyst 9400 Series |
|
Product type |
Fan tray assembly |
|
Supported chassis |
Cisco Catalyst 9410R |
|
Chassis slot count |
10-slot Catalyst 9400 chassis |
|
Fan count |
16 individual fans |
|
Fan layout |
Four rows |
|
Minimum airflow |
1190 CFM at 100 percent fan throttle |
|
Airflow direction |
Side-to-side; right to left when facing the chassis |
|
Serviceability |
Hot-swappable; removable from the front side or rear side of the chassis |
|
AC input power allocation |
778 W |
|
DC output power request |
700 W |
|
Heat dissipation |
2654 BTU/hr |
Application Scenarios
Use C9410-FAN when the operational request is tied to the 10-slot Catalyst 9410R chassis and the site needs a 16-fan cooling assembly.
For new Catalyst 9410R projects, validate the fan tray together with power supply count, supervisor placement, line-card density, and rack space before the order is released.
Because the 9410R chassis usually supports larger access deployments, keep the spare PID, warranty handling, and shipping window aligned with the maintenance risk of the site.
Product Comparison
|
Parameter |
C9410-FAN | ||
|---|---|---|---|
|
Supported Chassis |
Catalyst 9404R |
Catalyst 9407R |
Catalyst 9410R |
|
Chassis slot count |
4-slot chassis |
7-slot chassis |
10-slot chassis |
|
Fan count |
8 individual fans |
12 individual fans |
16 individual fans |
|
Fan layout |
Two rows of four fans |
Three rows |
Four rows |
|
Minimum Airflow at 100 Percent Fan Throttle |
640 CFM |
960 CFM |
1190 CFM |
|
Serviceability |
Front-side and rear-side removable |
Front-side and rear-side removable |
Front-side and rear-side removable |
|
AC input power allocation |
411 W |
600 W |
778 W |
|
DC output power request |
370 W |
540 W |
700 W |
|
Heat dissipation |
1403 BTU/hr |
2047 BTU/hr |
2654 BTU/hr |
- C9410-FAN is the highest-capacity Catalyst 9400 fan tray in this comparison, matching the 10-slot chassis with 16 fans and 1190 CFM minimum airflow.
- Chassis compatibility is the controlling parameter; using C9404-FAN or C9407-FAN in a Catalyst 9410R BOM would create a physical FRU mismatch.
- For service procurement, confirm base PID versus spare PID, because replacement orders may be handled differently from installed model references.
Selection Guide
1. Select it only for Catalyst 9410R
Choose C9410-FAN when the chassis is Catalyst 9410R and the requirement is the 16-fan cooling assembly documented for that chassis.
2. Treat smaller fan trays as separate FRUs
C9404-FAN and C9407-FAN have different chassis targets, fan counts, airflow values, and power figures, so they should not be used as substitutes.
3. Prepare the replacement as a chassis service event
Check rack access, replacement side, service-mode procedure, and maintenance timing before the installed tray is removed.
4. Validate logistics before the site visit
Confirm price, stock status, warranty coverage, spare PID requirement, and delivery destination so the part arrives before the maintenance window.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact Product SKU |
C9410-FAN |
Confirms the fan tray is for the Catalyst 9410R chassis |
|
Spare PID |
C9410-FAN= if the order requires a spare PID |
Avoids confusion between installed model references and spare-ordering records |
|
Chassis |
Cisco Catalyst 9410R |
Prevents ordering a fan tray for the 4-slot or 7-slot Catalyst 9400 chassis |
|
Fan Tray Role |
16-fan chassis cooling assembly |
Confirms the part is a cooling FRU, not a line card, supervisor, or power supply |
|
Replacement Access |
Front-side or rear-side removal plan |
Helps the field team prepare the correct physical access path |
|
Service Procedure |
Powered replacement timing and service-mode readiness |
Reduces operational risk during a live maintenance window |
|
Purchase Details |
Price, stock status, warranty handling, and shipping destination |
Helps procurement align the replacement with the site schedule |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Cisco | Product family | Cisco Catalyst 9400 Series |
| Product ID | C9410-FAN | Spare PID | C9410-FAN= |
| Product type | Fan tray assembly | Supported chassis | Cisco Catalyst 9410R |
| Chassis slot count | 10-slot Catalyst 9400 chassis | Fan count | 16 individual fans |
| Fan layout | Four rows | Minimum airflow | 1190 CFM at 100 percent fan throttle |
| Airflow direction | Side-to-side; right to left when facing the chassis | Serviceability | Hot-swappable; removable from the front side or rear side of the chassis |
| AC input power allocation | 778 W | DC output power request | 700 W |
| Current at 90V | 8.64 A | Current at 120V | 6.48 A |
| Current at 180V | 4.32 A | Current at 240V | 3.24 A |
| Heat dissipation | 2654 BTU/hr |
