C9407-FAN – 9407R Fan Tray – 12 Fans – Catalyst 9400 Spare
0/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9407-FAN Description

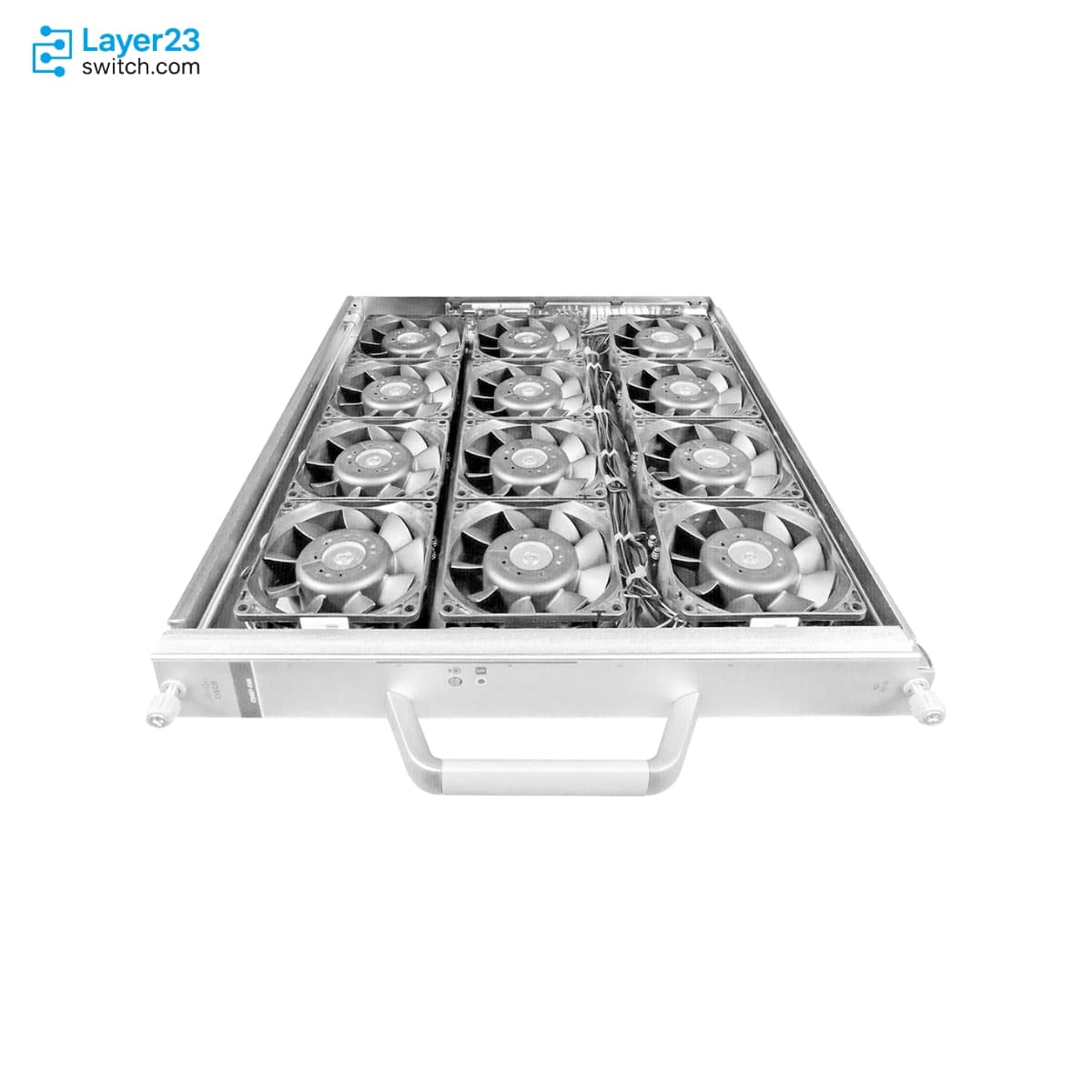

C9407-FAN is the Cisco Catalyst 9400 Series fan tray assembly for the 7-slot Catalyst 9407R chassis, providing the cooling FRU used by the mid-size modular access chassis.
The buying risk is chassis fit: C9407-FAN belongs to the Catalyst 9407R, not the smaller C9404R or the larger C9410R. Cisco lists 12 individual fans, a three-row layout, 960 CFM minimum airflow at full fan throttle, and side-to-side airflow for this fan tray.
Use this SKU for a Catalyst 9407R spare, replacement, or new chassis configuration where the site needs the correct 12-fan cooling assembly. Before quote approval, confirm the chassis PID, service-window plan, replacement access path, stock availability, warranty handling, and shipping destination with Layer23-Switch.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9407-FAN |
|
Product family |
Cisco Catalyst 9400 Series |
|
Product type |
Fan tray assembly |
|
Supported chassis |
Cisco Catalyst 9407R |
|
Fan count |
12 individual fans |
|
Fan layout |
Three rows |
|
Minimum airflow |
960 CFM at 100 percent fan throttle |
|
Airflow direction |
Side-to-side; right to left when facing the chassis front |
|
Serviceability |
Hot-swappable; removable from the front or rear side of the chassis |
|
AC input power allocation |
600 W |
|
DC output power request |
540 W |
|
Heat dissipation |
2047 BTU/hr |
Application Scenarios
Use C9407-FAN when a Catalyst 9407R chassis reports a fan-tray fault or the service plan requires a matching 12-fan spare before the maintenance window.
For new C9407R orders, keep this fan tray tied to the 7-slot chassis BOM so the cooling item does not get mixed with C9404R or C9410R fan tray SKUs.
When the chassis remains in production, confirm the replacement method, service-mode timing, physical access, and spare availability before removing the installed fan tray.
Product Comparison
|
Parameter |
C9407-FAN | ||
|---|---|---|---|
|
Supported Chassis |
Catalyst 9404R |
Catalyst 9407R |
Catalyst 9410R |
|
Fan count |
8 individual fans |
12 individual fans |
16 individual fans |
|
Fan layout |
Two rows of four fans |
Three rows |
Four rows |
|
Minimum Airflow at 100 Percent Fan Throttle |
640 CFM |
960 CFM |
1190 CFM |
|
Serviceability |
Front and rear side removable |
Front and rear side removable |
Front and rear side removable |
|
AC input power allocation |
411 W |
600 W |
778 W |
|
DC output power request |
370 W |
540 W |
700 W |
|
Heat dissipation |
1403 BTU/hr |
2047 BTU/hr |
2654 BTU/hr |
- C9407-FAN is the middle Catalyst 9400 fan tray option: larger than C9404-FAN and smaller than C9410-FAN in fan count, airflow, and power allocation.
- The right selection is determined by chassis PID first, then fan count and airflow; these fan trays are not interchangeable across 9404R, 9407R, and 9410R chassis.
- For replacement quotes, verify whether procurement requires the installed model reference or the spare-ordering form before checking stock and warranty support.
Selection Guide
1. Start with the chassis PID
Choose C9407-FAN only when the installed or quoted chassis is Catalyst 9407R. If the chassis is C9404R or C9410R, use the matching fan tray for that platform.
2. Use the airflow and power figures for service planning
The 960 CFM and 600 W allocated power values help operations compare the 7-slot tray against site cooling and power expectations during replacement planning.
3. Confirm physical access before the window
Because the tray can be removed from the chassis service side, confirm rack clearance, cable routing, and maintenance access before the part arrives.
4. Align the quote with the failure context
Check whether the request is driven by a failed fan, a chassis environmental alarm, restricted side airflow, or spare inventory policy before approving the purchase.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
C9407-FAN |
Confirms the fan tray is for the Catalyst 9407R chassis |
|
Chassis |
Cisco Catalyst 9407R |
Prevents ordering the C9404R or C9410R fan tray by mistake |
|
Fan Tray Role |
12-fan chassis cooling assembly |
Confirms the part is a cooling FRU, not a line card or power supply |
|
Replacement Method |
Front-side or rear-side access plan |
Helps the field team prepare the correct removal and installation approach |
|
Service Procedure |
Powered replacement timing and service-mode readiness |
Reduces risk during a live maintenance window |
|
Purchase Details |
Price, stock status, warranty handling, and shipping destination |
Helps procurement schedule the replacement around site requirements |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Cisco | Product family | Cisco Catalyst 9400 Series |
| Product ID | C9407-FAN | Product type | Fan tray assembly |
| Supported chassis | Cisco Catalyst 9407R | Fan count | 12 individual fans |
| Fan layout | Three rows | Minimum airflow | 960 CFM at 100 percent fan throttle |
| Airflow direction | Side-to-side; right to left when facing the chassis front | Serviceability | Hot-swappable; removable from the front or rear side of the chassis |
| AC input power allocation | 600 W | DC output power request | 540 W |
| Current at 90V | 6.67 A | Current at 120V | 5.00 A |
| Current at 180V | 3.33 A | Current at 240V | 2.50 A |
| Heat dissipation | 2047 BTU/hr |
