C9404R-48U-BNDL-E – 48x1G UPOE Ports – 4-Slot Modular Chassis – DNA Essentials
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9404R-48U-BNDL-E Description

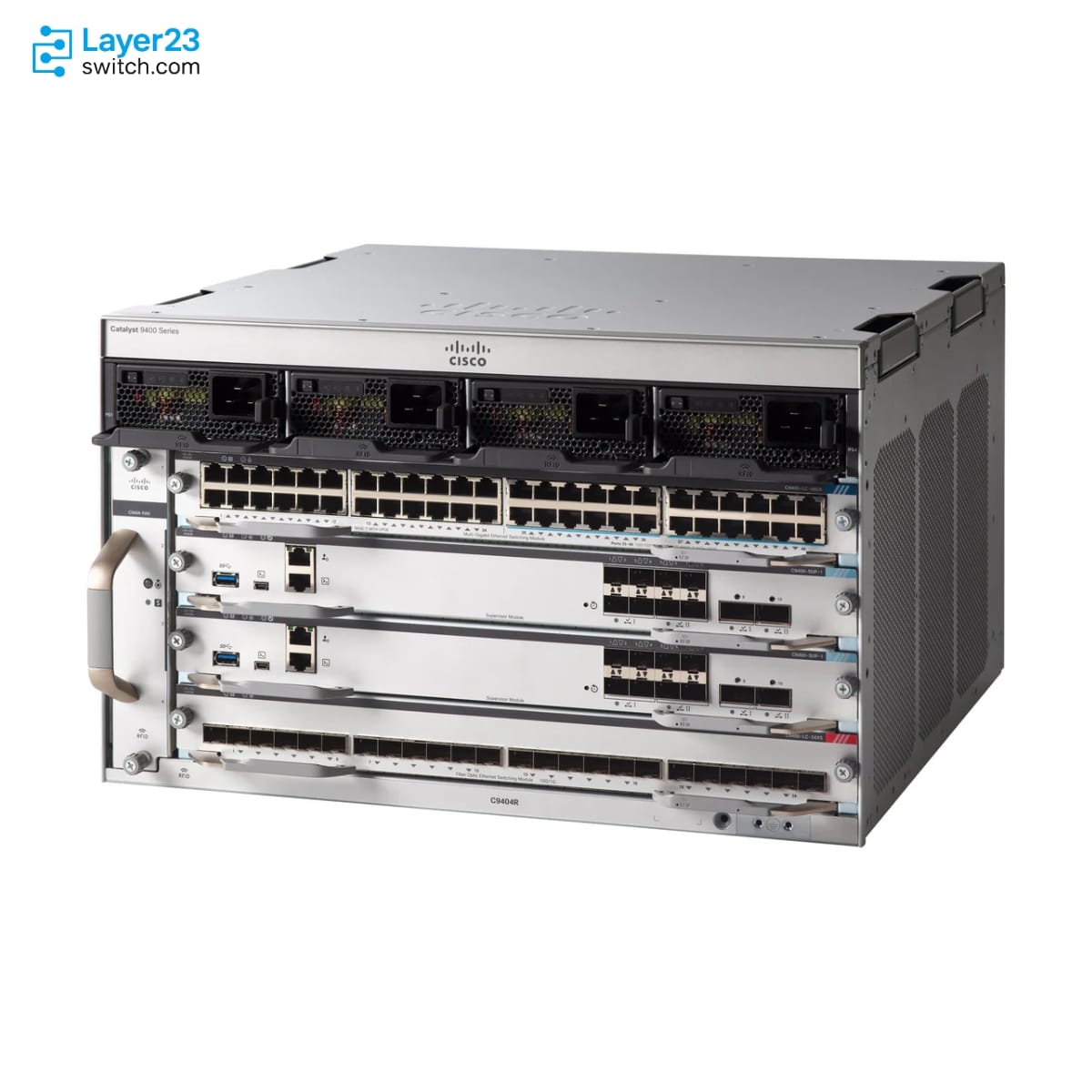

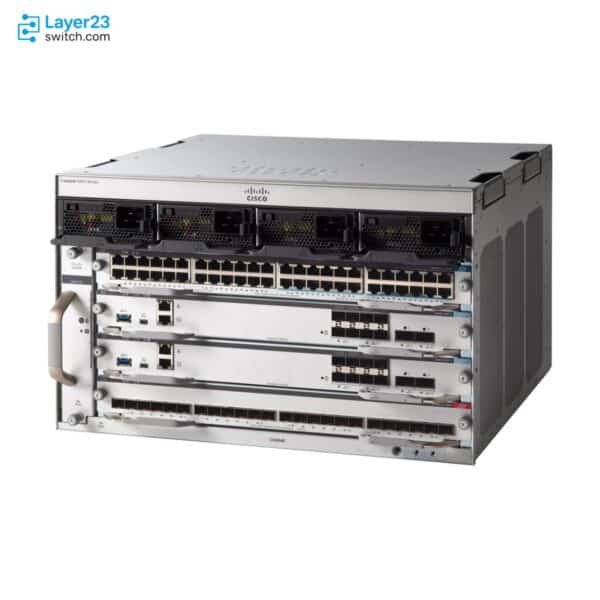

C9404R-48U-BNDL-E is a Cisco Catalyst 9400 Series modular access switch bundle for campus wiring closets that need a compact 4-slot C9404R chassis with first-day UPOE copper access. The bundle is identified with the C9404R chassis, a supervisor, one C9400-LC-48U line card, and DNA Essentials licensing; the C9404R provides two line-card slots, two redundant supervisor slots, and up to four power-supply modules, while the included C9400-LC-48U supplies 48 nonblocking 10/100/1000 RJ-45 ports with PoE, PoE+, and Cisco UPOE up to 60 W per port for IP phones, wireless access points, cameras, and other powered access endpoints.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9404R-48U-BNDL-E |
|
Product type |
Modular access switch bundle |
|
Cisco ordering description |
Catalyst 9400 Series 4 slot, Sup, 1xC9400-LC-48U, DNA-E LIC |
|
Chassis |
C9404R |
|
Chassis form factor |
4-slot modular chassis |
|
Included line card |
C9400-LC-48U |
|
Downlink ports |
48 x RJ-45 |
|
Downlink speeds |
10/100/1000 Mbps |
|
PoE support |
PoE, PoE+, and Cisco UPOE |
|
Cisco UPOE per-port power |
Up to 60 W |
|
Supervisor slots |
2 slots |
|
Power supply bays |
4 bays |
|
Fan modules |
C9404-FAN, 8-fan tray |
Product Performance
Key Features
The C9404R chassis fits access designs that need Catalyst 9400 modularity in a smaller six-rack-unit footprint with separate supervisor, line-card, fan, and power-supply service points.
The included C9400-LC-48U line card gives the first-day build 48 10/100/1000 RJ-45 ports with PoE, PoE+, and Cisco UPOE support.
The DNA-E bundle position is useful when the network design can use Cisco DNA Essentials licensing instead of an Advantage-tier quote.
C9404R supports multiple Catalyst 9400 supervisor options, so the exact supervisor model should be checked against the design, software release, uplink, and redundancy requirements.
The chassis has two line-card slots, allowing the deployment to add another supported Catalyst 9400 line card when the access closet needs more copper or fiber interfaces.
Because the chassis supports up to four power supply modules, procurement should size AC or DC input, wattage, quantity, and redundancy around the expected powered-device load.
Application Scenarios
Use C9404R-48U-BNDL-E when the first phase needs one 48-port 1G UPOE line card and the approved software tier is Cisco DNA Essentials.
Choose this SKU when the site needs a modular Catalyst 9400 access chassis but does not need the larger line-card capacity of a 7-slot or 10-slot chassis.
Use the bundle when purchasing teams want a defined 4-slot chassis and C9400-LC-48U starting configuration while leaving supervisor, power, support, and software-term details to the final BOM check.
Product Comparison
|
Parameter |
C9404R-48U-BNDL-E | ||
|---|---|---|---|
|
Power supply selection |
C9400-PWR-3200AC 3200W AC, C9400-PWR-2100AC 2100W AC, or C9400-PWR-3200DC 3200W DC selected during chassis configuration |
C9400-PWR-3200AC 3200W AC, C9400-PWR-2100AC 2100W AC, or C9400-PWR-3200DC 3200W DC selected during chassis configuration |
C9400-PWR-3200AC 3200W AC, C9400-PWR-2100AC 2100W AC, or C9400-PWR-3200DC 3200W DC selected during chassis configuration |
|
PoE power budget |
Configuration-dependent; C9400-LC-48U supports up to 2880W per line-card slot |
Configuration-dependent; C9400-LC-48U supports up to 2880W per line-card slot |
Configuration-dependent; C9400-LC-48U supports up to 2880W per line-card slot |
|
Chassis form factor |
4-slot modular chassis |
4-slot modular chassis |
7-slot modular chassis |
|
Included C9400-LC-48U Line Cards |
1 |
1 |
2 |
|
10/100/1000 UPOE RJ-45 Ports |
48 |
48 |
96 |
|
Cisco UPOE Power Per Port |
Up to 60 W |
Up to 60 W |
Up to 60 W |
|
License tier |
Cisco DNA Essentials |
Cisco DNA Advantage |
Cisco DNA Essentials |
|
Supervisor Slots |
2 |
2 |
2 |
|
Line-card slots |
2 |
2 |
5 |
|
Power supply bays |
4 |
4 |
8 |
|
Maximum 1G UPOE Chassis Density |
96 ports |
96 ports |
240 ports |
- C9404R-48U-BNDL-E keeps the compact 4-slot C9404R chassis and one 48-port UPOE line card, while aligning the order to Cisco DNA Essentials.
- C9404R-48U-BNDL-A is the closest hardware match, but it changes the software tier to Cisco DNA Advantage.
- Move to a 7-slot or 10-slot Catalyst 9400 bundle only when the access closet needs more line-card growth, not merely because the first-day port count is 48.
- Review C9407R-96U-BNDL-E alongside C9404R-48U-BNDL-E for the adjacent technical comparison points.
Selection Guide
1. Choose this SKU for a compact Essentials build
Select C9404R-48U-BNDL-E when the site needs a 4-slot Catalyst 9400 chassis with 48 UPOE ports and Cisco DNA Essentials licensing.
2. Compare the Advantage SKU when features drive the order
If the required feature set points to Cisco DNA Advantage, use the C9404R-48U-BNDL-A quote path instead of changing the hardware plan.
3. Check future line-card growth early
The C9404R chassis has two line-card slots, so confirm whether one spare line-card slot is enough for the access closet lifecycle.
4. Confirm PoE and power supply sizing together
Review endpoint power draw, power supply quantity, redundancy mode, and power cords before releasing the order.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
C9404R-48U-BNDL-E |
Confirms the order is the 4-slot, 48-port UPOE, DNA Essentials bundle |
|
Chassis |
C9404R |
Verifies the deployment uses the 4-slot Catalyst 9400 chassis |
|
Line Card |
One C9400-LC-48U |
Confirms the first-day port count is 48 RJ-45 1G UPOE ports |
|
Supervisor Engine |
Exact C9400 supervisor model in the BOM |
Uplinks, bandwidth per slot, software minimums, and redundancy depend on supervisor selection |
Optional Add-ons
|
Model |
Description |
|---|---|
|
C9400-PWR-3200AC |
Cisco Catalyst 9400 Series 3200W AC power supply |
|
C9400-PWR-3200DC |
Cisco Catalyst 9400 Series 3200W DC power supply |
|
C9400X-SUP-2XL/2 |
Cisco Catalyst 9400 Series redundant Supervisor 2XL module option |
|
C9400-LC-24XS |
Cisco Catalyst 9400 Series 24-port 10 Gigabit Ethernet SFP+ line card |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9404R-48U-BNDL-E | Product type | Modular access switch bundle |
| Cisco ordering description | Catalyst 9400 Series 4 slot, Sup, 1xC9400-LC-48U, DNA-E LIC | License tier | Cisco DNA Essentials |
| Chassis | C9404R | Chassis Slots | 4 total slots |
| Supervisor Slots | 2 slots, dedicated to supervisor engines | Line-card slots | 2 slots, dedicated to line cards |
| Included line card | C9400-LC-48U | Included Downlink Ports | 48 RJ-45 ports |
| Downlink Speeds | 10/100/1000 Mbps | PoE Capability | PoE, PoE+, and Cisco UPOE |
| Cisco UPOE per-port power | Up to 60 W per port | Maximum C9404R UPOE Density | 96 10/100/1000BASE-T UPOE ports |
| Line Card Bandwidth on C9404R | 80, 240, or 480 Gbps per slot depending on supervisor engine | Jumbo Frame Support | 9216 bytes on C9400-LC-48U |
| Supervisor Support | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, C9400X-SUP-2XL | Power supply bays | 4 bays |
| Power supply options | C9400-PWR-2100AC, C9400-PWR-3200AC, C9400-PWR-3200ACT, C9400-PWR-3200DC | Fan modules | C9404-FAN, 8 fans |
| Dimensions | 10.47 x 17.30 x 16.30 in. (26.53 x 43.94 x 41.40 cm) | Rack units | 6 RU |
| Chassis weight | 39.0 lb (17.2 kg), with fan tray | Mounting | 19-inch rack compatible |
| Power supply selection | C9400-PWR-3200AC 3200W AC, C9400-PWR-2100AC 2100W AC, or C9400-PWR-3200DC 3200W DC selected during chassis configuration | PoE power budget | Configuration-dependent; C9400-LC-48U supports up to 2880W per line-card slot |
| Expanded PoE budget | Up to 2880W per C9400-LC-48U line-card slot with selected C9400 power supply configuration |
