C9410R – 8 Line Card Slots – Up To 384 Access Ports – 4320W PoE Budget Per Slot
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

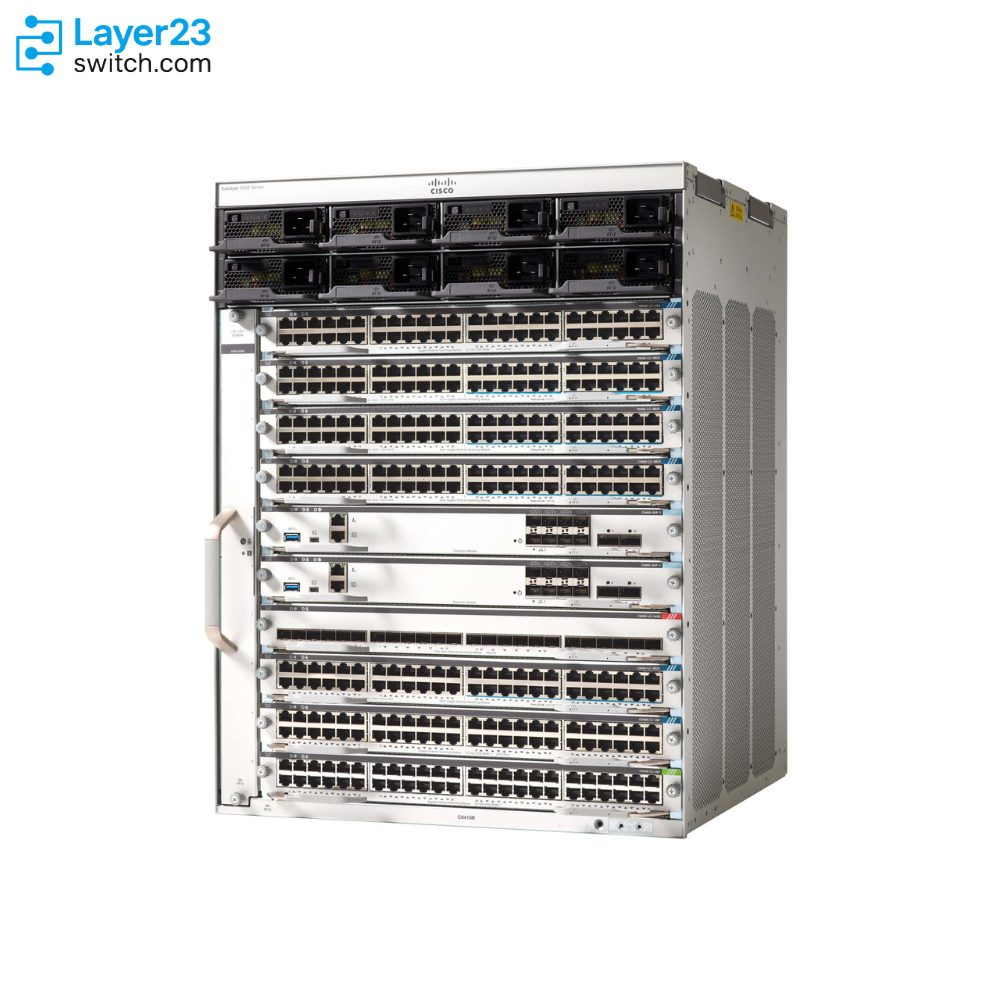

C9410R Description
The C9410R is the Cisco Catalyst 9400 Series 10 slot chassis and the density ceiling of the family, holding eight line cards in slots 1 to 4 and 7 to 10 while slots 5 and 6 stay reserved for a redundant supervisor pair. Eight line-card slots put the platform at 384 access ports of 1G copper, 1G fiber, 10G fiber or multigigabit, 384 ports of 802.3bt Type 4 at 90W, or 168 ports of 25G SFP28, 96 ports of 40G QSFP+ and 32 ports of 100G QSFP28 once a Supervisor 2 class engine is installed. That supervisor choice matters more here than anywhere else in the family: bandwidth per line-card slot reads 480 Gbps with C9400X-SUP-2XL and 240 Gbps with C9400X-SUP-2, but falls to a flat 80 Gbps with C9400-SUP-1XL, C9400-SUP-1XL-Y and C9400-SUP-1 alike. Eight power supply bays take the 3200W AC, 2100W AC and 3200W DC modules in redundant N+N, redundant N+1 or combined mode, integrated PoE reaches 4320W per line-card slot with current shipping line cards, and 1+1 supervisor redundancy with NSF/SSO and ISSU holds forwarding through a switchover. The chassis occupies 13 RU at 65.0 lb (29.48 kg) with its C9410-FAN dual serviceable fan tray installed.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9410R |
|
Chassis slots |
10 total, 8 line-card slots and 2 dedicated supervisor engine slots |
|
Slot assignment |
Supervisor engines in slots 5 or 6, line cards in slots 1 to 4 and 7 to 10 |
|
Supervisor engines supported |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, C9400X-SUP-2XL |
|
Bandwidth per line-card slot |
480 Gbps with C9400X-SUP-2XL, 240 Gbps with C9400X-SUP-2, 80 Gbps with C9400-SUP-1XL, C9400-SUP-1XL-Y and C9400-SUP-1 |
|
Maximum access ports |
384 ports of 1G copper, 1G SFP, 10G SFP+, 5G multigigabit or 10G multigigabit |
|
Maximum high-speed ports |
168x 25G SFP28, 96x 40G QSFP+ or 32x 100G QSFP28, all requiring C9400X-SUP-2 or C9400X-SUP-2XL |
|
802.3bt Type 4 ports |
384 ports at 90W, of which 260 can supply full 90W concurrently at max power |
|
PoE power budget per line-card slot |
4320W with current shipping line cards |
|
Power supply bays |
8 bays accepting C9400-PWR-3200ACT, C9400-PWR-3200AC, C9400-PWR-2100AC or C9400-PWR-3200DC |
|
Fan tray |
One bay with the C9410-FAN dual serviceable tray |
|
Rack units |
13 RU, 19-in rack mount from the front |
|
Minimum software release |
Cisco IOS XE 16.6.1 with C9400-SUP-1, 16.6.2 with C9400-SUP-1XL, 16.9.1 with C9400-SUP-1XL-Y, 17.7.1 with C9400X-SUP-2 or C9400X-SUP-2XL |
Product Performance
Key Features
Eight line-card slots produce 384 access ports, the highest figure any Catalyst 9400 chassis reaches, which lets a single managed device replace what would otherwise be four stacked fixed-configuration switches in a large wiring closet.
C9400-SUP-1XL and C9400-SUP-1XL-Y deliver the same 80 Gbps per line-card slot as the base C9400-SUP-1 in this chassis, so the price premium of the XL engines buys table scale and uplink options on this platform rather than slot throughput.
The chassis lists 384 ports of 802.3bt Type 4, but at max power 260 of them can draw a full 90W at the same time, which sets the realistic UPOE+ endpoint count for a fully populated build well below the raw port count.
Thirty-two ports of 100G QSFP28 across eight slots make this the only chassis in the family that can terminate a full campus core fabric without a second device, provided C9400X-SUP-2 or C9400X-SUP-2XL is installed.
The power bay count matches the line-card slot count one to one, so a fully loaded PoE build has to plan supply redundancy and bay occupancy together rather than treating spare bays as free headroom.
At 22.61 x 17.30 x 16.30 in. the chassis takes 13 RU and weighs 65.0 lb (29.48 kg) with its fan tray, which makes rack height and lifting plan part of the site survey rather than an afterthought.
Application Scenarios
Installed as the campus core in multi-building sites, terminating up to 32 ports of 100G QSFP28 across eight line cards with a redundant supervisor pair holding the routed backbone.
Racked in main equipment rooms serving several floors, consolidating up to 384 access ports into one managed chassis instead of multiple stacked units.
Deployed where large numbers of 802.3bt Type 4 endpoints such as high-power access points, cameras and lighting fixtures terminate on one device, with 260 ports able to draw full 90W concurrently at max power.
Product Comparison
|
Parameter |
C9410R |
C9407R |
C9404R |
|---|---|---|---|
|
Chassis slots |
10 total, 8 line-card slots |
7 total, 5 line-card slots |
4 total, 2 line-card slots |
|
Bandwidth per slot with C9400-SUP-1XL |
80 Gbps |
120 Gbps |
240 Gbps |
|
Maximum access ports |
384 |
240 |
96 |
|
Maximum 100G QSFP28 ports |
32 |
20 |
8 |
|
Power supply bays |
8 |
8 |
4 |
|
Rack units |
13 RU |
10 RU |
6 RU |
|
Chassis weight with fan tray |
65.0 lb (29.48 kg) |
63.0 lb (28.58 kg) |
39.0 lb (17.2 kg) |
|
Fan tray part number |
C9410-FAN= |
C9407-FAN= |
C9404-FAN= |
|
Shelf install kit |
C9410-SHELF-KIT= |
C9407-SHELF-KIT= |
Not listed for the 4 slot chassis |
|
Rated MTBF |
1,404,840 hours |
1,571,010 hours |
2,077,070 hours |
- Slot throughput and slot count move in opposite directions across this group. C9410R gives eight line-card slots but drops C9400-SUP-1XL to 80 Gbps per slot, C9407R gives five slots at 120 Gbps, and C9404R gives two slots at 240 Gbps, so buying the largest chassis on a Supervisor 1 class engine trades per-slot rate for port count rather than adding both.
- Rated MTBF runs inverse to size, at 1,404,840 hours on C9410R against 1,571,010 on C9407R and 2,077,070 on C9404R, which is worth weighing where a single chassis carries an entire building and no second device backs it up.
- Power bays stop scaling at the mid chassis. C9410R and C9407R both offer eight bays, but C9410R has eight line-card slots to feed against five, so the effective PoE headroom per slot is lower on the larger chassis even though the bay count is identical.
- For deciding which SKU to order, start from the access-port count since only C9410R clears 240 ports, then confirm 13 RU and a 65.0 lb lift are available, and treat the 4320W PoE per slot and the 480 Gbps maximum slot rate as common ground that does not separate the three models.
Selection Guide
1. When Eight Slots Justify The Flat 80 Gbps
Choosing this chassis with C9400-SUP-1XL or C9400-SUP-1XL-Y yields the same 80 Gbps per line-card slot as the base C9400-SUP-1, so the design only makes sense when the value sits in eight slots of port count; a build that needs both density and slot rate has to fund C9400X-SUP-2 or C9400X-SUP-2XL alongside the chassis.
2. The 90W Concurrency Ceiling Shapes The Endpoint Plan
At max power 260 of the 384 802.3bt Type 4 ports can draw a full 90W at the same time, so a design assuming 384 concurrent 90W endpoints is roughly 32 percent over the supported figure and needs either a mixed power-class plan or a second chassis.
3. Two More Slots Against Three Rack Units
Stepping up from C9407R adds three line-card slots and 144 access ports for three additional rack units and 2 lb of weight while keeping the same eight power bays, which makes this the cheaper move per port whenever the rack can absorb 13 RU.
4. Where Chassis MTBF Enters The Design
At 1,404,840 hours this chassis carries the lowest rated MTBF in the family against 2,077,070 hours on C9404R, so a site consolidating an entire building onto one device either accepts that figure or splits the load across two smaller chassis for physical redundancy.
5. Line Card Inventory Survives The Engine Swap
Packet processing, queuing and QoS all run on the supervisor engine, so line cards bought for a C9400-SUP-1 class build take on the capabilities of a later C9400X-SUP-2XL without replacement; on a chassis holding eight cards that makes the engine, not the card inventory, the unit of upgrade.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
PoE standards |
IEEE 802.3af and IEEE 802.3at plus the Cisco pre-standard power implementation on every Catalyst 9400 chassis and PoE power supply |
|
PoE budget per line-card slot |
4320W with current shipping line cards; the chassis is capable of approximately 4800W per slot |
|
90W concurrency limit |
384 ports of 802.3bt Type 4 are listed, of which 260 can supply full 90W concurrently at max power |
|
Power supply bays |
8 bays, populated with C9400-PWR-3200ACT, C9400-PWR-3200AC, C9400-PWR-2100AC or C9400-PWR-3200DC |
|
Redundancy mode |
Redundant N+N halves usable output, redundant N+1 reserves one supply, combined mode sums all supplies against the share ratio |
|
Bay-to-slot ratio |
Eight power bays feed eight line-card slots, so a fully populated PoE build has no spare bays once redundancy is reserved |
|
3200W AC supply output |
55V at 58.0A on the 230VAC range and 28.36A on the 115VAC range, 20 ms holdup, 950 BTU/hr heat dissipation per unit |
|
2100W AC supply output |
55V at 38.21A on the 230VAC range and 17.09A on the 115VAC range, 20 ms holdup, 460 BTU/hr heat dissipation per unit |
|
3200W DC supply output |
55V at 58.0A from a -48 to -60 VDC input drawing 36A per input, 8 ms holdup |
|
Input line voltage effect |
The 115VAC range caps the 3200W AC supply at 1560W and the 2100W AC supply at 940W per unit against 3190W and 2102W on the 230VAC range |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Supervisor slot population |
Confirm supervisor engines are planned for slots 5 or 6 and line cards for slots 1 to 4 and 7 to 10. |
Line cards are not supported in the supervisor slots, so a ten-line-card bill of materials cannot be seated in this chassis. |
|
Line card supervisor dependency |
Confirm the selected line cards are supported by the chosen supervisor engine. |
C9400-LC-24XY, C9400-LC-12QC, C9400-LC-48HX, C9400-LC-48TX and C9400-LC-48XS require C9400X-SUP-2 or C9400X-SUP-2XL and will not operate with the C9400-SUP-1 supervisor class. |
|
Concurrent 90W port count |
Confirm the number of endpoints that must draw a full 90W at the same time against the 260-port concurrency figure. |
A design sized on 384 ports of 802.3bt Type 4 will exceed what the chassis can power concurrently at max power. |
|
Software image floor |
Confirm the target Cisco IOS XE train meets 16.6.1 for C9400-SUP-1, 16.6.2 for C9400-SUP-1XL, 16.9.1 for C9400-SUP-1XL-Y or 17.7.1 for C9400X-SUP-2 and C9400X-SUP-2XL. |
Each supervisor engine has a different floor on this chassis, and staging below it leaves the engine out of service. |
|
Power supply count and input |
Confirm how many C9400-PWR-3200ACT, C9400-PWR-3200AC, C9400-PWR-2100AC or C9400-PWR-3200DC units the eight bays need for the chosen redundancy mode and input voltage. |
Power supplies are separate order lines from the chassis PID, and eight line-card slots can consume the bay count before the slot count is full. |
|
Chassis-specific fan tray |
Confirm the fan tray line item reads C9410-FAN=. |
C9404-FAN= and C9407-FAN= are built for the smaller chassis and do not fit the 10 slot model. |
|
Rack, shelf and accessory kits |
Confirm C9410-ACC-KIT=, C9410-RACK-19-KIT= and, where rails cannot carry the load, C9410-SHELF-KIT= are on the order. |
These kits are chassis-specific, and a rack unable to support 65.0 lb on rails stalls at install without the shelf kit. |
|
Blank covers for empty bays |
Confirm C9400-S-BLANK= and C9400-PWR-BLANK= quantities match the unpopulated slot and power bay count. |
Open bays disturb the chassis airflow path that the dual serviceable fan tray depends on, and this chassis has the most bays to leave open. |
|
Supervisor SSD option |
Confirm whether C9400-SSD-240GB, C9400-SSD-480GB or C9400-SSD-960GB is required for application hosting. |
The SSD is a supervisor line item rather than a chassis feature and cannot be added from the chassis PID. |
Optional Add-ons
|
Model |
Description |
|---|---|
|
Catalyst 9400 Series Supervisor 2 module, 240 Gbps per line-card slot in this chassis | |
|
Catalyst 9400 Series Supervisor 2XL module, 480 Gbps per line-card slot | |
|
C9400X-SUP-2/2 |
Catalyst 9400 Series redundant Supervisor 2 module for the second supervisor slot |
|
C9400X-SUP-2XL/2 |
Catalyst 9400 Series redundant Supervisor 2XL module for the second supervisor slot |
|

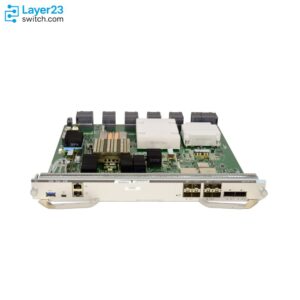

Catalyst 9400 Series Supervisor 1XL with 25G module, 80 Gbps per line-card slot in this chassis | |
|
Catalyst 9400 Series Titanium rated 3200W AC power supply | |
|
Catalyst 9400 Series Platinum rated 3200W AC power supply | |
|
Catalyst 9400 Series Platinum rated 2100W AC power supply | |
|
Catalyst 9400 Series 3200W DC power supply | |
|
Catalyst 9400 Series 10 slot chassis fan tray | |
|
C9410-ACC-KIT= |
Catalyst 9400 Series 10 slot chassis accessory kit |
|
C9410-RACK-19-KIT= |
Catalyst 9400 Series 10 slot chassis 19-in rack mount kit |
|
C9410-SHELF-KIT= |
Catalyst 9400 Series 10 slot chassis shelf install kit |
|
C9400-S-BLANK= |
Catalyst 9400 Series slot blank cover for unpopulated line-card slots |
|
Catalyst 9400 Series power supply blank cover for unpopulated power bays | |
|
Catalyst 9400 Series 240GB M2 SATA memory for the supervisor engine | |
|
Catalyst 9400 Series 480GB M2 SATA memory for the supervisor engine | |
|
Catalyst 9400 Series 960GB M2 SATA memory for the supervisor engine |
Front-Serviceable Fan Tray
ool-less, side-to-side airflow fans simplify maintenance and minimize MTTR.
Modular Line-Card Flexibility
Supports a mix of 1 G, 10 G, 25 G, 40 G, and 100 G modules for tailored expansion.
Enterprise-Grade Resiliency
ISSU, NSF/SSO, N+1/N+N power redundancy, and StackWise Virtual ensure uninterrupted service.

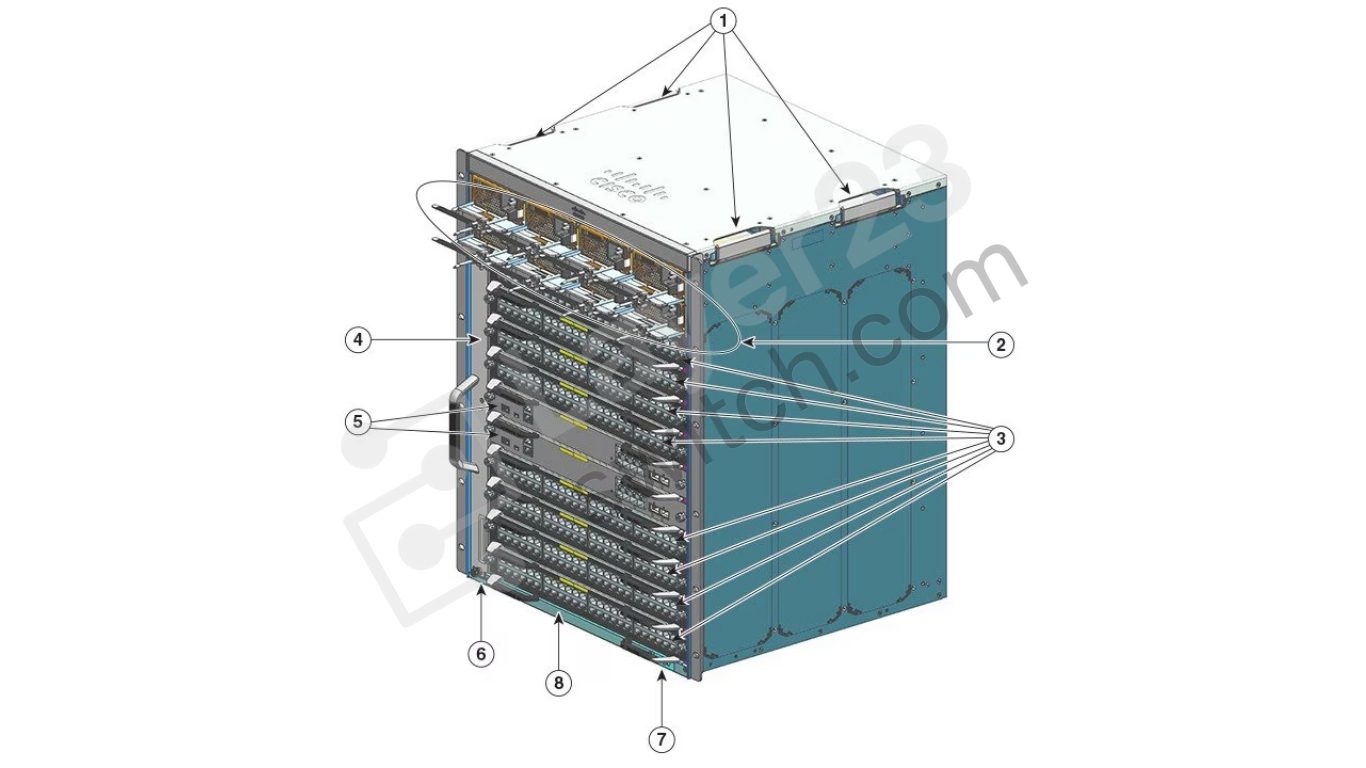

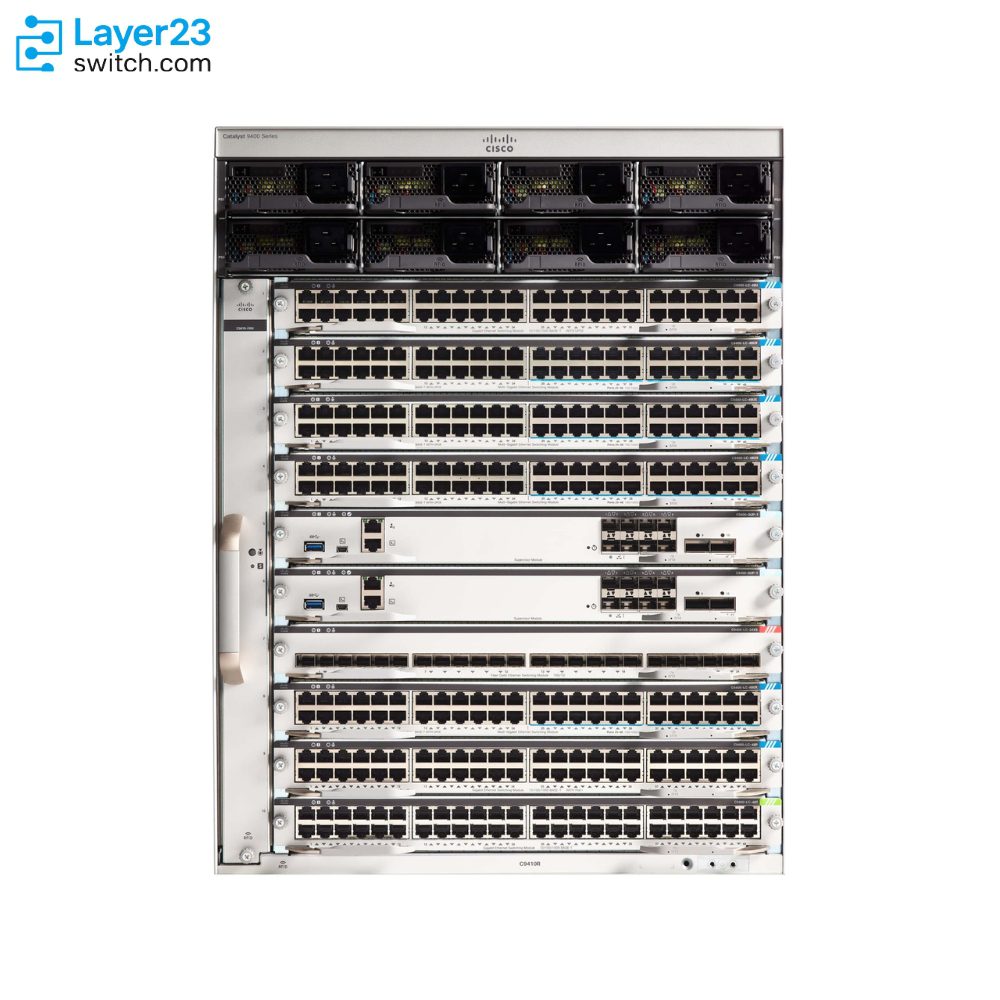

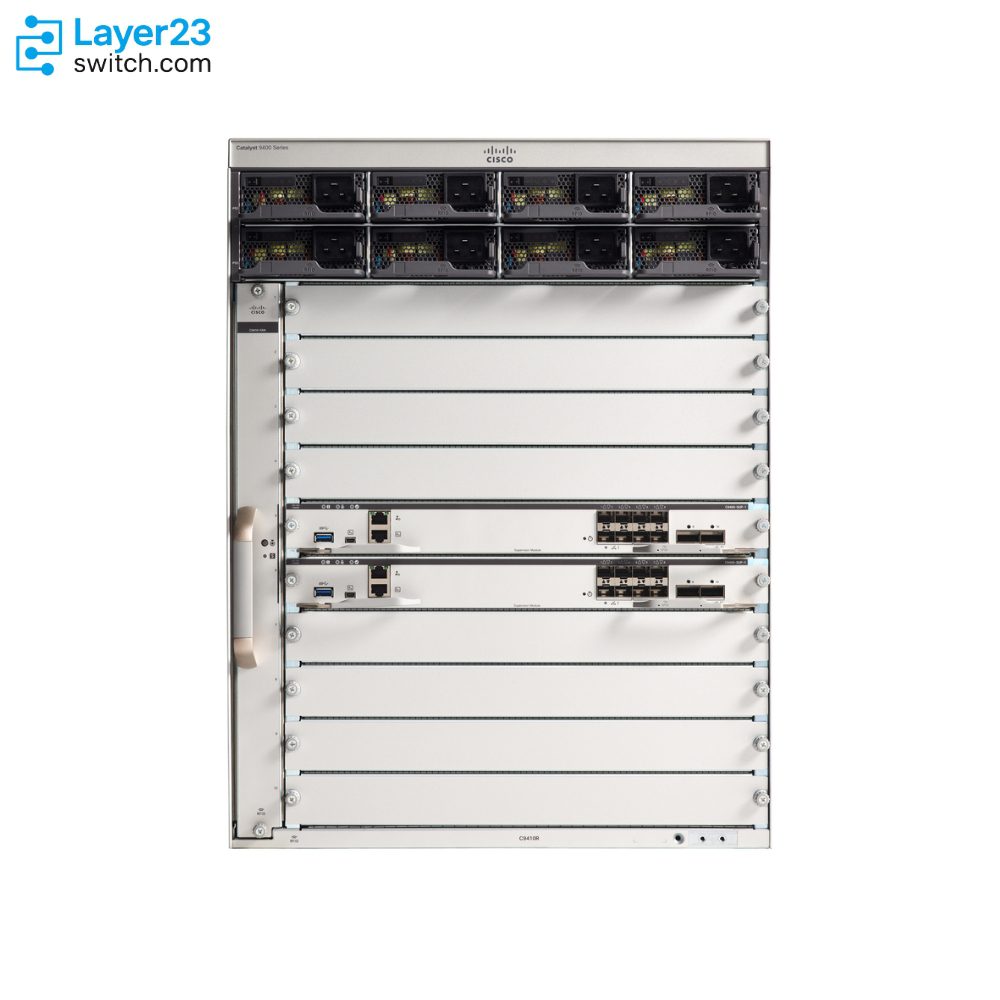

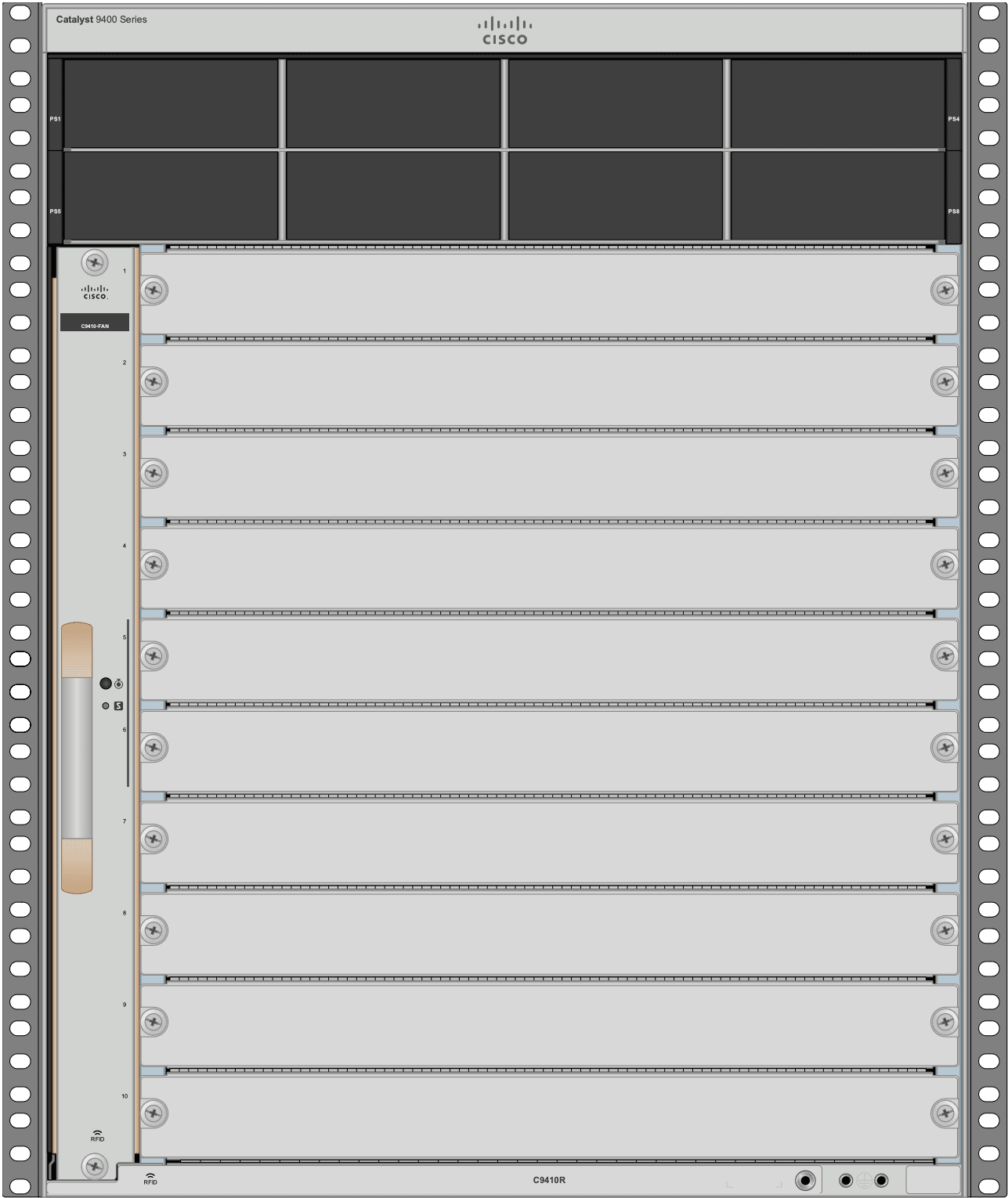

Front View
|
1 |
Chassis handholds |
5 |
Supervisor module slots (5 and 6) |
|---|---|---|---|
|
2 |
Power supply modules |
6 |
Chassis Radio Frequency ID (RFID) |
|
3 |
Line card slots (1,2, 3, 4, 7, 8, 9 and 10) |
7 |
System ground |
|
4 |
Fan tray assembly |
8 |
Chassis model number |
|

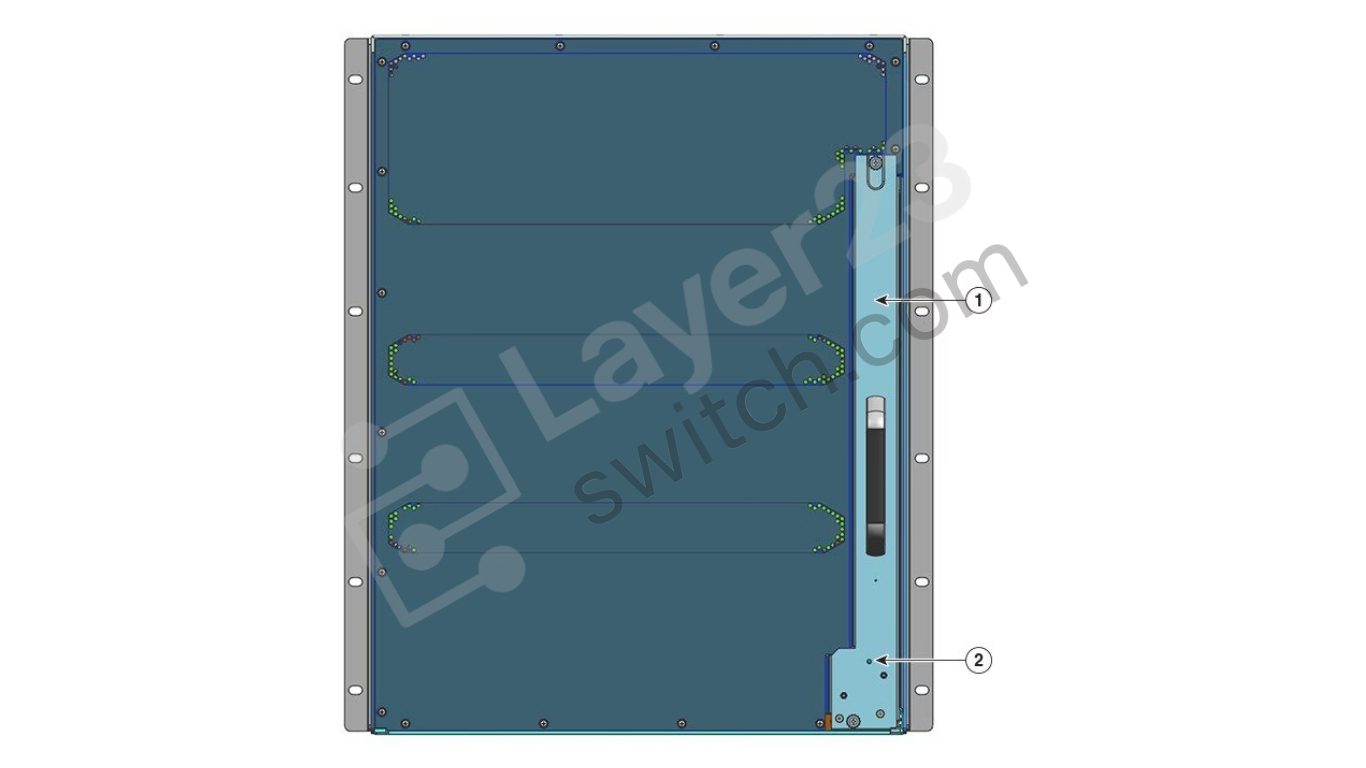

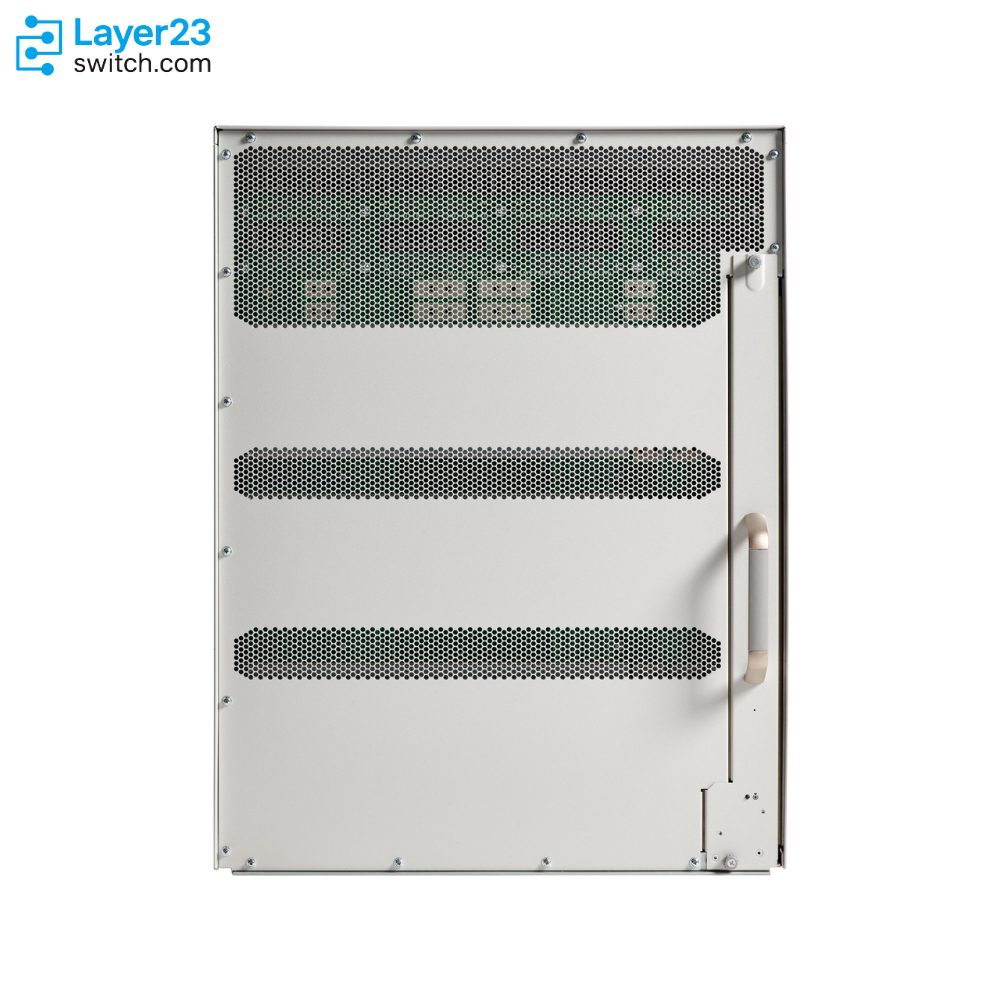

1 |
Access to remove fan tray from the rear |
2 |
Blue beacon LED on the rear of the fan tray (always matches the blue beacon on the front of the fan tray) |
|---|
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9410R | Cisco ordering description | Cisco Catalyst 9400 Series 10 slot chassis, spare part number C9410R= |
| Total slots | 10 | Line-card slots | 8, in slot positions 1 to 4 and 7 to 10 |
| Supervisor engine slots | 2, in dedicated slot positions 5 and 6 | Slot restriction | Line cards are not supported in the supervisor engine slots |
| Supervisor engines supported | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2 and C9400X-SUP-2XL | Supervisor engine redundancy | Yes, 1+1 redundancy with NSF/SSO and ISSU under 200 msec on dual supervisor engines |
| Bandwidth per line-card slot | 480 Gbps with C9400X-SUP-2XL, 240 Gbps with C9400X-SUP-2, 80 Gbps with C9400-SUP-1XL, C9400-SUP-1XL-Y and C9400-SUP-1 | Maximum bandwidth scalability per line-card slot | Up to 480 Gbps on all slots |
| Maximum 1G copper ports | 384 ports of 10/100/1000BASE-T RJ-45, including PoE+ and UPOE variants | Maximum multigigabit ports | 384 ports of 5G multigigabit and 384 ports of 10G multigigabit |
| Maximum fiber ports | 384 ports of 1G SFP and 384 ports of 10G SFP+ | Maximum 802.3bt Type 4 ports | 384 ports at 90W, with 260 ports able to supply full 90W concurrently at max power |
| Maximum 25G ports | 168 ports of SFP28, requires C9400X-SUP-2 or C9400X-SUP-2XL | Maximum 40G and 100G ports | 96 ports of QSFP+ and 32 ports of QSFP28, both requiring C9400X-SUP-2 or C9400X-SUP-2XL |
| Integrated PoE | Yes | PoE standards | IEEE 802.3af, IEEE 802.3at and the Cisco pre-standard power implementation |
| PoE power budget per line-card slot | 4320W with current shipping line cards | Maximum PoE capability per slot | Approximately 4800W chassis capability |
| Power supply bays | 8 | Power supply configuration | C9400-PWR-3200ACT and C9400-PWR-3200AC 3200W AC, C9400-PWR-2100AC 2100W AC, C9400-PWR-3200DC 3200W DC, ordered as separate line items |
| Power supply modes | Redundant N+N, redundant N+1 and combined mode, with AC or DC supplies in every mode | Combined mode formula | Total combined mode power equals P plus (N-1) x P x share ratio, where P is the output of one supply unit |
| AC input voltage | 100 to 240 VAC with plus or minus 10 percent for full range | DC input voltage | -48 to -60 VDC with +20/-16.6 percent for full range |
| 3200W AC supply rated input | 16A at 100 VAC and 16A at 200 VAC | 2100W AC supply rated input | 10.4A at 100 VAC and 10.4A at 200 VAC |
| 3200W DC supply rated input | 36A per input, 72A total | Supply data output | 3.3V at 3.0A on all three supplies, with 55V rails at 58.0A on the 3200W units and 38.21A on the 2100W unit at 230VAC |
| Heat dissipation | 950 BTU/hr per 3200W AC or DC supply and 460 BTU/hr per 2100W AC supply | Holdup time | 20 ms on the AC supplies and 8 ms on the DC supply |
| Power supply serviceability | Hot swappable, with per-unit Output Fail red LED, Input Okay green LED and blue ID LED | Power supply MTBF | 300,000 hours on the 3200W AC, 2100W AC and 3200W DC units |
| Power supply minimum software | Cisco IOS XE 16.6.1 for the 3200W AC unit, 16.8.1 for the 2100W AC unit and 16.9.1 for the 3200W DC unit | Fan tray | One fan-tray bay with the C9410-FAN dual serviceable fan tray |
| Dimensions (H x W x D) | 22.61 x 17.30 x 16.30 in. (57.43 x 43.94 x 41.40 cm) | Rack units | 13 RU |
| Chassis weight | 65.0 lb (29.48 kg) with fan tray | Mounting | 19-in rack compatible from the front, with 19-in rack and cable guide hardware included |
| Operating temperature | 23 to 113 degrees F (-5 to +45 degrees C) up to 6,000 feet and 23 to 104 degrees F (-5 to +40 degrees C) up to 10,000 feet, with 0 degrees C minimum ambient for cold startup | Short-term exceptional conditions | 23 to 131 degrees F (-5 to +55 degrees C) up to 6,000 feet and 23 to 122 degrees F (-5 to +50 degrees C) up to 10,000 feet |
| Storage temperature | -40 to 158 degrees F (-40 to 70 degrees C) | Relative humidity | 10 to 95 percent, noncondensing |
| Operating altitude | -60 to 3000m | Asset tracking | Embedded RFID tags on the chassis, supervisor, line cards, power supplies and fan trays |
| Minimum software release | Cisco IOS XE 16.6.1 with C9400-SUP-1, 16.6.2 with C9400-SUP-1XL, 16.9.1 with C9400-SUP-1XL-Y, and 17.7.1 with C9400X-SUP-2 or C9400X-SUP-2XL | Rated MTBF | 1,404,840 hours |
| Safety certifications | UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1 and IEEE 802.3, with CE Marking | EMC certifications | 47 CFR Part 15, CISPR22 Class A, KN 32 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CNS13438 Class A, CISPR24, EN55024, TCVN 7317 and KN35 |
| Industry environmental standards | NEBS operating temperature -5 to 55C, relative humidity 10 to 93 percent, operating altitude up to 1829 m (6000 ft) at 55C, and ETSI 300-019 requirements | Chassis accessory part numbers | C9410-FAN=, C9410-ACC-KIT=, C9410-RACK-19-KIT=, C9410-SHELF-KIT=, C9400-S-BLANK= and C9400-PWR-BLANK= |
Get More Information
Need pricing, stock, or shipping details for the C9410R ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is Cisco C9410R used for?
-
Is C9410R only the chassis?
-
How many line cards can C9410R take?
-
Can C9410R use redundant supervisor engines?
-
How is C9410R different from C9407R?
-
What power supply capacity should be planned for C9410R?
-
Which fan tray does C9410R use?
-
When is C9410R more chassis than needed?
Warranty
Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.
All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.
Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.
If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.
We support multiple secure payment and logistics options, backed by industry-leading verification:
Visit How to Pay page for more information
Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information
Verify, plan, and comparewith confidence
Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.
Standard Services
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
- Projects and Technical Support
- Easy Purchasing Supply
- Product Lifecycle Protection
- Exclusive F3 Team Support
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Every unit in our bulk order passed inspection. 100% yield.
Quality marks, certifications, and labeling all consistent with genuine product.
Logistics handling was smooth from warehouse to our door.
Professional packing. This is a heavy chassis but it arrived perfect.
Fast ship? You bet. Made it here in record time.
