C9400-LC-48H-B – 2×48-Port 1G RJ-45 – UPOE+ 90W – Catalyst 9400 Bundle
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9400-LC-48H-B Description

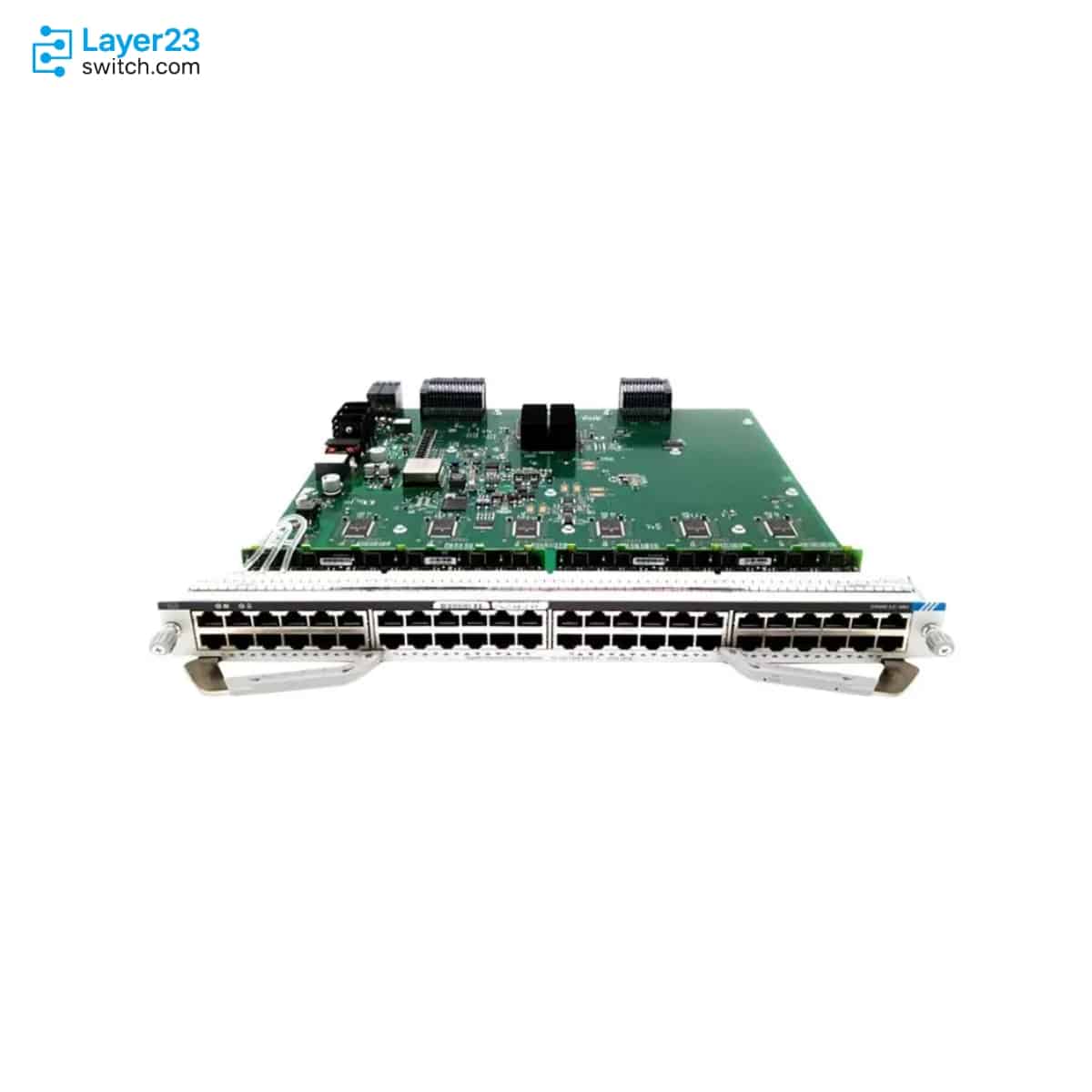

C9400-LC-48H-B is a Cisco Catalyst 9400 Series Bundle Select line-card PID for adding two C9400-LC-48H access line cards to a Catalyst 9400 chassis. Each included C9400-LC-48H is a 48-port UPOE+ 10/100/1000 RJ-45 line card for campus and branch access expansion, supports IEEE 802.3bt/at/af and Cisco pre-standard PoE, can provide up to 90 W Cisco UPOE+ on each of its 48 RJ-45 ports, and is supported starting with Cisco IOS XE Gibraltar 16.12.1. Cisco lists the base line card with C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL supervisor compatibility, so this bundle is best understood as a two-card 1G copper UPOE+ expansion PID rather than a standalone switch.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9400-LC-48H-B |
|
Product type |
Bundle Select line-card PID |
|
Bundle scope |
2 x C9400-LC-48H line cards |
|
Base line card |
C9400-LC-48H |
|
Base line-card description |
48-port UPOE+ 10/100/1000 RJ-45 line card |
|
Ports per base line card |
48 |
|
Port speed |
10/100/1000M |
|
Port type |
RJ-45 UPOE+ with IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, and Cisco pre-standard support |
|
Maximum bandwidth per C9400-LC-48H |
48 Gbps full-duplex non-blocking traffic |
|
Supervisor compatibility |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
|
Minimum software release |
Cisco IOS XE Software Release 16.12.1 or later |
|
Chassis port density for C9400-LC-48H |
C9404R 48/96; C9407R 48/240; C9410R 48/384 |
|
Max rated power per C9400-LC-48H |
65 W |
Application Scenarios
Use C9400-LC-48H-B when the purchase order needs a Bundle Select PID tied to two C9400-LC-48H 1G copper UPOE+ line cards for a Catalyst 9400 chassis.
Select this SKU for access-layer refresh work where the design uses 10/100/1000 RJ-45 endpoints and needs Cisco UPOE+ capability for higher-power devices such as access points, displays, cameras, or building systems.
Choose this bundle only when 1G copper UPOE+ ports match the access design. If the site requires 5G/2.5G multigigabit copper, compare C9400-LC-48HN before the line-card bundle is approved.
Product Comparison
|
Parameter |
C9400-LC-48H-B | |||
|---|---|---|---|---|
|
Product type |
Bundle Select PID for two line cards |
48-port UPOE+ line card |
48-port UPOE+ line card variant |
48-port UPOE+ multigigabit line card |
|
Bundle scope |
2 x C9400-LC-48H |
Single C9400-LC-48H line card |
Single C9400-LC-48H-UL line card |
Single C9400-LC-48HN line card |
|
Port count per line card |
48 |
48 |
48 |
48 |
|
Port speed |
10/100/1000M |
10/100/1000M |
10/100/1000M |
5G/2.5G multigigabit and 1000M/100M |
|
Port type |
RJ-45 UPOE+ IEEE 802.3bt/at/af and Cisco pre-standard support |
RJ-45 UPOE+ IEEE 802.3bt/at/af and Cisco pre-standard support |
RJ-45 UPOE+ 10/100/1000 with UL1069 compatibility |
RJ-45 UPOE+ IEEE 802.3bt/at/af and Cisco pre-standard support |
|
UL1069 compatibility |
Not identified as the UL1069 variant |
Not identified as the UL1069 variant |
Cisco identifies this ordering entry as UL1069-compatible |
Not identified as the UL1069 variant |
|
Supervisor compatibility |
Based on C9400-LC-48H: C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
Based on the 48H line-card family |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
|
Minimum software release |
Based on C9400-LC-48H: Cisco IOS XE 16.12.1 or later |
Cisco IOS XE 16.12.1 or later |
Based on the 48H line-card family |
Cisco IOS XE 17.5 or later |
|
Chassis density listed for line card |
C9404R 48/96; C9407R 48/240; C9410R 48/384 |
C9404R 48/96; C9407R 48/240; C9410R 48/384 |
Same 48-port UPOE+ 10/100/1000 ordering family |
C9404R 48/96; C9407R 48/240; C9410R 48/384 |
- In a C9400-LC-48H-B vs C9400-LC-48H comparison, the key difference is bundle scope: C9400-LC-48H-B is the two-card Bundle Select PID, while C9400-LC-48H is the individual 48-port UPOE+ line card.
- The C9400-LC-48H-B vs C9400-LC-48H-UL difference is the UL1069 ordering context; choose the UL variant only when that standard is required in the bill of materials.
- For buyers comparing C9400-LC-48H-B vs C9400-LC-48HN, the main comparison point is port speed: C9400-LC-48H-B follows the 10/100/1000M 48H base card, while C9400-LC-48HN is the 5G/2.5G multigigabit UPOE+ line card.
- Which model to choose depends on whether the purchase order needs two 1G UPOE+ line cards as one bundle line, one individual 48H line card, the UL1069-compatible 48H variant, or the 5G/2.5G HN line card.
Selection Guide
1. Choose it for a two-card Bundle Select order
Select C9400-LC-48H-B when the procurement line must reference the Cisco Bundle Select PID for two C9400-LC-48H line cards.
2. Use the base line-card SKU for a single-card need
Choose C9400-LC-48H instead when the bill of materials needs one 48-port UPOE+ 10/100/1000 RJ-45 line card rather than a two-card bundle line.
3. Check UL1069 and mGig requirements early
Move to C9400-LC-48H-UL when the requirement is the UL1069-compatible 48H ordering entry, or compare C9400-LC-48HN when the access layer needs 5G/2.5G multigigabit ports.
4. Validate chassis power before approval
Confirm chassis model, supervisor module, power supplies, PoE budget, cable category, and slot plan before adding the bundle PID to the final quote.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Basis |
Buyer Check |
|---|---|---|
|
Per-port UPOE+ capability |
C9400-LC-48H supports IEEE 802.3bt and up to 90 W Cisco UPOE+ on each RJ-45 port |
Verify whether attached devices require 90 W, 60 W, 30 W, or lower PoE classes |
|
Chassis-level 90W scale |
Cisco documents C9400-LC-48H 90W scale limits by C9404R, C9407R, and C9410R chassis |
Size power supplies and power budgets for the installed chassis and supervisor combination |
|
Cabling plan |
The line card uses 10/100/1000 BASE-T RJ-45 ports |
Confirm copper cabling and cable-loss planning before high-power PoE devices are deployed |
|
Software controls |
Installation guidance lists software-configured PoE power measurement and maximum power settings |
Confirm the IOS XE baseline and PoE configuration policy during staging |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact PID |
Confirm C9400-LC-48H-B |
Separates the two-card bundle PID from the single C9400-LC-48H line card |
|
Chassis |
Confirm C9404R, C9407R, or C9410R |
Chassis model affects slot count and total supported access-port density |
|
Supervisor Module |
Confirm C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, or C9400X-SUP-2XL |
C9400-LC-48H is compatible with these supervisor modules |
|
PoE Power |
Confirm 90W device count and power-supply plan |
High-power UPOE+ designs must be planned at chassis level |
|
Software Release |
Confirm Cisco IOS XE 16.12.1 or later for the 48H line card |
The line card has a documented minimum software release |
|
Adjacent Variant |
Confirm whether C9400-LC-48H-UL or C9400-LC-48HN is actually required |
Avoids ordering a 1G bundle when UL1069 or multigigabit access is the real requirement |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9400-LC-48H-B | Product type | Bundle Select line-card PID |
| Bundle scope | 2 x C9400-LC-48H line cards | Base line card | C9400-LC-48H |
| Base line-card description | Cisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 RJ-45 line card | Ports per base line card | 48 |
| Port speed | 10/100/1000M | Port type | RJ-45 UPOE+ IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, and Cisco pre-standard |
| Maximum bandwidth per C9400-LC-48H | 48 Gbps full-duplex non-blocking traffic | Minimum software release | Cisco IOS XE Software Release 16.12.1 or later |
| Supervisor compatibility | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL | Installation slot rule | Any non-supervisor module slot |
| C9404R port density | 48 / 96 | C9407R port density | 48 / 240 |
| C9410R port density | 48 / 384 | C9410R 90W scale note | Up to 260 90W PoE ports from 384 on C9410R |
| Full 90W scale note | Fully loaded 90W on C9407R and C9404R | Energy Efficient Ethernet | IEEE 802.3az support |
| Security hardware capability | IEEE 802.1AE MACsec-256 capability in hardware | Jumbo frame support | Layer 2 to Layer 4 jumbo frame support up to 9216 bytes |
| Max rated power per C9400-LC-48H | 65 W | Rated MTBF per C9400-LC-48H | 874,140 hours |
