C9400-LC-48H-UL Description

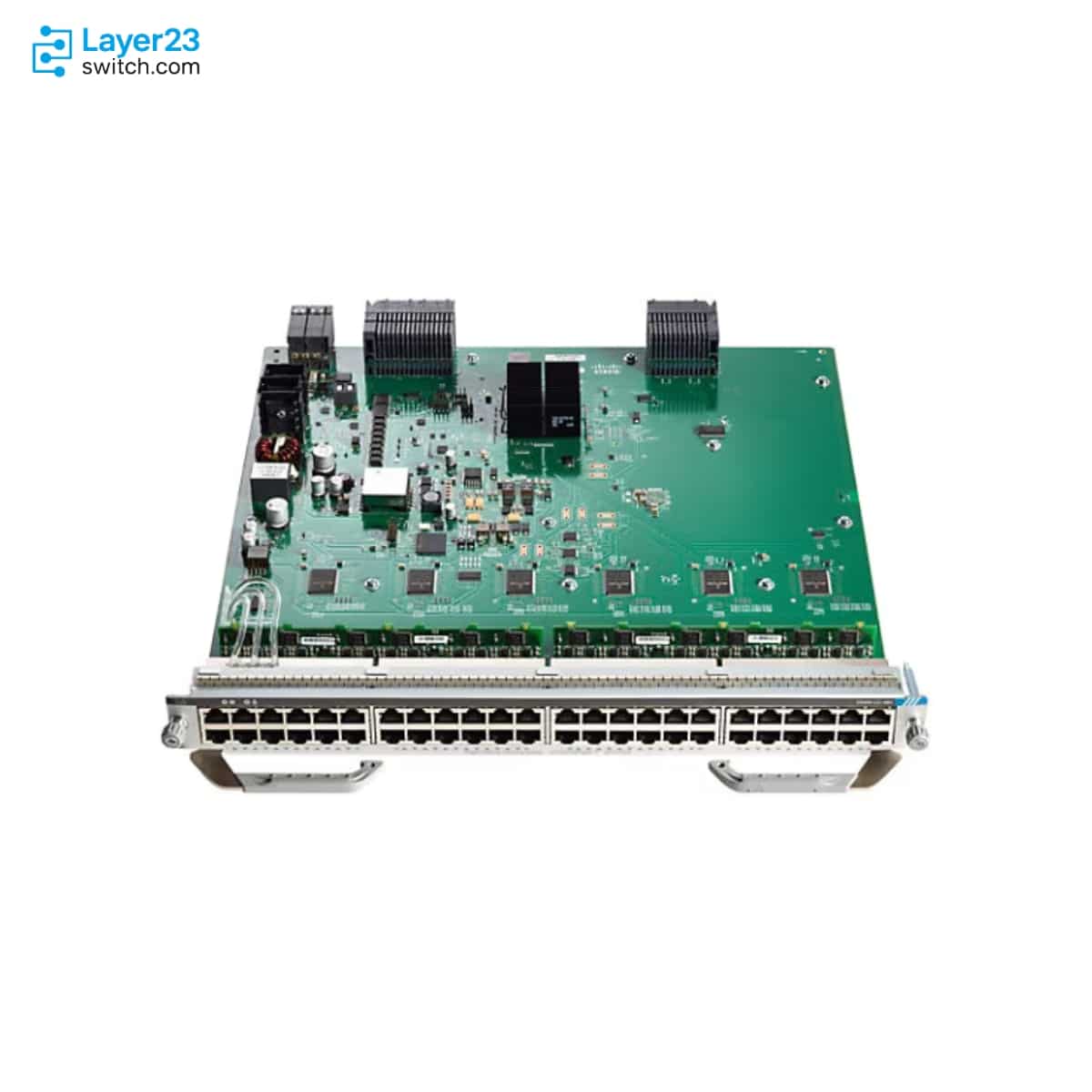

The C9400-LC-48H-UL is a Cisco Catalyst 9400 Series UPOE+ line card, the UL1069-compatible version of the 48-port 10/100/1000M copper card, for campus access closets that power endpoints over RJ-45. The card has 48 ports with up to 90W per port under IEEE 802.3bt and installs in any non-supervisor slot of the C9404R, C9407R and C9410R. The card needs Cisco IOS XE 16.12.1 or later and runs on C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2 and C9400X-SUP-2XL.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9400-LC-48H-UL |
|
Product type |
Line card |
|
Ordering identity |
48-port UPOE+ 10/100/1000 RJ-45 ordering PID with Cisco-listed UL1069 compatibility |
|
Total ports |
48 |
|
Port speed |
10/100/1000M |
|
Port type |
RJ-45 UPOE+ with IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, and Cisco pre-standard support |
|
PoE capability |
Cisco UPOE+ up to 90W per port on the C9400-LC-48H line-card family |
|
Minimum software release |
Cisco IOS XE Software Release 16.12.1 or later |
|
Supervisor compatibility |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
|
Installation slot rule |
Any non-supervisor module slot |
|
Max rated power |
65 W for the C9400-LC-48H line-card family |
|
MTBF |
874,140 hours for the C9400-LC-48H line-card family |
Application Scenarios
Sites held to UL1069 populate their Catalyst 9400 access chassis with this card to supply 48 UPOE+ copper ports per slot.
An access layer that keeps 1G copper at the edge can power wireless access points, cameras, displays and building systems from the card’s IEEE 802.3bt ports.
Product Comparison
|
Parameter |
C9400-LC-48H-UL | |||
|---|---|---|---|---|
|
Port speed |
10/100/1000M |
10/100/1000M |
5G/2.5G, 1000M/100M |
10/100/1000M |
|
Port type |
RJ-45 UPOE+ 802.3bt/at/af/Cisco pre-standard |
RJ-45 UPOE+ 802.3bt/at/af/Cisco pre-standard |
RJ-45 UPOE+ 802.3bt/at/af/Cisco pre-standard |
RJ-45 UPOE 802.3at/af/Cisco pre-standard |
|
PoE power per port |
90W |
90W on all ports |
90W on all ports |
60W on all ports |
|
UL1069 compatibility |
Yes |
Not published |
Not published |
Not published |
|
Minimum software release |
Cisco IOS XE 16.12.1 |
Cisco IOS XE 16.12.1 |
Cisco IOS XE 17.5 |
Cisco IOS XE 16.6.1 |
C9400-LC-48H-UL is the UL1069-compatible ordering entry of the 48-port UPOE+ 10/100/1000 card, while C9400-LC-48H is the standard entry of the same card family, so sites held to UL1069 order C9400-LC-48H-UL and other sites can use C9400-LC-48H. Access layers that need 5G/2.5G multigigabit ports move to C9400-LC-48HN, which needs Cisco IOS XE 17.5 or later against 16.12.1 for the 48H family. Endpoints that need no more than 60W can use C9400-LC-48U, a UPOE card that runs from Cisco IOS XE 16.6.1, while 90W IEEE 802.3bt endpoints stay on the UPOE+ cards.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Basis |
Buyer Check |
|---|---|---|
|
UPOE+ mode |
C9400-LC-48H is an IEEE 802.3bt Type 4 PSE and is in 802.3bt mode by default |
Verify the attached endpoint power classes and PoE policy before deployment |
|
90W port planning |
Cisco documents up to 90W IEEE 802.3bt support for the C9400-LC-48H line-card family |
Size power supplies for the actual number of high-power endpoints |
|
Chassis scale |
Cisco architecture guidance lists 90W scale by C9404R, C9407R, and C9410R chassis |
Confirm the chassis and supervisor combination before assuming full-port 90W delivery |
|
Copper cabling |
The module uses 10/100/1000 RJ-45 access ports |
Check cable category and endpoint distance before finalizing the access design |
Ordering Checklist
- Catalyst 9400 chassis: Use a C9404R, C9407R or C9410R. The card installs only in a line-card slot of these chassis; supervisor slots do not accept it.
- Supervisor engine: Use C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2 or C9400X-SUP-2XL, as for the C9400-LC-48H family. The card belongs to the 48H family, which runs on all five engines.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9400-LC-48H-UL | Product type | Line card |
| Cisco ordering description | Cisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 RJ-45 line-card entry with UL1069 compatibility | Supervisor compatibility | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL |
| Total ports | 48 | Port speed | 10/100/1000M |
| Port type | RJ-45 UPOE+ IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, and Cisco pre-standard | Installation slot rule | Any non-supervisor module slot |
| C9404R port density | 48 / 96 | C9407R port density | 48 / 240 |
| C9410R port density | 48 / 384 | Base line-card family | C9400-LC-48H |
| C9410R 90W scale note | Up to 260 90W PoE ports from 384 on C9410R for the 48H line-card family | Full 90W scale note | Fully loaded 90W on C9407R and C9404R for the 48H line-card family |
| Energy efficient Ethernet | IEEE 802.3az support | MACsec capability | IEEE 802.1AE MACsec-256 capability in hardware |
| Spare PID convention | Ordering table indicates “=” as spare | Jumbo frames | Layer 2 to Layer 4 jumbo frame support up to 9216 bytes |
| Minimum software release | Cisco IOS XE Software Release 16.12.1 or later | Max rated power | 65 W for the C9400-LC-48H line-card family |
| UPOE+ power | Up to 90W IEEE 802.3bt on the C9400-LC-48H line-card family | MTBF | 874,140 hours for the C9400-LC-48H line-card family |
Quality Certifications
Customer Reviews
Questions & Answers
-
Which supervisor engines run C9400-LC-48H-UL?
-
What minimum software release does C9400-LC-48H-UL need?
-
Does C9400-LC-48H-UL support jumbo frames, and up to what size?
-
What spare PID does Cisco use for C9400-LC-48H-UL?
-
Which chassis slots accept C9400-LC-48H-UL?
-
How many ports can a C9410R run at 90W with C9400-LC-48H-UL cards?
