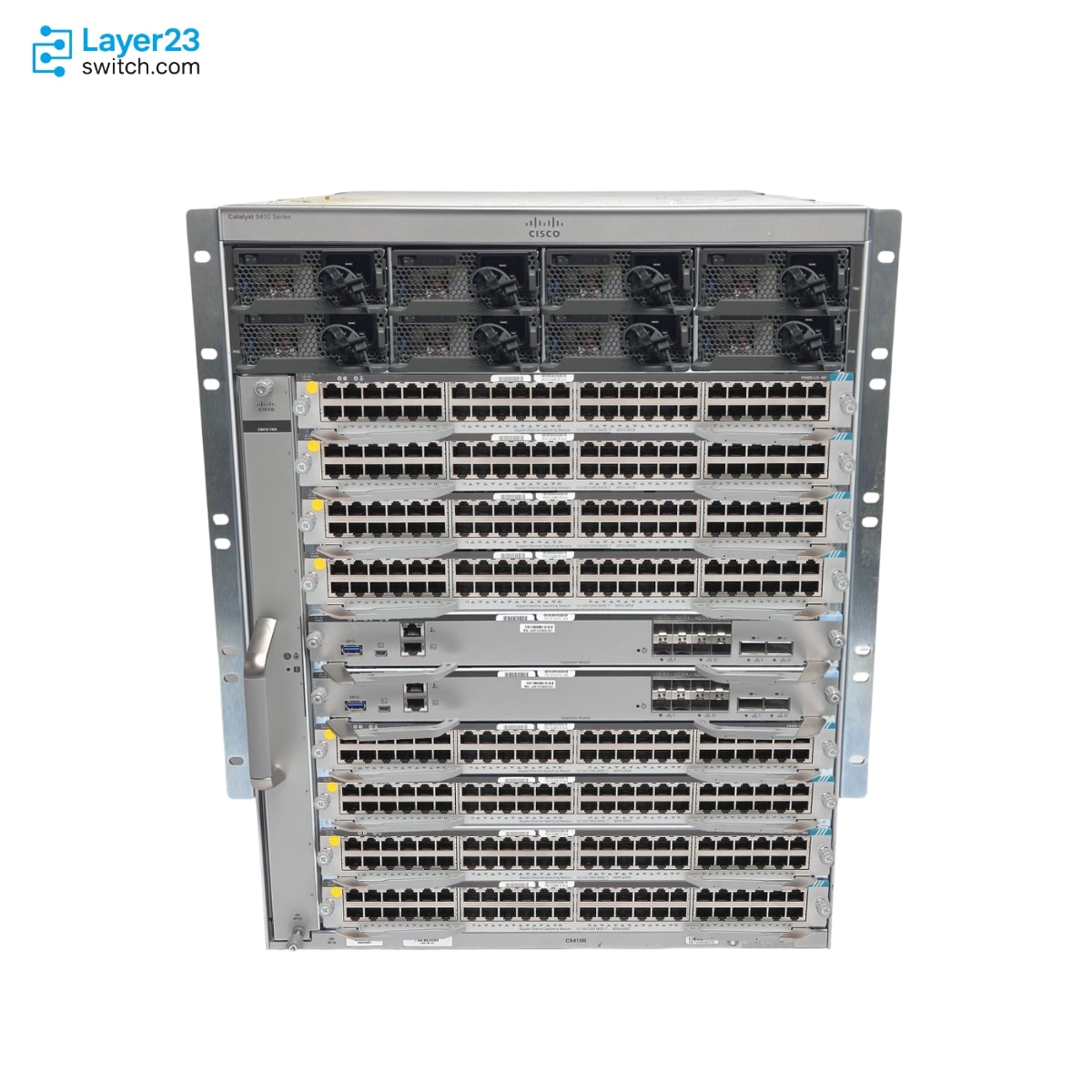

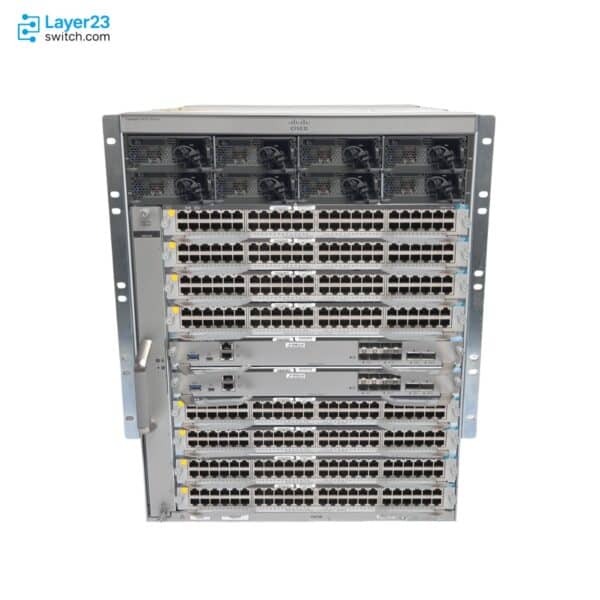

C9410R-96U-BNDL-A Description
The C9410R-96U-BNDL-A is a Cisco Catalyst 9400 Series modular access switch bundle for large campus wiring closets that serve UPOE endpoints over copper. The bundle pairs the 10-slot chassis with two C9400-LC-48U line cards for 96 10/100/1000 RJ-45 UPOE ports at up to 60W each, and carries Cisco DNA Advantage. On this chassis the C9400-SUP-1 and C9400-SUP-1XL supervisors give 80 Gbps per slot, and 480 Gbps per slot needs C9400X-SUP-2XL.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9410R-96U-BNDL-A |
|
Product type |
Modular access switch bundle |
|
Cisco ordering description |
Catalyst 9400 Series 10 slot, Sup, 2xC9400-LC-48U, DNA-A LIC |
|
Chassis |
C9410R |
|
Chassis form factor |
10-slot modular chassis |
|
Included line cards |
2 x C9400-LC-48U |
|
Downlink ports |
96 x RJ-45 |
|
Downlink speeds |
10/100/1000 Mbps |
|
PoE support |
PoE, PoE+, and Cisco UPOE |
|
Cisco UPOE per-port power |
Up to 60 W |
|
Supervisor slots |
2 slots |
|
Maximum 1G UPOE ports |
384 ports |
|
Power supply slots |
8 bays |
Product Performance
Key Features
The C9410R chassis has 10 slots in 13 RU. Slots 5 and 6 are reserved for supervisor engines and the other eight take line cards, which cannot be installed in the supervisor slots.
Two C9400-LC-48U line cards provide 96 10/100/1000 RJ-45 ports, each able to deliver up to 60W. That covers phones and access points on PoE+ as well as devices that draw more than 30W.
On the 10-slot chassis, C9400-SUP-1, C9400-SUP-1XL and C9400-SUP-1XL-Y give 80 Gbps per slot. C9400X-SUP-2 raises it to 240 Gbps and C9400X-SUP-2XL to 480 Gbps.
The chassis supports 1+1 supervisor engine redundancy across slots 5 and 6, so a second supervisor can stand by for the control plane.
Bays take C9400-PWR-3200AC, C9400-PWR-2100AC or C9400-PWR-3200DC supplies. A 3200W AC supply outputs 3190W at 230VAC and 1560W at 115VAC, so 96 ports at the full 60W (5,760W) set both the supply count and the input voltage.
The bundle carries the Advantage tier, which adds advanced assurance, analytics, policy-based automation, segmentation and application visibility to the Essentials feature set. The subscription includes ThousandEyes and Cisco Spaces Extend licenses for the same term.
Application Scenarios
On a large office floor or campus building, the switch powers IP phones, wireless access points and video endpoints from 96 UPOE ports, each delivering up to 60W.
A hospital wing or university building that starts with 96 copper ports can fill the remaining line-card slots over time, up to 384 UPOE ports in the 10-slot chassis.
In a main distribution frame, the same chassis mixes the UPOE copper cards with SFP or SFP+ line cards such as C9400-LC-48S or C9400-LC-24XS, so one switch serves both endpoint ports and fiber links.
Product Comparison
|
Parameter |
C9410R-96U-BNDL-A | ||
|---|---|---|---|
|
Total number of slots |
10 |
7 |
10 |
|
Line-card slots |
8 |
5 |
8 |
|
Included line cards |
2 x C9400-LC-48U |
2 x C9400-LC-48U |
2 x C9400-LC-48U |
|
10/100/1000BASE-T (RJ-45) with UPOE ports (maximum) |
384 |
240 |
384 |
|
PoE power budget |
Depends on power supply configuration, up to 4320W per slot |
Depends on power supply configuration, up to 4320W per slot |
Depends on power supply configuration, up to 4320W per slot |
|
Number of power supply bays |
8 |
8 |
8 |
|
Bandwidth per slot with C9400-SUP-1XL |
80 Gbps |
120 Gbps |
80 Gbps |
|
License tier |
Cisco DNA Advantage |
Cisco DNA Advantage |
Cisco DNA Essentials |
C9410R-96U-BNDL-A and C9407R-96U-BNDL-A share the same two C9400-LC-48U line cards, 96 UPOE ports and DNA Advantage tier, but the C9410R chassis has eight line-card slots and 384 ports against five slots and 240 ports on the 7-slot chassis. Sites that need only 240 access ports can order C9407R-96U-BNDL-A, where C9400-SUP-1XL would run 120 Gbps per slot against 80 Gbps here. On the 10-slot chassis C9400-SUP-1, C9400-SUP-1XL and C9400-SUP-1XL-Y all stop at 80 Gbps, so higher slot rates need C9400X-SUP-2 or C9400X-SUP-2XL. Projects that can drop to the Essentials tier order C9410R-96U-BNDL-E.
PoE Power Planning
|
Planning Item |
Confirmed Value |
What to Confirm |
|---|---|---|
|
Included UPOE Ports |
96 ports |
Endpoint classes and expected PoE draw across the two C9400-LC-48U line cards |
|
PoE per C9400-LC-48U slot |
2880W |
Whether the selected power supply count supports the required PoE budget and redundancy target |
|
Per-Port UPOE Class |
Up to 60 W |
Which connected endpoints need Cisco UPOE rather than PoE or PoE+ |
|
Power supply bays |
8 bays |
AC input circuits, power cords, spare bay plan, and power redundancy mode |
Ordering Checklist
- Redundant supervisor: Add the /2 PID of the bundled supervisor, for example C9400-SUP-1XL/2 or C9400X-SUP-2/2, for slot 6; the first supervisor sits in slot 5. A second supervisor gives 1+1 redundancy, and line cards are not supported in supervisor slots.
- Added line cards: C9400-LC-48HX, C9400-LC-48XS, C9400-LC-24XY, C9400-LC-12QC and C9400-LC-48TX need C9400X-SUP-2 or C9400X-SUP-2XL. C9400-SUP-1, C9400-SUP-1XL and C9400-SUP-1XL-Y support only nine line cards, so these five cannot be added on those supervisors.
- Power supplies: Choose per bay between C9400-PWR-3200AC, C9400-PWR-2100AC and C9400-PWR-3200DC, with C9400-PWR-3200ACT as the Titanium option. Supplies are separate lines, and the 8 bays follow the redundancy mode.
- Chassis kits: Order C9410-FAN=, C9410-ACC-KIT=, C9410-RACK-19-KIT= and C9410-SHELF-KIT=. These kits are specific to the chassis slot count and do not carry over from other chassis.
- Blank covers: Add C9400-S-BLANK= for empty line-card slots and C9400-PWR-BLANK= for empty power bays. The bundle fills two line-card slots, so the remaining slots and unused bays need cover lines.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Cisco Catalyst 9400 Series 3200W AC Power Supply | |
|
Cisco Catalyst 9400 Series 2100W AC Power Supply | |
|
Cisco Catalyst 9400 Series 3200W DC Power Supply | |
|
Cisco Catalyst 9400 Series 3200W Titanium Power Supply | |
|
Cisco Catalyst 9400 Series Power Supply Blank Cover | |
|
C9400-S-BLANK= |
Cisco Catalyst 9400 Series Slot Blank Cover |
|
Cisco Catalyst 9400 Series 10-slot chassis Fan Tray | |
|
C9410-ACC-KIT= |
Cisco Catalyst 9400 Series 10-slot chassis Accessory Kit |
|
C9410-RACK-19-KIT= |
Cisco Catalyst 9400 Series 10-slot chassis Rack Mount |
|
C9410-SHELF-KIT= |
Cisco Catalyst 9400 Series 10-slot chassis Shelf Install Kit |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9410R-96U-BNDL-A | Product type | Modular access switch bundle |
| Cisco ordering description | Catalyst 9400 Series 10 slot, Sup, 2xC9400-LC-48U, DNA-A LIC | Network license | Cisco DNA Advantage |
| Chassis | C9410R | Chassis slots | 10 total slots |
| Supervisor slots | 2 slots | Dedicated supervisor slots | Slots 5 and 6 |
| Supported supervisor in SKU datasheet | C9400-SUP-1 | Line-card slots | 8 slots |
| Included line cards | 2 x C9400-LC-48U | Included downlink ports | 96 RJ-45 ports |
| Downlink speeds | 10/100/1000 Mbps | PoE standards | PoE, PoE+, and Cisco UPOE |
| Cisco UPOE per-port power | Up to 60 W per port | PoE per C9400-LC-48U slot | 2880W |
| Maximum 1G UPOE ports | 384 ports | Per-slot bandwidth | Up to 480 Gbps per slot |
| Power supply slots | 8 bays | Power supply options | 3200W AC |
| Fan tray bays | 1 bay | Rack units | 13 RU |
| Dimensions | 22.61 x 17.30 x 16.30 in. (57.43 x 43.94 x 41.40 cm) | Weight | 29.48 kg (65.0 lb), with fan tray |
| Mounting | 19-inch rack compatible | Accessory kit | C9410-ACC-KIT= |
| Power supply selection | C9400-PWR-3200AC 3200W AC, C9400-PWR-2100AC 2100W AC, or C9400-PWR-3200DC 3200W DC selected during chassis configuration | PoE power budget | Configuration-dependent; C9400-LC-48U supports up to 2880W per line-card slot |
| Expanded PoE budget | Up to 2880W per C9400-LC-48U line-card slot with selected C9400 power supply configuration |
Quality Certifications
Customer Reviews
Questions & Answers
-
Which supervisor engine does C9410R-96U-BNDL-A list, and does it support two?
-
Which power supplies does C9410R-96U-BNDL-A take, and how is redundancy set?
-
How many 90W ports can C9410R-96U-BNDL-A supply if C9400-LC-48HX line cards are added with 3200W supplies?
-
What happens in C9410R-96U-BNDL-A when a fan fails in the C9410-FAN tray?
-
Do the two C9400-LC-48U cards in C9410R-96U-BNDL-A need C9400X-SUP-2 to run at line rate?
-
What slot bandwidth does C9400-LC-48UX get in C9410R-96U-BNDL-A with C9400X-SUP-2?
-
What rack depth must be planned for C9410R-96U-BNDL-A?
