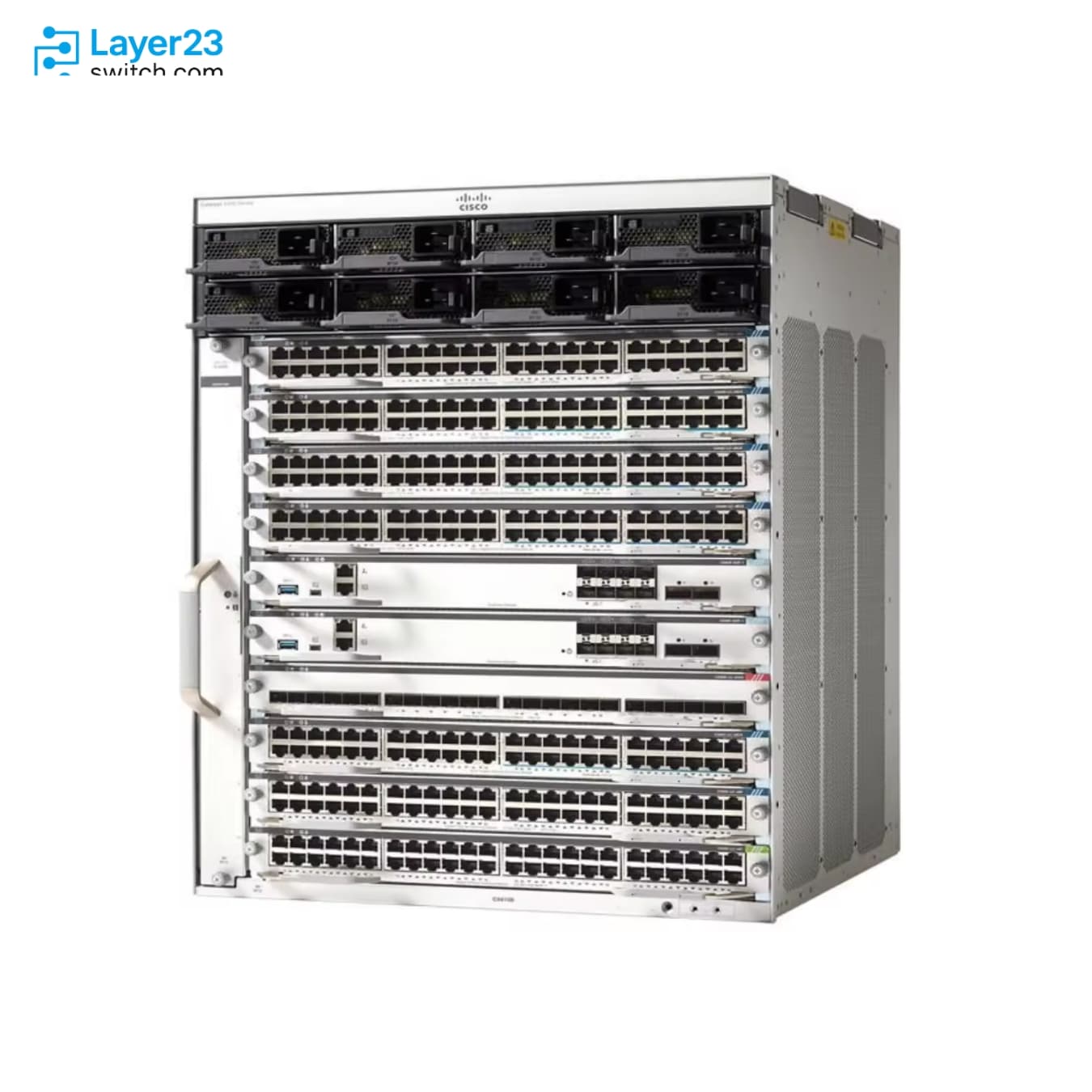

C9407R-96U-BNDL-A Description
The C9407R-96U-BNDL-A is a Cisco Catalyst 9400 Series modular access switch bundle for high-density campus wiring closets that power phones, access points and cameras. The 7-slot C9407R chassis has five line-card slots, two supervisor slots, eight power supply bays and 10 RU of height, and its two C9400-LC-48U line cards provide 96 10/100/1000 RJ-45 ports with UPOE up to 60 W each. The bundle is licensed at the Cisco DNA Advantage tier, and slot bandwidth follows the supervisor: 80 Gbps with C9400-SUP-1 and up to 480 Gbps with C9400X-SUP-2XL.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9407R-96U-BNDL-A |
|
Product type |
Modular access switch bundle |
|
Cisco ordering description |
Catalyst 9400 Series 7 slot, Sup, 2xC9400-LC-48U, DNA-A LIC |
|
Chassis |
C9407R |
|
Chassis layout |
7 total slots; 5 line-card slots; 2 supervisor slots |
|
Supported supervisor engine in SKU sheet |
C9400-SUP-1 |
|
Included line cards |
2 x C9400-LC-48U |
|
Initial access ports |
96 x RJ-45 |
|
Port speed and media |
10/100/1000 Mbps copper RJ-45 |
|
PoE support |
PoE, PoE+, and Cisco UPOE up to 60 W per port |
|
Power supply slots |
8 bays |
Product Performance
Key Features
Supervisors take slots 3 and 4, which leaves slots 1, 2 and 5 to 7 for line cards. The chassis is 10 RU and weighs 63.0 lb (28.58 kg) with its fan tray.
Two C9400-LC-48U cards give 96 10/100/1000 RJ-45 ports with PoE, PoE+ and Cisco UPOE at up to 60 W per port. A fully populated C9407R reaches 240 such ports.
A C9400-LC-48U drawing 60 W on every port needs 2,880W, so the power supply count and redundancy mode have to be sized together. Eight bays take 3200W AC, 2100W AC or 3200W DC supplies in N+N, N+1 or combined mode.
With C9400-SUP-1 each line-card slot carries 80 Gbps. C9400X-SUP-2 raises it to 240 Gbps and C9400X-SUP-2XL to 480 Gbps.
The -A bundle carries Cisco DNA Advantage, where the -E bundles on the same chassis and line cards carry DNA Essentials.
Three line-card slots remain after the two included cards. Fiber and multigigabit cards such as C9400-LC-48XS or C9400-LC-48HX need C9400X-SUP-2 or C9400X-SUP-2XL, and C9400-S-BLANK= covers any slot left empty.
Application Scenarios
In the main closet of a multi-storey building, the chassis feeds phones, wireless access points and cameras on several floors from 96 UPOE ports that deliver up to 60 W each.
A central equipment room can start with 96 access ports and grow toward the 240-port ceiling of the chassis, which takes 10 RU where several fixed switches would otherwise be stacked.
At a smaller campus, the chassis can serve as access and core in one device, and a second supervisor in the other dedicated supervisor slot adds 1+1 redundancy with NSF/SSO.
Product Comparison
|
Parameter |
C9407R-96U-BNDL-A | ||
|---|---|---|---|
|
Total number of slots |
7 |
10 |
4 |
|
Line-card slots |
5 |
8 |
2 |
|
Included line cards |
2 x C9400-LC-48U, 96 UPOE ports |
2 x C9400-LC-48U, 96 UPOE ports |
1 x C9400-LC-48U, 48 UPOE ports |
|
Maximum 10/100/1000BASE-T (RJ-45) with UPOE ports |
240 |
384 |
96 |
|
Number of power supply bays |
8 |
8 |
4 |
|
Default PoE budget |
None; power supplies are selected separately |
None; power supplies are selected separately |
None; power supplies are selected separately |
|
Maximum PoE per slot |
4320W |
4320W |
4320W |
|
Rack units |
10 RU |
13 RU |
6 RU |
|
License tier |
Cisco DNA Advantage |
Cisco DNA Advantage |
Cisco DNA Advantage |
C9407R-96U-BNDL-A and C9410R-96U-BNDL-A both ship two C9400-LC-48U line cards, 96 UPOE ports and the Cisco DNA Advantage tier, but C9407R-96U-BNDL-A has 7 slots with 5 for line cards at 10 RU, against 10 slots with 8 line-card slots at 13 RU. A design that grows beyond five line cards, or beyond 240 access ports, moves to C9410R-96U-BNDL-A. A closet that needs only 48 UPOE ports on day one fits C9404R-48U-BNDL-A, which carries one C9400-LC-48U in a 4-slot chassis at 6 RU with 4 power supply bays instead of 8.
PoE Power Planning
|
Planning Item |
Confirmed Value |
What to Confirm |
|---|---|---|
|
Included UPOE access ports |
96 ports |
Endpoint classes and powered-device count across the two C9400-LC-48U cards |
|
Per-port PoE class |
Cisco UPOE up to 60 W per port |
Whether connected endpoints require UPOE instead of PoE or PoE+ |
|
PoE per C9400-LC-48U slot |
2880W |
Whether the selected PSU quantity and redundancy mode can support the planned load |
|
Power supply bays |
8 bays |
AC circuit capacity, regional power cords, spare bay plan, and support policy |
Ordering Checklist
- Redundant supervisor: Order a second supervisor as a /2 PID, such as C9400-SUP-1/2 or C9400X-SUP-2XL/2, for the second of the two supervisor slots, 3 and 4. Line cards cannot go in supervisor slots, so redundancy needs its own line.
- Power supplies: Select C9400-PWR-3200AC, C9400-PWR-2100AC or C9400-PWR-3200DC for the 8 bays, with quantity set by the redundancy mode. The 115VAC range derates the 3200W AC supply to 1560W.
- Open line-card slots: The bundle fills two of the five line-card slots (1, 2 and 5 to 7) with C9400-LC-48U; add more line cards or C9400-S-BLANK= for each open slot. Three slots stay open unless they get a card or cover.
- Chassis-specific kits: Order C9407-FAN=, C9407-ACC-KIT=, C9407-RACK-19-KIT= and C9407-SHELF-KIT=. These kits are per chassis size and do not carry across the 4 and 10 slot chassis.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Cisco Catalyst 9400 Series 3200W AC power supply | |
|
Cisco Catalyst 9400 Series Platinum Rated 2100W AC power supply | |
|
Cisco Catalyst 9400 Series 3200W DC power supply | |
|
C9400-SUP-1/2 |
Cisco Catalyst 9400 Series Redundant Supervisor 1 Module |
|
Cisco Catalyst 9400 Series 7 slot chassis fan tray |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9407R-96U-BNDL-A | Product type | Modular access switch bundle |
| Cisco ordering description | Catalyst 9400 Series 7 slot, Sup, 2xC9400-LC-48U, DNA-A LIC | Network license | Cisco DNA Advantage |
| Chassis | C9407R | Chassis slots | 7 total slots |
| Line-card slots | 5 slots | Supervisor engine slots | 2 slots |
| Dedicated supervisor slots | Slots 3 and 4 | Supported supervisor in SKU sheet | C9400-SUP-1 |
| Supervisor redundancy | Yes | Included line cards | 2 x C9400-LC-48U |
| Included access ports | 96 RJ-45 ports | Downlink speeds | 10/100/1000 Mbps |
| PoE standards | PoE, PoE+, and Cisco UPOE | Cisco UPOE per-port power | Up to 60 W per port |
| PoE per C9400-LC-48U slot | 2880W | Maximum line-card slot bandwidth scalability | Up to 480 Gbps |
| Power supply slots | 8 bays | Power supply option in SKU sheet | 3200W AC |
| AC input power | Yes | Integrated PoE | Yes |
| Fan tray bays | 1 bay | 19-inch rack-mount position | Front |
| Dimensions | 17.41 x 17.30 x 16.30 in. (44.22 x 43.94 x 41.40 cm) | Rack units | 10 RU |
| Weight | 28.58 kg (63.0 lb), with fan tray | Mounting | 19-inch rack compatible |
| Power supply selection | C9400-PWR-3200AC 3200W AC, C9400-PWR-2100AC 2100W AC, or C9400-PWR-3200DC 3200W DC selected during chassis configuration | PoE power budget | Configuration-dependent; C9400-LC-48U supports up to 2880W per line-card slot |
| Expanded PoE budget | Up to 2880W per C9400-LC-48U line-card slot with selected C9400 power supply configuration |
Get More Information
Need pricing, stock, or shipping details for the C9407R-96U-BNDL-A ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What happens in C9407R-96U-BNDL-A if two fans in the C9407-FAN tray fail?
-
How many 90W ports can C9407R-96U-BNDL-A supply with C9400-LC-48HX cards?
-
Do the C9400-LC-48U cards in C9407R-96U-BNDL-A reach line rate on C9400-SUP-1?
-
What are the dimensions of C9407R-96U-BNDL-A?
