Does C9410R-96U-BNDL-E support two supervisors, and which engines fit?

C9410R-96U-BNDL-E supports 1+1 supervisor engine redundancy across slots 5 and 6, with the first supervisor in slot 5. The chassis runs C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2 or C9400X-SUP-2XL, and the second goes in slot 6 as a /2 PID such as C9400X-SUP-2/2.

Which power supplies does C9410R-96U-BNDL-E take, and how is redundancy set?

C9410R-96U-BNDL-E has 8 power supply bays, filled per bay with C9400-PWR-3200AC, C9400-PWR-2100AC or C9400-PWR-3200DC, and C9400-PWR-3200ACT is the Titanium option. Supply quantity follows the redundancy mode chosen, and supplies are separate order lines. At 115VAC a 3200W AC module outputs 1560W.

How many 90W ports can C9410R-96U-BNDL-E supply if C9400-LC-48HN cards are added at maximum power?

The count depends on the supervisor. C9410R-96U-BNDL-E supplies full 90W on 240 ports with C9400-SUP-1, C9400-SUP-1XL or C9400-SUP-1XL-Y, and on 229 with C9400X-SUP-2 or C9400X-SUP-2XL. The line card data sheet quotes these figures for up to five fully loaded C9400-LC-48HN cards.

How many 100G QSFP28 ports can C9410R-96U-BNDL-E hold after adding line cards?

C9410R-96U-BNDL-E holds up to 32 at 100G QSFP28 and up to 96 at 40G QSFP+ across its eight line-card slots. These ports need C9400-LC-12QC line cards and a C9400X-SUP-2 or C9400X-SUP-2XL supervisor, because the Catalyst 9400 data sheet lists them only on those supervisors.

How many 25G SFP28 line-card ports can C9410R-96U-BNDL-E hold?

C9410R-96U-BNDL-E holds up to 160 SFP28 at 25G on line cards, and this needs C9400-LC-24XY cards with C9400X-SUP-2 or C9400X-SUP-2XL. The data sheet total of 168 also counts 8 supervisor uplink ports, so plan the line card count from the lower figure.

Is PoE power in C9410R-96U-BNDL-E drawn from the same pool as data power?

Yes. The power supply output pool is shared between data and PoE, so the installed supplies must cover both loads. The chassis is capable of about 4800W per slot, while current line cards are limited to 4320W per slot, per the data sheet. Add supplies until both loads fit with the redundancy mode you need.

Which direction does airflow run in C9410R-96U-BNDL-E and how many fans does its tray hold?

Airflow is side-to-side, right to left when facing the front. The single hot-swappable C9410-FAN tray holds 16 fans and is serviceable from the front and the rear. If two or more fans fail, the tray runs at full speed after one minute and must be replaced, per the hardware installation guide.

C9410R-96U-BNDL-E – 96x1G UPOE Ports – 2880W PoE Budget per Slot – DNA Essentials

Name: C9410R-96U-BNDL-E - Cisco Catalyst 9410R 96-Port UPOE DNA Essentials Bundle
Brand: Cisco
SKU: C9410R-96U-BNDL-E
Price: 15463.20 USD
Availability: InStock
Rating: 5 (3 reviews)

Brand: Cisco Category: Catalyst 9400 Switches Model: C9410R-96U-BNDL-E

Rated 5 out of 5 based on 3 customer ratings

5.03 reviews7 Questions

List Price: ~~$39,852.47~~ 61% OFF

$15,463.20

Price Alert

In StockShips in as little as 1 business day Brand New

Related models

Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policyExpress Shipping2-6 Business Daysvia UPS, FedEx, DHL and more

Trusted & Secure Payments

Shop Expert-Recommended Accessories for the C9410R-96U-BNDL-E

Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.

C9400-LC-48H
48x 10/100/1000 RJ-45 UPOE+ Ports - 90W Per Port - Catalyst 9400 Line Card
Original price was: $11,568.61.Current price is: $4,857.75.
C9400-LC-48P
48x1G RJ-45 - PoE+ 30W - Catalyst 9400 Line Card
Original price was: $9,451.48.Current price is: $4,973.35.
C9400-LC-48T
48x1G RJ-45 - Data Only - Catalyst 9400 Line Card
Original price was: $8,997.80.Current price is: $3,037.90.
C9400-LC-48U
48x1G RJ-45 - Cisco UPOE 60W - Catalyst 9400 Line Card
Original price was: $11,568.61.Current price is: $1,626.05.
C9400-LC-12QC
12x 40G QSFP+ or 4x 100G QSFP28 Ports - Supervisor 2 Required - Cat 9400 Line Card
Original price was: $39,615.36.Current price is: $17,384.11.
C9400-LC-24XS
24x 10G SFP+ or 1G SFP Ports - All Supervisors - Catalyst 9400 Line Card
Original price was: $30,849.62.Current price is: $5,501.20.
C9400-LC-24XY
20x 25G SFP28 + 4x 10G SFP+ Ports - Supervisor 2 Required - Cat 9400 Line Card
Original price was: $37,473.99.Current price is: $16,444.87.
C9400-LC-48S
48x 1G SFP Fiber Ports - Nonblocking - Catalyst 9400 Line Card
Original price was: $31,504.92.Current price is: $10,443.10.
C9400-PWR-3200AC
3200W AC PSU - Catalyst 9400 - Platinum
Original price was: $2,570.81.Current price is: $560.00.
C9400-PWR-2100AC
2100W AC PSU - Catalyst 9400 - Platinum Rated
Original price was: $2,570.81.Current price is: $1,090.00.
C9400-PWR-3200DC
3200W DC Power Supply - Catalyst 9400
Original price was: $3,780.58.Current price is: $2,202.00.

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded

Customers

Units shipped

Countries

Inventory You Can See

Cisco stock on hand

Models ready to ship

Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

Advance replacement for in-stock models
New unit for dead-on-arrival
14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

C9410R-96U-BNDL-E Description

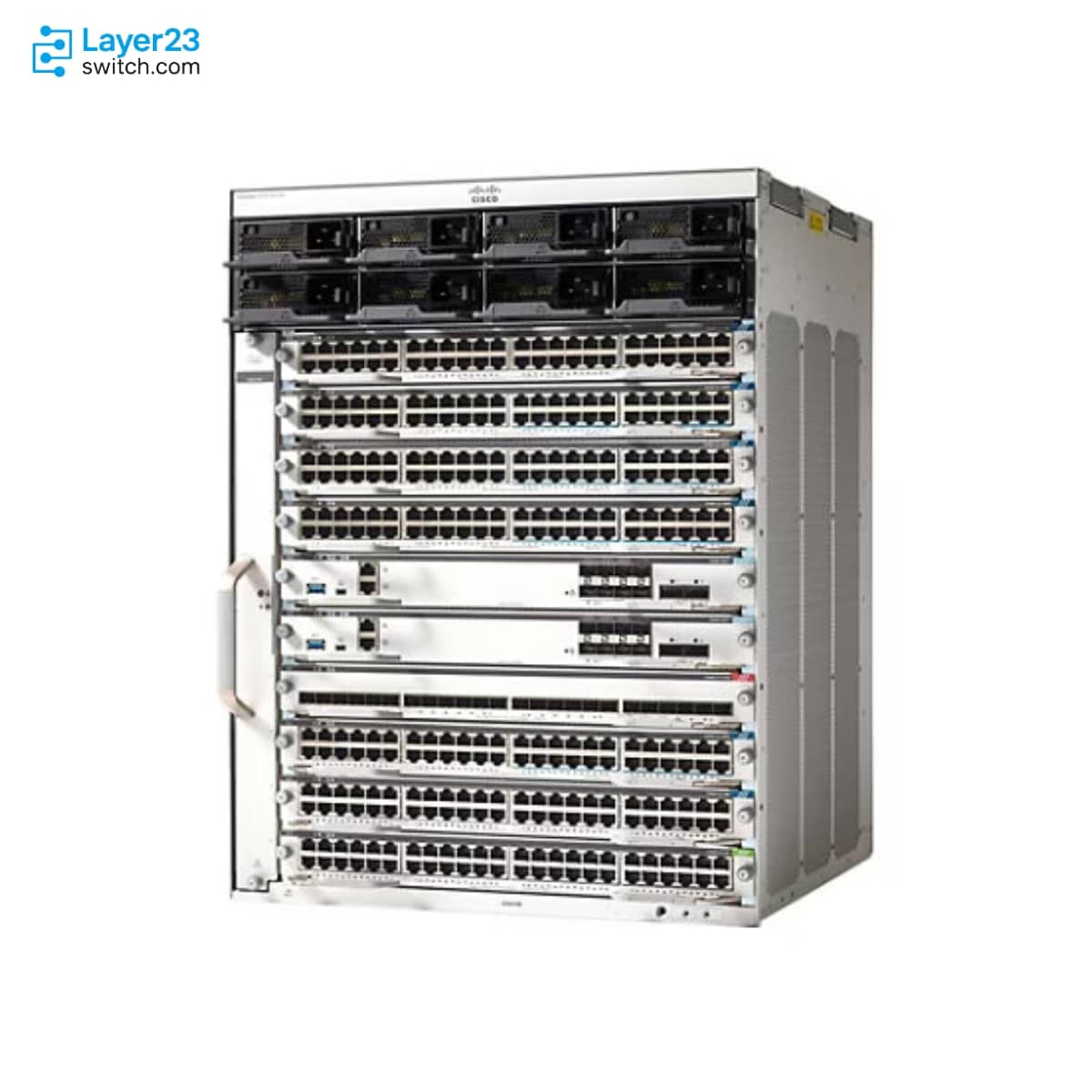

The C9410R-96U-BNDL-E is a Cisco Catalyst 9400 Series modular access switch bundle for large campus wiring closets that serve UPOE endpoints over copper. The bundle pairs the 10-slot chassis with two C9400-LC-48U line cards for 96 10/100/1000 RJ-45 UPOE ports at up to 60W each, and carries Cisco DNA Essentials. On this chassis the C9400-SUP-1 and C9400-SUP-1XL supervisors give 80 Gbps per slot, and 480 Gbps per slot needs C9400X-SUP-2XL.

Quick Specs

Parameter	Specification
Product ID	C9410R-96U-BNDL-E
Product type	Modular access switch bundle
Cisco ordering description	Catalyst 9400 Series 10 slot, Sup, 2xC9400-LC-48U, DNA-E LIC
Chassis	C9410R
Chassis form factor	10-slot modular chassis
Included line cards	2 x C9400-LC-48U
Downlink ports	96 x RJ-45
Downlink speeds	10/100/1000 Mbps
PoE support	PoE, PoE+, and Cisco UPOE
Cisco UPOE per-port power	Up to 60 W
Supervisor slots	2 slots
Maximum 1G UPOE ports	384 ports
Power supply slots	8 bays

Product Performance

Included 1G RJ-45 UPOE Access

Cisco UPOE Per-Port Power Class

Maximum C9410R 1G UPOE Density

Key Features

Ten-Slot Chassis With Eight Line-Card Slots

The C9410R chassis has 10 slots in 13 RU. Slots 5 and 6 are reserved for supervisor engines and the other eight take line cards, which cannot be installed in the supervisor slots.

96 UPOE Ports At Up To 60W

Two C9400-LC-48U line cards provide 96 10/100/1000 RJ-45 ports, each able to deliver up to 60W. That covers phones and access points on PoE+ as well as devices that draw more than 30W.

Slot Bandwidth Set By The Supervisor

On the 10-slot chassis, C9400-SUP-1, C9400-SUP-1XL and C9400-SUP-1XL-Y give 80 Gbps per slot. C9400X-SUP-2 raises it to 240 Gbps and C9400X-SUP-2XL to 480 Gbps.

Supervisor Redundancy

The chassis supports 1+1 supervisor engine redundancy across slots 5 and 6, so a second supervisor can stand by for the control plane.

Eight Power Supply Bays

Bays take C9400-PWR-3200AC, C9400-PWR-2100AC or C9400-PWR-3200DC supplies. A 3200W AC supply outputs 3190W at 230VAC and 1560W at 115VAC, so 96 ports at the full 60W (5,760W) set both the supply count and the input voltage.

Cisco DNA Essentials Subscription

The bundle carries the Essentials tier, which provides basic automation, management, visibility and assurance. Its tier matches the Network Essentials stack license, and the Advantage-only analytics and segmentation features are not included.

Application Scenarios

UPOE Wiring Closet For Large Floors

On a large office floor or campus building, the switch powers IP phones, wireless access points and video endpoints from 96 UPOE ports, each delivering up to 60W.

Hospital Wing Or Campus Building Access

A hospital wing or university building that starts with 96 copper ports can fill the remaining line-card slots over time, up to 384 UPOE ports in the 10-slot chassis.

Copper And Fiber Access Aggregation

In a main distribution frame, the same chassis mixes the UPOE copper cards with SFP or SFP+ line cards such as C9400-LC-48S or C9400-LC-24XS, so one switch serves both endpoint ports and fiber links.

Product Comparison

Parameter	C9410R-96U-BNDL-E	C9410R-96U-BNDL-A	C9407R-96U-BNDL-E
Total number of slots	10	7	10
Line-card slots	8	5	8
Included line cards	2 x C9400-LC-48U	2 x C9400-LC-48U	2 x C9400-LC-48U
10/100/1000BASE-T (RJ-45) with UPOE ports (maximum)	384	240	384
PoE power budget	Depends on power supply configuration, up to 4320W per slot	Depends on power supply configuration, up to 4320W per slot	Depends on power supply configuration, up to 4320W per slot
Number of power supply bays	8	8	8
Bandwidth per slot with C9400-SUP-1XL	80 Gbps	120 Gbps	80 Gbps
License tier	Cisco DNA Essentials	Cisco DNA Advantage	Cisco DNA Essentials

C9410R-96U-BNDL-E and C9407R-96U-BNDL-E share the same two C9400-LC-48U line cards, 96 UPOE ports and DNA Essentials tier, but the C9410R chassis has eight line-card slots and 384 ports against five slots and 240 ports on the 7-slot chassis. Sites that need only 240 access ports can order C9407R-96U-BNDL-E, where C9400-SUP-1XL would run 120 Gbps per slot against 80 Gbps here. On the 10-slot chassis C9400-SUP-1, C9400-SUP-1XL and C9400-SUP-1XL-Y all stop at 80 Gbps, so higher slot rates need C9400X-SUP-2 or C9400X-SUP-2XL. Projects that must run the DNA Advantage tier order C9410R-96U-BNDL-A.

PoE Power Planning

Planning Item	Confirmed Value	What to Confirm
Included UPOE Ports	96 ports	Endpoint classes and expected PoE draw across the two C9400-LC-48U line cards
Per-Port UPOE Class	Up to 60 W	Which connected endpoints need Cisco UPOE rather than PoE or PoE+
Maximum C9410R UPOE Density	384 ports	Whether future line-card expansion needs additional UPOE capacity
Power supply bays	8 bays	AC or DC input plan, power supply count, power cords, spare bay plan, and redundancy mode

Ordering Checklist

Redundant supervisor: Add the /2 PID of the bundled supervisor, for example C9400-SUP-1XL/2 or C9400X-SUP-2/2, for slot 6; the first supervisor sits in slot 5. A second supervisor gives 1+1 redundancy, and line cards are not supported in supervisor slots.
Added line cards: C9400-LC-48HX, C9400-LC-48XS, C9400-LC-24XY, C9400-LC-12QC and C9400-LC-48TX need C9400X-SUP-2 or C9400X-SUP-2XL. C9400-SUP-1, C9400-SUP-1XL and C9400-SUP-1XL-Y support only nine line cards, so these five cannot be added on those supervisors.
Power supplies: Choose per bay between C9400-PWR-3200AC, C9400-PWR-2100AC and C9400-PWR-3200DC, with C9400-PWR-3200ACT as the Titanium option. Supplies are separate lines, and the 8 bays follow the redundancy mode.
Chassis kits: Order C9410-FAN=, C9410-ACC-KIT=, C9410-RACK-19-KIT= and C9410-SHELF-KIT=. These kits are specific to the chassis slot count and do not carry over from other chassis.
Blank covers: Add C9400-S-BLANK= for empty line-card slots and C9400-PWR-BLANK= for empty power bays. The bundle fills two line-card slots, so the remaining slots and unused bays need cover lines.

Optional Add-ons

Model	Description
C9400-PWR-3200AC	Cisco Catalyst 9400 Series 3200W AC power supply
C9400-PWR-3200DC	Cisco Catalyst 9400 Series 3200W DC power supply
C9400-LC-24XS	Cisco Catalyst 9400 Series 24-port 10 Gigabit Ethernet SFP+ line card
C9400-LC-48S	Cisco Catalyst 9400 Series 48-port Gigabit Ethernet SFP line card

Specifications

Parameter	Specification	Parameter	Specification
Product ID	C9410R-96U-BNDL-E	Product type	Modular access switch bundle
Cisco ordering description	Catalyst 9400 Series 10 slot, Sup, 2xC9400-LC-48U, DNA-E LIC	Network license	Cisco DNA Essentials
Chassis	C9410R	Chassis slots	10 total slots
Supervisor slots	2 slots	Dedicated supervisor slots	Slots 5 and 6
Line-card slots	8 slots	Included line cards	2 x C9400-LC-48U
Included downlink ports	96 RJ-45 ports	Downlink speeds	10/100/1000 Mbps
PoE standards	PoE, PoE+, and Cisco UPOE	Cisco UPOE per-port power	Up to 60 W per port
C9400-LC-48U software minimum	Cisco IOS XE 16.6.1 or later	Jumbo frames	Up to 9216 bytes on C9400-LC-48U
Maximum 1G UPOE ports	384 ports	Power supply slots	8 bays
Power supply options	C9400-PWR-2100AC, C9400-PWR-3200AC, C9400-PWR-3200ACT, C9400-PWR-3200DC	Fan modules	C9410-FAN, 16 fans
Rack units	13 RU	Mounting	19-inch rack compatible
Dimensions	22.61 x 17.30 x 16.30 in. (57.43 x 43.94 x 41.40 cm)	Weight	29.48 kg (65.0 lb), with fan tray
Power supply selection	C9400-PWR-3200AC 3200W AC, C9400-PWR-2100AC 2100W AC, or C9400-PWR-3200DC 3200W DC selected during chassis configuration	PoE power budget	Configuration-dependent; C9400-LC-48U supports up to 2880W per line-card slot
Expanded PoE budget	Up to 2880W per C9400-LC-48U line-card slot with selected C9400 power supply configuration

Quality Certifications

Customer Reviews

Write A Review

5.0

Rated 5 out of 5

(3 reviews)

5 Stars

4 Stars

3 Stars

2 Stars

1 Stars

Cynthia Henderson

Posted on 27/03/2026

Verified Buyer

Rated 5 out of 5

5.0

We finished the install ahead of schedule. The product cooperated fully.

Ahmed Liu

Posted on 14/02/2026

Verified Buyer

Rated 5 out of 5

5.0

Layer23 has the operational excellence we look for in a long-term partner.

Evelyn Jenkins

Posted on 04/02/2026

Verified Buyer

Rated 5 out of 5

5.0

Their customer success approach feels genuine, not scripted.

Questions & Answers

Does C9410R-96U-BNDL-E support two supervisors, and which engines fit?
C9410R-96U-BNDL-E supports 1+1 supervisor engine redundancy across slots 5 and 6, with the first supervisor in slot 5. The chassis runs C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2 or C9400X-SUP-2XL, and the second goes in slot 6 as a /2 PID such as C9400X-SUP-2/2.
Which power supplies does C9410R-96U-BNDL-E take, and how is redundancy set?
C9410R-96U-BNDL-E has 8 power supply bays, filled per bay with C9400-PWR-3200AC, C9400-PWR-2100AC or C9400-PWR-3200DC, and C9400-PWR-3200ACT is the Titanium option. Supply quantity follows the redundancy mode chosen, and supplies are separate order lines. At 115VAC a 3200W AC module outputs 1560W.
How many 90W ports can C9410R-96U-BNDL-E supply if C9400-LC-48HN cards are added at maximum power?
The count depends on the supervisor. C9410R-96U-BNDL-E supplies full 90W on 240 ports with C9400-SUP-1, C9400-SUP-1XL or C9400-SUP-1XL-Y, and on 229 with C9400X-SUP-2 or C9400X-SUP-2XL. The line card data sheet quotes these figures for up to five fully loaded C9400-LC-48HN cards.
How many 100G QSFP28 ports can C9410R-96U-BNDL-E hold after adding line cards?
C9410R-96U-BNDL-E holds up to 32 at 100G QSFP28 and up to 96 at 40G QSFP+ across its eight line-card slots. These ports need C9400-LC-12QC line cards and a C9400X-SUP-2 or C9400X-SUP-2XL supervisor, because the Catalyst 9400 data sheet lists them only on those supervisors.
How many 25G SFP28 line-card ports can C9410R-96U-BNDL-E hold?
C9410R-96U-BNDL-E holds up to 160 SFP28 at 25G on line cards, and this needs C9400-LC-24XY cards with C9400X-SUP-2 or C9400X-SUP-2XL. The data sheet total of 168 also counts 8 supervisor uplink ports, so plan the line card count from the lower figure.
Is PoE power in C9410R-96U-BNDL-E drawn from the same pool as data power?
Yes. The power supply output pool is shared between data and PoE, so the installed supplies must cover both loads. The chassis is capable of about 4800W per slot, while current line cards are limited to 4320W per slot, per the data sheet. Add supplies until both loads fit with the redundancy mode you need.
Which direction does airflow run in C9410R-96U-BNDL-E and how many fans does its tray hold?
Airflow is side-to-side, right to left when facing the front. The single hot-swappable C9410-FAN tray holds 16 fans and is serviceable from the front and the rear. If two or more fans fail, the tray runs at full speed after one minute and must be replaced, per the hardware installation guide.

Warranty

100% Low Price Guarantee:

Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.

100% Quality Assurance:

All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.

Free CCIE Technical Support:

Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.

100% Money Back Guarantee:

If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.

Flexible & Secure Payment and Shipping:

We support multiple secure payment and logistics options, backed by industry-leading verification:

Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

Check lifecycle dates

Cisco Switch Selector Tool

Filter Cisco switches by ports, uplinks, PoE, performance, features, license, and budget.

Find matching switches >

Cisco Serial Number Lookup

Verify authenticity and identify exactmodel, coverage, and lifecycle detailsusing a Cisco serial number.

Verify a serial number >

Product Comparison

Compare specifications, capabilitiesand form factors side-by-side tochoose the right hardware.

Cisco Compare products >

DataSheet Downloads

C9410R-96U-BNDL-E Datasheet

C9410R-96U-BNDL-E – 96x1G UPOE Ports – 2880W PoE Budget per Slot – DNA Essentials

Shop Expert-Recommended Accessories for the C9410R-96U-BNDL-E

Stocked, Shipped and Supported by One Team

Inventory You Can See

Ships in 1 Business Day

LSCare Warranty

Free CCIE Support

Verify Before You Pay

C9410R-96U-BNDL-E Description

Quick Specs

Product Performance

Key Features

Application Scenarios

Product Comparison

PoE Power Planning

Ordering Checklist

Optional Add-ons

Specifications

Quality Certifications

Customer Reviews

Questions & Answers

Does C9410R-96U-BNDL-E support two supervisors, and which engines fit?

Which power supplies does C9410R-96U-BNDL-E take, and how is redundancy set?

How many 90W ports can C9410R-96U-BNDL-E supply if C9400-LC-48HN cards are added at maximum power?

How many 100G QSFP28 ports can C9410R-96U-BNDL-E hold after adding line cards?

How many 25G SFP28 line-card ports can C9410R-96U-BNDL-E hold?

Is PoE power in C9410R-96U-BNDL-E drawn from the same pool as data power?

Which direction does airflow run in C9410R-96U-BNDL-E and how many fans does its tray hold?

Warranty

Verify, plan, and comparewith confidence

Cisco Switch Selector Tool

Cisco Serial Number Lookup

Product Comparison

DataSheet Downloads

Related Searches of Catalyst 9400 Switches
