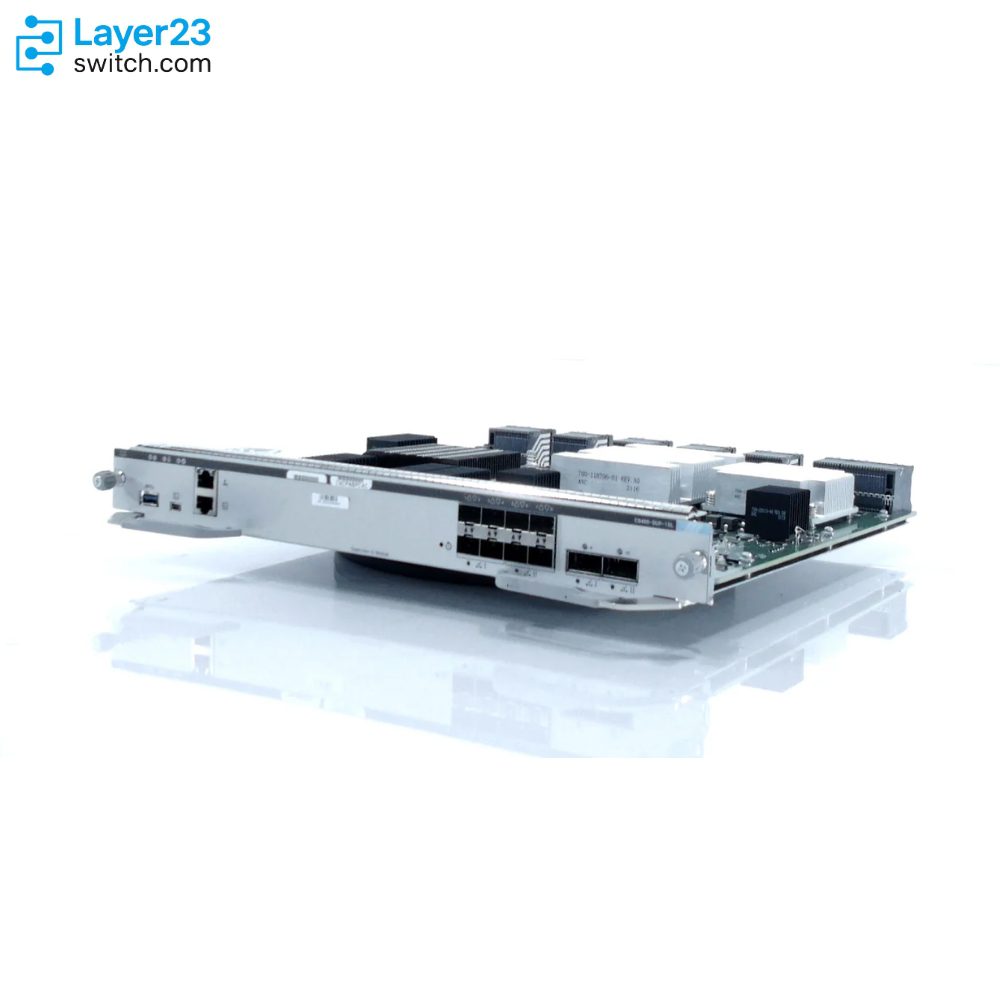

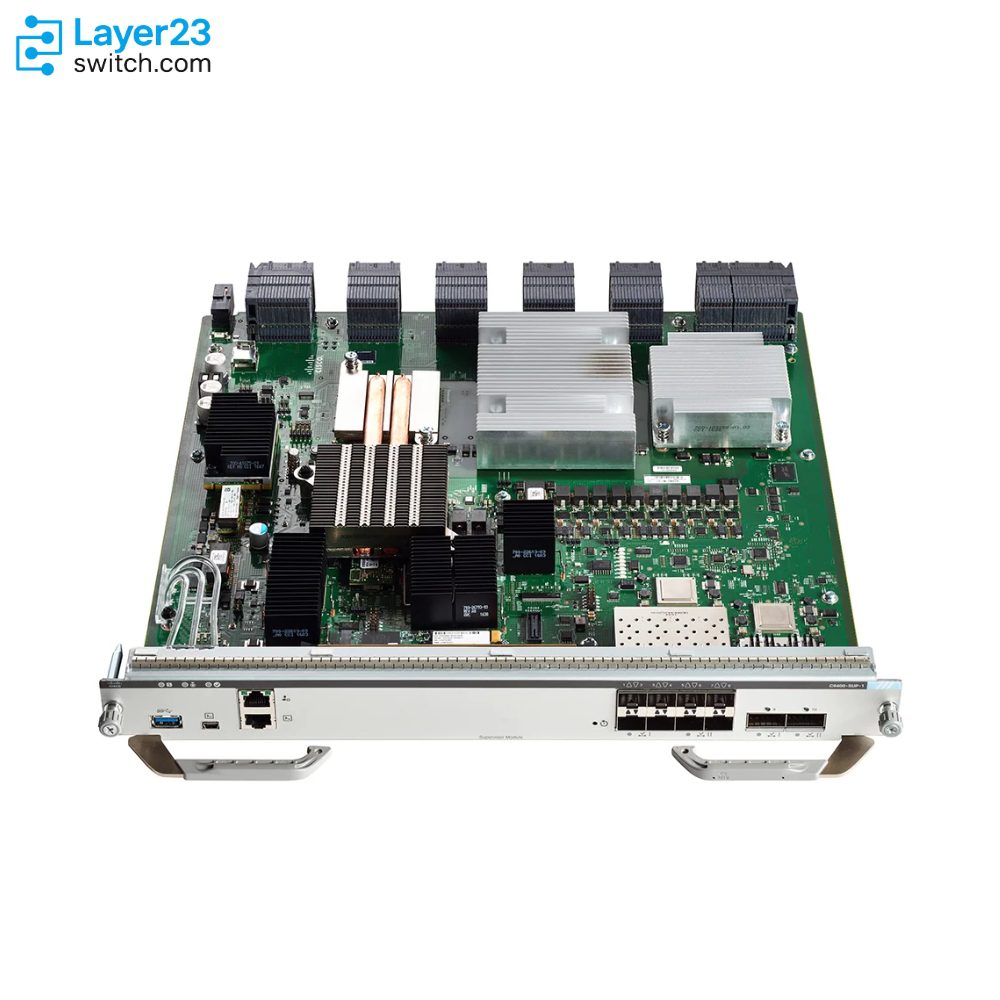

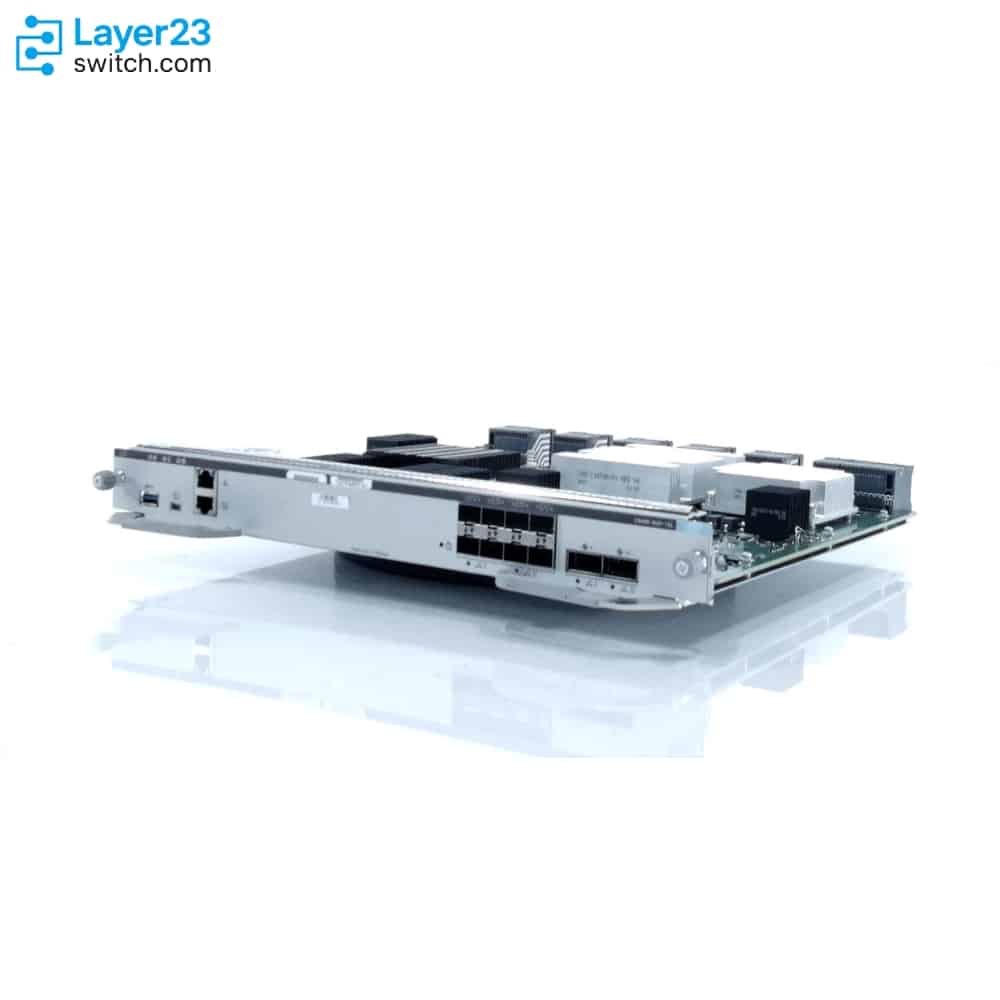

C9400-SUP-1XL Description
C9400-SUP-1XL—commonly called the Catalyst 9400 Supervisor 1XL—is the sweet-spot engine for secure campus aggregation. Its programmable UADP 2.0 ASIC raises slot throughput to 240 Gbps in a C9404R (120 Gbps in C9407R, 80 Gbps in C9410R) while keeping overall cost and power draw low. Eight native 10 G SFP+ or two 40 G QSFP+ uplinks allow gradual migration from 10 G cores to 40 G backbones. With wire-rate MACsec-256, 16 GB DRAM for feature-rich IOS XE services, and optional NVMe SSD for on-box analytics, SUP-1XL delivers future-proof fabric capacity for mid-sized enterprises. Alternate keywords: C9400 Supervisor 1XL, Cisco C9400-SUP-1XL module.
Product Performance
Per-slot switching Capacity
Centralized wired capacity
Forwarding rate
Model Meaning
|
Chunk |
Meaning |
Comment |
|---|---|---|
|
C |
Cisco |
Vendor prefix |
|
9400 |
Catalyst 9400 Series chassis |
Modular campus switch family |
|
SUP |
Supervisor engine |
Provides control plane & fabric |
|
1XL |
Generation 1, eXtra-Large fabric |
Up-to-240 Gbps/slot; higher table scale than SUP-1 |
Key Features
Up-to-240 Gbps/slot fabric
Delivers true line-rate for all 1 G & most mGig cards, eliminating hidden bottlenecks as Wi-Fi 6/6E traffic bursts.
Dual-personality uplinks
Switch between 8×10 G SFP+ and 2×40 G QSFP+ in software—protects existing 10 G investments while enabling 40 G aggregation without new modules.
MACsec-256 everywhere
Encrypt every access port in hardware, satisfying stringent data-protection standards (GDPR, HIPAA) without extra latency or external encryptors.
Programmable UADP 2.0 ASIC
Supports SDA overlays, LISP, VXLAN EVPN, MPLS and flexible SDM templates—extending the platform life-cycle well past first hardware refresh.
Edge-hosted analytics
Optional 960 GB NVMe SSD plus 16 GB DDR4 run ThousandEyes, Wi-Fi Assurance or custom Python scripts directly on the supervisor—no extra server footprint.
Five-nines resiliency
Dual-supervisor SSO/NSF fail-over (<200 ms) and ISSU allow software upgrades with zero packet loss—critical for voice/IoT and 24×7 sites.
Applications Scenarios
Corporate HQ, Universities
240 G/slot in 4-slot chassis feeds multiple mGig access stacks while 40 G uplinks ride existing core fibre.
Healthcare, Finance
Per-port MACsec-256 plus PoE/UPOE line-cards protect patient or payment data without external crypto appliances.
Smart factories, Airports
Handles up to 384 PoE+/UPOE ports; SSD hosting supports on-box telemetry collectors and AI anomaly detection.

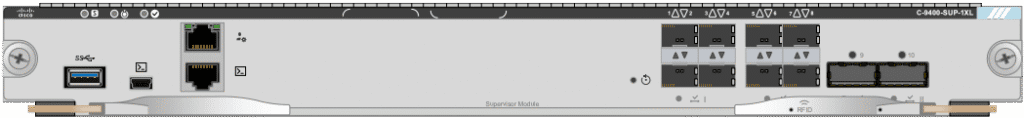

C9400-SUP-1XL Module Features
|

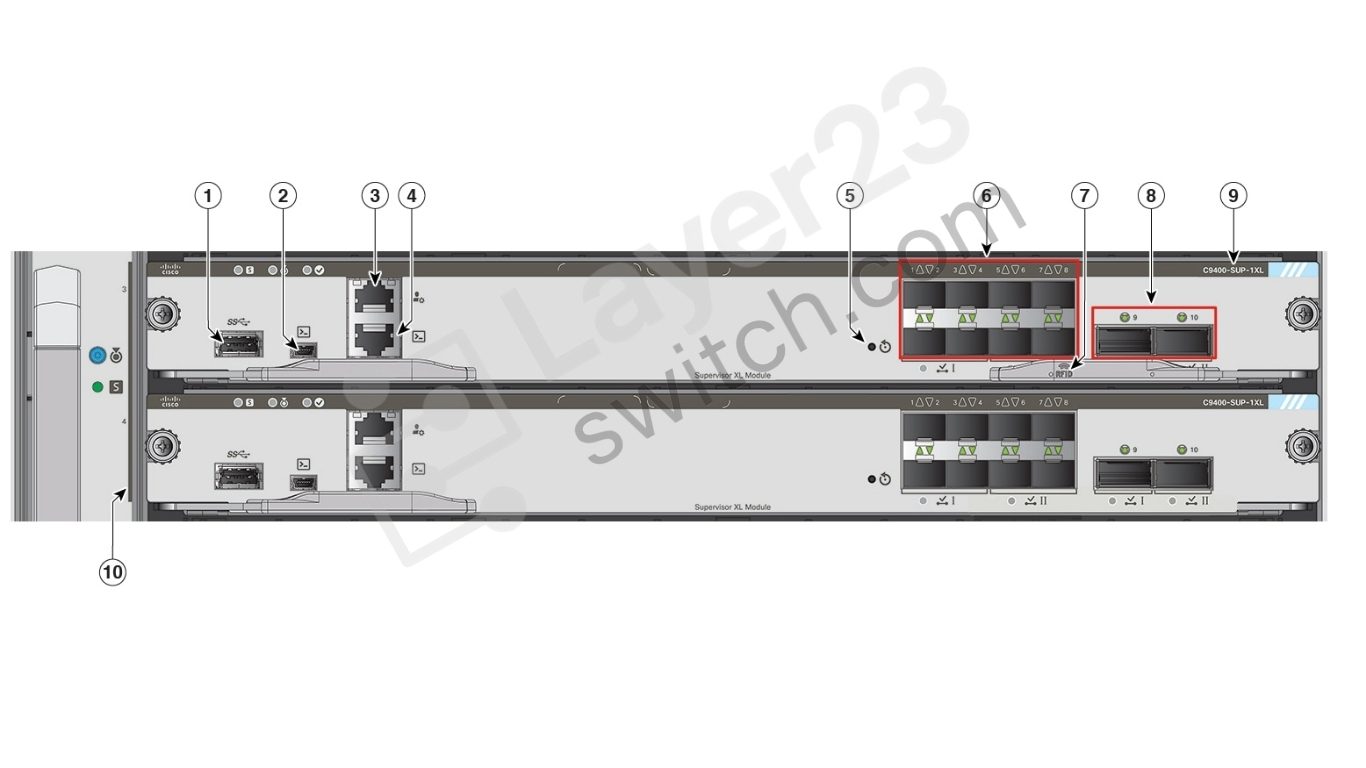

Call Out No. |
Feature |
Description |
|---|---|---|
|
1 |
USB Type A Host Port |
This USB port is a host port for an external USB disk drive. It supports USB verions 3.0, 2.0, 1.1, and 1.0.See USB Type A Host Port |
|
2 |
USB mini Type B Console Port |
This USB port can be used as a console port, allowing attachment to PCs that are not equipped with an RS-232 interface.See Console Ports |
|
3 |
10/100/1000 Ethernet Management Port (RJ-45 connector) |
The Ethernet management port is a Layer 3 host port to which you can connect a PC. By default, the Ethernet management port is enabled. You can use the Ethernet management port instead of the switch console port for network management. This port is not active while the switch is operating normally.Note When connecting a PC to the Ethernet management port, you must assign an IP address.See Ethernet Management Port |
|
4 |
Console port (RJ-45 connector) |
This is an RS-232 serial or console port for system management.See Console Ports |
|
5 |
RESET switch (recessed) |
The RESET switch is used to reset and restart the switch.Note The reset switch is recessed into the front panel. Use a paper clip or a small, pointed object to press the RESET switch. |
|
6 |
1-GigabitEthernet (GE) or 10-GE uplink ports |
The supervisor module has eight 1-GE or 10-GE ports. These ports require either small form-factor pluggable (SFP) or SFP+ transceivers. Ports are numbered 1 to 8.Note In the accompanying figure, the ejector lever is not displayed in the redundant supervisor module only for the purpose of displaying the LEDs behind it.See Uplink Ports |
|
7 |
RFID |
Supervisor module Radio Frequency Identifier (RFID).Has a built-in, front-facing, non-removable, passive RFID tag that uses Ultra High Frequency (UHF) RFID technology and requires an RFID reader with compatible software. For more information, see Radio Frequency Identification (RFID) on Cisco Catalyst 9000 Family Switches. |
|
8 |
40-GE uplink ports |
The supervisor module has two 40-GE ports. These ports use QSFP transceivers. Ports are numbered 9 and 10.Note In the accompanying figure, the ejector lever is not displayed in the redundant supervisor module only for the purpose of displaying the LEDs behind it.See Uplink Ports |
|
9 |
Model Number |
Supervisor module model number. |
|
10 |
Supervisor slot indicator |
Bar on the fan tray front panel that indicates the supervisor slots in a chassis. |
Product Comparison
|
Parameter |
C9400-SUP-1XL |
C9400-SUP-1XL-Y | |
|---|---|---|---|
|
ASIC |
UADP 2.0 |
UADP 2.0 |
UADP 2.0 |
|
Per-slot BW (C9404R) |
80 G |
240 G |
240 G |
|
System fabric |
1.44 Tbps |
1.44 Tbps |
1.44 Tbps |
|
Default uplinks |
8×10 G / 2×40 G |
8×10 G / 2×40 G |
8×10 G + 2×25 G |
|
MACsec-256 |
✓ |
✓ |
✓ |
|
Line-rate IPsec |
✗ |
✗ |
✗ |
|
DRAM / Flash |
16 GB / 10 GB |
16 GB / 10 GB |
16 GB / 10 GB |
|
SSD option |
≤ 960 GB |
≤ 960 GB |
≤ 960 GB |
|
Min. IOS XE |
16.6.1 |
16.9.1 |
16.9.1 |
|
Target layer |
Access |
Access / Dist. |
Access / Dist. (with 25 G uplinks) |
Line-rate (1 : 1) Combinations for C9400-SUP-1XL
the following line-cards at true 1 : 1 (zero-oversubscription) in every Catalyst 9400R chassis (C9404R, C9407R, C9410R).
|
Line-card model |
Ports / speed |
|---|---|
|
48 × 1 G RJ-45 (Data) | |
|
48 × 1 G RJ-45 (PoE+) | |
|
48 × 1 G RJ-45 (UPOE 60 W) | |
|
48 × 1 G RJ-45 (UPOE+ 90 W) | |
|
48 × 1 G SFP | |
|
24 × 1 G SFP |
What is “Line-rate” and 1 : 1?
|
Term |
Definition |
Design Impact |
|---|---|---|
|
Line-rate |
Fabric bandwidth equals the sum of all port speeds. |
Zero internal bottlenecks – every port can run at full speed. |
|
Oversubscription |
Fabric bandwidth less than total port speed. Expressed as 2 : 1, 4 : 1… |
Occasional congestion if many ports burst at once. |
|
1 : 1 |
No oversubscription (pure line-rate). |
Ideal for high-density Wi-Fi 6/6E, 100 G aggregation, low-latency apps. |
Specifications
| Parameter | Specification |
|---|---|
| Product ID | C9400-SUP-1XL — Supervisor Engine 1XL |
| ASIC | Cisco UADP 2.0, programmable |
| CPU | Intel x86, 2.4 GHz (8 threads) |
| DRAM | 16 GB DDR4 ECC |
| Flash | 10 GB eMMC |
| SSD Bay | NVMe 240 / 480 / 960 GB (optional) |
| Per-slot switching capacity | 240 G (C9404R) • 120 G (C9407R) • 80 G (C9410R) |
| Centralized wired capacity | 1.44 Tbps full-duplex |
| Uplink modes | 8 × 10 G SFP+ | 2 × 40 G QSFP+ |
| MACsec-256 | Yes — all ports |
| IPv4 / IPv6 routes | 144 k / 72 k (default SDM) |
| MAC addresses | 128 k entries |
| ACL entries | 256 k (IPv4) / 128 k (IPv6) |
| Redundancy | Stateful SSO / NSF (dual SUP) |
| ISSU | Supported — hitless upgrades |
| Telemetry | NETCONF, RESTCONF, gRPC, SNMP |
| Dimensions | 1.7 × 14 × 14 in (4.3 × 35.6 × 35.6 cm) |
| Weight | ~10 lb / 4.5 kg |
| Max power | 400 W (active or standby) |
| Operating temp | 0 – 40 °C, non-condensing |
