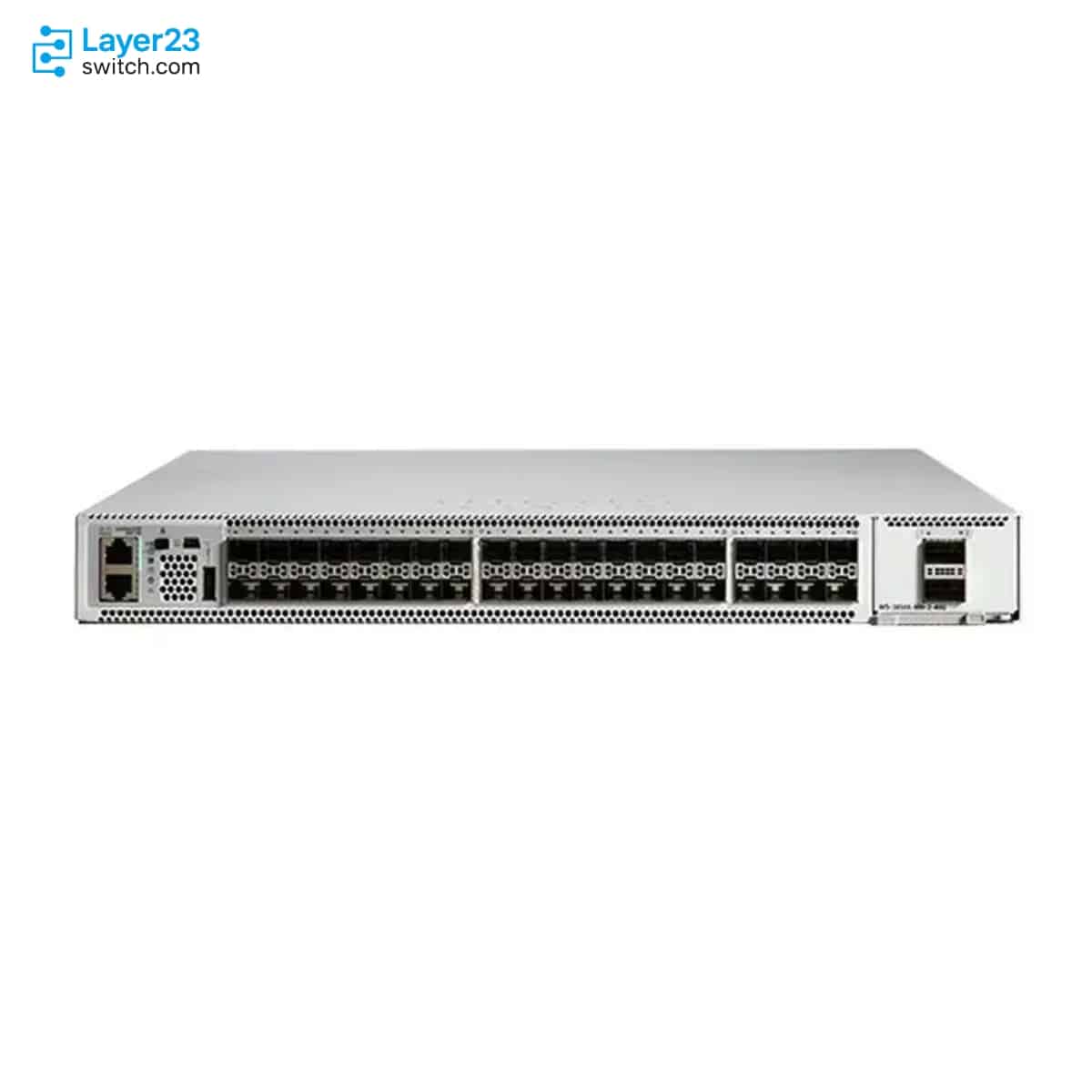

C9500-40X-2Q-A – 40x10G SFP/SFP+ Ports – 2x40G QSFP+ Module
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
C9500-40X-2Q-A Description
The C9500-40X-2Q-A is a Cisco Catalyst 9500 Series fixed core and aggregation switch for campus distribution layers that need dense 10G fiber with 40G uplinks. The switch has 40 10G SFP/SFP+ ports, a C9500-NM-2Q module with two 40G QSFP+ ports, up to 960 Gbps of switching capacity and 64,000 MAC addresses under the default template. The Network Advantage license adds StackWise Virtual, VXLAN, BGP-EVPN, MPLS and MACsec-256, which Network Essentials does not include.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9500-40X-2Q-A |
|
Product type |
Fixed core and aggregation switch bundle |
|
Network license |
Network Advantage |
|
Base PID |
C9500-40X |
|
Bundled network module |
C9500-NM-2Q |
|
Base switch ports |
40 x 10 Gigabit Ethernet SFP/SFP+ |
|
Network module ports |
2 x 40 Gigabit Ethernet QSFP+ |
|
ASIC |
Cisco UADP 2.0 |
|
Switching capacity |
Up to 960 Gbps |
|
Forwarding rate |
Up to 720 Mpps |
|
Default power supply |
PWR-C4-950WAC-R 950W AC |
|
Minimum software release |
Cisco IOS XE Everest 16.6.1 |
Product Performance
Key Features
The base switch carries forty SFP/SFP+ ports, so a distribution layer can terminate many 10G closet and server links without breakout cabling.
The C9500-NM-2Q module adds two QSFP+ ports for trunks toward the core. The switch must run with either a network module or a blank module installed.
Full routing with BGP, EIGRP, IS-IS and OSPF comes with VRF, VXLAN, BGP-EVPN, MPLS and MACsec-256, so the same switch can carry segmented and encrypted traffic.
Two switches can run as one logical device, with stateful switchover and in-service software upgrade running over the StackWise Virtual link.
The default distribution template provides 64,000 MAC addresses and 64,000 IPv4 / 32,000 IPv6 LPM routes. The core template trades MAC space down to 16,000 for more host and multicast routes.
Two power supply slots accept PWR-C4-950WAC-R or PWR-C4-950WDC-R for 1+1 redundancy, and the FAN-T4-R tray holds up to five front-to-back fans.
Application Scenarios
In a campus distribution layer, the switch collects 10G fiber links from access-layer closets and sends the aggregated traffic to the core over its two 40G QSFP+ uplinks.
Two switches joined by StackWise Virtual can serve a small campus as a single logical core, with multichassis EtherChannel to the distribution and access switches below.
A small data center can place the switch at the edge of the server row, with 10G fiber facing the servers, 40G toward the spine, and VXLAN with BGP-EVPN for segmentation.
Product Comparison
|
Parameter |
C9500-40X-2Q-A | ||
|---|---|---|---|
|
Port density |
40 x 10G SFP/SFP+ + 2 x 40G QSFP+ |
40 x 10G SFP/SFP+ + 2 x 40G QSFP+ |
40 x 10G SFP/SFP+ + 8 x 1/10G SFP/SFP+ (48 total) |
|
Network module |
C9500-NM-2Q (2 x 40G QSFP+) |
C9500-NM-2Q (2 x 40G QSFP+) |
C9500-NM-8X (8 x 1/10G SFP/SFP+) |
|
Switching capacity |
Up to 960 Gbps |
Up to 960 Gbps |
Up to 960 Gbps |
|
Forwarding rate |
Up to 720 Mpps |
Up to 720 Mpps |
Up to 720 Mpps |
|
MAC address |
64,000 |
64,000 |
64,000 |
|
IPv4/IPv6 LPM |
64,000 / 32,000 |
64,000 / 32,000 |
64,000 / 32,000 |
|
Network license |
Network Advantage |
Network Essentials |
Network Advantage |
C9500-40X-2Q-A and C9500-48X-A share the C9500-40X base switch with 40 SFP/SFP+ ports, but C9500-40X-2Q-A carries a C9500-NM-2Q module with two 40G QSFP+ ports, while C9500-48X-A carries a C9500-NM-8X module with eight more 10G SFP/SFP+ ports for 48 in total. A design that needs 48 10G fiber ports and no 40G uplink should move to C9500-48X-A. Network Advantage adds StackWise Virtual, VXLAN, BGP-EVPN, MPLS and MACsec-256 over Network Essentials, so a core that uses none of them can take C9500-40X-2Q-E, which has the same hardware and loses those features.
Ordering Checklist
- Software subscription: Add a term-based Catalyst Software Subscription or Cisco DNA subscription at the Advantage tier, to match the Network Advantage license of C9500-40X-2Q-A. Every new Catalyst 9500 order needs a subscription at the same tier as the license.
- Smart Account: Name the Smart Account that will receive the entitlement. The order must name one.
- Second power supply: The configurator preselects a second supply; select C9500-SPS-NONE to remove it. A redundant supply is ordered with the /2 suffix, such as PWR-C4-950WAC-R/2. Without it the switch has no 1+1 power redundancy.
- Power cords: Add a power cord for each supply on the order. The configuration cannot be completed without one.
- RFID option: Select C9500-RFID or C9500-RFID-NONE at order time. RFID cannot be added after delivery.
- Optics: Select SFP/SFP+ and QSFP+ optics for the ports from the Cisco Optics-to-Device Compatibility Matrix, which lists supported optics per device.
Optional Add-ons
|
Model |
Description |
|---|---|
|
PWR-C4-950WAC-R/2 |
950W AC Config 4 redundant power supply with front-to-back cooling |
|
FAN-T4-R |
Catalyst 9500 Type 4 front-to-back cooling fan for C9500-40X |
|
C9500-ACC-KIT-19I= |
19-inch rack mount accessory kit for Cisco Catalyst 9500 Series |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Specification | C9500-40X-2Q-A | Series | Cisco Catalyst 9500 Series |
| Product type | Fixed core and aggregation switch bundle | Network license | Network Advantage |
| License tier alignment | Cisco DNA Advantage | Base PID | C9500-40X |
| Bundled network module | C9500-NM-2Q | Port configuration | 40 x 10 Gigabit Ethernet SFP/SFP+ ports and 2 x 40 Gigabit Ethernet QSFP+ module ports |
| ASIC | Cisco UADP 2.0 | Switching capacity | Up to 960 Gbps |
| Forwarding rate | Up to 720 Mpps | DRAM | 16 GB |
| Flash | 16 GB | Power supply slots | 2 |
| Power supply options | PWR-C4-950WAC-R and PWR-C4-950WDC-R | Fan support | FAN-T4-R, up to 5 fans |
| Rack units | 1 RU | Dimensions | 1.73 x 17.5 x 21.5 in. (4.4 x 44.5 x 56.7 cm) |
| Weight | 25.75 lbs (11.68 kg) with 2 power supplies and built-in fan | Acoustic noise | No greater than 68.3 LwAd dB |
| Minimum software release | Cisco IOS XE Everest 16.6.1 |
Get More Information
Need pricing, stock, or shipping details for the C9500-40X-2Q-A ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Can the QSFP+ ports of the C9500-NM-2Q module on C9500-40X-2Q-A be broken out to 10G?
-
How much current does a PWR-C4-950WAC-R draw in C9500-40X-2Q-A?
-
How many links can a StackWise Virtual pair of C9500-40X-2Q-A switches use?
-
How do I run ISSU on a C9500-40X-2Q-A StackWise Virtual pair?
-
What do the NAT and SD-Access SDM templates change on C9500-40X-2Q-A?
-
Which console connectors does C9500-40X-2Q-A provide?
-
Does Guestshell run on C9500-40X-2Q-A out of the box?
