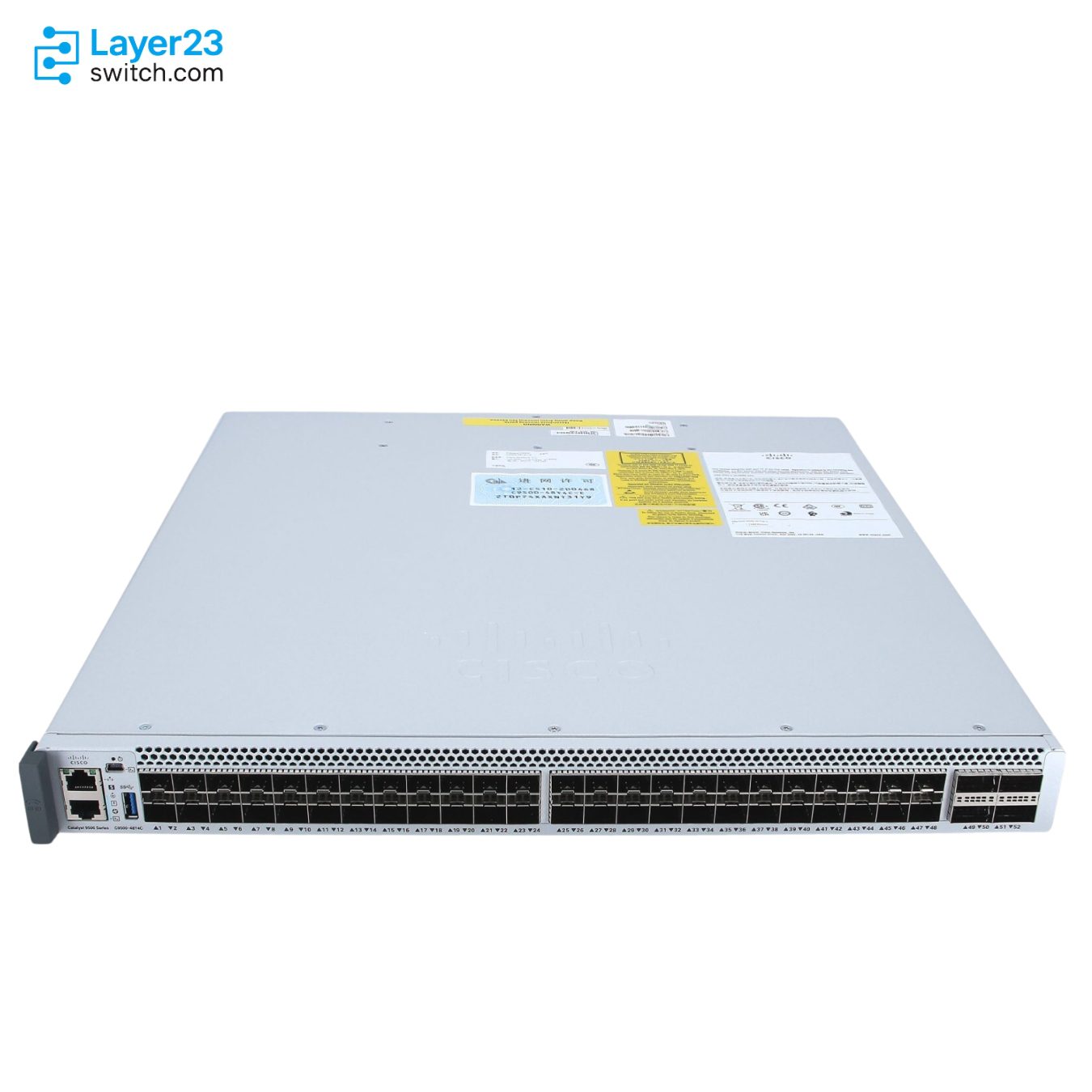

C9500-48Y4C-E – 48×1/10/25G SFP28 – 4×40/100G QSFP28
5/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9500-48Y4C-E Description
C9500-48Y4C-E is a Cisco Catalyst 9500 Series fixed core and aggregation switch with Network Essentials licensing, built for fiber-dense campus or aggregation layers that need high-speed downlink and uplink capacity in a 1 RU platform. It provides 48 1G/10G/25G SFP28 ports and four fixed 40G/100G QSFP28 uplinks, supports up to 3.2 Tbps switching capacity and 1 Bpps forwarding, uses two power-supply slots with C9K-PWR-650WAC-R as the default AC supply option, and has Cisco IOS XE Fuji 16.8.1a as the minimum software release for this model.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9500-48Y4C-E |
|
Product type |
High-performance fixed core and aggregation switch |
|
Network license |
Network Essentials |
|
Port configuration |
48 x 1G/10G/25G SFP28 ports and 4 x 40G/100G QSFP28 uplinks |
|
SFP28 ports |
48 ports, all 25G/10G/1G capable |
|
Switching capacity |
Up to 3.2 Tbps |
|
Forwarding rate |
Up to 1 Bpps |
|
Default power supply |
C9K-PWR-650WAC-R 650W AC |
|
Power supply slots |
2 |
|
Power and cooling |
C9K-PWR-650WAC-R, C9K-PWR-650WACL-R, C9K-PWR-930WDC-R, and C9K-T1-FANTRAY |
|
Minimum software release |
Cisco IOS XE Fuji 16.8.1a |
Product Performance
Key Features
The -E suffix identifies the Network Essentials version of the C9500-48Y4C hardware, so the PID should align with an Essentials software subscription path.
The C9500-48Y4C model doubles the SFP28 port count of C9500-24Y4C while keeping the same 1G, 10G, and 25G capable access-facing port speeds.
Cisco documents four 40G or 100G uplink ports on this hardware, making the QSFP28 optics plan part of the switch order rather than a separate network-module decision.
The data sheet lists C9500-NM-8X and C9500-NM-2Q as unsupported on C9500-48Y4C, so uplink planning must use the fixed QSFP28 ports.
The supported power options are C9K-PWR-650WAC-R, C9K-PWR-650WACL-R, and C9K-PWR-930WDC-R, which keeps this BOM outside the 1600W supply family used by C9500-32C.
C9500-48Y4C uses the C9K-T1-FANTRAY path with up to four fans, matching the C9500-24Y4C and C9500-32QC cooling spare family.
Application Scenarios
C9500-48Y4C-E fits campus core or distribution blocks that need 48 fiber-facing SFP28 ports and four high-speed QSFP28 uplinks under an Essentials network tier.
Use this SKU when the design standard is Network Essentials and the uplink plan can be built from the four fixed 40G or 100G ports without optional C9500 network modules.
This model suits refresh projects that outgrow the 24-port 25G footprint of C9500-24Y4C-E but do not need the 32-port 100G density of C9500-32C hardware.
Product Comparison
|
Parameter |
C9500-48Y4C-E | ||
|---|---|---|---|
|
Product type |
High-performance fixed switch |
High-performance fixed switch |
High-performance fixed switch |
|
Orderable PID |
C9500-48Y4C-E |
C9500-48Y4C-A |
C9500-24Y4C-E |
|
SFP28 port count |
48 |
48 |
24 |
|
SFP28 port speeds |
1G/10G/25G |
1G/10G/25G |
1G/10G/25G |
|
Fixed uplink ports |
4 x 40G/100G QSFP28 |
4 x 40G/100G QSFP28 |
4 x 40G/100G QSFP |
|
Switching capacity |
Up to 3.2 Tbps |
Up to 3.2 Tbps |
Up to 2.0 Tbps |
|
Forwarding rate |
Up to 1 Bpps |
Up to 1 Bpps |
Up to 1 Bpps |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
|
Default power supply |
C9K-PWR-650WAC-R 650W AC |
C9K-PWR-650WAC-R 650W AC |
C9K-PWR-650WAC-R 650W AC |
|
Cisco DNA term license |
C9500-DNA-E-3Y, C9500-DNA-E-5Y, C9500-DNA-E-7Y |
C9500-DNA-A-3Y, C9500-DNA-A-5Y, C9500-DNA-A-7Y |
C9500-DNA-E-3Y, C9500-DNA-E-5Y, C9500-DNA-E-7Y |
|
Network module support |
C9500-NM-8X and C9500-NM-2Q are not supported |
C9500-NM-8X and C9500-NM-2Q are not supported |
C9500-NM-8X and C9500-NM-2Q are not supported |
|
Power supply options |
C9K-PWR-650WAC-R, C9K-PWR-650WACL-R, C9K-PWR-930WDC-R |
C9K-PWR-650WAC-R, C9K-PWR-650WACL-R, C9K-PWR-930WDC-R |
C9K-PWR-650WAC-R, C9K-PWR-650WACL-R, C9K-PWR-930WDC-R |
|
Fan tray |
C9K-T1-FANTRAY, up to 4 fans |
C9K-T1-FANTRAY, up to 4 fans |
C9K-T1-FANTRAY, up to 4 fans |
|
Minimum software release |
Cisco IOS XE Fuji 16.8.1a |
Cisco IOS XE Fuji 16.8.1a |
Cisco IOS XE Fuji 16.8.1a |
- In a C9500-48Y4C-E vs C9500-48Y4C-A comparison, the hardware profile, port count, fixed uplinks, power supplies, fan tray, and software floor stay the same; the confirmed difference is Network Essentials versus Network Advantage.
- The C9500-48Y4C-E vs C9500-24Y4C-E difference is SFP28 density and switching capacity, because the C9500-48Y4C model lists 48 SFP28 ports and up to 3.2 Tbps while C9500-24Y4C lists 24 SFP28 ports and up to 2.0 Tbps.
- For buyers deciding which model to choose, C9500-48Y4C-E is the Essentials PID for the 48-port 25G hardware profile rather than the Advantage suffix or the smaller 24-port platform.
Selection Guide
1. Match it to 48-port Essentials requirements
Choose C9500-48Y4C-E when the approved design needs 48 SFP28 ports, four fixed 40G/100G uplinks, and the Network Essentials tier.
2. Use C9500-48Y4C-A for the same hardware with Advantage
Select C9500-48Y4C-A when the physical port layout remains C9500-48Y4C but the network license requirement changes to Network Advantage.
3. Drop to C9500-24Y4C-E only for lower port density
Review C9500-24Y4C-E when 24 SFP28 ports are enough and the design does not need the 3.2 Tbps C9500-48Y4C hardware ceiling.
4. Close the optics and software checks before ordering
Validate exact SFP28 and QSFP28 transceivers, Cisco IOS XE release support, Smart Account readiness, subscription term, power supply type, and rack depth before releasing the purchase line.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact product ID |
C9500-48Y4C-E |
Confirms the C9500-48Y4C hardware profile with Network Essentials licensing |
|
Subscription term |
C9500-DNA-E-3Y, C9500-DNA-E-5Y, C9500-DNA-E-7Y, or a matching Catalyst Essentials term |
Cisco ordering guidance requires a software subscription with the hardware purchase |
|
Port layout |
48 SFP28 ports plus 4 fixed QSFP28 uplinks |
Separates this SKU from C9500-24Y4C and from C9500-32C high-density 100G hardware |
|
Optics validation |
SFP28 and QSFP28 modules checked in Cisco compatibility documentation |
The platform supports multiple speeds, but each optic still needs exact compatibility validation |
|
Software floor |
Cisco IOS XE Fuji 16.8.1a or a supported later release |
Confirms the deployment baseline is not below the published introductory release |
|
Power path |
C9K-PWR-650WAC-R, C9K-PWR-650WACL-R, or C9K-PWR-930WDC-R with the required second PSU choice |
The C9500-48Y4C line uses the 650W AC or 930W DC supply family |
|
Cooling and rack fit |
C9K-T1-FANTRAY, 1 RU space, and 18.0 in. chassis depth |
Keeps spare parts and cabinet clearance aligned with the high-performance C9500-48Y4C chassis |
Optional Add-ons
|
Model |
Description |
|---|---|
|
650W AC power supply supported on C9500-48Y4C | |
|
650W AC power supply supported on C9500-48Y4C | |
|
930W DC power supply supported on C9500-48Y4C | |
|
C9K-T1-FANTRAY |
Catalyst 9500 fan tray for C9500-32QC, C9500-48Y4C, and C9500-24Y4C |
|
Catalyst 9500 Network and Cisco DNA Essentials 3-year license for C9500-48Y4C SKU | |
|
C9500-DNA-E-5Y |
Catalyst 9500 Network and Cisco DNA Essentials 5-year license for C9500-48Y4C SKU |
|
C9500-DNA-E-7Y |
Catalyst 9500 Network and Cisco DNA Essentials 7-year license for C9500-48Y4C SKU |
|
C9500-DNX-E-48Y-3Y |
Catalyst Essentials 3-year software subscription license for C9500 48-port 25G SFP28 |
|
C9500-DNX-E-48Y-5Y |
Catalyst Essentials 5-year software subscription license for C9500 48-port 25G SFP28 |
|
C9500-DNX-E-48Y-7Y |
Catalyst Essentials 7-year software subscription license for C9500 48-port 25G SFP28 |
|
19-inch rack mount accessory kit for Cisco Catalyst 9500 Series High-End switches | |
|
C9500-ACCKITH-23I= |
23-inch rack mount accessory kit for Cisco Catalyst 9500 Series High-End switches |

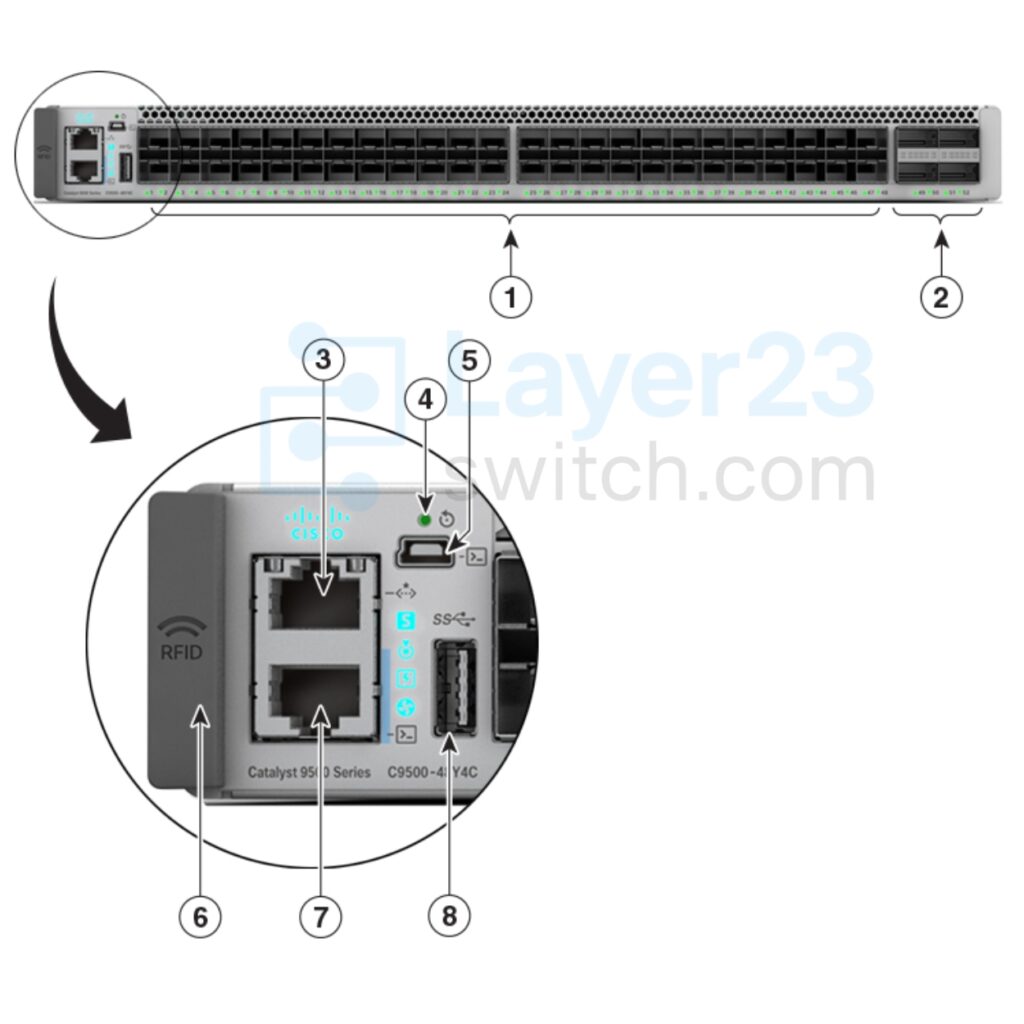

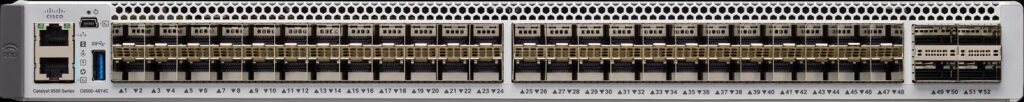

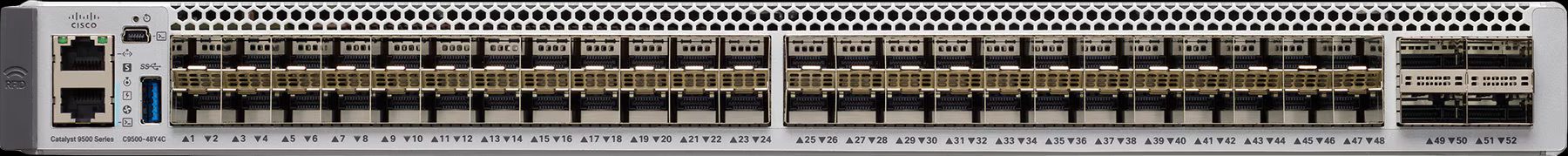

C9500-48Y4C-E Switch Front Panel
|
1 |
48 1G/10G/25G SFP28 ports |
5 |
USB mini Type B console port |
|
2 |
Uplink ports |
6 |
RFID (Optional) |
|
3 |
Ethernet management port |
7 |
Console port (RJ-45 Serial) |
|
4 |
Reset button |
8 |
USB 3.0 host port |

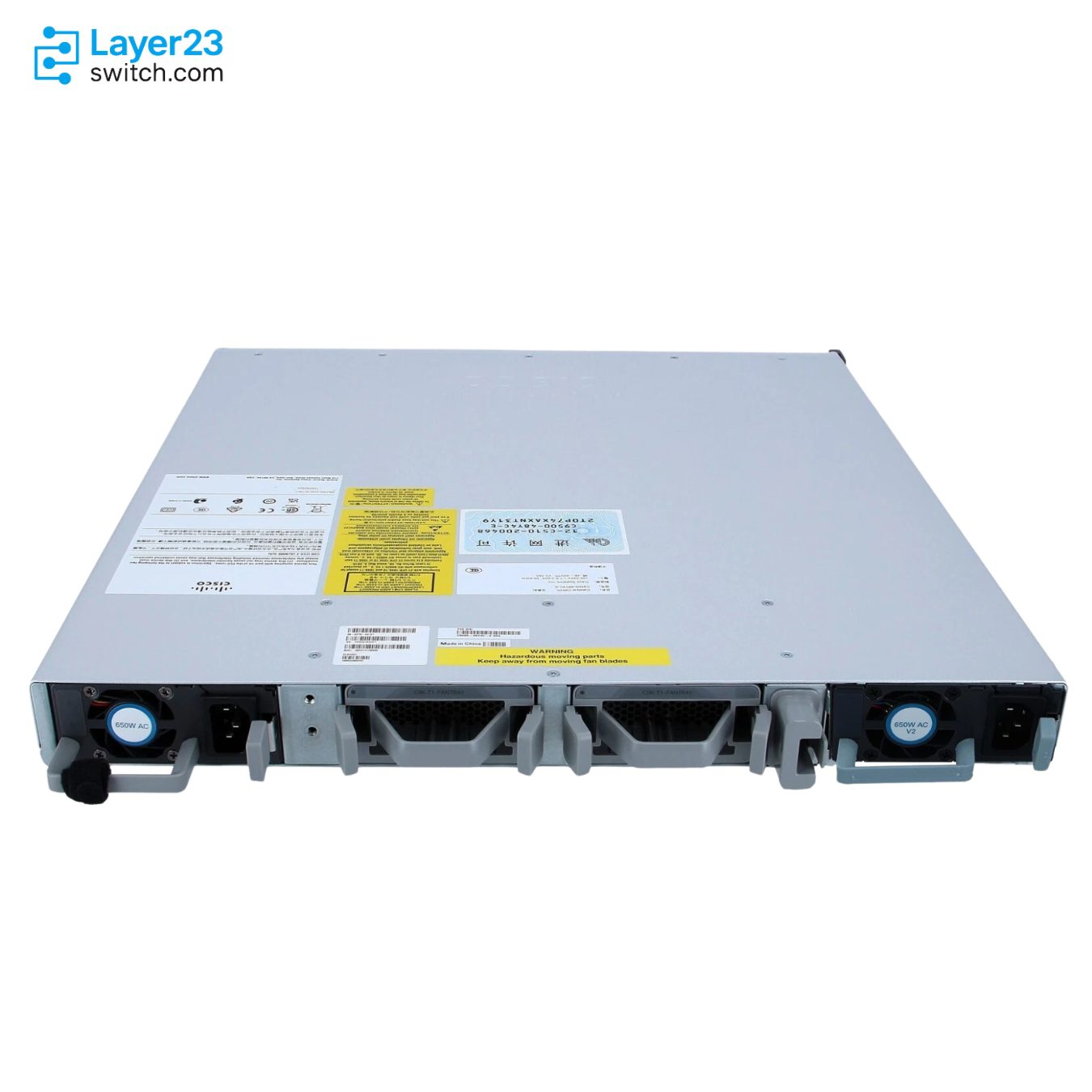

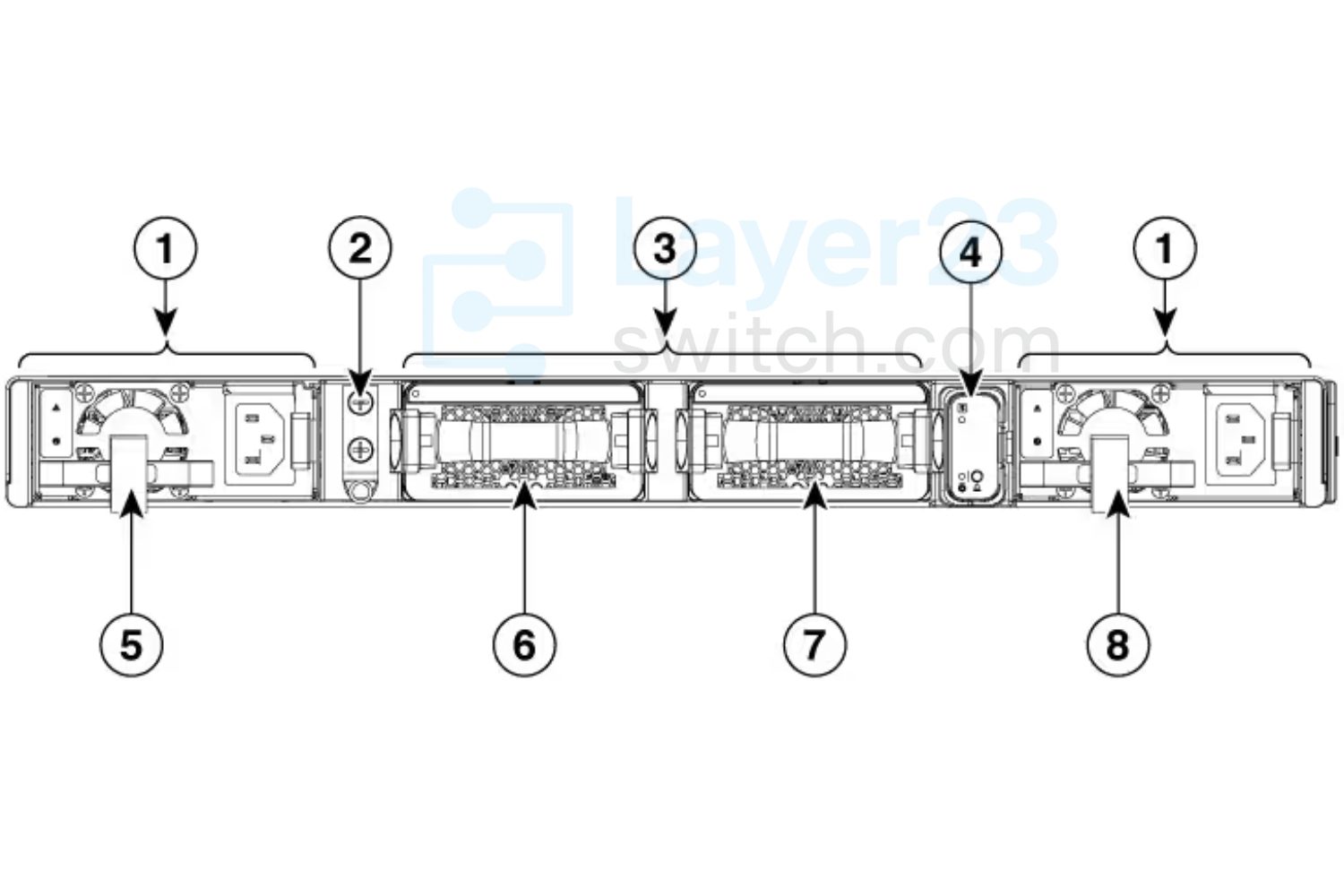

C9500-48Y4C-E Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9500-48Y4C-E | Product type | High-performance fixed core and aggregation switch |
| Network license | Network Essentials | Port configuration | 48 x 1G/10G/25G SFP28 ports and 4 x 40G/100G QSFP28 uplinks |
| SFP28 ports | 48 ports, all 25G/10G/1G capable | Fixed uplink ports | 4 x 40G/100G QSFP28 |
| Network module support | C9500-NM-8X and C9500-NM-2Q are not supported on C9500-48Y4C | Switching capacity | Up to 3.2 Tbps |
| Forwarding rate | Up to 1 Bpps | ASIC | Cisco UADP 3.0 |
| Minimum software release | Cisco IOS XE Fuji 16.8.1a | Power supply slots | 2 |
| Power supply options | C9K-PWR-650WAC-R, C9K-PWR-650WACL-R, C9K-PWR-930WDC-R | AC input voltage | 90 to 264 VAC, 47 to 63 Hz |
| DC input voltage | -40 to -72 VDC with C9K-PWR-930WDC-R | BTU output | 1,856 BTU/hr with C9K-PWR-650WAC-R, C9K-PWR-650WACL-R, or C9K-PWR-930WDC-R |
| Fan tray | C9K-T1-FANTRAY, up to 4 fans | Rack units | 1 RU |
| Dimensions | 1.73 x 17.5 x 18.0 in. (4.4 x 44.5 x 45.7 cm) | Weight | 21.96 lbs (9.96 kg) with 2 power supplies and built-in fan |
| Acoustic noise | No greater than 71.5 LwAd dB |
Get More Information
Need pricing, stock, or shipping details for the C9500-48Y4C-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is Cisco C9500-48Y4C-E used for?
-
What port speeds does C9500-48Y4C-E support?
-
How is C9500-48Y4C-E different from C9500-48Y4C-A?
-
How is C9500-48Y4C-E different from C9500-24Y4C-E?
-
Does C9500-48Y4C-E use C9500 network modules?
-
Can C9500-48Y4C-E be paired with StackWise Virtual?
-
When is C9500-48Y4C-E better than C9500-32C-E?
-
When should I choose another model instead of C9500-48Y4C-E?
