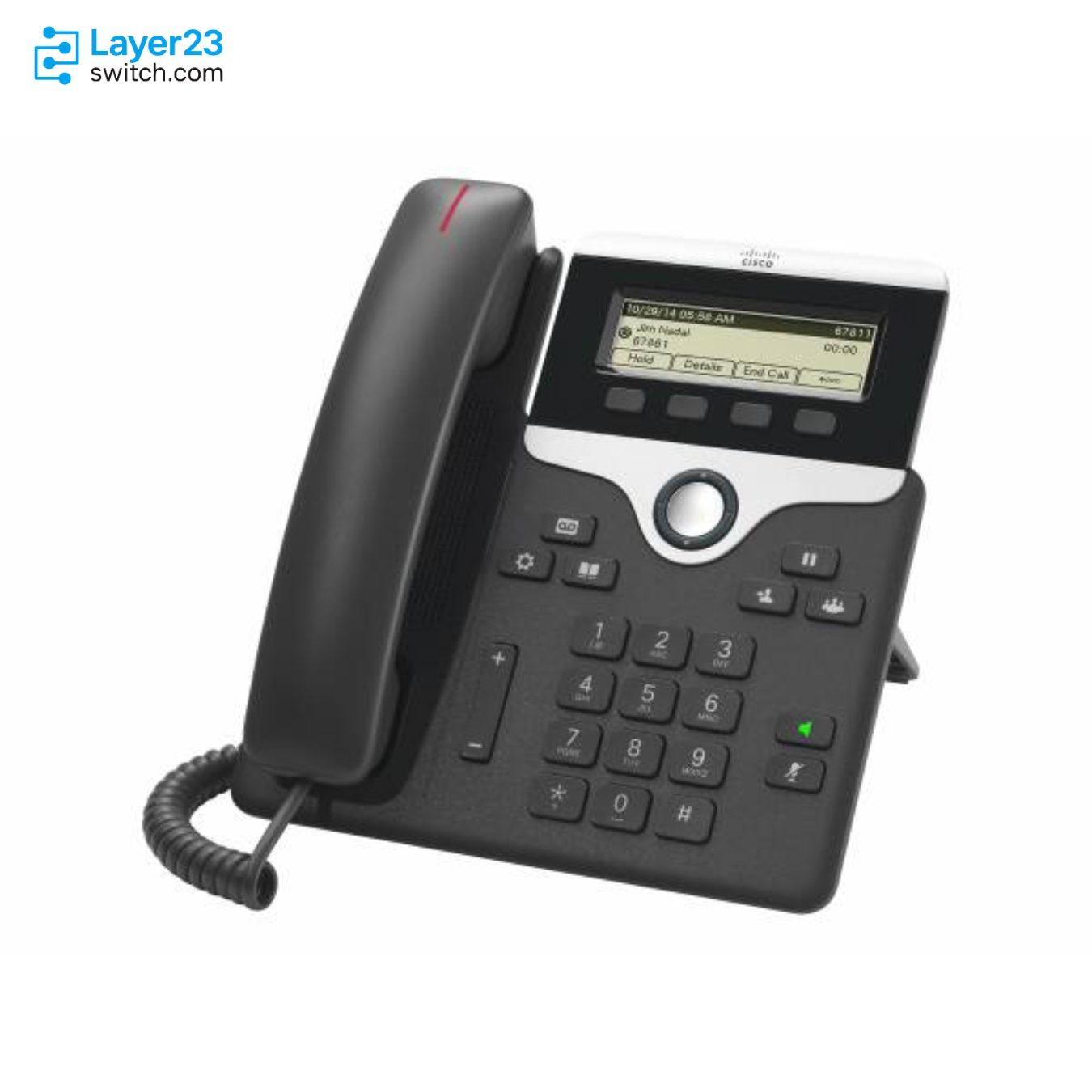

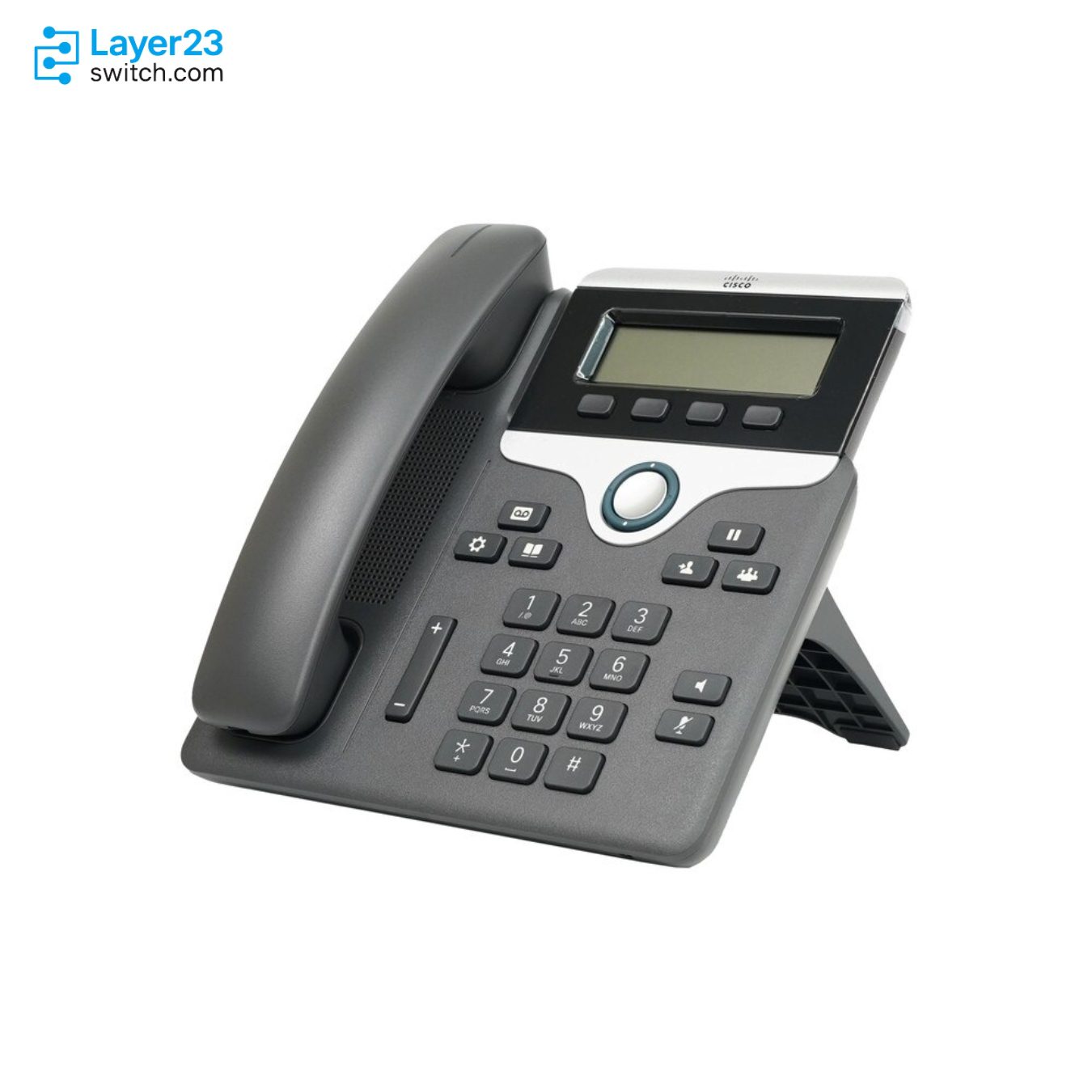

CP-7811-K9 – Single-Line IP Phone – 10/100 Ethernet – PoE Class 1
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
CP-7811-K9 Description
The CP-7811-K9 is a Cisco IP Phone 7811 single-line desk phone in the Cisco IP Phone 7800 Series for common-area and occasional-use positions on Cisco Unified Communications Manager. The phone has a 3.28 in. 384 x 106 pixel grayscale display, a 10/100BASE-T switch with two RJ-45 ports and IEEE 802.3af Class 1 PoE at no more than 3.84W. The phone needs a Basic User Connect License on Cisco Unified Communications Manager 12.5 or later, and its default handset is narrowband, with wideband audio only through an optional handset.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CP-7811-K9 |
|
Product type |
Cisco IP Phone 7811 desk phone |
|
Supported line keys |
0 |
|
Display |
3.28 in. 384 x 106 pixel grayscale display |
|
Ethernet switch |
10/100BASE-T with LAN and downstream-device RJ-45 ports |
|
PoE class |
IEEE 802.3af Class 1 |
|
Power input rating |
0.42A, 48V DC |
|
CUCM license |
Basic User Connect License |
|
CUCM support |
Cisco Unified Communications Manager 12.5 and above |
|
Default handset |
Narrowband handset, with wideband available through optional handset |
|
Dimensions and weight |
207 x 195 x 33 mm, 806 g |
Application Scenarios
In a lobby, cafeteria or conference-center corridor, the phone gives visitors and staff a single-line extension on Cisco Unified Communications Manager without programmable line keys to manage.
In a hallway or work area with little desk space, the phone mounts on the wall with the optional wall-mount kit and still passes a 10/100BASE-T connection to a downstream device.
On a floor with many phone drops, each phone draws no more than 3.84W as an IEEE 802.3af Class 1 device, which keeps the switch’s PoE budget available for other endpoints.
Product Comparison
|
Parameter |
CP-7811-K9 | ||
|---|---|---|---|
|
Supported line keys |
0 |
2 |
4 |
|
Display |
3.28 in. 384 x 106 pixels, grayscale |
3.5 in. 396 x 162 pixels, backlit grayscale |
3.5 in. 396 x 162 pixels |
|
Color availability |
Charcoal |
Charcoal and white |
Charcoal and white |
|
Default handset |
Narrowband |
Wideband |
Wideband |
|
Ethernet switch |
10/100BASE-T |
10/100BASE-T |
10/100/1000BASE-T |
|
User connect license |
Basic |
Basic |
Enhanced |
|
PoE class |
IEEE 802.3af Class 1 |
IEEE 802.3af Class 1 |
IEEE 802.3af Class 1 |
CP-7811-K9 is the entry model of the 7800 Series, listed with 0 line keys in the table against 2 on CP-7821-K9, and it ships with a narrowband handset and a 3.28 in. 384 x 106 display, while CP-7821-K9 adds a 396 x 162 backlit grayscale display, a wideband handset by default and a white color option. Both need only a Basic User Connect License and run on 10/100BASE-T. Desks that need four lines or Gigabit Ethernet move to CP-7841-K9, the only 7800 model with 10/100/1000BASE-T, which also needs an Enhanced User Connect License. For sixteen lines, order CP-7861-K9 at the same Enhanced license level.
Ordering Checklist
- User Connect License: Order one Basic UCL per phone on Cisco Unified Communications Manager 12.5 or later. An Enhanced UCL is unnecessary for this model, and no UCL leaves the phone unlicensed.
- Non-PoE power: Add Cisco Power Adapter 3 in the regional PID, for example CP-PWR-ADPT-3-NA= or CP-PWR-ADPT-3S-UK=, with the matching regional cord. The phone is 802.3af Class 1 PoE; without PoE it has no power source.
- Wideband handset: Add CP-DX-HS= if wideband audio is needed. The phone ships with a narrowband default handset on CP-7811-K9.
- Mounting: Add CP-7811-WMK= wall mount or CP-7811-FS= footstand if required. Both are separate 7811-specific PIDs.
Product Front
The Cisco IP Phone 7800 Series has distinct hardware types:
- Cisco IP Phone 7811 No buttons on either side of the screen
- Cisco IP Phone 7821 Two buttons on the left side of the screen
- Cisco IP Phone 7841 Two buttons on either side of the screen
- Cisco IP Phone 7861 16 buttons at the right edge of the phone
|
1 |
Incoming call or voicemail indicator |
|
2 |
Line and feature buttons |
|
3 |
Softkeys |
|
4 |
Navigation (navigation ring and Select button |
|
5 |
Hold, Transfer, and Conference |
|
6 |
Speakerphone, Headset, and Mute |
|
7 |
Voicemail, Applications, and Directory |
|
8 |
Volume |
Use line and feature buttons to view calls on a line, or access features such as Speed Dial.Buttons illuminate to indicate status:
|
Green, steady |
Active call |
|
Green, flashing |
Held call |
|
Amber, steady |
Private line in use |
|
Amber, flashing |
Incoming call |
|
Red, steady |
Remote line in use |
|
Red, flashing |
Remote line on hold |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CP-7811-K9 | Cisco ordering ID | CP-7811-K9= |
| Product type | Cisco IP Phone 7811 desk phone | Supported line keys | 0 |
| Display | 3.28 in. 384 x 106 pixel grayscale display | Ethernet switch | 10/100BASE-T with two RJ-45 ports |
| PoE class | IEEE 802.3af Class 1 | Maximum power consumption | Does not exceed 3.84 W |
| Power input rating | 0.42A, 48V DC | CUCM license | Basic User Connect License |
| CUCM support | Cisco Unified Communications Manager 12.5 and above | Hosted collaboration support | Cisco Hosted Collaboration Solution 8.6.2 and later |
| SRST support | Cisco Unified SRST 8.x and later | Signaling protocol | Session Initiation Protocol |
| Codec support | G.711, G.722, G.722.2, G.729ab, iLBC, OPUS | Default handset | Narrowband handset with RJ-9 connection |
| Wideband handset | Available with optional wideband handset | Foot-stand position | 45 degrees |
| Wall mounting | Optional wall-mount kit | Dimensions | 207 x 195 x 33 mm excluding foot stand |
| Weight | 806 g | Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% to 90%, non-condensing | Phone casing composition | Polycarbonate ABS textured plastic |
