Which call control platforms does CP-8865-K9 register to?

CP-8865-K9 registers to Cisco Unified Communications Manager 8.6.2, 9.1.2, 10.5.2, 11.0 and later, and to 8.5.1 with nonsecure mode only. BE 6000 supports 8.6.2, 9.1.2, 10.5.2, 11.0 and later, and HCS supports 8.6.2 and later. Signaling is Session Initiation Protocol, and the CUCM license is Enhanced User Connect License.

What PoE class does CP-8865-K9 need?

CP-8865-K9 is an IEEE PoE Class 4 phone, compatible with IEEE 802.3af and 802.3at switch blades. With two or three key expansion modules it needs 802.3at PoE or a CP-PWR-CUBE-4 power cube with the country cord, and the rear USB fast charge is lost on 802.3at unless the port supplies UPOE.

Which key expansion module PIDs does Cisco list for CP-8865-K9?

The 8865 datasheet lists CP-8800-V-KEM= (Charcoal), not CP-8800-A-KEM=. The 8865NR datasheet lists CP-BEKEM= (Charcoal) and CP-BEKEM-W= (White) instead. Cisco does not state whether the PIDs are interchangeable, so confirm the module against the physical unit when ordering.

Which spare parts does Cisco list for the CP-8865-K9 video phone?

Video-phone bezels are CP-8800-B-VID-BEZEL= (black) and CP-8800-S-VID-BEZEL= (silver). The datasheet also lists the CP-8800-FS= foot stand, CP-DX-HS= handset and CP-DX-CORD= handset cord. Standard 8800 bezels do not fit the video models, which use their own VID bezel PIDs.

How much current can the rear USB port on CP-8865-K9 supply?

The rear USB port supplies 500 mA and can be raised to 2.1A at 5V, while the side port supplies 500 mA, per the 8865 datasheet. The phone supports UPOE, and 802.3at PoE is the baseline for accessory USB charging.

How many USB devices can one USB port on CP-8865-K9 serve on MPP firmware?

Up to five devices per USB port, and each key expansion module counts as one device, per the MPP technical details. Unpowered hubs are not supported, and neither are powered hubs with more than four ports.

Which Wi-Fi bands does CP-8865-K9 use?

The phone uses 802.11n at 2.4 and 5 GHz and 802.11ac at 5 GHz, per the MPP technical details. The same document lists the Bluetooth radio as version 4.1.

Can CP-8865-K9 register to Cisco Unified CME?

No. The IP Phone release notes mark CME as unsupported on this model. CME 10.0 with IOS load 15.3(3)M is the release they list for the models that do register. Firmware 14.3(1)SR3 covers CP-8865-K9, but 14.4(1)SR1 does not.

CP-8865-K9 – HD Video IP Phone – Wi-Fi and Bluetooth – Enhanced UCL

Name: CP-8865-K9 - Cisco Unified 8865 HD Video IP Phone
Brand: Cisco
SKU: CP-8865-K9
Price: 410.40 USD
Availability: InStock
Rating: 5 (6 reviews)

Brand: Cisco Category: Cisco IP Phone 8800 Model: CP-8865-K9

Rated 5 out of 5 based on 6 customer ratings

5.06 reviews8 Questions

List Price: ~~$920.00~~ 55% OFF

$410.40

Price Alert

In StockShips in as little as 1 business day Brand New

Related models

Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policyExpress Shipping2-6 Business Daysvia UPS, FedEx, DHL and more

Trusted & Secure Payments

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded

Customers

Units shipped

Countries

Inventory You Can See

Cisco stock on hand

Models ready to ship

Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

Advance replacement for in-stock models
New unit for dead-on-arrival
14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

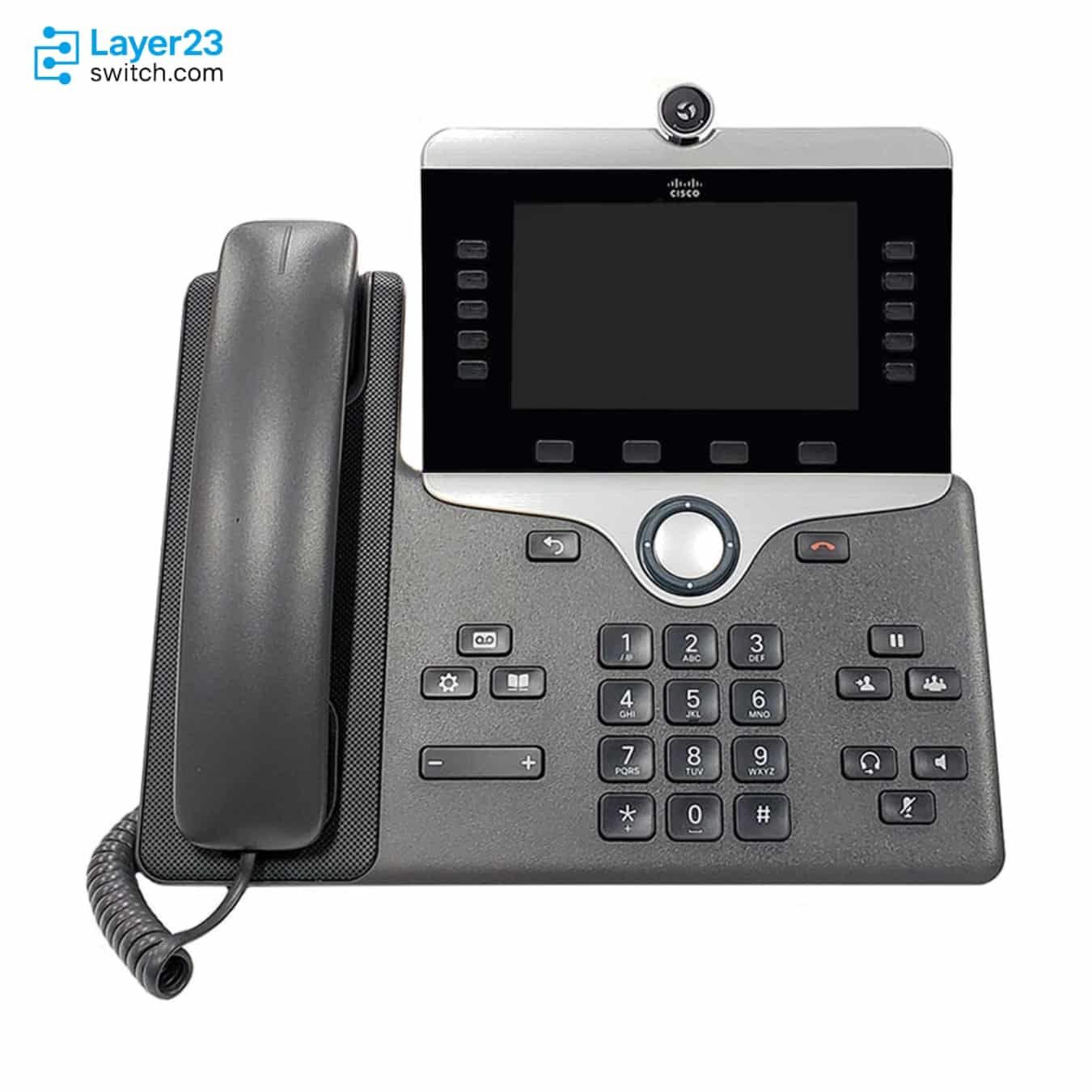

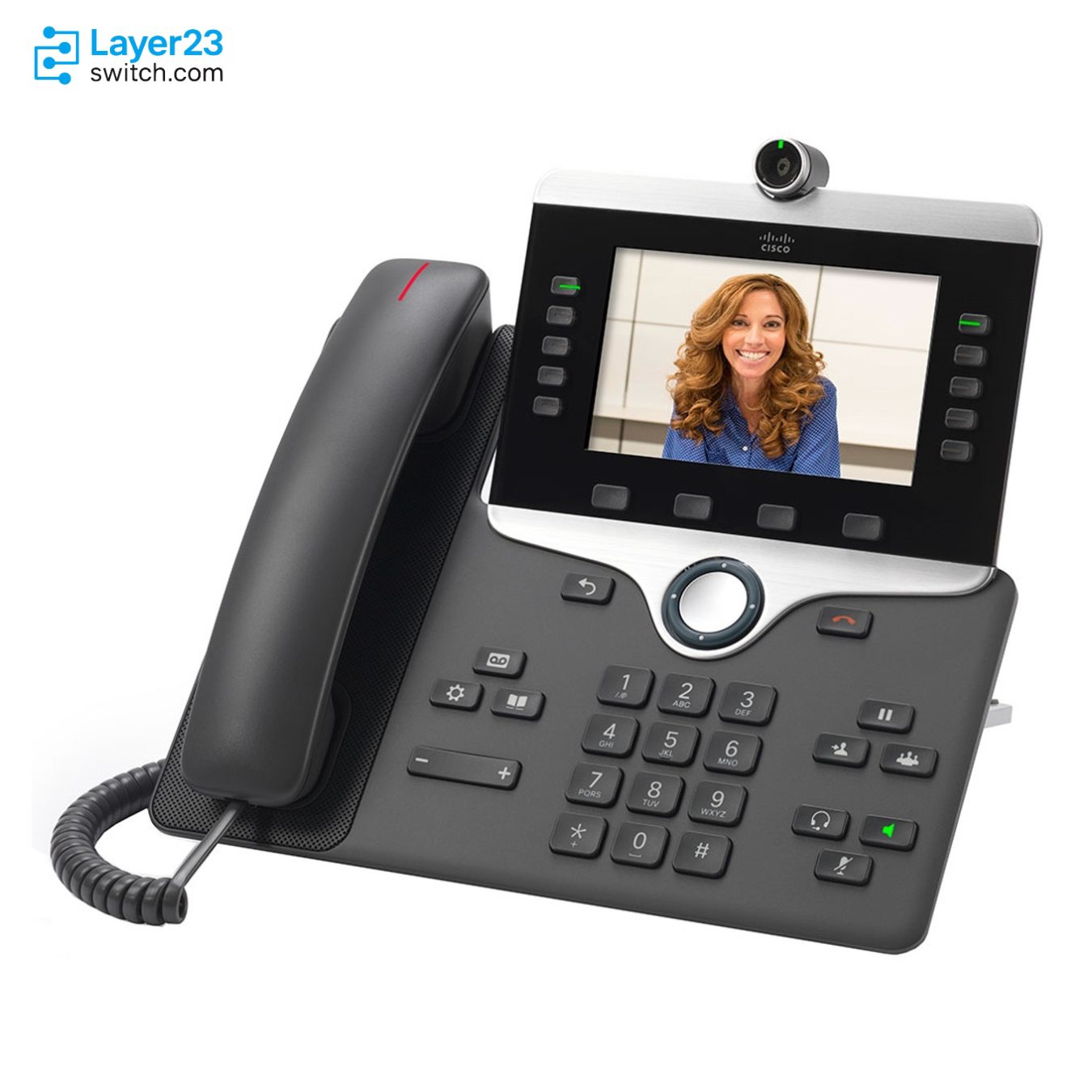

CP-8865-K9 Description

The CP-8865-K9 is a Cisco IP Phone 8865 video desk phone in the 8800 Series for Unified Communications desks that carry HD video calls. The phone has five programmable line and feature keys, a 5 in. 800 x 480 color display, 720p HD video, 802.11a/b/g/n/ac Wi-Fi and Bluetooth 4.1 for mobile integration. It takes up to three key expansion modules, and with two or three modules the rear USB fast charge is lost on 802.3at PoE unless the port supplies UPOE.

Quick Specs

Parameter	Specification
Product ID	CP-8865-K9
Product type	Cisco IP Phone 8865 video desk phone
Color	Charcoal
Programmable line and feature keys	5
Display and video	5 in. 800 x 480 24-bit color WVGA display with 720p HD video
Integrated switch	Internal 2-port 10/100/1000BASE-T Cisco Ethernet switch
Wireless LAN	IEEE 802.11a/b/g/n/ac
Bluetooth and mobile integration	Bluetooth 4.1 LE, EDR Class 1 with Cisco Intelligent Proximity
USB and KEM support	Side USB port and support for up to three Cisco IP Phone 8800 Key Expansion Modules
PoE and local power	IEEE PoE Class 4 or Cisco IP Phone Power Cube 4 with matching AC country cord
CUCM license	Enhanced User Connect License

Application Scenarios

Executive Video Desk

On an executive or manager desk, the phone carries 720p HD video calls on its 5 in. color display, with Bluetooth 4.1 pairing a headset or a mobile phone.

Reception With Expansion Modules

At a front desk that covers many lines, up to three key expansion modules extend the five line keys to 113 line buttons.

Desk Shared With A PC

Where one access-switch drop serves the phone and a co-located PC, the internal 2-port Gigabit Ethernet switch passes the PC connection through the phone.

Product Comparison

Parameter	CP-8865-K9	CP-8865-W-K9	CP-8865NR-K9
Color	Charcoal	White	Charcoal
Programmable line and feature keys	5	5	5 in Session Line Mode, up to 10 in Enhanced Line Mode
Display	5 in. 800 x 480 24-bit color WVGA	5 in. 800 x 480 24-bit color WVGA	5 in. 800 x 480 24-bit color WVGA
Video	720p HD H.264/AVC	720p HD H.264/AVC	720p HD H.264/AVC
Wireless LAN	IEEE 802.11a/b/g/n/ac	IEEE 802.11a/b/g/n/ac	No Wi-Fi radio
Bluetooth	Bluetooth 4.1 LE, EDR Class 1	Bluetooth 4.1 LE, EDR Class 1	No Bluetooth radio
Key expansion module support	Up to three Cisco IP Phone 8800 Key Expansion Modules	Up to three Cisco IP Phone 8800 Key Expansion Modules	Up to three Cisco IP Phone 8800 Key Expansion Modules
PoE class	IEEE PoE Class 4	IEEE PoE Class 4	IEEE PoE Class 4

CP-8865-K9 and CP-8865NR-K9 differ in radios: CP-8865-K9 includes 802.11a/b/g/n/ac Wi-Fi and Bluetooth 4.1, while CP-8865NR-K9 has neither radio. Sites that bar wireless devices from the desk need CP-8865NR-K9, which also allows up to 10 line keys in Enhanced Line Mode against 5 on CP-8865-K9. CP-8865-W-K9 matches CP-8865-K9 in every table row except its white finish. All three video phones take up to three key expansion modules, and two or three modules need 802.3at PoE or a CP-PWR-CUBE-4 power cube.

Ordering Checklist

Power source: Use IEEE 802.3at or UPOE PoE, or CP-PWR-CUBE-4 with a country cord. A desk without PoE has no power, and the cube is not powered without its country cord.
Key expansion module: Order CP-8800-V-KEM= for each module, up to three per phone; with two or three modules use 802.3at or a power cube. The rear USB fast charge is lost on 802.3at with two or three modules unless the port is UPOE.
Wall mount: Order CP-8800-VIDEO-WMK= for the video phone; the 8865 has no wall kit for a phone with a module. Wall placement needs the video mount on the order, and a module cannot be wall mounted with it.

Product Front

The following table describes the Cisco IP Phone 8800 Series Buttons.

The Cisco IP Phone 8800 Series has two distinct hardware types:

Cisco IP Phones 8811, 8841, 8851, 8851NR, and 8861—do not have a camera.
Cisco IP Phones 8845, 8865, and 8865NR—have a built-in camera.

1	Incoming call or voicemail indicator
2	Camera (Cisco IP Phone 8845 and 8865)
3	Feature and session buttons
4	Softkeys
5	Back, Navigation cluster, and Release
6	Hold, Transfer, and Conference
7	Headset, Speakerphone, and Mute
8	Voicemail, Applications, and Directory
9	Volume

Specifications

Parameter	Specification	Parameter	Specification
Product ID	CP-8865-K9	Cisco ordering ID	CP-8865-K9=
Product type	Cisco IP Phone 8865 video desk phone	Color	Charcoal
Same-model color SKU	CP-8865-W-K9= is Cisco IP Phone 8865, White	No-radio comparison SKU	CP-8865NR-K9= is Cisco IP Phone 8865NR, Charcoal
Programmable keys	5	Display	5 in. 800 x 480 24-bit color WVGA display
Video	720p HD video with H.264/AVC encoding and decoding	Wideband audio	G.722 on handset, speakerphone, and headset
Ethernet switch	Internal 2-port 10/100/1000BASE-T Cisco Ethernet switch	PC connectivity	Single LAN connection for phone and co-located PC
Wireless LAN	IEEE 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac	Bluetooth	Bluetooth 4.1 LE, EDR Class 1 up to 66 ft (20 m)
Bluetooth profiles	Hands-Free Profile and Phone Book Access Profile	Mobile integration	Cisco Intelligent Proximity audio path, call history, and contact synchronization
USB port	Side USB port and rear USB port	KEM support	Up to three Cisco IP Phone 8800 Key Expansion Modules
Expansion button range	From 5 or 10 line buttons to 113 or 118 line buttons with KEMs	PoE class	IEEE PoE Class 4
PoE standards	Compatible with IEEE 802.3af and IEEE 802.3at switch blades	Local power option	Cisco IP Phone Power Cube 4 with corresponding AC country cord
CUCM support	Cisco Unified Communications Manager 8.5.1 nonsecure mode only, 8.6.2, 9.1.2, 10.5.2, 11.0, and later	BE 6000 support	8.6.2, 9.1.2, 10.5.2, 11.0, and later
HCS support	8.6.2 and later using supported UCM versions	CUCM license	Enhanced User Connect License
Signaling protocol	Session Initiation Protocol	Codec support	G.711, G.722, G.722.2, G.729ab, iLBC, iSAC, and OPUS
QoS	802.1Q/p	Discovery protocols	Cisco Discovery Protocol, LLDP-MED
Switch speed	Auto-negotiation	Headset control	Electronic hookswitch through USB, auxiliary port, or Bluetooth pairing
Foot-stand positions	35 degrees and 50 degrees	Wall mounting	Optional wall-mount kit available separately
Dimensions	9.02 x 10.13 x 1.57 in. excluding foot stand	Weight	1.43 kg (3.15 lb) with handset
Operating temperature	0°C to 40°C (32°F to 104°F)	Operating humidity	10% to 90%, noncondensing
Phone casing composition	Polycarbonate ABS textured plastic	Security slot	Kensington Security Slot compatible
