CP-8851NR-K9 Description
The CP-8851NR-K9 is a Cisco IP Phone 8800 Series no-radio desk phone for sites that need Key Expansion Modules without Bluetooth. The phone has five programmable line and feature keys, a 5-inch 800 x 480 color display, a two-port Gigabit Ethernet switch and a side USB port. The phone has no integrated Bluetooth radio and supports one Key Expansion Module on PoE Class 3 hardware before V08 and two on Class 4 hardware from V08.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CP-8851NR-K9 |
|
Product type |
Cisco IP Phone 8851NR no-radio desk phone |
|
Color |
Charcoal |
|
Radio profile |
No integrated Bluetooth radio |
|
Programmable line and feature keys |
5 |
|
Display |
5 in. 800 x 480 24-bit color WVGA display |
|
USB |
Side USB port |
|
Integrated switch |
Internal 2-port 10/100/1000BASE-T Cisco Ethernet switch |
|
Key expansion module support |
Up to two Cisco IP Phone 8800 Key Expansion Modules |
|
PoE class |
IEEE PoE Class 3 before hardware V08 and Class 4 for hardware V08 and above |
|
CUCM license |
Enhanced User Connect License |
Application Scenarios
Offices that want HD audio and Key Expansion Module support without a Bluetooth radio on the desk can place the phone, which has no integrated Bluetooth radio.
A reception or shared-line position can grow from 5 or 10 line buttons to 61 or 66 with up to two Cisco IP Phone 8800 Key Expansion Modules.
A desk with a single network drop connects the phone and a co-located PC through the internal two-port Gigabit Ethernet switch.
Product Comparison
|
Parameter |
CP-8851NR-K9 |
CP-8851-W-K9 | |
|---|---|---|---|
|
Display |
5 in. 800 x 480 24-bit color WVGA |
5 in. 800 x 480 24-bit color WVGA |
5 in. 800 x 480 24-bit color WVGA |
|
Programmable line and feature keys |
5 |
5 |
5 |
|
Integrated switch |
10/100/1000BASE-T, 2-port |
10/100/1000BASE-T, 2-port |
10/100/1000BASE-T, 2-port |
|
PoE class |
Class 3 before hardware V08, Class 4 from V08 |
Class 3 before hardware V08, Class 4 from V08 |
Class 3 before hardware V08, Class 4 from V08 |
|
Bluetooth |
No integrated radio |
Bluetooth 3.0 EDR Class 1 |
Bluetooth 3.0 EDR Class 1 |
|
USB |
Side USB port |
Side USB port |
Side USB port |
|
Key expansion module support |
Up to 2 |
Up to 2 |
Up to 2 |
CP-8851NR-K9 and CP-8851-K9 are the same 8851 hardware with five line keys, a gigabit switch, a side USB port and up to two Cisco 8800 KEMs, but CP-8851NR-K9 has no integrated Bluetooth radio while CP-8851-K9 has Bluetooth 3.0 EDR Class 1, so the NR model suits sites that want HD audio and KEMs without Bluetooth. Buyers who need a white phone or Bluetooth headset pairing order CP-8851-W-K9 or CP-8851-K9, since CP-8851NR-K9 comes only in Charcoal. A desk that needs three KEMs and still no radio moves to CP-8865NR-K9, which takes up to three KEMs, and one that also needs Wi-Fi moves to CP-8865-K9.
Ordering Checklist
- Switch PoE class and KEM count: Hardware before V08 is Class 3 and powers 1 KEM on PoE; V08 and later is Class 4 and powers 2 KEMs. A phone on a Class 3 switch port cannot run a second KEM on PoE.
- Power Cube 4 for two KEMs on Class 3: A phone below hardware V08, or one on a Class 3 switch port, needs CP-PWR-CUBE-4= (CP-PWR-CUBE-4-S= with switch) plus one cord from CP-PWR-CORD-{AP,AR,AU,BZ,CE,CN,JP,NA,SW,UK}= to run two KEMs. V08 and later hardware on a Class 4 port runs two KEMs on PoE.
- KEM PID: Order CP-8800-A-KEM= for each expansion module, not CP-8800-V-KEM=. V-KEM is the 8865 module; the 8851 order table lists CP-8800-A-KEM=.
- Wall mount: Order CP-8800-WMK= for the phone alone, or CP-8800-A-KEM-WMK= for a phone with one KEM. A wall kit exists only for the phone or phone plus a single KEM.
Product Front

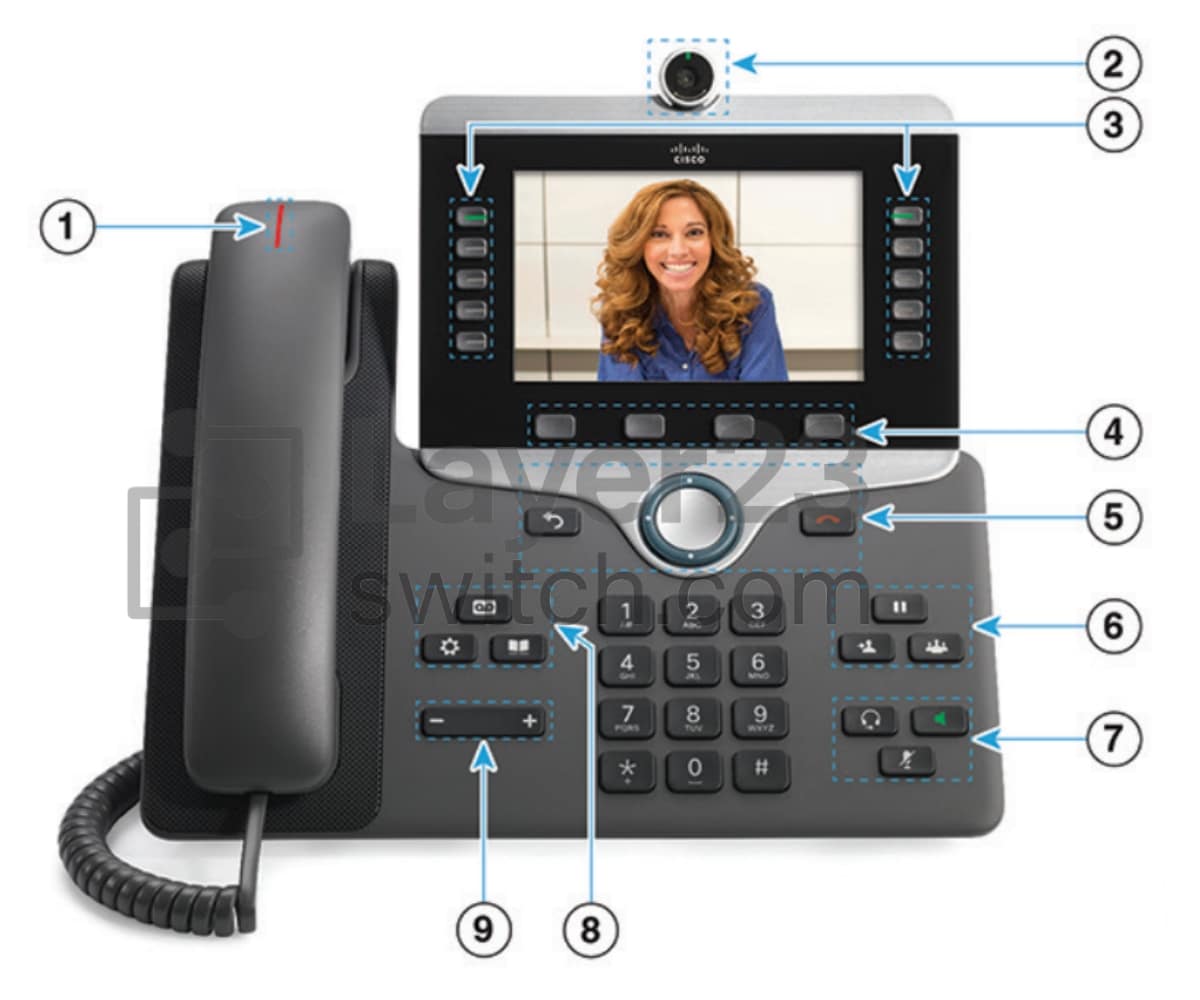

The following table describes the Cisco IP Phone 8800 Series Buttons.
The Cisco IP Phone 8800 Series has two distinct hardware types:
- Cisco IP Phones 8811, 8841, 8851, 8851NR, and 8861—do not have a camera.
- Cisco IP Phones 8845, 8865, and 8865NR—have a built-in camera.
|
1 |
Incoming call or voicemail indicator |
|
2 |
Camera (Cisco IP Phone 8845 and 8865) |
|
3 |
Feature and session buttons |
|
4 |
Softkeys |
|
5 |
Back, Navigation cluster, and Release |
|
6 |
Hold, Transfer, and Conference |
|
7 |
Headset, Speakerphone, and Mute |
|
8 |
Voicemail, Applications, and Directory |
|
9 |
Volume |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CP-8851NR-K9 | Cisco ordering ID | CP-8851NR-K9= |
| Product type | Cisco IP Phone 8851NR no-radio desk phone | Color | Charcoal |
| No-radio comparison | 8851NR has no integrated Bluetooth radio | Standard charcoal comparison | CP-8851-K9= is Cisco IP Phone 8851, Charcoal |
| White comparison | CP-8851-W-K9= is Cisco IP Phone 8851, White | Programmable keys | 5 |
| Display | 5 in. 800 x 480 24-bit color WVGA display | USB | Side USB port |
| Ethernet switch | Internal 2-port 10/100/1000BASE-T Cisco Ethernet switch | PC connectivity | Single LAN connection for phone and co-located PC |
| Key expansion module support | Up to two Cisco IP Phone 8800 KEMs | Expansion button range | From 5 or 10 line buttons to 61 or 66 line buttons with KEMs |
| PoE class | IEEE PoE Class 3 before hardware V08 and Class 4 for hardware V08 and above | PoE standards | Compatible with IEEE 802.3af and IEEE 802.3at switch blades |
| Power input rating | 0.917A, 48V DC | Local power option | Cisco IP Phone Power Cube 4 with corresponding AC country cord |
| CUCM support | Cisco Unified Communications Manager 12.5 and later | Unified CME support | 10.0 and later through fast track |
| BE 6000 support | 8.6.2, 9.1.2, 10.5.2, 11.0 and later | HCS support | 8.6.2 and later using supported UCM versions |
| CUCM license | Enhanced User Connect License | Signaling protocol | Session Initiation Protocol |
| Codec support | G.711, G.722, G.722.2, G.729ab, iLBC, iSAC, OPUS | QoS | 802.1Q/p |
| Discovery protocols | Cisco Discovery Protocol, LLDP-MED | Switch speed | Auto-negotiation |
| Physical security | Kensington Security Slot compatible | Foot-stand positions | 35 degrees and 50 degrees |
| Wall mounting | Optional wall-mount kit available separately | Dimensions | 9.02 x 10.13 x 1.57 in. excluding foot stand |
| Weight | 1.19 kg (2.62 lb) with handset | Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% to 90%, noncondensing | Phone casing composition | Polycarbonate ABS textured plastic |
