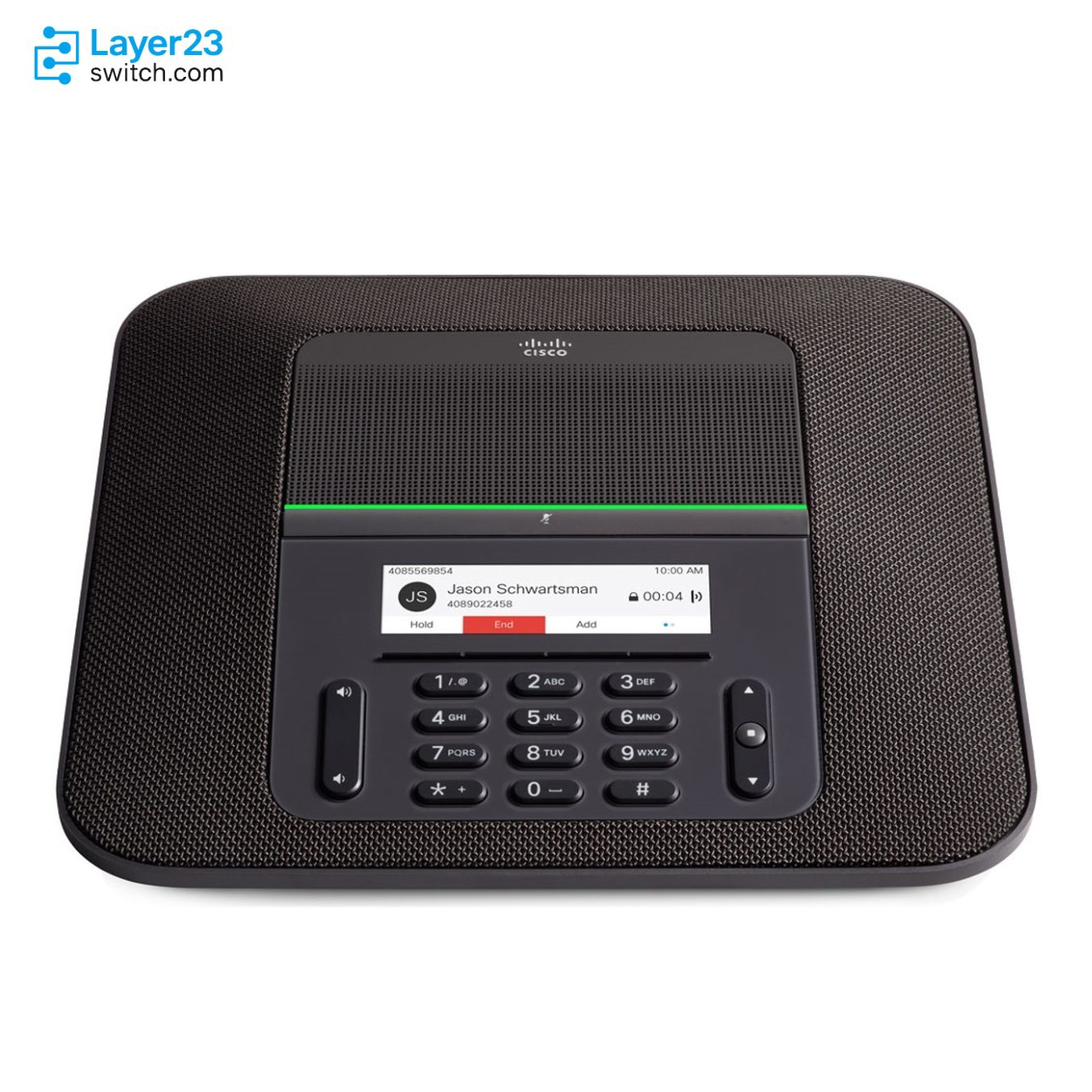

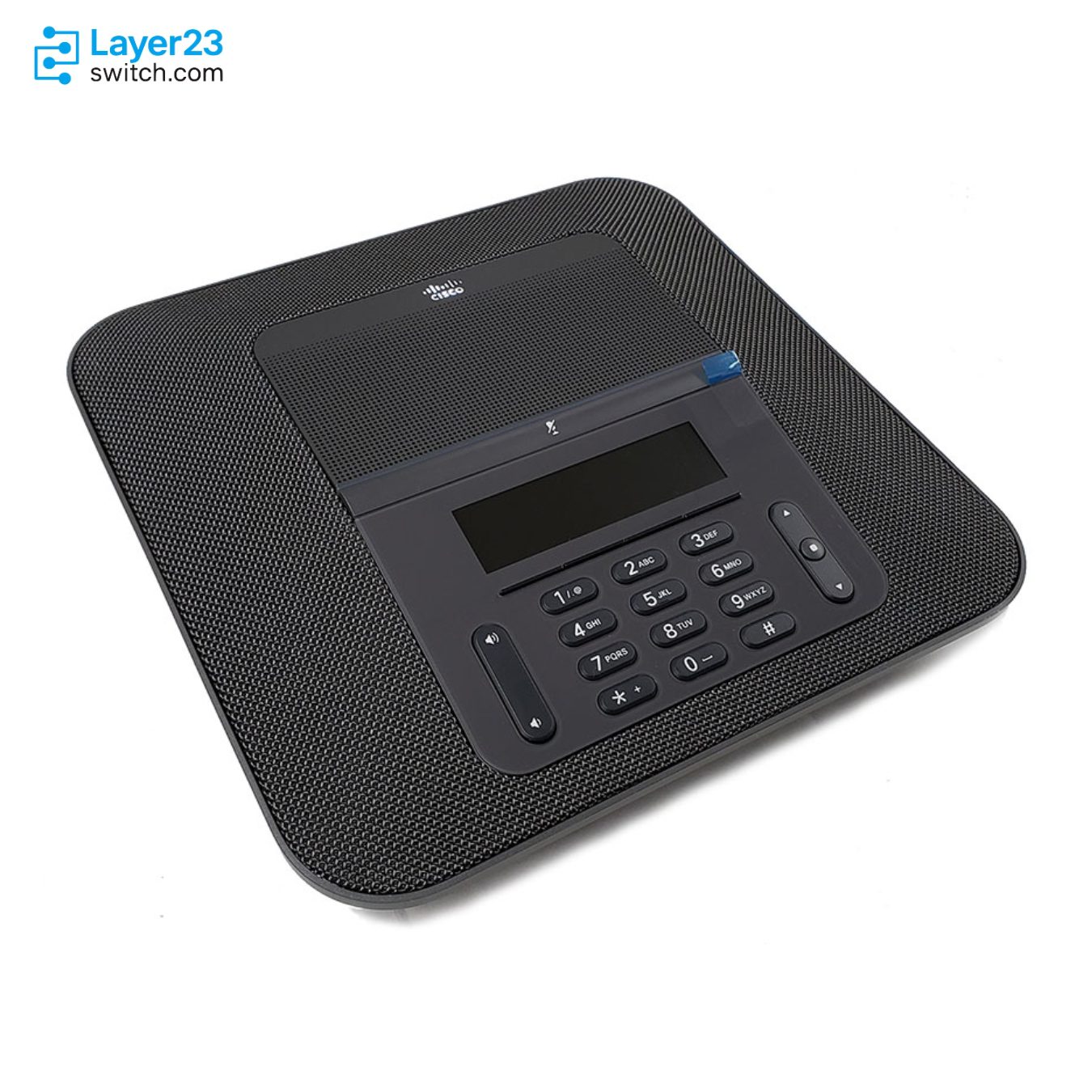

CP-8832-K9 Description
The CP-8832-K9 is a Cisco IP Conference Phone 8832 charcoal base for North American medium to large meeting rooms that register to Cisco Unified Communications Manager. The phone covers a 20 x 20 ft room with up to 10 participants, has a 480 x 128 pixel color LCD and connects over 10/100BASE-T through an Ethernet injector with IEEE PoE Class 3. The radio in this base supports Wi-Fi and wireless microphones, and a Wi-Fi room must use the Power Adapter.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CP-8832-K9 |
|
Product type |
IP conference phone |
|
Color and region |
Charcoal base for North America |
|
Included package |
Adapter with 9.8-ft (3-m) USB-C cable |
|
Base room coverage |
20 x 20 ft room with up to 10 participants |
|
Expansion coverage |
Up to 20 x 40 ft with wireless microphones or 20 x 57 ft with daisy chain and wireless microphones |
|
Display |
480 x 128 pixel backlit 24-bit color LCD, 3.9 in. diagonal |
|
Ethernet interface |
10/100BASE-T via Ethernet injector |
|
PoE class |
IEEE PoE Class 3, compatible with IEEE 802.3af and IEEE 802.3at switch blades |
|
Call control support |
Native Cisco Unified Communications Manager 12.0(1) support |
|
CUCM license |
Enhanced User Connect License |
|
Supported audio codecs |
G.711, G.722, G.729a, G.729ab, iLBC, and OPUS |
Application Scenarios
A 20 x 20 ft room seating up to 10 people uses the phone on the table with 360-degree pickup. The phone registers natively to Cisco Unified Communications Manager 12.0(1) and later.
A huddle or project room without a wired drop at the table runs the phone on Wi-Fi with the Power Adapter. The radio in this base also supports the wireless microphone kits.
A long boardroom links two 8832 bases with the daisy-chain kit and wireless microphones to cover up to 20 x 57 ft. The two phones act as one conference endpoint.
Product Comparison
|
Parameter |
CP-8832-K9 |
CP-8832-W-K9 | |
|---|---|---|---|
|
Color |
Charcoal |
White |
Charcoal |
|
Regional scope |
North America |
North America |
No-radio version for worldwide use |
|
Display |
480 x 128 pixel backlit color LCD |
480 x 128 pixel backlit color LCD |
480 x 128 pixel backlit color LCD |
|
Wi-Fi |
Supported |
Supported |
Not supported |
|
Wireless extension microphones |
Supported |
Supported |
Not supported |
|
Power over Ethernet |
IEEE PoE Class 3 |
IEEE PoE Class 3 |
IEEE PoE Class 3 |
|
Base room coverage |
20 x 20 ft with up to 10 participants |
20 x 20 ft with up to 10 participants |
20 x 20 ft with up to 10 participants |
|
CUCM license |
Enhanced User Connect License |
Enhanced User Connect License |
Enhanced User Connect License |
CP-8832-K9 is the radio-capable charcoal 8832 base for North America, while CP-8832-NR-K9 is the same charcoal base without the radio, so it cannot use Wi-Fi or the wireless microphone kits. Cisco requires the NR model in China, Taiwan, Brazil, India, Indonesia, Korea, the Philippines and Thailand. CP-8832-W-K9 differs only in its white color. The wired kit CP-8832-MIC-WIRED= fits any of the three and lifts coverage from 20 x 20 ft and 10 people to 20 x 34 ft and 22 people. Wireless kits such as CP-8832-MIC-WLS= apply only to CP-8832-K9 and CP-8832-W-K9, and wired and wireless kits cannot be mixed.
Ordering Checklist
- Power option: Select one of CP-8832-POE=, CP-8832-ETH= or CP-8832-PWR=; a Wi-Fi deployment must use the Power Adapter. The base includes one adapter option, and a wrong choice leaves a Wi-Fi room without a valid power path.
- Microphone kit: Order CP-8832-MIC-WIRED= or the CP-8832-MIC-WLS= family, not both. Wired and wireless microphones cannot be mixed on one phone.
- Daisy-chain kit: Order CP-8832-DC= (or CP-8832-DC-EU=, CP-8832-DC-AUNZ=) with two 8832 phones. Daisy chain supports only two phones and does not support PoE.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CP-8832-K9 | Product type | IP conference phone |
| Color | Charcoal | Regional scope | North America |
| Included package | Adapter with 9.8-ft (3-m) USB-C cable | Base room coverage | 20 x 20 ft room with up to 10 participants |
| Expanded room coverage | 20 x 57 ft with two 8832 bases, daisy-chain kit, and wireless microphones | Display | 480 x 128 pixel backlit 24-bit color LCD, 3.9 in. diagonal |
| Ethernet interface | 10/100BASE-T via Ethernet injector | PoE class | IEEE PoE Class 3 |
| PoE compatibility | IEEE 802.3af and IEEE 802.3at switch blades | Wired power option | Cisco IP Conference Phone 8832 PoE Adapter or non-PoE Ethernet Adapter |
| Wi-Fi power option | Cisco IP Conference Phone 8832 Power Adapter | CUCM license | Enhanced User Connect License |
| Call control support | Native support in Cisco Unified Communications Manager 12.0(1) | DevPack support | DevPack required for Cisco Unified Communications Manager 10.5.2, 11.0, and 11.5 |
| Signaling protocol | Session Initiation Protocol | Network protocols | IPv4, IPv6, DHCP, DNS, TFTP, HTTPS, VLAN, RTP, RTCP, CDP, and LLDP |
| Audio codec support | G.711, G.722, G.729a, G.729ab, iLBC, and OPUS | Wireless extension microphones | Supported on Cisco IP Conference Phone 8832 |
| No-radio alternative | CP-8832-NR-K9 does not support Wi-Fi, wireless expansion microphones, or Bluetooth | Daisy-chain kit | Two 8832 base units require CP-8832-DC= for North America |
| Operating temperature | 0°C to 40°C (32°F to 104°F) | Operating humidity | 10% to 90%, noncondensing |
| Dimensions | 10.9 x 10.9 x 2.4 in. (278 x 278 x 61.3 mm) | Weight | 4.07 lb (1852 g) |
