CP-8861-K9 – 5-Line IP Phone – Wi-Fi and Bluetooth – Enhanced UCL
0/mo Solds
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
CP-8861-K9 Description

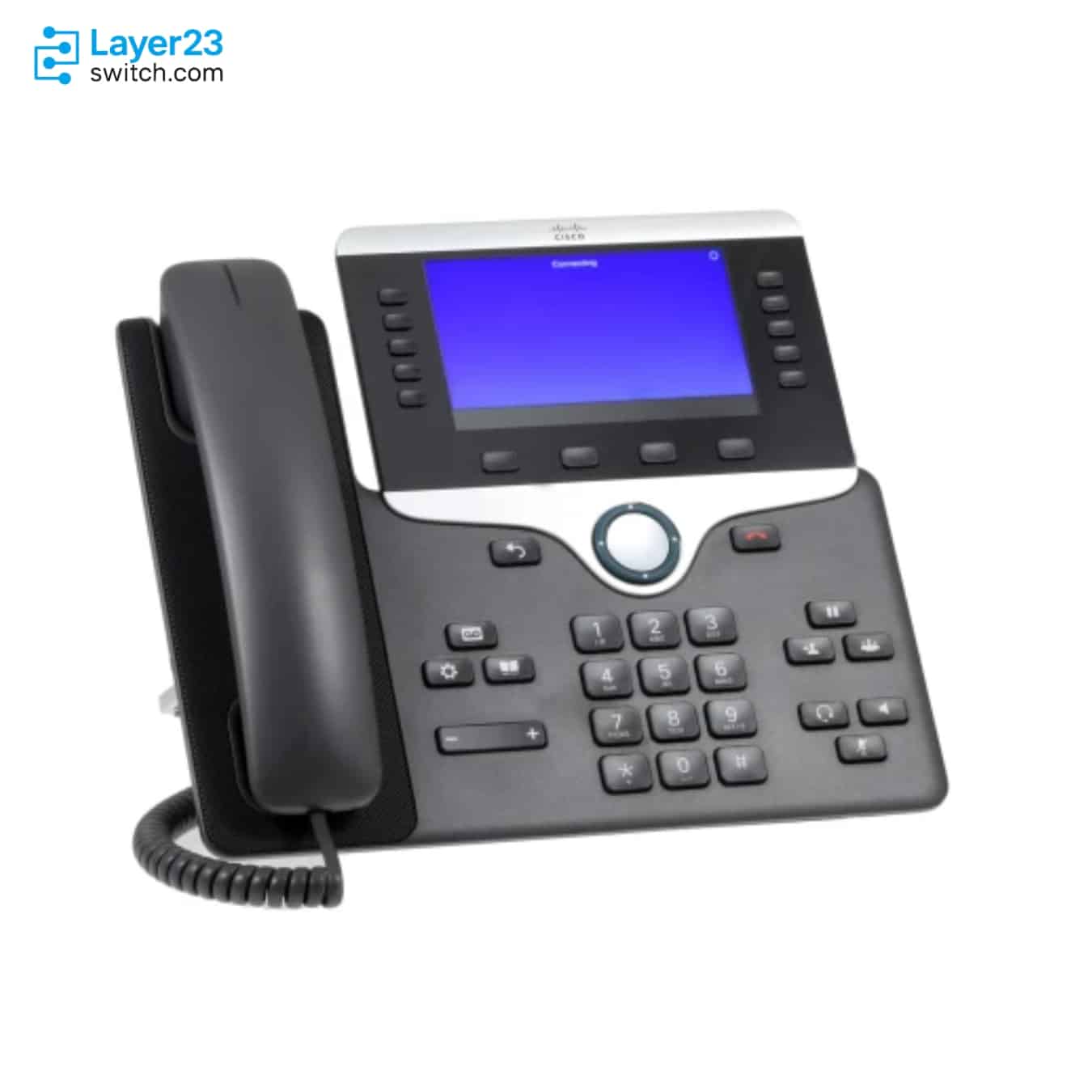

CP-8861-K9 is the Cisco IP Phone 8861 desk phone in the Cisco IP Phone 8800 Series, built for Cisco voice deployments that need five programmable line keys, a 5-inch color WVGA display, Gigabit Ethernet pass-through, Bluetooth headset support, and 802.11a/b/g/n/ac WLAN capability.
For same-model orders, CP-8861-K9 should be matched to the charcoal Cisco ordering path CP-8861-K9=, while CP-8861-W-K9= is the white Cisco IP Phone 8861 option. That color split matters when the endpoint standard must keep the same 8861 feature profile but follow a room design or desk-color requirement.
Quote review should confirm the Cisco ordering PID, Enhanced User Connect License coverage for Cisco Unified Communications Manager, IEEE PoE Class 4 power planning, any Cisco IP Phone 8800 Key Expansion Module requirement, and whether a non-PoE or Wi-Fi placement needs Cisco Power Cube 4 with the correct regional AC cord.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CP-8861-K9 |
|
Cisco ordering ID |
CP-8861-K9= |
|
Product family |
Cisco IP Phone 8800 Series |
|
Product type |
Cisco IP Phone 8861 desk phone |
|
Color path |
Charcoal |
|
Programmable line and feature keys |
5 |
|
Display |
5 in. 800 x 480 24-bit color WVGA display |
|
Wireless LAN |
IEEE 802.11a/b/g/n/ac |
|
Bluetooth |
Bluetooth 3.0 EDR Class 1 up to 66 ft (20 m) |
|
Integrated switch |
Internal 2-port 10/100/1000BASE-T Cisco Ethernet switch |
|
Key expansion module support |
Up to three Cisco IP Phone 8800 Key Expansion Modules |
|
PoE class |
IEEE Power over Ethernet Class 4 |
|
CUCM license |
Enhanced User Connect License |
Application Scenarios
Deploy CP-8861-K9 where the Cisco endpoint standard needs an 8800 Series audio phone with wired Gigabit Ethernet at the desk and a documented 802.11a/b/g/n/ac Wi-Fi client for approved wireless placements.
Use this SKU where one access-switch connection must support both the phone and a co-located PC through the Cisco-documented internal 2-port Gigabit Ethernet switch.
Select CP-8861-K9 for users who may need Cisco IP Phone 8800 Key Expansion Modules, then confirm IEEE PoE Class 4 and local-power requirements before the quote is released.
Product Comparison
|
Parameter |
CP-8861-K9 |
CP-8861-W-K9 |
|---|---|---|
|
Product family |
Cisco IP Phone 8800 Series |
Cisco IP Phone 8800 Series |
|
Cisco ordering ID |
CP-8861-K9= |
CP-8861-W-K9= |
|
Cisco model description |
Cisco IP Phone 8861, Charcoal |
Cisco IP Phone 8861, White |
|
Product type |
Cisco IP Phone 8861 desk phone |
Cisco IP Phone 8861 desk phone |
|
Color path |
Charcoal |
White |
|
Programmable line and feature keys |
5 |
5 |
|
Display |
5 in. 800 x 480 24-bit color WVGA |
5 in. 800 x 480 24-bit color WVGA |
|
Wireless LAN |
IEEE 802.11a/b/g/n/ac |
IEEE 802.11a/b/g/n/ac |
|
Bluetooth |
Bluetooth 3.0 EDR Class 1 |
Bluetooth 3.0 EDR Class 1 |
|
Integrated switch |
10/100/1000BASE-T internal 2-port Cisco Ethernet switch |
10/100/1000BASE-T internal 2-port Cisco Ethernet switch |
|
Key expansion module support |
Up to three Cisco IP Phone 8800 KEMs |
Up to three Cisco IP Phone 8800 KEMs |
|
PoE class |
IEEE Power over Ethernet Class 4 |
IEEE Power over Ethernet Class 4 |
|
CUCM license |
Enhanced User Connect License |
Enhanced User Connect License |
- In a CP-8861-K9 vs CP-8861-W-K9 comparison, the documented difference is the Cisco color order path: CP-8861-K9 maps to the charcoal Cisco IP Phone 8861 path, while CP-8861-W-K9 maps to the white 8861 path.
- The CP-8861-K9 difference from CP-8861-W-K9 is not the phone feature set in this table; both entries keep the same 8861 display, Wi-Fi, Bluetooth, Ethernet, KEM, PoE, and CUCM license facts.
- For buyers deciding which model to choose, the CP-8861-K9 comparison should confirm endpoint color first, then verify the common 8861 power and CUCM entitlement requirements before purchase approval.
Selection Guide
1. Choose CP-8861-K9 for the charcoal 8861 path
Select CP-8861-K9 when the bill of materials calls for the Cisco IP Phone 8861 in the charcoal ordering path with Wi-Fi, Bluetooth, and Gigabit Ethernet pass-through.
2. Use CP-8861-W-K9 for a white same-model endpoint
Move to CP-8861-W-K9 only when the same Cisco 8861 phone profile is required in white for a desk standard, room standard, or visual match.
3. Confirm expansion and power together
Review any Cisco IP Phone 8800 Key Expansion Module plan with IEEE PoE Class 4 and Power Cube 4 requirements so the phone and accessory power path are quoted consistently.
4. Verify CUCM entitlement before release
Check Enhanced User Connect License coverage and the supported Cisco Unified Communications Manager baseline before adding CP-8861-K9 to a voice endpoint refresh order.
Ordering Checklist
|
Check Item |
Confirmation Needed |
Ordering Risk |
|---|---|---|
|
Cisco PID |
CP-8861-K9= for Cisco IP Phone 8861, Charcoal |
Prevents substitution with the white CP-8861-W-K9= same-model color path |
|
Exact model evidence |
Cisco EU DoC lists CP-8861-K9 and CP-8861-K9= under Cisco model entries |
Keeps the no-equals catalog SKU tied to an official Cisco model record |
|
Voice entitlement |
Enhanced User Connect License for Cisco Unified Communications Manager |
Avoids hardware arriving without the documented CUCM license requirement |
|
Power path |
IEEE PoE Class 4 or Cisco Power Cube 4 with a matching AC country cord |
Separates PoE desks from non-PoE and Wi-Fi placements that need local power |
|
Wireless design |
802.11a/b/g/n/ac WLAN support with local regulatory channel limits |
Prevents the phone order from being treated as a wired-only endpoint plan |
|
Expansion plan |
Up to three Cisco IP Phone 8800 Key Expansion Modules |
Keeps KEM quantity and phone power planning aligned before quote approval |

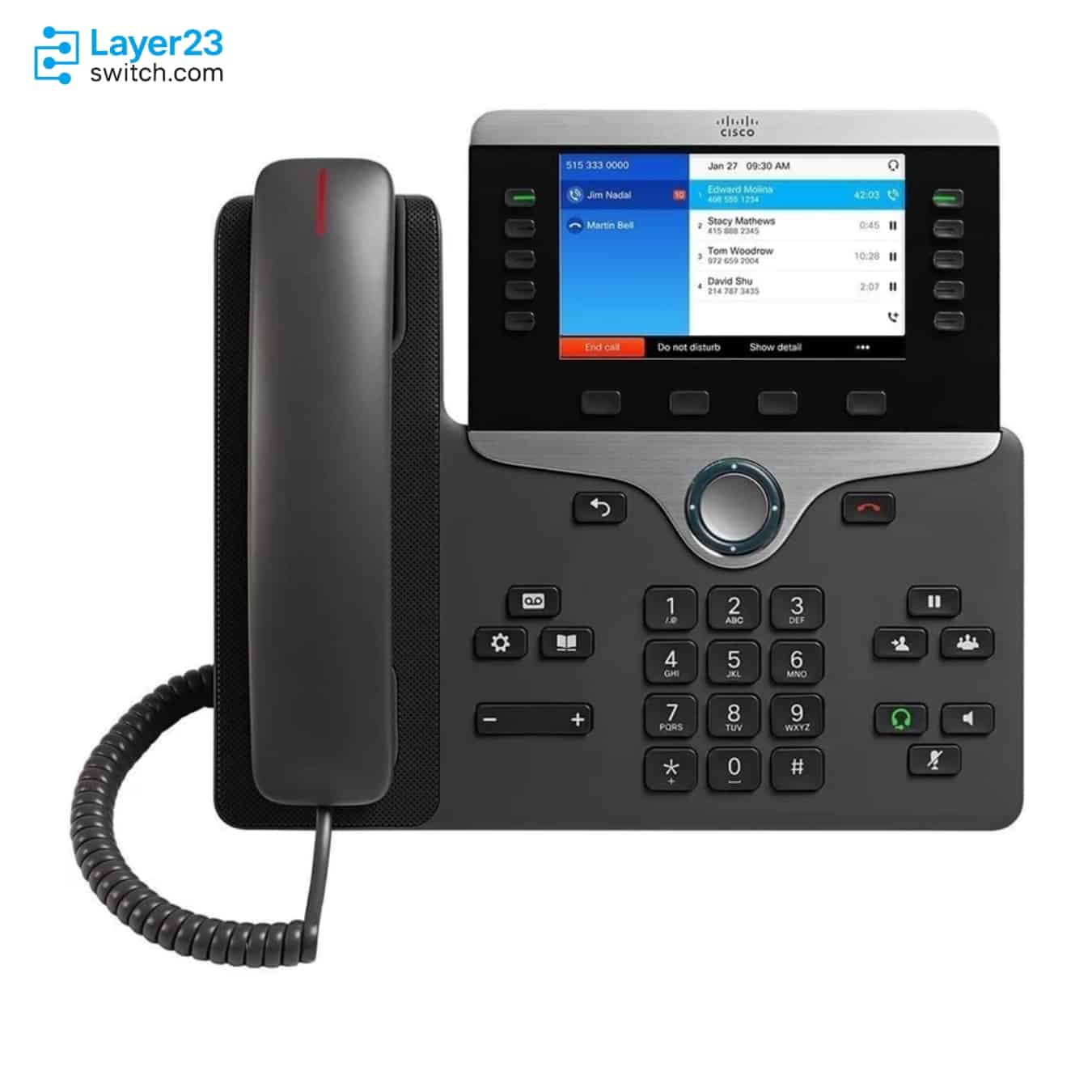

Product Front
The following table describes the Cisco IP Phone 8800 Series Buttons.
The Cisco IP Phone 8800 Series has two distinct hardware types:
- Cisco IP Phones 8811, 8841, 8851, 8851NR, and 8861—do not have a camera.
- Cisco IP Phones 8845, 8865, and 8865NR—have a built-in camera.
|
1 |
Incoming call or voicemail indicator |
|
2 |
Camera (Cisco IP Phone 8845 and 8865) |
|
3 |
Feature and session buttons |
|
4 |
Softkeys |
|
5 |
Back, Navigation cluster, and Release |
|
6 |
Hold, Transfer, and Conference |
|
7 |
Headset, Speakerphone, and Mute |
|
8 |
Voicemail, Applications, and Directory |
|
9 |
Volume |
Specifications
Packaging weight and dimensions included:| Weight | 2.21 kg |
|---|---|
| Dimensions | 28 × 25 × 12 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Cisco | Product ID | CP-8861-K9 |
| Cisco ordering ID | CP-8861-K9= | Product family | Cisco IP Phone 8800 Series |
| Product type | Cisco IP Phone 8861 desk phone | Color path | Charcoal |
| Same-model color SKU | CP-8861-W-K9= is Cisco IP Phone 8861, White | Programmable line and feature keys | 5 |
| Display | 5 in. 800 x 480 24-bit color WVGA display | USB ports | Two USB ports |
| Wireless LAN | IEEE 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac | Bluetooth | Bluetooth 3.0 EDR Class 1 up to 66 ft (20 m) |
| Bluetooth profiles | Hands-Free Profile and Phone Book Access Profile | Mobile integration | Cisco Intelligent Proximity audio path, call history, and contact synchronization |
| Ethernet switch | Internal 2-port 10/100/1000BASE-T Cisco Ethernet switch | PC connectivity | Single LAN connection for phone and co-located PC |
| Key expansion module support | Up to three Cisco IP Phone 8800 KEMs | Expansion button range | From 5 to 113 line buttons with KEMs |
| PoE class | IEEE Power over Ethernet Class 4 | PoE standards | Compatible with IEEE 802.3af and IEEE 802.3at switch blades |
| Power input rating | 0.917A, 48V DC | Local power option | Cisco IP Phone Power Cube 4 with corresponding AC country cord |
| CUCM support | Cisco Unified Communications Manager 12.5 and later | Unified CME support | 10.0 and later through fast track |
| BE 6000 support | 8.6.2, 9.1.2, 10.5.2, 11.0 and later | HCS support | 8.6.2 and later using supported UCM versions |
| CUCM license | Enhanced User Connect License | Signaling protocol | Session Initiation Protocol |
| Codec support | G.711, G.722, G.722.2, G.729ab, iLBC, iSAC, OPUS | QoS and discovery | Cisco Discovery Protocol, 802.1Q/p, LLDP-MED, and switch speed auto-negotiation |
| Headset control | Electronic hookswitch through USB, auxiliary port, or Bluetooth pairing | Security slot | Kensington Security Slot compatible |
| Foot-stand positions | 35 degrees and 50 degrees | Wall mounting | Optional wall-mount kit available separately |
| Dimensions | 9.02 x 10.13 x 1.57 in. excluding foot stand | Weight | 2.62 lb (1.19 kg) |
| Operating temperature | 32 to 104 degrees F (0 to 40 degrees C) | Operating humidity | 10% to 90%, noncondensing |
| Phone casing composition | Polycarbonate ABS textured plastic | Bezel | Black bezel included, optional silver bezel orderable separately |
