CP-7832-K9 – Conference Phone – 360-Degree Mic Coverage – Enhanced UCL
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
CP-7832-K9 Description

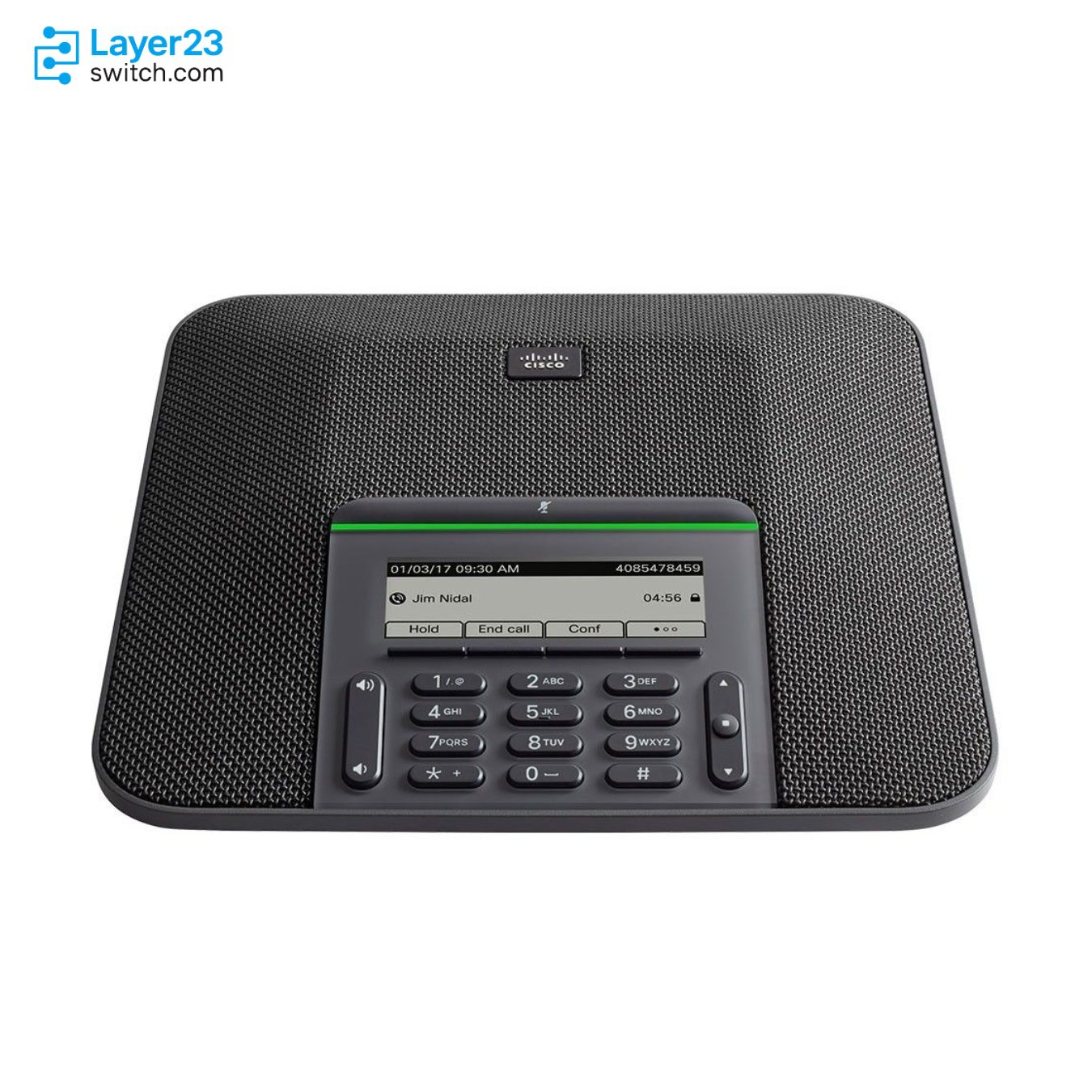

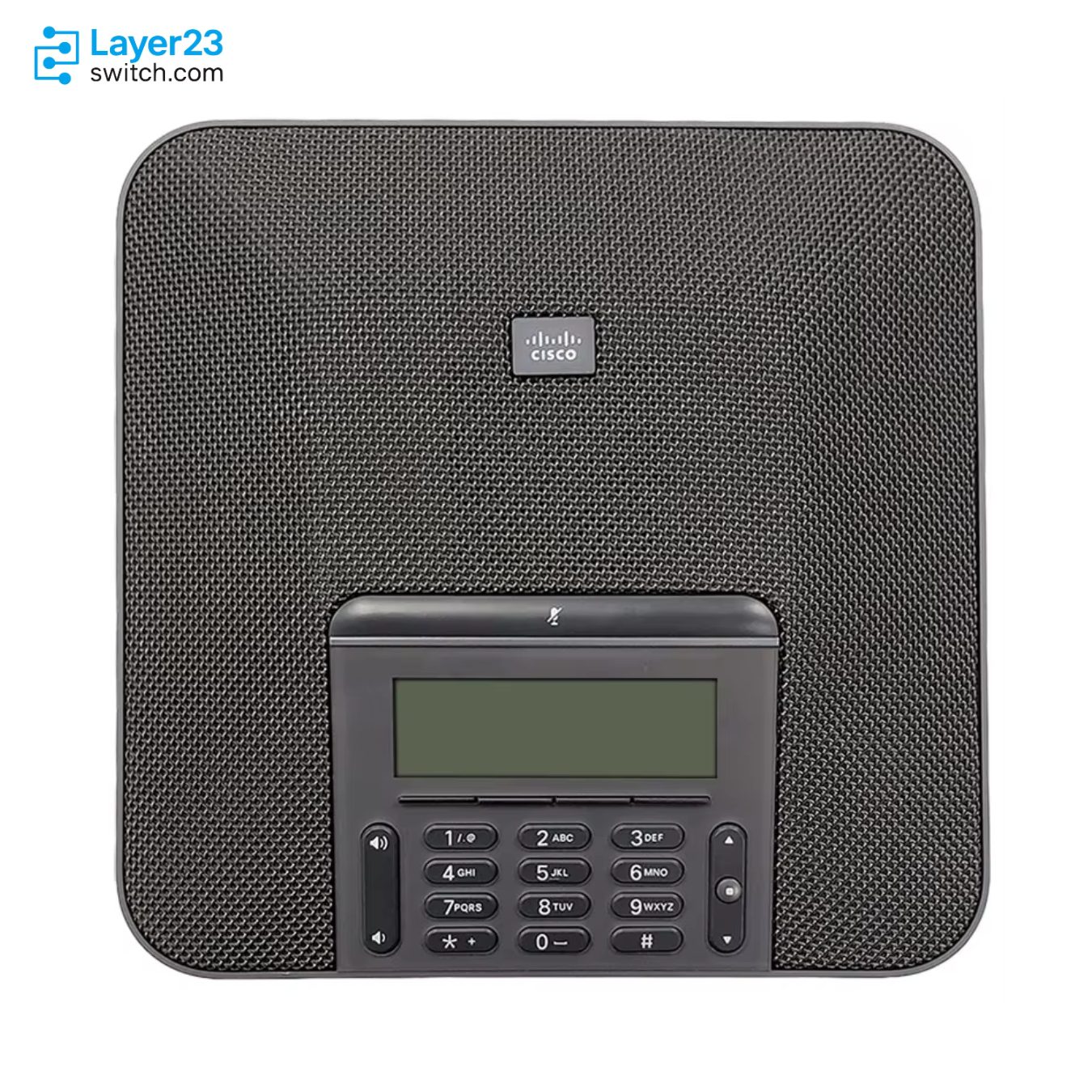

CP-7832-K9 is the Cisco IP Conference Phone 7832 in Cisco Smoke, a single-line IP conference phone for executive offices, huddle rooms, and small meeting rooms using Cisco Unified Communications Manager or Cisco Hosted Collaboration Solution. It provides 360-degree microphone coverage up to 7 ft. (2.1 m), a 3.4 in. 384 x 128 monochrome LCD, 10/100BASE-T Ethernet, IEEE 802.3af PoE Class 2 power, and Enhanced User Connect License support for Cisco call-control deployments.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CP-7832-K9 |
|
Product type |
IP conference phone |
|
Color |
Cisco Smoke |
|
Room coverage |
360-degree microphone coverage up to 7 ft. (2.1 m) |
|
Display |
3.4 in. 384 x 128 monochrome LCD with backlit LED and antiglare bezel |
|
Line support |
Single line with multiple calls per line |
|
Ethernet switch |
10/100BASE-T |
|
PoE class |
IEEE 802.3af PoE Class 2 |
|
Power input rating |
0.42A, 48V DC |
|
CUCM license |
Enhanced User Connect License |
|
Call-control support |
Cisco Unified Communications Manager 12.5+ and Cisco Hosted Collaboration Solution 12.5+ |
Application Scenarios
Use CP-7832-K9 where the room needs a Cisco conference phone with 360-degree microphone pickup, a compact footprint, and single-line conference calling instead of an individual desk-phone layout.
Deploy this SKU when the Cisco Unified Communications Manager bill of materials already accounts for Enhanced User Connect License entitlement for the 7832 phone.
Fit CP-7832-K9 into meeting rooms with IEEE 802.3af PoE access switching. For rooms without PoE, keep the separate Cisco 7832 power splitter and Cisco Power Adapter 3 on the quote.
Product Comparison
|
Parameter |
CP-7832-K9 |
CP-7832-W-K9 | |
|---|---|---|---|
|
Cisco ordering ID |
CP-7832-K9= |
CP-7832-W-K9= |
CP-7832-W-K9= |
|
Product description |
Cisco IP Conference Phone 7832 |
Cisco IP Conference Phone 7832 |
Cisco IP Conference Phone 7832 |
|
Color |
Cisco Smoke |
Cisco White |
Charcoal |
|
Product type |
IP conference phone |
IP conference phone |
IP conference phone |
|
Display |
3.4 in. 384 x 128 monochrome LCD |
3.4 in. 384 x 128 monochrome LCD |
480 x 128 pixel backlit 24-bit color LCD, 3.9 in. diagonal |
|
Ethernet switch |
10/100BASE-T |
10/100BASE-T |
10/100BASE-T |
|
PoE class |
IEEE 802.3af PoE Class 2 |
IEEE 802.3af PoE Class 2 |
IEEE PoE Class 3, compatible with IEEE 802.3af and IEEE 802.3at switch blades |
|
CUCM license |
Enhanced User Connect License |
Enhanced User Connect License |
Enhanced User Connect License |
|
Power accessory path |
CP-7832-PWR-SPL= plus Cisco Power Adapter 3 for non-PoE rooms |
CP-7832-PWR-SPL= plus Cisco Power Adapter 3 for non-PoE rooms |
CP-7832-PWR-SPL= plus Cisco Power Adapter 3 for non-PoE rooms |
- In a CP-7832-K9 vs CP-7832-W-K9 comparison, the confirmed difference is color: CP-7832-K9= is Cisco Smoke and CP-7832-W-K9= is Cisco White.
- The CP-7832-K9 difference from CP-7832-W-K9 does not change the 7832 conference-phone role, display, 10/100BASE-T Ethernet, PoE Class 2 requirement, or Enhanced UCL requirement.
- For buyers deciding which SKU to order, the CP-7832-K9 comparison should first confirm room color preference, then verify the same power and CUCM licensing checks used for the white model. CP-8832-K9 is included as an additional same-family comparison point.
Selection Guide
1. Match the room to the conference-phone form factor
Choose CP-7832-K9 when the room needs a 7832 conference endpoint with 360-degree microphone pickup rather than a desk phone with individual line keys.
2. Keep the color PID explicit
Select CP-7832-K9= for Cisco Smoke. Use CP-7832-W-K9= only when the same 7832 phone is required in Cisco White.
3. Confirm call-control and entitlement before ordering
Verify Cisco Unified Communications Manager 12.5+ or Cisco Hosted Collaboration Solution 12.5+ support and plan the Enhanced User Connect License for CUCM registration.
4. Separate PoE rooms from non-PoE rooms
Use the phone directly with IEEE 802.3af PoE when available. Add CP-7832-PWR-SPL= and the correct regional Cisco Power Adapter 3 SKU only for rooms without PoE switching.
Ordering Checklist
|
Check Item |
Confirmation Needed |
Procurement Risk |
|---|---|---|
|
Phone identity |
CP-7832-K9 mapped to Cisco ordering ID CP-7832-K9= |
Prevents the Cisco Smoke 7832 request from being filled with the white 7832 PID |
|
Room profile |
Small meeting room, huddle room, or executive office conference endpoint |
Avoids substituting an individual desk phone for a room audio device |
|
Call-control baseline |
Cisco Unified Communications Manager 12.5+ or Cisco Hosted Collaboration Solution 12.5+ |
Keeps deployment planning tied to Cisco-documented support |
|
CUCM entitlement |
Enhanced User Connect License |
Avoids quoting the phone without the documented CUCM license tier |
|
Power method |
IEEE 802.3af PoE Class 2 or CP-7832-PWR-SPL= with Cisco Power Adapter 3 |
Separates PoE rooms from rooms that need an external power path |
|
Color requirement |
Cisco Smoke for CP-7832-K9= or Cisco White for CP-7832-W-K9= |
Prevents a color-only PID mismatch in room-standardization orders |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CP-7832-K9 | Cisco ordering ID | CP-7832-K9= |
| Product type | IP conference phone | Color | Cisco Smoke |
| Room coverage | 360-degree microphone coverage up to 7 ft. (2.1 m) | Participant fit | Small meeting rooms and executive offices with up to six participants |
| Display | 3.4 in. 384 x 128 monochrome LCD with backlit LED and antiglare bezel | Line support | Single line with multiple calls per line |
| Ethernet switch | 10/100BASE-T | PoE class | IEEE 802.3af PoE Class 2 |
| PoE compatibility | IEEE 802.3af and IEEE 802.3at switch blades | Power input rating | 0.42A, 48V DC |
| Non-PoE power path | CP-7832-PWR-SPL= with Cisco Power Adapter 3 | CUCM license | Enhanced User Connect License |
| CUCM support | Cisco Unified Communications Manager 12.5 and later | Hosted Collaboration support | Cisco Hosted Collaboration Solution 12.5 and later |
| Signaling protocol | Session Initiation Protocol | Audio codec support | G.711, G.722, G.722.2, G.729ab, iLBC, OPUS |
| Speaker frequency | 100 Hz to 20 kHz | Microphone frequency | 100 Hz to 12 kHz +/-3 dB |
| Maximum adjustable volume | 85 dB within 0.5 m | Security support | SHA-256, TLS 1.2, SRTP, HTTPS, SSH, MIC, and 802.1X options |
| Dimensions | 8.90 x 8.90 x 2.14 in. (226 x 226 x 54.4 mm) | Weight | 2.0 lb (0.907 kg) |
| Casing composition | Acrylonitrile Butadiene Styrene textured plastic | Operating temperature | 32 to 104 degrees F (0 to 40 degrees C) |
| Operating humidity | 10% to 90%, noncondensing | Related color PID | CP-7832-W-K9= for Cisco White |
