CP-7841-K9 Description
The CP-7841-K9 is a Cisco IP Phone 7841 desk phone in the 7800 Series for staff who cover several lines and keep a PC on a Gigabit link. The phone has four lines, a 3.5 in. 396 x 162 pixel grayscale display, 10/100/1000BASE-T Ethernet on two RJ-45 ports and IEEE 802.3af Class 1 PoE. The Gigabit ports need four-pair Cat 5, 5e or 6 cabling, and the phone requires an Enhanced User Connect License on Cisco Unified Communications Manager 12.5 and later.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CP-7841-K9 |
|
Product type |
Cisco IP Phone 7841 desk phone |
|
Supported lines |
4 |
|
Display |
3.5 in. 396 x 162 pixel grayscale display |
|
Ethernet switch |
10/100/1000BASE-T with LAN and downstream-device RJ-45 ports |
|
PoE class |
IEEE 802.3af Class 1 |
|
Power input rating |
0.42A, 48V DC |
|
CUCM license |
Enhanced User Connect License |
|
CUCM support |
Cisco Unified Communications Manager 12.5 and above |
|
Handset and headset |
Wideband-capable RJ-9 handset and RJ-9 analog headset port |
|
Dimensions and weight |
207 x 206 x 28 mm, 868 g |
Application Scenarios
At a reception or executive-assistant desk, the four lines let one person answer several extensions from a single phone.
At a workstation with a single cable run, the downstream RJ-45 port connects the PC at 10/100/1000BASE-T, so the computer keeps a Gigabit path through the phone.
In a team area fed from a floor-closet switch, each phone draws IEEE 802.3af Class 1 power from its switch port and registers to Cisco Unified Communications Manager under an Enhanced User Connect License.
Product Comparison
|
Parameter |
CP-7841-K9 | ||
|---|---|---|---|
|
Display |
3.5 in. 396 x 162 pixels |
3.5 in. 396 x 162 pixels |
3.5 in. 396 x 162 pixels |
|
Supported lines |
4 |
2 |
16 |
|
Ethernet switch |
10/100/1000BASE-T |
10/100BASE-T |
10/100BASE-T |
|
CUCM license |
Enhanced User Connect License |
Basic User Connect License |
Enhanced User Connect License |
|
PoE class |
IEEE 802.3af Class 1 |
IEEE 802.3af Class 1 |
IEEE 802.3af Class 1 |
|
Dimensions |
207 x 206 x 28 mm |
207 x 206 x 28 mm |
207 x 265 x 28 mm |
|
Weight |
868 g |
867 g |
1053 g |
CP-7841-K9 is the only 7800 Series phone with 10/100/1000BASE-T Ethernet and carries four lines against two on CP-7821-K9, which stays on 10/100BASE-T. CP-7841-K9 also needs Enhanced User Connect License while CP-7821-K9 needs Basic User Connect License, so a Basic UCL plan should stay with CP-7821-K9 unless the extra lines or Gigabit are required. Positions that need sixteen lines move to CP-7861-K9, which has the same Enhanced UCL but returns to 10/100BASE-T and is larger at 207 x 265 x 28 mm and 1053 g. All three draw IEEE 802.3af Class 1 PoE.
Ordering Checklist
- CUCM license: Order the Enhanced User Connect License for CUCM 12.5 and later. A Basic UCL plan covers only the 7811 and 7821.
- Power for non-PoE ports: Add Cisco Power Adapter 3 in the regional PID for the destination (for example CP-PWR-ADPT-3-NA=, CP-PWR-ADPT-3S-EU= or CP-PWR-ADPT-3S-UK=) plus the matching CP-PWR-CORD-xx= power cord. Without 802.3af PoE the phone has no power source, and the adapter is a regional PID.
- Wall mount: Order CP-7800-WMK= for the 7841; CP-7811-WMK= and CP-7861-WMK= are different kits. A kit for another 7800 Series model will not fit.
- Gigabit cabling: Use Cat 5, 5e or 6 cable with four pairs between the switch and phone. Gigabit needs four pairs; two-pair cable limits the link to 10/100.

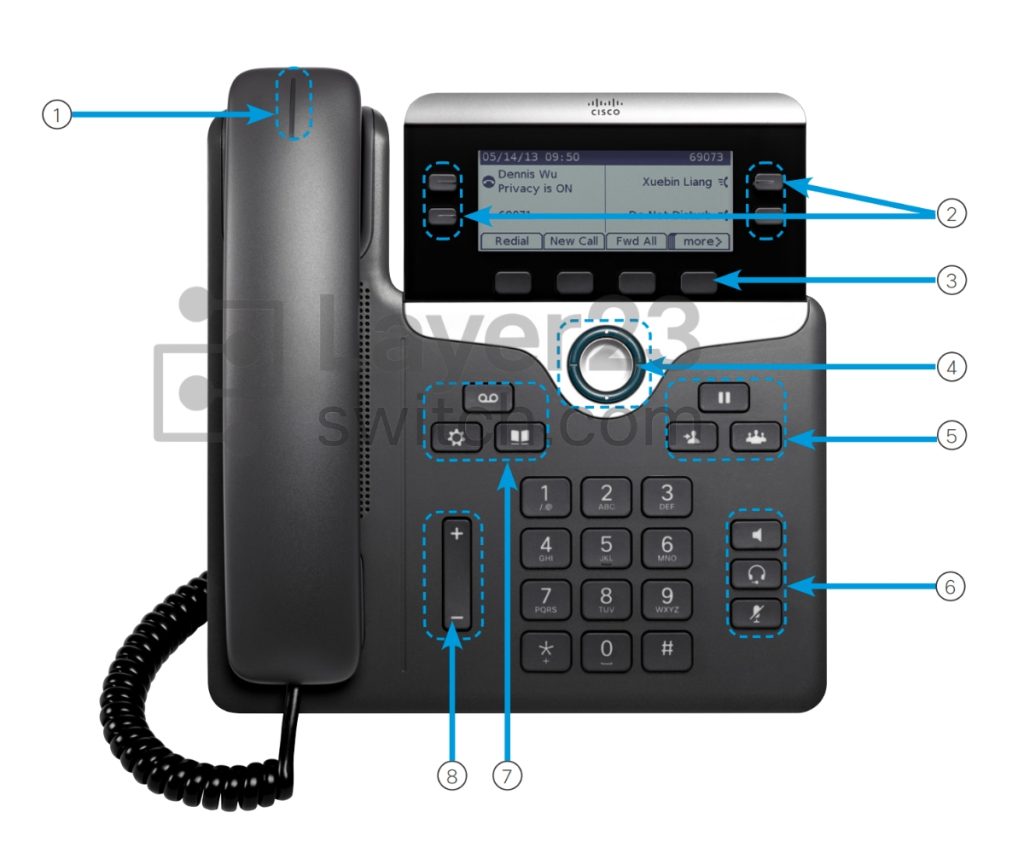

Product Front
The Cisco IP Phone 7800 Series has distinct hardware types:
- Cisco IP Phone 7811 No buttons on either side of the screen
- Cisco IP Phone 7821 Two buttons on the left side of the screen
- Cisco IP Phone 7841 Two buttons on either side of the screen
- Cisco IP Phone 7861 16 buttons at the right edge of the phone
|
1 |
Incoming call or voicemail indicator |
|
2 |
Line and feature buttons |
|
3 |
Softkeys |
|
4 |
Navigation (navigation ring and Select button |
|
5 |
Hold, Transfer, and Conference |
|
6 |
Speakerphone, Headset, and Mute |
|
7 |
Voicemail, Applications, and Directory |
|
8 |
Volume |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CP-7841-K9 | Cisco ordering ID | CP-7841-K9= |
| Product type | Cisco IP Phone 7841 desk phone | Supported lines | 4 |
| Display | 3.5 in. 396 x 162 pixel grayscale display | Ethernet switch | 10/100/1000BASE-T with two RJ-45 ports |
| PoE class | IEEE 802.3af Class 1 | Maximum power consumption | Does not exceed 3.84 W |
| Power input rating | 0.42A, 48V DC | CUCM license | Enhanced User Connect License |
| CUCM support | Cisco Unified Communications Manager 12.5 and above | Hosted collaboration support | Cisco Hosted Collaboration Solution 8.6.2 and later |
| SRST support | Cisco Unified SRST 8.x and later | Signaling protocol | Session Initiation Protocol |
| Codec support | G.711, G.722, G.722.2, G.729ab, iLBC, OPUS | Handset | Wideband-capable RJ-9 handset |
| Headset port | Wideband-capable RJ-9 analog headset port | Speakerphone | Full-duplex speakerphone |
| Foot-stand positions | 30 degrees and 45 degrees | Wall mounting | Optional wall-mount kit |
| Dimensions | 207 x 206 x 28 mm excluding foot stand | Weight | 868 g |
| Operating temperature | 0°C to 40°C (32°F to 104°F) | Operating humidity | 10% to 90%, non-condensing |
| Phone casing composition | Polycarbonate ABS textured plastic | Color options | Charcoal base model, separate white SKU available |
