DP-9871-K9 – 5-inch 1280×720 Touchscreen – 128 Line Capacity – Wi-Fi and Bluetooth Desk Phone
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.

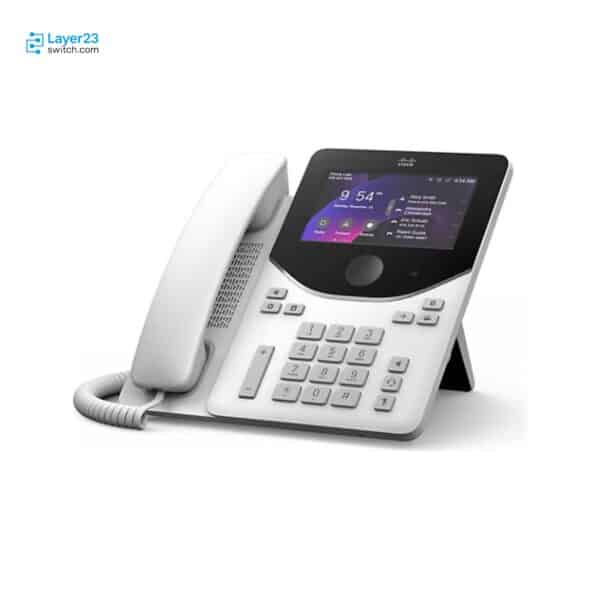

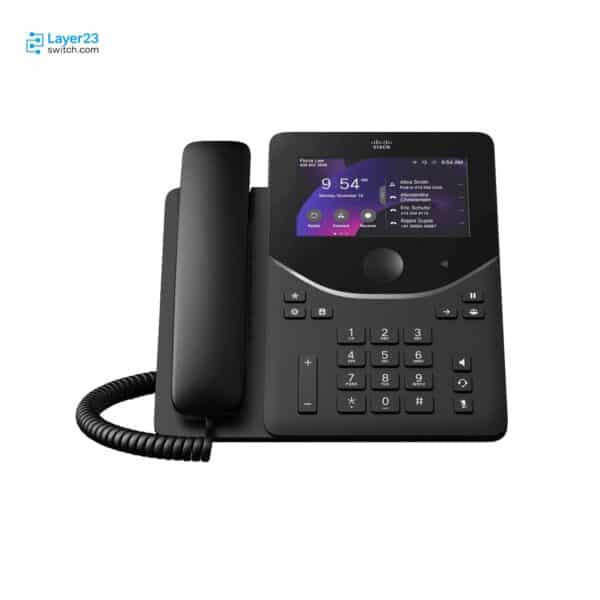

DP-9871-K9 Description
The DP-9871-K9 is a Cisco Desk Phone 9800 Series touchscreen IP phone for assigned offices and shared hot-desk floors. The phone has a 5-inch 1280 x 720 color touchscreen with no physical line keys, up to 128 lines and programmable keys, dual-band 802.11a/b/g/n/ac Wi-Fi with Bluetooth 5.2, and PoE Class 3 power. The phone supports 16 lines on Webex Calling and open SIP platforms, and takes one 9800 KEM on PoE or up to three with Cisco Power Adapter 3.
Quick Specs
|
Product ID |
DP-9871-K9 |
|---|---|
|
Display |
5-inch color touchscreen LCD, 1280×720, backlit |
|
Line capacity |
Up to 128 lines and programmable keys, no physical line keys |
|
Ethernet |
2-port 10/100/1000BASE-T switch with RJ-45 PC passthrough |
|
Wireless |
802.11a/b/g/n/ac dual-band Wi-Fi, Bluetooth 5.2 |
|
Power |
PoE IEEE 802.3af/at Class 3, optional Cisco Power Adapter 3 |
|
Call control |
CUCM 12.5 or later, Webex Calling, Webex Dedicated Instance, Cisco BroadWorks, third-party SIP platforms |
|
Key expansion |
1x 9800 KEM on PoE, up to 3 with Cisco Power Adapter 3 |
Application Scenarios
On an assigned office desk, daily call handling, directory search and calendar interaction run on the 1280 x 720 touchscreen instead of a field of line buttons.
Shared seating areas on Webex-integrated call control let staff sign in at any station through hot desking, and the phone takes on their profile for the day.
Reception counters, lobby desks and temporary workstations without a wired LAN drop can register to call control over dual-band 802.11ac Wi-Fi.
Product Comparison
|
Parameter |
DP-9871-K9 | ||
|---|---|---|---|
|
Display |
5-inch color touchscreen, 1280 x 720 |
5-inch color LCD, 800 x 480 |
3.7-inch color LCD, 480 x 240 |
|
Physical line keys |
None (touchscreen) |
10 |
6 |
|
Line and programmable key capacity |
128 |
130 |
46 |
|
Ethernet |
2-port 10/100/1000BASE-T |
2-port 10/100/1000BASE-T |
2-port 10/100/1000BASE-T |
|
Wi-Fi |
Dual-band 802.11a/b/g/n/ac |
Dual-band 802.11a/b/g/n/ac |
Not available |
|
Bluetooth |
5.2 |
5.2 |
Not available |
|
Power over Ethernet |
IEEE 802.3af/at Class 3 |
IEEE 802.3af/at Class 3 |
IEEE 802.3af/at Class 3 |
|
Key expansion module support |
1 on PoE, up to 3 with Cisco Power Adapter 3 |
1 on PoE, up to 3 with Cisco Power Adapter 3 |
1 maximum |
|
ThousandEyes endpoint agent |
Built in |
Built in |
Not available |
DP-9871-K9 and DP-9861-K9 share the same Wi-Fi, Bluetooth 5.2, KEM rules and built-in ThousandEyes Endpoint Agent, and are separated by the input model: DP-9871-K9 runs a 1280 x 720 touchscreen with no line keys and 128 lines, while DP-9861-K9 has 10 physical line keys on an 800 x 480 display with 130 lines. Desks that rely on hard line keys, or attendant roles near the 130-line ceiling, move to DP-9861-K9. Fully cabled desks that need only 6 line keys and 46 lines can use DP-9851-K9, which has no radios, no ThousandEyes agent and one KEM at most. Sites that bar RF transmitters need the No Radio build DP-9871NR-K9.
Ordering Checklist
- Power source: Supply PoE Class 3 (IEEE 802.3af/at) at the access port, or add the regional Cisco Power Adapter 3 PID such as CP-PWR-ADPT-3-NA= or CP-PWR-ADPT-3-EU=. DP-9871-K9 ships without a power supply, so a non-PoE port with no adapter on the order leaves the phone unpowered.
- Call platform: Use Cisco Unified CM 12.5 or later for on-premises registration, plus any device package the CUCM release needs. An older or unpatched CUCM release does not register the phone.
- Key expansion: Add DP-9800-KEM= modules, with one on PoE Class 3 and up to three on Cisco Power Adapter 3. The adapter is a separate line item, so a multi-module build ordered without it has no power path.
- Wall mounting: Add DP-9800-WMK= for the phone, or DP-9800-WMK-88ADP= to reuse an existing 8800 Series wall position; the mount is not part of the phone order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DP-9871-K9 | Phone model | Cisco Desk Phone 9871, Carbon Black |
| Phone software | Cisco PhoneOS | Cisco ordering ID | DP-9871-K9= |
| Display | 5-inch color touchscreen LCD, 1280×720, backlit | Programmable key capacity | 128, touchscreen operation without physical line keys |
| Navigation | Touchscreen with Home key | Configurable Action button | Up to 3 scenarios, including emergency alert, paging, and web application triggers |
| Ethernet ports | 2-port 10/100/1000BASE-T switch, RJ-45 PC passthrough, 802.1Q VLAN separation | Wi-Fi | 802.11a/b/g/n/ac dual band 2.4/5 GHz, WPA/WPA2/WPA3 personal and enterprise |
| Bluetooth | 5.2 BLE Class 1 with HFP, A2DP, HID, and PBAP profiles | Antenna gain | 3.22 dBi at 2.4 GHz, 4.23 dBi at 5 GHz |
| USB ports | 1x USB-A (2.5W on PoE, 6.5W on local power), 1x USB-C (2.5W) | Handset | RJ-9 connection, hearing aid compatible, FCC Part 68 and ADA compliant |
| Speakerphone | Full-duplex hands-free speakerphone | Audio codecs | OPUS, G.722, G.722.2, iSAC, G.711 a-law/u-law, G.729a/b, iLBC |
| AI audio | Two-way background noise removal, narrowband-to-wideband enhancement | Transcription | In-call and in-meeting transcription with Webex meeting notes |
| Network monitoring | Built-in ThousandEyes Endpoint Agent | Call control support | CUCM, Webex Calling, Webex Dedicated Instance, Cisco BroadWorks, third-party cloud calling; Microsoft SIP Gateway Compatible |
| Minimum CUCM release | 12.5 or later, device package required on some releases | Maximum SIP lines by platform | 130 on CUCM and Webex Dedicated Instance, 16 on Webex Calling and open SIP platforms |
| Calling features | Call waiting, hold/resume, transfer, conference, speed dial, BLF, call pickup, call park, hunt groups, shared lines, voicemail, E.911, Extension Mobility | Webex integration | Unified call history and directory, hybrid calendar, One Button to Push, Webex Companion, hot desking |
| Network protocols | SIP, IPv4/IPv6, DHCP and static addressing, 802.1x with EAP-FAST and EAP-TLS, LLDP-MED, CDP, HTTPS, RTP/RTCP | Security | Secure Boot, image authentication, SUDI, TLS 1.3 signaling, SRTP media encryption, Security-Enhanced Linux, FIPS 140-2/140-3, UCR 2013 |
| Hardware security module | TPM 2.0 | Power | PoE IEEE 802.3af/at Class 3, 0.42A 48V DC input; optional Cisco Power Adapter 3, not included |
| Low-power modes | Display off 4.03W on local power / 3.6W on PoE; deep sleep 0.23W / 0.8W | Energy efficiency | EnergyStar certified, EU Lot-6 and Lot-26 compliant |
| Key expansion module support | 1x 9800 KEM on PoE Class 3, up to 3 with Cisco Power Adapter 3 | Dimensions | 226.0 x 214.0 x 49.4 mm |
| Weight | 1055 g | Footstand spare | DP-9871-FS= |
| Operating temperature | 0 to 40°C | Operating humidity | 10 to 90% noncondensing |
| Languages | Approximately 40 languages, including English, French, German, Spanish, Japanese, Korean, Simplified and Traditional Chinese | Accessibility | Voice Feedback in 5 languages, adjustable font size, ADA-compliant dial pad |
| Sustainability | Over 74% post-consumer recycled plastic, 100% recyclable packaging |
Get More Information
Need pricing, stock, or shipping details for the DP-9871-K9 ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What type of touchscreen phone is DP-9871-K9?
-
How many lines does the DP-9871-K9 touchscreen manage?
-
Does DP-9871-K9 support Wi-Fi and Bluetooth?
-
How does local power change DP-9871-K9 expansion capacity?
-
What is the main interface difference between DP-9871-K9 and DP-9861-K9?
-
How do platform limits affect DP-9871-K9 line capacity?
-
Which call-control systems support DP-9871-K9?
-
When is DP-9871-K9 the wrong 9800 Series choice?
