DP-9861-K9 – 10 Line Keys + 130 Lines – 2x1G Ethernet – Wi-Fi + Bluetooth 5.2 Desk Phone
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.

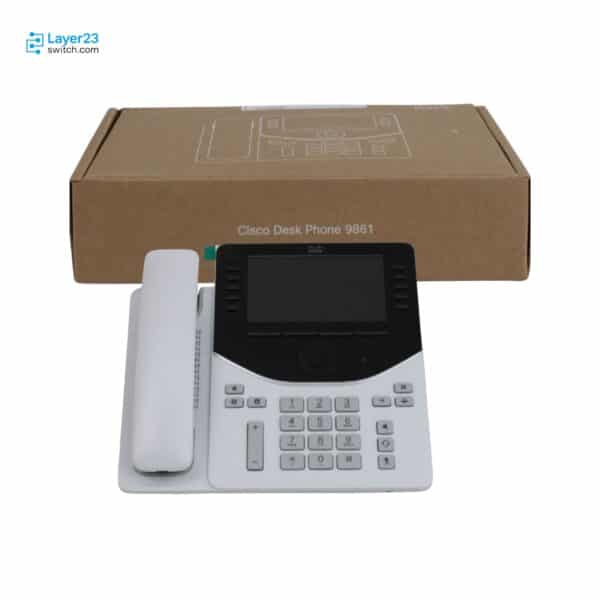

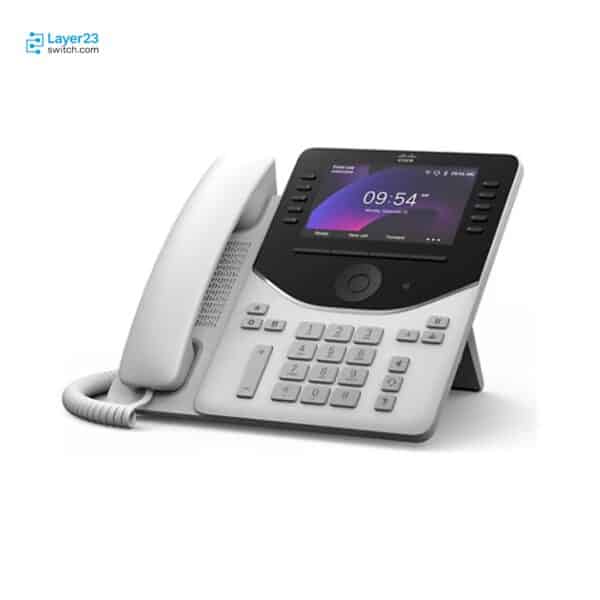

DP-9861-K9 Description
The DP-9861-K9 is a Cisco Desk Phone 9800 Series IP phone for reception and attendant desks that handle many lines at once. The phone has a 5-inch 800 x 480 color display, 10 physical line keys with up to 130 lines, dual-band 802.11a/b/g/n/ac Wi-Fi with Bluetooth 5.2, and PoE Class 3 power. The 130-line ceiling applies on CUCM and Webex Dedicated Instance, while Webex Calling and open SIP platforms limit the phone to 16 lines.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
DP-9861-K9 (Cisco ordering ID DP-9861-K9=) |
|
Display |
5-inch backlit color LCD, 800 x 480 |
|
Line keys |
10 physical line keys, up to 130 lines |
|
Ethernet |
2-port 10/100/1000BASE-T switch with RJ-45 PC pass-through |
|
Wireless |
Dual-band 802.11a/b/g/n/ac Wi-Fi and Bluetooth 5.2 |
|
Power |
PoE Class 3 (IEEE 802.3af/at); optional Cisco Power Adapter 3 |
|
Call control support |
CUCM 12.5 or later, Webex Calling, Webex Dedicated Instance, Cisco BroadWorks |
|
KEM expansion |
1x DP-9800-KEM= on PoE; up to 3 on local power |
Application Scenarios
At a front desk or switchboard position, the operator watches and picks up many lines and colleagues at once from the 10 dedicated hard line keys.
Counters and temporary workpoints with no Ethernet drop can run the phone over dual-band Wi-Fi, with Bluetooth carrying the headset connection.
On unassigned seating in a Webex-integrated office, staff sign in at a free desk and work from their own lines, calendar and call history for the day.
Product Comparison
|
Parameter |
DP-9861-K9 | ||
|---|---|---|---|
|
Display |
5-inch color LCD, 800 x 480 |
3.7-inch color LCD, 480 x 240 |
5-inch color touchscreen, 1280 x 720 |
|
Physical line keys |
10 |
6 |
None (touchscreen) |
|
Line and programmable key capacity |
130 |
46 |
128 |
|
Ethernet |
2-port 10/100/1000BASE-T |
2-port 10/100/1000BASE-T |
2-port 10/100/1000BASE-T |
|
Wi-Fi |
Dual-band 802.11a/b/g/n/ac |
Not available |
Dual-band 802.11a/b/g/n/ac |
|
Bluetooth |
5.2 |
Not available |
5.2 |
|
Power over Ethernet |
IEEE 802.3af/at Class 3 |
IEEE 802.3af/at Class 3 |
IEEE 802.3af/at Class 3 |
|
Key expansion module support |
1 on PoE, up to 3 with Cisco Power Adapter 3 |
1 maximum |
1 on PoE, up to 3 with Cisco Power Adapter 3 |
|
ThousandEyes endpoint agent |
Built in |
Not available |
Built in |
DP-9861-K9 and DP-9871-K9 share the same Wi-Fi, Bluetooth 5.2, KEM rules and built-in ThousandEyes Endpoint Agent, and are separated by the input model: DP-9861-K9 has 10 physical line keys on an 800 x 480 display with 130 lines, while DP-9871-K9 runs a 1280 x 720 touchscreen with no line keys and 128 lines. Attendant and reception desks that watch many lines by hard key stay on DP-9861-K9, and users who prefer touch navigation move to DP-9871-K9. Fully cabled desks that need only 6 line keys and 46 lines can use DP-9851-K9, which has no radios, no ThousandEyes agent and one KEM at most. Sites that bar RF transmitters need the No Radio build DP-9861NR-K9.
Ordering Checklist
- Power source: Supply PoE Class 3 (IEEE 802.3af/at) at the access port, or add the regional Cisco Power Adapter 3 PID such as CP-PWR-ADPT-3-NA= or CP-PWR-ADPT-3-EU=. DP-9861-K9 ships without a power supply, so a non-PoE port with no adapter on the order leaves the phone unpowered.
- Call platform: Use Cisco Unified CM 12.5 or later for on-premises registration, plus any device package the CUCM release needs. An older or unpatched CUCM release does not register the phone.
- Key expansion: Add DP-9800-KEM= modules, with one on PoE Class 3 and up to three on Cisco Power Adapter 3. The adapter is a separate line item, so a multi-module build ordered without it has no power path.
- Wall mounting: Add DP-9800-WMK= for the phone, or DP-9800-WMK-88ADP= to reuse an existing 8800 Series wall position; the mount is not part of the phone order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DP-9861-K9 | Cisco ordering ID | DP-9861-K9= |
| Phone software | Cisco PhoneOS | Display | 5-inch backlit color LCD, 800 x 480 |
| Physical line keys | 10 | Programmable key capacity | 130 |
| Maximum SIP lines | 130 on CUCM and Webex Dedicated Instance; 16 on Webex Calling and Open SIP platforms | Fixed keys | Calendar key, configurable Action button (up to 3 scenarios), 4-way navigation with Select |
| Ethernet | 2-port 10/100/1000BASE-T switch, RJ-45 PC pass-through, 802.1Q VLAN separation | Wi-Fi | Dual-band 802.11a/b/g/n/ac (2.4/5 GHz), WPA/WPA2/WPA3 personal and enterprise |
| Wi-Fi enterprise authentication | EAP-FAST, PEAP-GTC, PEAP-MSCHAPv2, EAP-TLS | Antenna gain | 3.06 dBi at 2.4 GHz, 4.11 dBi at 5 GHz |
| Bluetooth | 5.2, BLE Class 1 (HFP, A2DP, HID, PBAP) | USB ports | 1x USB-A (2.5W on PoE, 6.5W on local power), 1x USB-C (2.5W) |
| Handset | Wideband RJ-9 handset, hearing aid compatible (FCC Part 68, ADA) | Speakerphone | Full-duplex speakerphone |
| Audio codecs | OPUS, G.722, G.722.2, iSAC, G.711 a-law/u-law, G.729a/b, iLBC | AI audio | Two-way background noise removal, narrowband-to-wideband enhancement, Cisco headset smart pairing |
| Transcription | In-call and in-meeting transcription, Webex meeting notes | Network monitoring | Built-in ThousandEyes Endpoint Agent |
| Call control support | CUCM 12.5 or later, Webex Calling, Webex Dedicated Instance, Cisco BroadWorks, third-party cloud calling platforms | Interoperability | Microsoft SIP Gateway compatible, Asterisk interoperability certified |
| Network protocols | SIP, IPv4/IPv6, DHCP/static addressing, 802.1x (EAP-FAST, EAP-TLS), LLDP-MED, CDP, HTTPS, RTP/RTCP | Security | Secure Boot, image authentication, SUDI, TLS 1.3 signaling, SRTP media encryption, FIPS 140-2/140-3, UCR 2013, Security-Enhanced Linux |
| Hardware security module | TPM 2.0 | Power | PoE IEEE 802.3af/at Class 3, rated input 0.42A at 48V DC; no power supply included |
| Local power option | Cisco Power Adapter 3 (regional PIDs, for example CP-PWR-ADPT-3-NA= or CP-PWR-ADPT-3-EU=) | Low-power modes | Display off 3.26W on PoE / 3.48W on local power; deep sleep 0.79W on PoE / 0.27W on local power |
| Energy compliance | EnergyStar certified, EU Lot-6/Lot-26 | Key expansion | DP-9800-KEM= over USB-A; 1 KEM on PoE Class 3, up to 3 KEMs on Cisco Power Adapter 3 |
| Calling features | Call waiting, hold/resume, music on hold, call forward, transfer, conference, speed dial, BLF, call pickup, call park, hunt group, shared lines, voicemail, E.911, intercom, recording, Extension Mobility (varies by platform) | Webex integration | Unified call history, unified directory, hybrid calendar, one-button meeting join, Webex Companion, hot desking |
| Languages | About 40 languages, including English, Simplified and Traditional Chinese, French, German, Spanish, Japanese, Korean | Accessibility | Voice Feedback in 5 languages, adjustable font size, ADA-compliant dial pad |
| Dimensions (H x W x D) | 226.0 x 230.0 x 49.4 mm | Weight | 1095 g |
| Operating environment | 0 to 40°C, 10-90% noncondensing humidity | Sustainability | Over 74% post-consumer recycled plastics, 100% recyclable packaging |
| Ordering variants | First Light DP-9861-L-K9=, No Radio DP-9861NR-K9=, TAA DP-9861-K9++= and DP-9861NR-K9++=, Arabic keypad DP-9861-A-K9= | Wall-mount kit | DP-9800-WMK= |
| 8800 wall-position adapter | DP-9800-WMK-88ADP= | Spare handset | DP-9800-HS= |
| Handset cord | DP-9800-CORD= | Footstand | DP-9861-FS= |
