DP-9800-KEM – 40 Programmable Keys – 5-Inch Color LCD – 9800 Series Phone Expansion Module
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
DP-9800-KEM Description

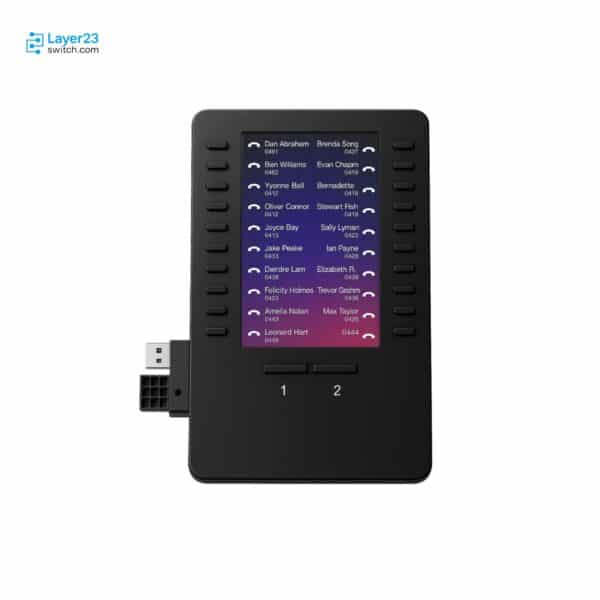

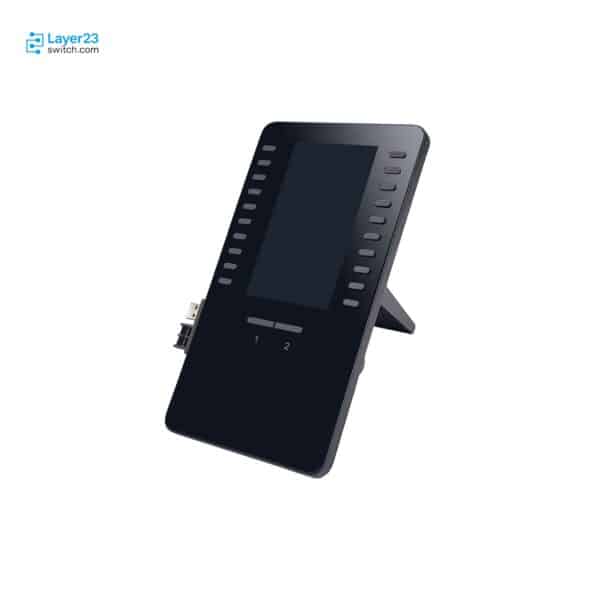

The DP-9800-KEM is a Cisco Desk Phone 9800 Series key expansion module that adds programmable line, speed-dial and feature keys beside a compatible desk phone. The module has a 5-inch backlit color LCD at 480 x 800 with 20 physical keys across 2 pages, which gives 40 programmable positions, and it measures 226.0 x 126.0 x 48.5 mm at 483 g. The module has no power supply of its own and draws power from the host phone over USB-A, and it does not work with the DP-9811-K9 or DP-9841-K9.
Quick Specs
|
Product ID |
DP-9800-KEM |
|---|---|
|
Display |
5-inch backlit color LCD, 480 x 800 |
|
Programmable keys |
20 physical keys across 2 pages, 40 positions |
|
Compatible phones |
DP-9851-K9, DP-9861-K9, DP-9871-K9 |
|
Modules per phone |
1 on PoE Class 3; up to 3 on DP-9861-K9 and DP-9871-K9 with Cisco Power Adapter 3 |
|
Power input |
Fed by the host phone over USB-A; no dedicated power supply |
|
Wall mounting |
DP-9800-KEM-WMK= wall mount kit |
Application Scenarios
At a lobby or front desk, the operator maps frequently dialed extensions across the module’s 40 key positions beside a DP-9851-K9 or DP-9861-K9 to answer, screen and transfer calls for the whole office.
On an assistant’s desk, the module gives each manager’s shared line its own labeled key next to a DP-9871-K9, so line status stays visible without paging through the phone screen.
At a ward or clinical station with no free desk surface, the module mounts beside a wall-mounted phone with its own wall mount kit and gives staff keys for several departments.
Selection Guide
DP-9800-KEM attaches to DP-9851-K9, which takes one module, and to DP-9861-K9 and DP-9871-K9, which take one module on PoE Class 3 or up to three on Cisco Power Adapter 3. Desks with DP-9811-K9 or DP-9841-K9 cannot use it and need a host change to one of those three phones. A desk that needs more than 40 key positions requires DP-9861-K9 or DP-9871-K9 on local power.
Ordering Checklist
- Host phone: Pair the module with DP-9851-K9 (1 module), DP-9861-K9 or DP-9871-K9 (1 on PoE Class 3, up to 3 on Cisco Power Adapter 3). DP-9811-K9 and DP-9841-K9 do not support the module, and it draws power from the host phone.
- Local power for 3 modules: Add Cisco Power Adapter 3 in the regional PID, such as CP-PWR-ADPT-3-NA= or CP-PWR-ADPT-3-EU=, on DP-9861-K9 or DP-9871-K9 hosts. Without the adapter the host phone limits the desk to 1 module.
- Wall mount: Add DP-9800-KEM-WMK= for a module beside a wall-mounted phone; the module has its own wall mount kit, separate from the phone kit.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | DP-9800-KEM | Cisco ordering ID | DP-9800-KEM= |
| Color | Carbon Black | Display | 5-inch color LCD, backlit |
| Display resolution | 480 x 800 | Physical keys | 20, with page toggle key |
| Key pages | 2 | Programmable positions | 40 |
| Compatible phones | DP-9851-K9, DP-9861-K9, DP-9871-K9 | Modules on DP-9851-K9 | 1, on PoE Class 3 or Cisco Power Adapter 3 |
| Modules on DP-9861-K9 / DP-9871-K9 | 1 on PoE Class 3; up to 3 with Cisco Power Adapter 3 | Power input | From the host phone over USB-A; no dedicated power supply |
| Downstream USB-A output | 0.75W on PoE hosts; 2.5W on a locally powered DP-9851-K9; 5W on a locally powered DP-9861-K9 or DP-9871-K9; 0.75W in three-module chains | Wall mount kit | DP-9800-KEM-WMK= |
| Dimensions | 226.0 x 126.0 x 48.5 mm | Weight | 483 g |
| Operating temperature | 0 to 40°C | Operating humidity | 10 to 90%, noncondensing |
| Unit package | 25.4 x 17.3 x 8.13 cm; 0.71 kg |
Get More Information
Need pricing, stock, or shipping details for the DP-9800-KEM ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is DP-9800-KEM used for?
-
How many programmable positions does DP-9800-KEM provide?
-
Which desk phones are compatible with DP-9800-KEM?
-
Can DP-9800-KEM deliver 5W to a downstream USB device when its host uses PoE?
-
How does host power affect the DP-9800-KEM module count?
-
Where does DP-9800-KEM receive operating power?
-
Which wall-mount hardware fits DP-9800-KEM?
-
When is DP-9800-KEM the wrong desk-phone accessory?
