CS-BAR-T-C-K9 Description

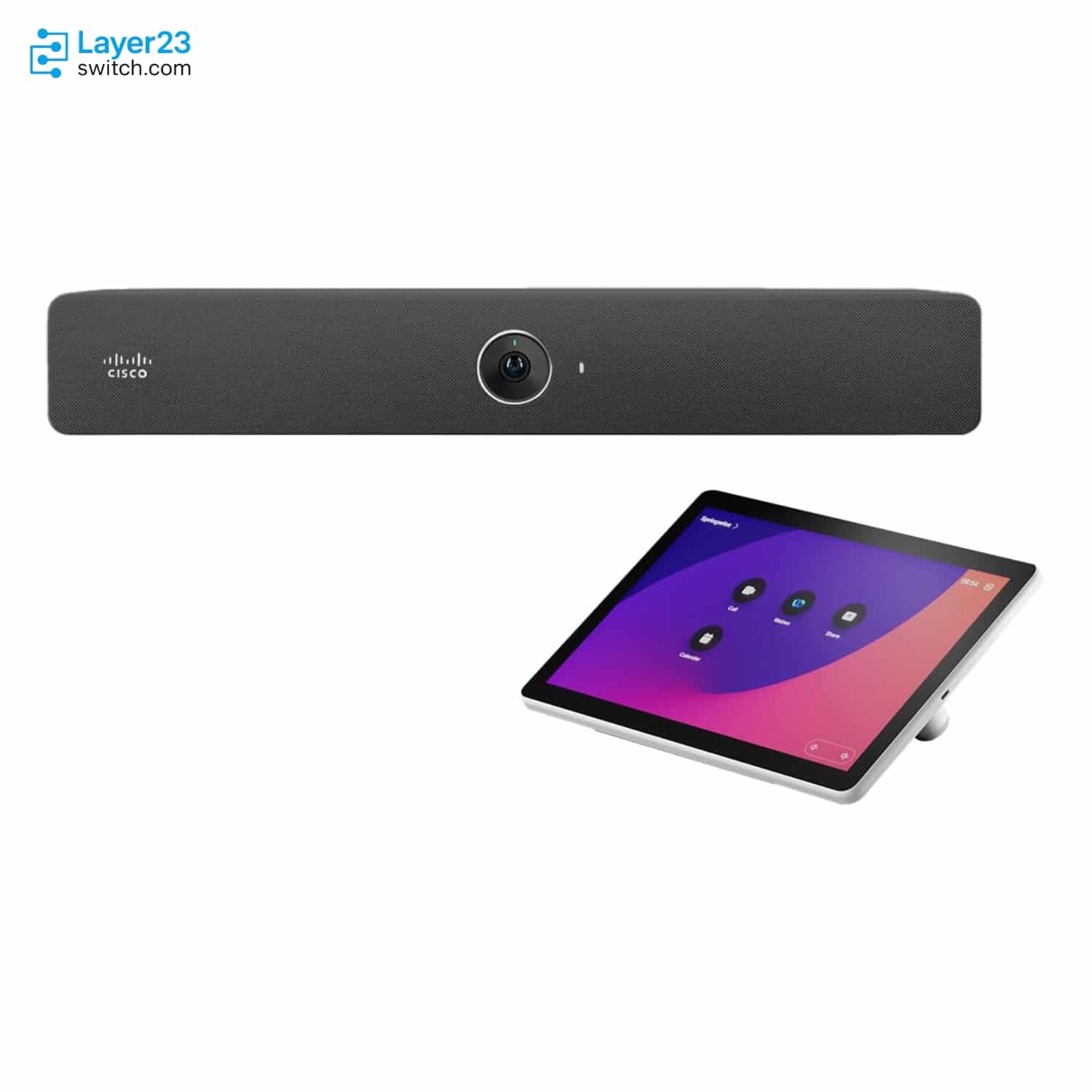

The CS-BAR-T-C-K9 is the Carbon ordering finish of the Cisco Room Bar, supplied in the box with the table-stand Cisco Room Navigator at compliance model TTC7-28. Hardware is identical to the First Light bundle CS-BAR-T-K9; the enclosure colour is the only variable, which makes this part number a catalogue choice rather than a capability one. The bar carries a single 12 MP camera on a 1/2.3 inch CMOS sensor running 30 fps behind a fixed f/2.5 lens with a 120-degree horizontal and 95-degree vertical field of view, backed by 5x digital zoom, auto framing with face detection, speaker tracking and Frames mode for single-person framing. Audio uses a stereo loudspeaker pair of two full-range directional drivers covering 100 Hz to 20 kHz within plus or minus 3 dB at a 93 dB maximum sound pressure level, listening through a 4-element beamforming microphone array plus a front-facing microphone dedicated to speaker tracking. Two HDMI outputs drive displays at 3840 x 2160 at 60 fps, one dedicated PoE Ethernet port pairs the Room Navigator directly, and USB-C passthrough hands the camera, microphone and speakers to a laptop over a single cable. The bundle requires the PSU-12VDC-86W power supply and peaks at 86W.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-BAR-T-C-K9 |
|
Cisco ordering description |
Cisco Room Bar in Carbon colour with table-stand Room Navigator |
|
Camera |
12 MP on a 1/2.3 in CMOS sensor at 30 fps with a fixed f/2.5 lens |
|
Camera field of view |
120 degrees horizontal and 95 degrees vertical with 5x digital zoom |
|
Audio system |
4-element beamforming array with stereo directional speakers at 93 dB maximum SPL |
|
Video outputs |
Two HDMI outputs up to 3840 x 2160 at 60 fps |
|
Controller port |
One PoE Ethernet RJ-45 at 100/1000 Mbps dedicated to Room Navigator pairing |
|
Published room coverage |
Optimized for huddle and small rooms with up to 5 people within 3 metres |
|
Power |
86W peak, 14.3W in call, 7W networked standby, requires PSU-12VDC-86W |
Application Scenarios
Specified across an estate that has settled on one enclosure finish for every meeting room, where the Carbon bundle and the First Light bundle draw on the same TTC7-28 hardware and the same spares list.
Deployed where seating stays within the 3 metre and 5 person coverage that Cisco publishes for the built-in array, so the room needs no external microphone budget alongside the bar.
Used where meetings run from a visitor laptop rather than the room codec, with the single USB-C connection carrying camera, microphone, speakers and content sharing at the same time.
Selection Guide
1. Finish And Controller Form Are Both Fixed At Order Time
CS-BAR-T-C-K9 delivers the Room Bar in Carbon with the table-stand Room Navigator, while CS-BAR-T-K9 delivers the same combination in First Light and CS-BAR-W-C-K9 substitutes the wall-mount Navigator in the same Carbon finish; all of them share compliance model TTC7-28 and an identical bar, so nothing about camera, audio, PoE or display capability moves with the part number. Two boundaries sit outside the finish decision. The published array coverage stops at 5 people within 3 metres and rooms seating beyond that need external microphones costed separately, and the bundle carries no power supply of its own beyond the required PSU-12VDC-86W, which is also the spare part number if a unit needs replacing later. The table stand assumes a cable route to the meeting table exists, because the Navigator pairs over the single dedicated PoE port on the bar rather than over the room LAN.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-BAR-T-C-K9 | Cisco ordering description | Cisco Room Bar in Carbon colour with table-stand Room Navigator |
| Compliance model number | TTC7-28 | Camera | 12 MP on a 1/2.3 in CMOS sensor at 30 fps |
| Camera lens | Fixed focus at f/2.5 aperture | Camera field of view | 120 degrees horizontal and 95 degrees vertical |
| Camera zoom | 5x digital zoom | Camera intelligence | Auto framing with face detection, speaker tracking, automatic brightness and white balance, automatic image rotation when inverted, Frames mode for single-person framing |
| Video standards | H.263, H.264 and AV1 | Video input | One HDMI up to 3840 x 2160 at 30 fps including 1920 x 1080 at 60 fps, and one USB-C up to 3840 x 2160 at 30 fps, both with CEC 2.0 |
| Video outputs | Two HDMI up to 3840 x 2160 at 60 fps with CEC 2.0, supporting touch screens when a USB-A touch signal is attached | Live video resolutions | Encode and decode up to 1920 x 1080 at 30 fps and 60 fps |
| Video stream | 1920 x 1080 at 30 fps | Content stream | 3840 x 2160 at 15 fps, with 3840 x 2160 at 15 fps content decode from Webex |
| Audio standards | G.711, G.722, G.722.1, G.729, AAC-LD and Opus | Audio features | Acoustic echo cancellation, active lip sync, AI noise removal, automatic gain control, beamforming microphone, dereverberation, full duplex, full-band audio, Self-Hear, spatial audio and ultrasound |
| Loudspeaker system | Stereo pair of two full-range drivers with directional audio | Loudspeaker response | 100 Hz to 20 kHz within plus or minus 3 dB at 93 dB maximum sound pressure level |
| Microphone array | 4-element beamforming array with an additional front-facing microphone for speaker tracking | Published room coverage | Optimized for huddle and small meeting rooms with up to 5 people within 3 metres; rooms above 5 people need external microphones, and speaker tracking assumes the furthest participant is within 3 metres |
| Audio inputs | One HDMI, one analogue microphone input, one DisplayPort over USB-C, one USB-A, Bluetooth, and one PoE port carrying audio over IP for a single Cisco IP microphone | Audio outputs | One DisplayPort over USB-C, one USB-A and Bluetooth |
| Network interface | One Ethernet RJ-45 at 100/1000 Mbps for LAN | Controller port | One Ethernet RJ-45 at 100/1000 Mbps with PoE, dedicated to direct pairing of the Cisco Room Navigator |
| Wireless | Wi-Fi 802.11a/b/g/n/ac on 2.4 and 5 GHz with 2×2 MIMO | USB-C passthrough | Camera, microphone and speakers over one USB-C cable with simultaneous content sharing and 3840 x 2160 at 30 fps display extension, requiring Alt-mode DisplayPort on the computer |
| Other interfaces | Bluetooth and Bluetooth Low Energy, one USB 2.0 type A, one micro-USB service port and a factory reset pinhole | Power input | 100 to 240 VAC at 50/60 Hz with 12V DC input, requiring the PSU-12VDC-86W power supply |
| Power consumption | 86W peak, 14.3W in call, 8.2W idle and 7W networked standby | Main unit dimensions | 21 x 3.2 x 2.5 in (53.4 x 8.2 x 6.4 cm) at 3.3 lb (1.5 kg) |
| Packaged dimensions | 23.9 x 9.8 x 7.2 in at 11.5 lb (5.2 kg) with the table-stand Room Navigator | Mounting | Consolidated mounting unit for walls and screens with a gap bar closing the seam, mounted above or beneath the screen and invertible for cable routing with a de-attachable flipped speaker grille |
| Software compatibility | RoomOS 11 or later for native Webex meetings with interoperability for Microsoft Teams, Zoom and Google Meet | Operating temperature | 0 to 35 degrees C at 10% to 90% relative humidity |
| Accessory part number | PSU-12VDC-86W= power supply spare |
