CS-BAR-W-K9 – 12MP Camera 120-Degree View – Wall-Mount Room Navigator – Cisco Room Bar
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

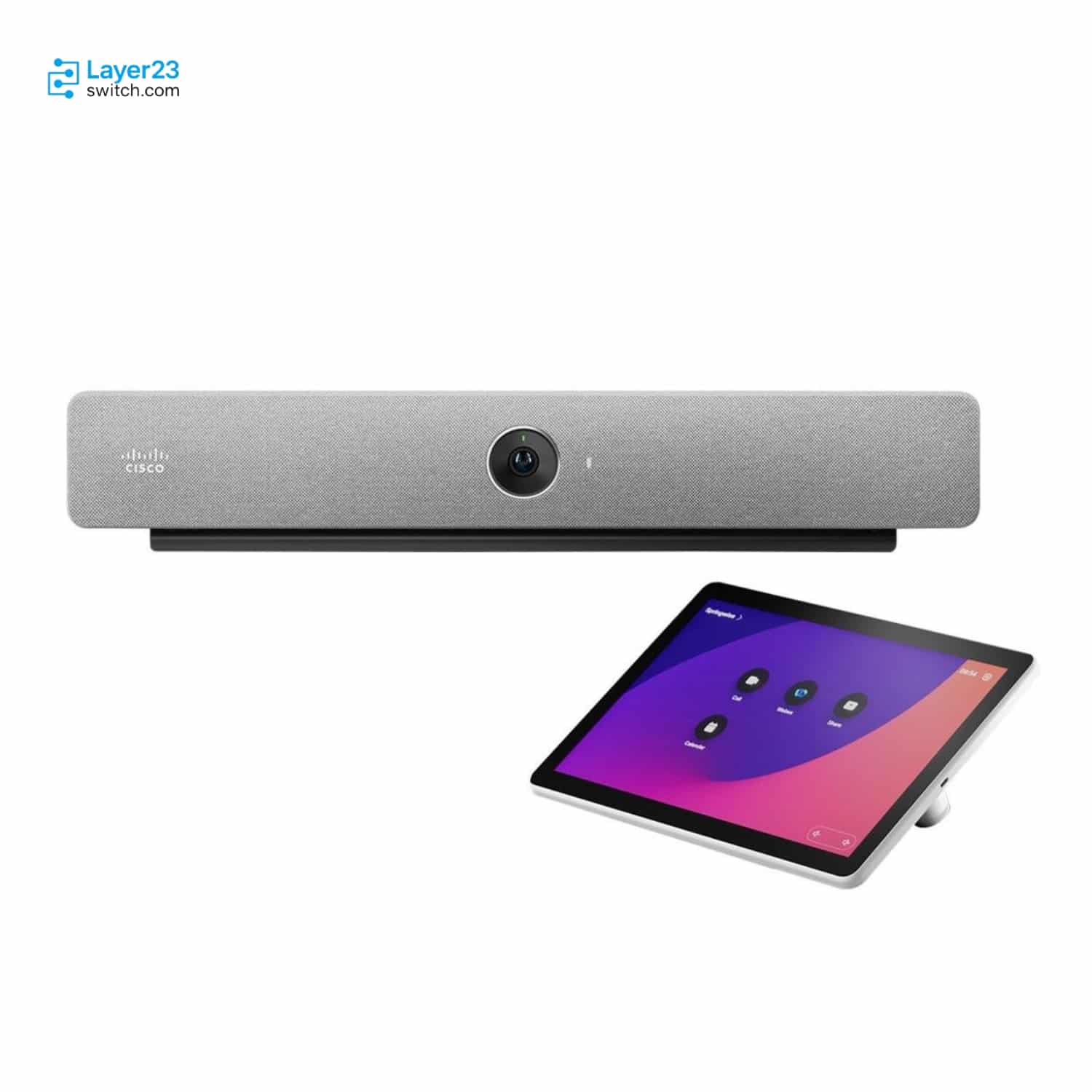

CS-BAR-W-K9 Description
The CS-BAR-W-K9 pairs the Cisco Room Bar in First Light color with a wall-mount Room Navigator rather than a table-stand controller, and carries compliance model TTC7-28. Choosing the wall-mount bundle fixes the control surface beside the room entrance, which suits spaces with movable furniture, no table cable path, or a policy of keeping meeting tables clear. The video bar itself is a single 3.3 lb unit holding a 12MP camera at 30 fps across a 120-degree horizontal and 95-degree vertical field of view, a 4-element beamforming microphone array with front-facing microphones for speaker tracking, and a stereo loudspeaker pair reaching 93 dB maximum sound pressure level. Cisco optimizes that array for up to five people seated within 3 meters. Room sources arrive on one HDMI and one USB-C input, two HDMI outputs drive displays at 3840 x 2160 at 60 fps, and a dedicated PoE Ethernet port on the bar pairs the wall controller directly while a separate RJ-45 port handles the LAN. The unit runs RoomOS 11 or later for native Webex meetings with video interoperability into Microsoft Teams, Zoom and Google Meet.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-BAR-W-K9 |
|
Bundle scope |
Cisco Room Bar in First Light color with wall-mount Room Navigator |
|
Camera |
12MP at 30 fps with 120-degree horizontal and 95-degree vertical field of view |
|
Audio system |
4-element beamforming microphone array with stereo loudspeakers at 93 dB maximum SPL |
|
Video outputs |
Two HDMI outputs up to 3840 x 2160 at 60 fps |
|
Video inputs |
One HDMI and one USB-C, both up to 3840 x 2160 at 30 fps |
|
Network interface |
One Ethernet RJ-45 100/1000 for LAN plus one PoE port for Room Navigator pairing |
|
Power |
12V DC input at 86W peak, 14.3W in an active meeting |
|
Software compatibility |
RoomOS 11 or later with Microsoft Teams, Zoom and Google Meet interoperability |
Product Performance
Key Features
The bundled wall-mount Room Navigator lives beside the door rather than on the table, so rooms with reconfigurable furniture or no floor box keep full touch control without running power or data to a table position.
The bar carries a dedicated PoE Ethernet port for direct Room Navigator pairing, so the wall controller draws power and network from the bar itself and the room needs no separate PoE switch port behind the wall plate.
A 120-degree fixed lens with 5x digital zoom handles auto framing, speaker tracking and Frames mode without a motorized head, which removes moving optics from a wall-mounted install that is awkward to service.
USB-C passthrough delivers the camera, microphone and speakers to a connected computer while carrying content on the same cable, so sessions hosted on a non-Webex platform still use the room audio and video path.
Cisco states the internal array is tuned for up to five people within 3 meters and recommends external microphones beyond that, giving a published boundary for deciding whether a room needs added audio before the bar is specified.
A Manufacturer Installed Certificate signed by Cisco supports Certificate Authority Proxy Function onboarding to Cisco UCM, and user certificates cover IEEE802.1x, Wi-Fi, HTTPS and SIP-TLS for sites that authenticate every endpoint on the wire.
Application Scenarios
Installed where tables are moved or removed between sessions, with the controller fixed to the wall so the room layout can change without disturbing the control position or its cabling.
Deployed in rooms whose fit-out has no floor box or table grommet, letting the touch controller mount to a wall surface fed from the bar’s own PoE port.
Placed in shared or client-facing rooms where policy keeps meeting surfaces clear of fixed devices, leaving only the wall controller and the bar mounted at the display.
Product Comparison
|
Parameter |
CS-BAR-W-K9 |
CS-BAR-W-C-K9 | |
|---|---|---|---|
|
Cisco ordering description |
Cisco Room Bar (First Light Color) with wall-mount Room Navigator |
Cisco Room Bar (First Light Color) with table-stand Room Navigator |
Cisco Room Bar (Carbon Color) with wall-mount Room Navigator |
|
Room Navigator form |
Wall mount |
Table stand |
Wall mount |
|
Video bar color |
First Light |
First Light |
Carbon |
|
Compliance model number |
TTC7-28 |
TTC7-28 |
TTC7-28 |
|
Camera |
12MP with 120-degree horizontal field of view |
12MP with 120-degree horizontal field of view |
12MP with 120-degree horizontal field of view |
|
Navigator pairing port |
Dedicated PoE Ethernet port on the bar |
Dedicated PoE Ethernet port on the bar |
Dedicated PoE Ethernet port on the bar |
|
Power in active meeting |
14.3W |
14.3W |
14.3W |
- CS-BAR-W-K9 and CS-BAR-T-K9 ship the identical video bar and differ only in how the bundled Room Navigator is mounted; the wall bundle removes any need for a table cable path, while the table bundle puts control within arm’s reach of the nearest seat.
- CS-BAR-W-C-K9 keeps the wall-mount controller and changes only the bar finish to Carbon, so it answers a room aesthetics requirement without altering camera, audio, port or power figures.
- For deciding which SKU to order, resolve where the controller must physically live before anything else, since that is the only difference with cabling and joinery consequences; the 12MP camera, 120-degree coverage, dual HDMI outputs and 14.3W meeting draw are common to all three.
Selection Guide
1. Wall Control Suits Flexible Layouts
CS-BAR-W-K9 fixes the controller to a wall surface, which keeps it usable when tables move or disappear; a room with a permanent table and an existing floor box gets faster in-reach control from CS-BAR-T-K9 instead, at the cost of a cable run to the table.
2. Carbon Finish Without Capability Change
CS-BAR-W-C-K9 supplies the same wall-mount bundle in Carbon color, so matching a dark room finish costs nothing in capability; projects with no finish specification have no reason to pay attention to this PID.
3. Wireless Presentation Depends On The Radio
CS-BAR-NR-K9 removes the radio for sites that ban on-board wireless, which also removes Miracast sharing and Bluetooth; rooms whose guests present wirelessly should stay on a radio-equipped bundle rather than plan a workaround later.
4. Larger Rooms Need Added Microphones
The internal array is specified for five people within 3 meters, so a deeper room should carry an external microphone in the same order; specifying the bundle alone for a large room defers a known audio gap to acceptance testing.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Controller mounting form |
Confirm the delivered Room Navigator is the wall-mount unit matching this PID. |
The wall and table bundles share the same bar, so a mismatched controller is only discovered when the mounting surface no longer fits. |
|
Wall plate and back box |
Confirm the wall position has a back box or surface path for the controller Ethernet run. |
The controller is fed from the bar’s PoE port, and a wall with no cable route strands the mounting position. |
|
Power supply |
Confirm PSU-12VDC-86W is present, with PSU-12VDC-86W= as the spare part number. |
Cisco requires this specific supply for the Room Bar, so a missing unit leaves the bar unpowered at commissioning. |
|
Display cable count |
Confirm HDMI runs are provisioned for both outputs when the room uses dual screens. |
The bar supports two displays, but a single provisioned run silently limits the room to one screen. |
|
Compliance model |
Confirm the delivered unit reports TTC7-28. |
Separates the Room Bar hardware line from other Cisco video bars that carry different compliance models. |

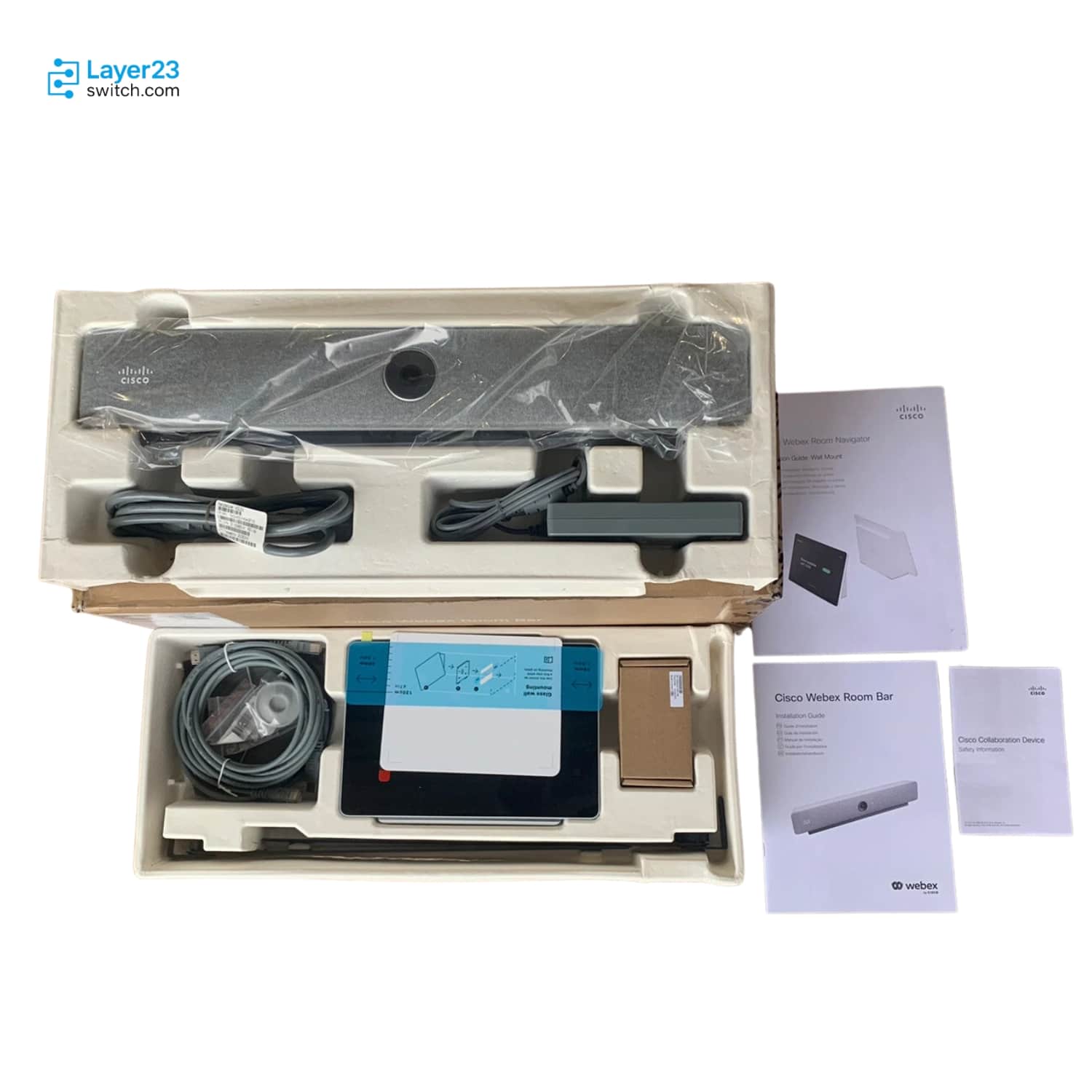

Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-BAR-W-K9 | Cisco ordering description | Cisco Room Bar (First Light Color) with wall-mount Room Navigator |
| Compliance model number | TTC7-28 | Default box components | Cisco Room Bar and Cisco Room Navigator in wall-mount form |
| Camera | 12MP at 30 fps on 1/2.3 in CMOS with fixed focus lens and 5x digital zoom | Camera field of view | 120 degrees horizontal and 95 degrees vertical at f/2.5 |
| Camera intelligence | Auto framing with face detect, speaker tracking, automatic brightness and white balance, Frames camera mode, automatic image rotation when inverted | Video standards | H.263, H.264 and AV1 |
| Video inputs | One HDMI and one USB-C, both up to 3840 x 2160 at 30 fps including 1920 x 1080 at 60 fps, with CEC 2.0 | Video outputs | Two HDMI up to 3840 x 2160 at 60 fps with CEC 2.0 and touchscreen support over USB-A touch signaling |
| Encode and decode | Video stream 1920 x 1080 at 30 fps and content stream 3840 x 2160 at 15 fps | Bandwidth | Up to 20 Mbps |
| Audio standards | G.711, G.722, G.722.1, G.729, AAC-LD and Opus | Audio features | Acoustic echo cancellation, active lip synchronization, AI-powered noise removal, automatic gain control, beamforming microphones, de-reverberation, full duplex, full-band audio, Self-Hear, Spatial Audio and Ultrasound Technology |
| Microphone array | 4-element beamforming array with additional front-facing microphones for speaker tracking | Loudspeaker system | Stereo pair of two full-range drivers with directional audio, 100 Hz to 20 kHz response and 93 dB maximum SPL |
| Audio inputs | One HDMI, one analog microphone input, one DisplayPort/USB-C, one USB-A, Bluetooth on radio versions and one PoE port for audio over IP with a single Cisco IP microphone | Audio outputs | One DisplayPort/USB-C, one USB-A and Bluetooth on radio versions |
| Published room coverage | Internal array optimized for up to five people seated within 3 meters; external microphone recommended beyond that | Network interface | One Ethernet RJ-45 100/1000 Mbps for LAN plus one Ethernet RJ-45 100/1000 Mbps PoE port for Room Navigator pairing |
| Wireless | Wi-Fi 802.11a/b/g/n/ac on 2.4 GHz and 5 GHz with 2×2 MIMO | USB-C passthrough | Camera, microphone and speakers over one USB-C cable with content sharing and display extension at 3840 x 2160 at 30 fps |
| Other interfaces | Bluetooth and Bluetooth Low Energy, one USB 2.0 type A port, one micro-USB service port and a factory reset pinhole | Wireless sharing | Webex app up to 3840 x 2160 at 7.5 fps, Miracast at 1920 x 1080 at 60 fps, Apple AirPlay and Microsoft Teams Cast on Microsoft Teams Rooms |
| Firewall traversal | Cisco Expressway technology with H.460.18 and H.460.19 | Certificate management | Manufacturer Installed Certificate signed by Cisco for CAPF onboarding to Cisco UCM, plus user-installed certificates for IEEE802.1x, Wi-Fi, HTTPS and SIP-TLS |
| Power input | 100 to 240 VAC at 50/60 Hz with 12V DC input, peak 86W | Power consumption | 14.3W in an active meeting, 8.2W idle and 7W networked standby |
| Required power supply | PSU-12VDC-86W, spare part number PSU-12VDC-86W= | Software compatibility | RoomOS 11 or later with interoperability for Microsoft Teams, Zoom and Google Meet |
| Main unit dimensions | 21 x 3.2 x 2.5 in (53.4 x 8.2 x 6.4 cm) at 3.3 lb (1.5 kg) | Mounting | Consolidated mounting unit for walls and screens with gap bar, mounted above or beneath the displays and invertible with a separately flipped speaker grille |
| Operating temperature | 0 to 35 degrees C at 10% to 90% relative humidity | Storage and transport | -20 to 60 degrees C at 10% to 90% RH noncondensing |
| Approvals and compliance | Directive 2014/53/EU for radio versions and Directives 2014/30/EU and 2014/35/EU for non-radio versions |
