CS-BARPRO-C-K9 – Dual 48MP Camera System – Carbon Black – Cisco Room Bar Pro
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
CS-BARPRO-C-K9 Description

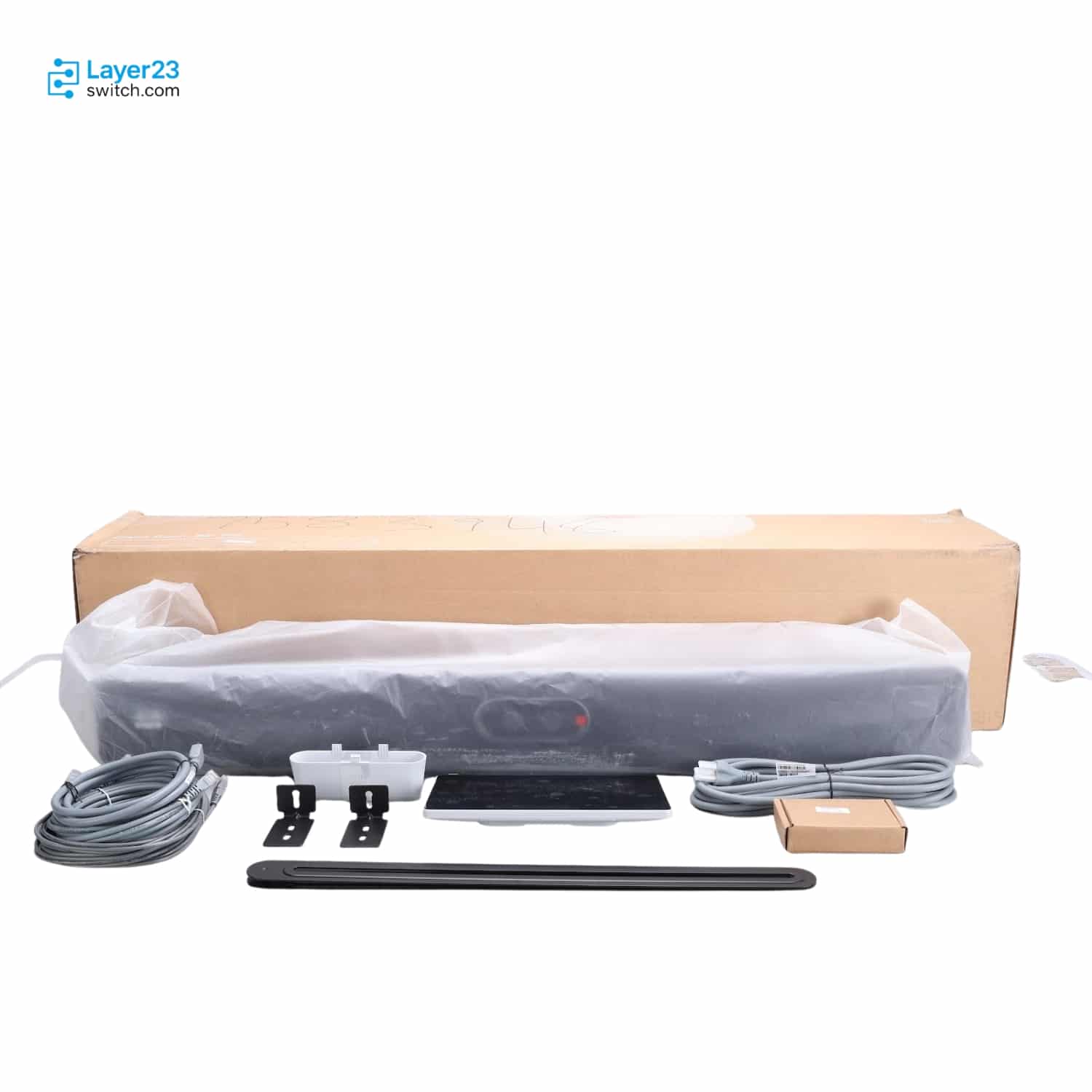

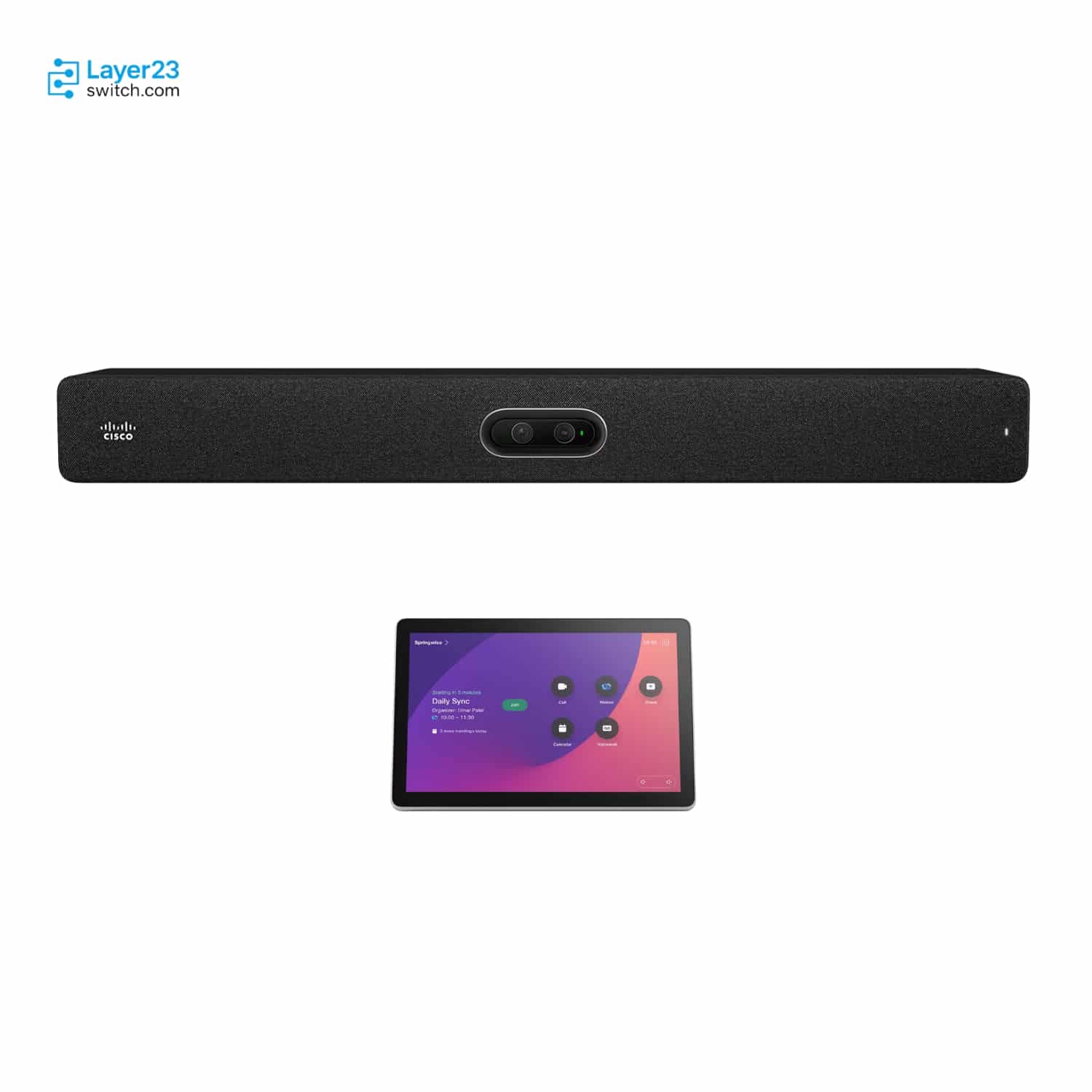

The CS-BARPRO-C-K9 is the Carbon Black ordering finish of the Cisco Room Bar Pro, supplied with the Room Navigator table stand, mount and accessories at compliance model TTC4-01. Hardware matches the First Light bundle CS-BARPRO-K9 exactly; only the enclosure color changes. The bar carries a dual camera system pairing a 112-degree wide-angle lens with a 70-degree tele-lens, both on 48 MP sensors with motorized tilt between -2 and 20 degrees, reaching 4 meters for a single-person frame and 7 meters for a two-person frame. Audio comes from a 3-channel loudspeaker set with a mechanically balanced dual woofer section rated to 97 dB maximum sound pressure level, paired with a 16-element beamforming microphone array that Cisco optimizes for people seated within 4 meters. Three HDMI outputs drive displays at 3840 x 2160 at 60 fps, three 802.3af PoE ports at 15.4W each feed the Room Navigator and AV over IP peripherals, and USB-C passthrough hands the camera, microphone and speakers to a connected laptop. A built-in power supply keeps average draw at 20W and removes the external power brick from the installation.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-BARPRO-C-K9 |
|
Cisco ordering description |
Cisco Room Bar Pro in Carbon Black with Room Navigator table stand, mount and accessories |
|
Camera |
Dual 48 MP sensors on 112-degree wide and 70-degree tele lenses with motorized tilt |
|
Camera reach |
Up to 4 m single-person frame and 7 m two-person frame |
|
Audio system |
16-element beamforming microphone array with 3-channel loudspeakers at 97 dB maximum SPL |
|
Video outputs |
Three HDMI outputs up to 3840 x 2160 at 60 fps |
|
PoE ports |
Three 802.3af ports at 15.4W each for Room Navigator and AV over IP peripherals |
|
Wireless |
Wi-Fi 802.11a/b/g/n/ac/ax with Wi-Fi 6E tri-band and 2×2 MIMO |
|
Power |
Built-in supply averaging 20W, 12.7W networked standby and 1W standby |
Application Scenarios
Installed in medium meeting rooms specified with dark finishes, where the Carbon Black bar sits against a dark display wall and the 16-element array covers seating within 4 meters.
Deployed in deep or narrow spaces where the 70-degree tele-lens and virtual lens zoom extend usable speaker framing beyond what a single wide lens resolves.
Placed in rooms running three front-of-room displays fed directly from the bar, mounted above or beneath the screen line with the gap bar closing the mounting seam.
Selection Guide
1. Dark Room Specification Drives This PID
CS-BARPRO-C-K9 exists to supply the Room Bar Pro in Carbon Black where CS-BARPRO-K9 supplies First Light; both carry the identical dual 48 MP camera, 16-element array, PoE port set and TTC4-01 compliance model, so the decision between them is a room finish requirement rather than a capability one, and a project with no finish specification gains nothing by choosing between them. Two boundaries apply to either finish: presenter tracking is not native to the bar and requires attaching a Cisco PTZ 4K Camera over Ethernet and HDMI in, and rooms seating people beyond 4 meters need external microphones budgeted alongside the bundle. On-premises deployments also need RoomOS 11.5.2.x or later rather than the 11.5.1.x baseline, and the wall and screen mounting kit and privacy camera cover carry their own spare part numbers, CS-BARPRO-MOUNT= and CS-BARPRO-CAMCOV=.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-BARPRO-C-K9 | Cisco ordering description | Cisco Room Bar Pro in Carbon Black with Room Navigator table stand, mount and accessories |
| Compliance model number | TTC4-01 | Camera system | Dual camera with 112-degree wide-angle lens and 70-degree tele-lens, both on 48 MP image sensors |
| Camera sensor and rate | 1/1.3 in Quad Bayer at 30 fps | Camera movement | Motorized tilt between -2 and 20 degrees |
| Camera zoom | 5x digital zoom, rising to 10x with AI virtual lens enabled | Camera aperture | f/2.8 on the 112-degree lens and f/1.85 on the 70-degree lens |
| Camera field of view | 112 and 70 degrees horizontal with 94 and 55 degrees vertical | Camera reach | Up to 4 m single-person frame and 7 m two-person frame, extended with virtual lens zoom |
| Camera intelligence | Auto framing with face detect, speaker tracking, automatic brightness and white balance, automatic image rotation when inverted | Camera focus | Fixed focus on the 112-degree lens and VCM auto focus on the 70-degree lens |
| Presenter tracking | Requires a Cisco PTZ 4K Camera connected over Ethernet and HDMI in, using AI face and upper-body detection within a defined zone | Video input | One HDMI up to 3840 x 2160 at 30 fps including 1920 x 1080 at 60 fps |
| Video outputs | Three HDMI outputs up to 3840 x 2160 at 60 fps | Loudspeaker system | 3-channel set of three full-range drivers plus a mechanically balanced dual woofer section with directional audio |
| Loudspeaker response | 70 Hz to 22 kHz with 97 dB maximum sound pressure level | Microphone array | 16-element beamforming array with 120 Hz to 16 kHz response |
| Published room coverage | Optimized for small to medium rooms with people seated within 4 meters; speaker tracking rated to 6 meters | Network interface | One Ethernet RJ-45 10/100/1000 Mbps for LAN |
| PoE ports | One 802.3af port at 15.4W for Room Navigator pairing plus two 802.3af ports at 15.4W each for AV over IP peripherals and Cisco or third-party audio equipment | Wireless | Wi-Fi 802.11a/b/g/n/ac/ax on 2.4, 5 and 6 GHz with 2×2 MIMO and Wi-Fi 6E tri-band; absent on non-radio versions |
| USB-C passthrough | Camera, microphone and speakers over one USB-C cable at up to 3840 x 2160 at 30 fps with content sharing on the same cable | Other interfaces | Bluetooth and Bluetooth Low Energy absent on non-radio versions, plus two USB 2.0 type A ports |
| Power input | 100 to 240 VAC at 50/60 Hz from a built-in power supply | Power consumption | Average 20W, 12.7W networked standby and 1W standby |
| Power control | Power button on the top of the bar with configurable office hours mode forcing standby outside preset hours | Main unit dimensions | 37.8 x 4.3 x 3.5 in (96 x 11 x 9 cm) at 9.86 lb (4.47 kg) |
| Packaged dimensions | 44.3 x 9.2 x 8.9 in (112.6 x 23.3 x 22.7 cm) at 19.6 lb (8.9 kg) with the table-stand Room Navigator | Mounting | Consolidated mounting unit for walls and displays with gap bar, mounted above or beneath the screens and invertible with a de-attachable flipped speaker grille |
| Software compatibility | RoomOS 11.5.1.x or later with interoperability for Microsoft Teams, Zoom and Google Meet; on-premises deployments from RoomOS 11.5.2.x | Operating temperature | 0 to 35 degrees C at 10% to 90% relative humidity |
| Storage and transport | -20 to 60 degrees C at 10% to 90% RH noncondensing | Accessory part numbers | CS-BARPRO-MOUNT= wall and screen mounting kit spare and CS-BARPRO-CAMCOV= privacy camera cover spare |
| Approvals and compliance | Directive 2014/53/EU for radio versions and Directives 2014/30/EU and 2014/35/EU for non-radio versions |
