CS-DESK-K9 – 24-Inch 1080p Touch Display – USB-C Passthrough – Cisco Desk
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
CS-DESK-K9 Description

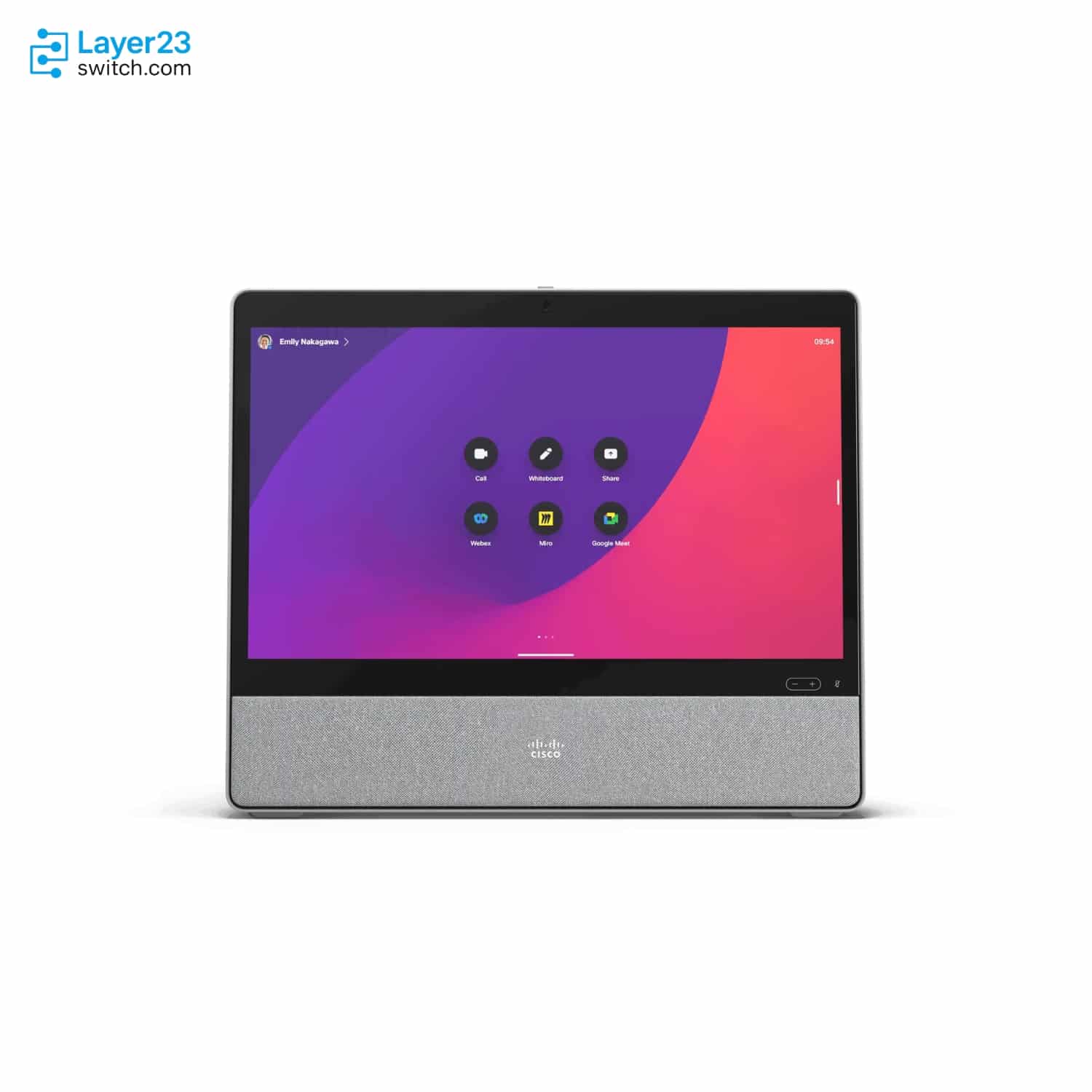

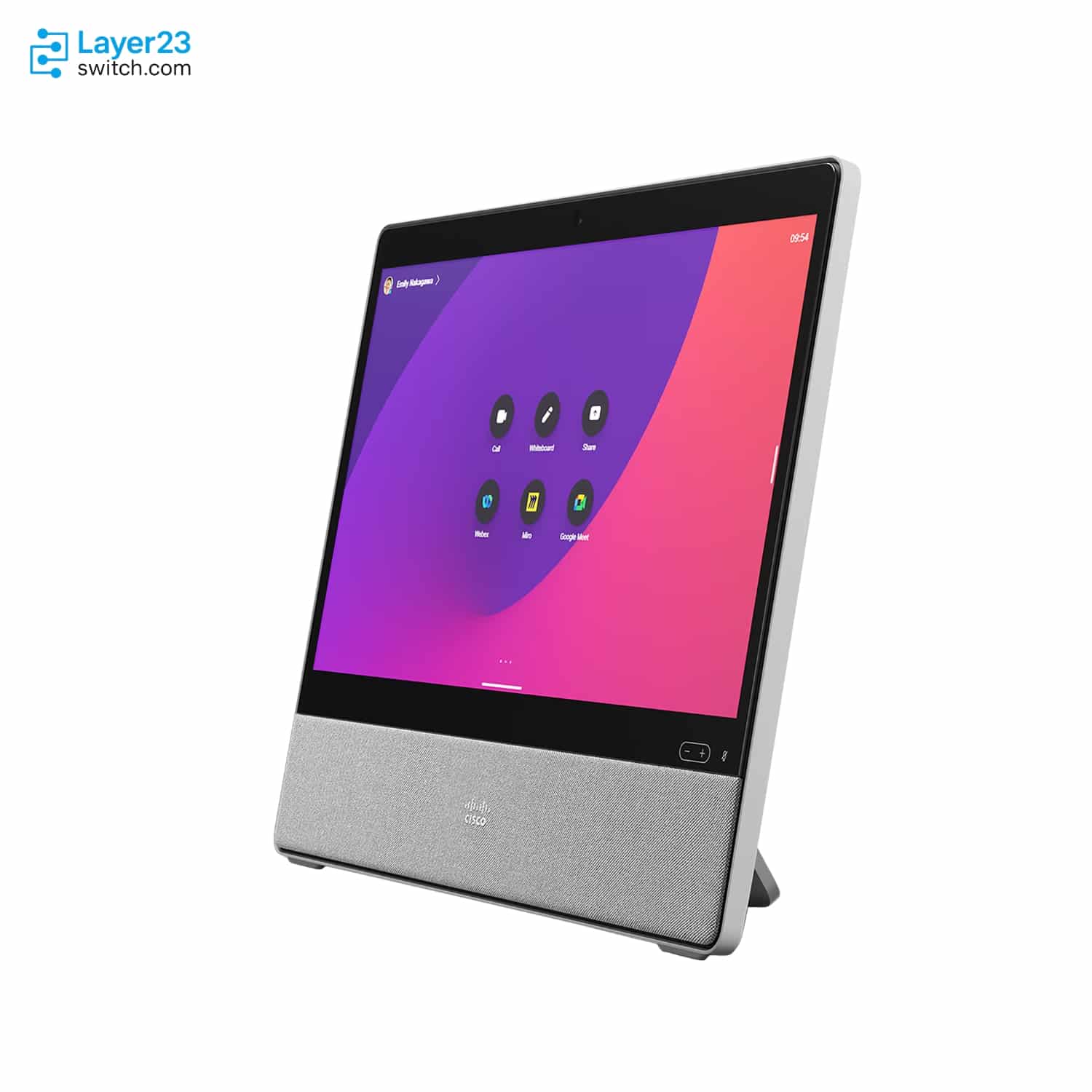

The CS-DESK-K9 is the Cisco Desk in First Light at compliance model TTC7-30, a 24-inch all-in-one personal video endpoint that arrives with its own stand, power supply, a 3-metre network cable and a 1.8-metre USB-C cable. The USB-C cable is the point: over one connection the Desk becomes the laptop's primary display at 1920 x 1080 at 60 fps while handing back its camera, microphone array and speakers to whatever meeting client is running, and adds touch redirect so the panel drives the connected PC. That is what separates it from a monitor with a webcam clipped on. The 1080p high-contrast VA LED panel holds a 1000:1 typical contrast ratio, plus or minus 89-degree viewing angles, 300 cd/m2 brightness and 72 percent NTSC colour gamut under projected capacitive multi-touch. Imaging comes from an 8 MP sensor on a 1/3.2-inch CMOS at up to 30 fps behind an f/2.0 lens covering 64 degrees horizontally and 50 vertically, focusing from 10 centimetres to infinity, with automatic tilt adjustment and a privacy shutter carrying its own LED. A dynamic four-microphone array with focused pickup and AI noise removal pairs with a full-range centre speaker and passive bass radiators covering 80 Hz to 20 kHz. Rated power is 70W maximum with networked standby at 7.5W.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-DESK-K9 |
|
Cisco ordering description |
Cisco Desk (First Light) – Upfront GPL |
|
Compliance model number |
TTC7-30 |
|
Display |
24-inch high-contrast VA LED panel at 1080p 16:9 with projected capacitive multi-touch |
|
Camera |
8 MP on a 1/3.2 in CMOS at up to 30 fps, f/2.0, 64 degrees horizontal and 50 degrees vertical |
|
Audio |
Dynamic four-microphone array with a full-range centre speaker and passive bass radiators at 80 Hz to 20 kHz |
|
USB-C passthrough |
Display extension at 1920 x 1080 at 60 fps plus camera, microphone and speakers to a connected computer |
|
Power |
70W maximum rated, 7.5W maximum networked standby |
|
Weight |
8.7 kg (19.2 lb) |
Product Performance
Key Features
A single USB-C connection extends the computer’s desktop at 1920 x 1080 at 60 fps while passing the camera, microphone and speakers back to any software client, so one cable replaces the monitor lead, the webcam and the headset.
On supported operating systems the panel forwards touch input to the attached computer, so the display is an input device rather than only an output.
The camera carries a mechanical privacy shutter paired with an LED light, giving a visible state that does not depend on software.
A dynamic four-microphone array runs focused pickup, AI-powered noise removal, automatic gain control, active lip synchronization and a dedicated music mode.
With the MultiSite option the device hosts four-way embedded SIP and H.323 conferencing, running three-way at up to 1080p30 or four-way at up to 720p30 with full individual audio and video transcoding.
The device drops to Halfwake after two minutes idle, to DisplayOff standby after ten minutes and to networked standby after twelve, holding 7.5W maximum at the networked level.
Application Scenarios
Deployed as the single screen on a desk, taking the laptop’s display output over USB-C rather than sitting beside a separate monitor.
Used where people bring their own laptop and their own meeting software, since the camera, microphone and speakers pass through to any client over the same cable.
Chosen where a person co-creates on screen with the stylus kit or a finger, annotating shared content on the touch panel.
Selection Guide
1. Order Variant Follows Radio And Sourcing Policy, Not Capability
CS-DESK-K9 is the First Light Cisco Desk and CS-DESK-C-K9 the Carbon Black version, both at compliance model TTC7-30. Sites that prohibit wireless take CS-DESK-NR-K9, US Government orders take CS-DESK-K9++ or CS-DESK-NR-K9++, deployments that also bar encryption take CS-DESK-NR-K7, and Made in Mexico sourcing is CS-DESK-MM-K9 or CS-DESK-MM-NR-K9. Every one of those carries the same panel, camera and audio hardware.
2. Four-Way Conferencing Is A Licence, Not A Default
Embedded multipoint needs the MultiSite option ordered as LIC-DESK-MS. Without it the device does not host the four-way SIP and H.323 conference described in the specification.
3. What Ships In The Box Already Covers The Basics
The default carton contains the Desk Stand, a 3-metre network cable, a 1.8-metre USB-C cable and the power supply, so those are already covered by the base part number. The replaceable metal speaker grille, the stylus kit CS-DESK-STYLUSKIT= and the wall mount are the optional hardware, and CAB-ETH-3M-GR= is the spare Ethernet cable.
4. Software And Environment Set The Deployment Floor
The device requires RoomOS 11 or later and operates between 0 and 35 degrees C at 20 to 90 percent relative humidity. Temperature and humidity sensors report into Control Hub analytics but are marked experimental by Cisco, so they should not be relied on for facilities monitoring.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-DESK-K9 | Cisco ordering description | Cisco Desk (First Light) – Upfront GPL |
| Compliance model number | TTC7-30 | Software compatibility | RoomOS 11 or later |
| Display | 24-inch LCD monitor at 1080p resolution in 16:9, on a high-contrast VA LED panel | Display characteristics | Contrast ratio 1000:1 typical, viewing angle plus or minus 89 degrees typical, brightness 300 cd/m2, colour depth 16.7M colours and colour gamut 72% NTSC or 95% sRGB |
| User interface | Projected capacitive multi-touch | Supported PC resolutions | 1080p60 |
| Camera sensor | 8 MP image sensor on a 1/3.2-inch CMOS supporting up to 30 fps | Camera optics | 64 degrees horizontal and 50 degrees vertical field of view at f/2.0 aperture, focusing from 10 cm to infinity |
| Camera intelligence | Automatic tilt adjustment with automatic focus, brightness and white balance | Camera privacy | Privacy shutter with LED light |
| Video standards | H.263 and H.264 AVC | Video inputs | USB-C DisplayPort Alternate Mode up to 1920 x 1080p60 and one HDMI 2.0 type A input up to 1920 x 1080p60 |
| Video stream | Full HD 1080p30 | Content stream | 1080p60, with up to 4K content decode from Webex |
| Audio standards | G.711, G.722, G.722.1, G.729, AAC-LD and Opus | Audio features | High-quality full-band audio, automatic gain control, AI-powered noise removal, active lip synchronization, focused microphone pickup and music mode |
| Audio inputs | Dynamic four-microphone array, audio in from HDMI, audio in from DisplayPort over USB-C, USB and Bluetooth | Audio outputs | External USB headset and Bluetooth headset |
| Loudspeaker | Premium full-range centre speaker with passive bass radiators for extended low-frequency output, covering 80 Hz to 20 kHz | USB-C BYOD | Display extension at 1920 x 1080 at 60 fps requiring Alt-mode DisplayPort on the computer, touch redirect on supported operating systems, and use of the desk camera, microphone and speakers with any software client |
| Other USB ports | One standard USB 2.0 type-A port for headsets and handset use, and one Micro B USB port for service only | Multipoint support | Four-way embedded SIP and H.323 conferencing capability with the MultiSite option |
| MultiSite capability | Three-way at up to 1080p30 with content up to 1080p15, four-way at up to 720p30 with content up to 1080p15, full individual audio and video transcoding, mixed H.323, SIP and VoIP in one conference, and H.239 or BFCP presentation from any participant up to 3840 x 2160p5 | Power | 70W maximum rated with networked standby consumption at 7.5W maximum |
| Network standby staging | Halfwake after 2 minutes idle, DisplayOff standby after 10 minutes and networked standby after 12 minutes | Sensors | Temperature and humidity, both marked experimental, reported for Control Hub analytics |
| Default components | Cisco Desk, Desk Stand, 3 m network cable, 1.8 m USB-C cable for USB passthrough and the power supply | Optional hardware components | Replaceable metal speaker grille, stylus kit and wall mount |
| Dimensions | Width 56.5 cm (22.2 in), height 47.4 cm (18.7 in) and depth 7.0 cm (2.8 in) | Weight | 8.7 kg (19.2 lb), with a packaged weight of 12.72 kg (28.043 lb) |
| Packaged size | 72.4 x 20 x 69.5 cm (28.5 x 7.9 x 27.4 in) | Locking mechanism | Kensington security lock |
| Operating temperature | 0 to 35 degrees C (32 to 104 degrees F) ambient | Operating humidity | 20% to 90% relative humidity |
| Storage temperature | -20 to 60 degrees C (-4 to 140 degrees F) | Storage humidity | 10% to 90% relative humidity, noncondensing |
| Peripherals supported | USB headset and wideband Bluetooth headset | Wireless sharing | Webex App and Webex Meetings |
| Embedded encryption | Webex end-to-end encryption, H.323 and SIP point-to-point, standards-based H.235 v3 and AES, with automatic key generation and exchange | Ordering variants | CS-DESK-C-K9 Carbon Black, CS-DESK-NR-K9 no radio, CS-DESK-K9++ TAA, CS-DESK-NR-K9++ no radio TAA, CS-DESK-NR-K7 no radio and no encryption, CS-DESK-MM-K9 and CS-DESK-MM-NR-K9 made in Mexico |
| Software option | LIC-DESK-MS MultiSite | Accessory part numbers | CAB-ETH-3M-GR= 3 metre grey Ethernet cable and CS-DESK-STYLUSKIT= stylus kit with 2 styluses and 4 tips |
| Regulatory approvals | Directive 2014/53/EU for radio versions, Directives 2014/30/EU and 2014/35/EU for non-radio versions, Directive 2011/65/EU, Directive 2002/96/EU, NRTL approval, FCC CFR 47 Part 15B Class B, Part 15C and FCC Listed |
