CS-T10-WM-L-K9 – 360-Degree Availability LED – Wall Scheduling Panel – Cisco Room Navigator
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
CS-T10-WM-L-K9 Description

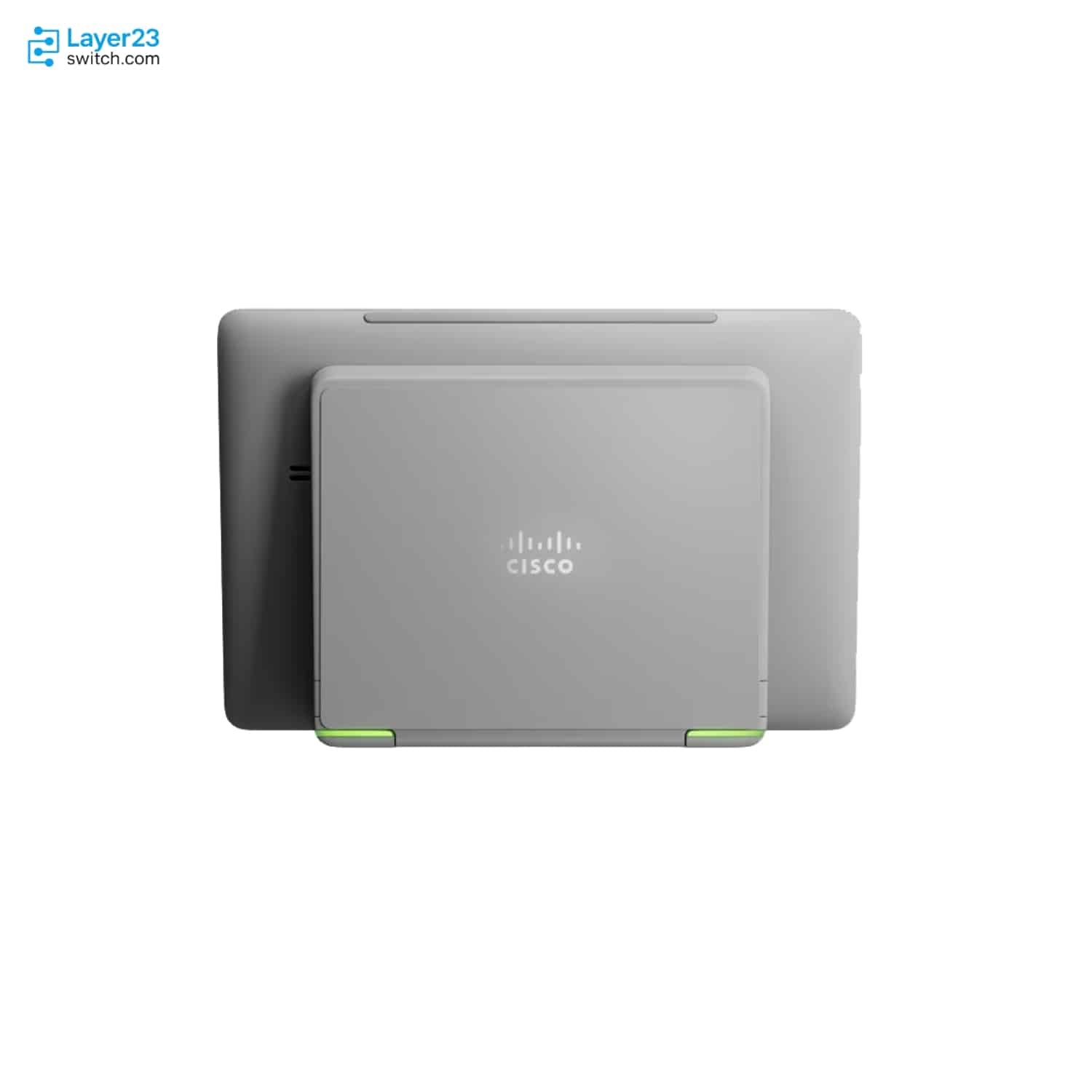

The CS-T10-WM-L-K9 is the wall-mount Cisco Room Navigator in First Light, supplied with its wall bracket, sticker and mounting template at compliance model TTC5-15. What separates it from the table-stand version is the multicolor, 360-degree viewable LED wrapped around the unit: green declares the room free, yellow marks a room booked but unoccupied or a meeting about to start, and red shows a meeting in progress or an unbooked room in use, all driven automatically by native or third-party booking software. That makes the panel readable from down the corridor rather than only from the doorway. It mounts on glass, brick or dry walls through an integrated bracket at a 15-degree tilt for ergonomic reach, weighs 2.03 lb and stands a maximum 6.5 inches. Behind the 10.1-inch anti-glare capacitive touch panel at 1920 x 1200 sit 4 GB of memory and sensors reporting temperature, humidity and TVOC air quality into Control Hub. A single 100 Mbps Ethernet port carries the network and 802.3af Class 0 power, with a 100 to 240 VAC supply also published, and the panel can run as a standalone scheduling display in rooms with no video device at all.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-T10-WM-L-K9 |
|
Cisco ordering description |
Cisco Room Navigator – Wall-Mount (First Light) |
|
Compliance model number |
TTC5-15 |
|
Display |
10.1-inch capacitive touch LCD at 1920 x 1200, anti-glare and anti-fingerprint |
|
Room availability display |
Multicolor 360-degree viewable LED signalling free, booked and in-use states |
|
Wall mounting |
Integrated bracket for glass, brick or dry walls at a 15-degree tilted angle |
|
Power |
Power over Ethernet 802.3af Class 0 |
|
Interfaces |
One Ethernet RJ-45 at 100 Mbps for LAN or direct pairing, one microUSB service port |
|
Weight |
2.03 lb (0.920 kg) |
Product Performance
Key Features
A multicolor LED viewable through 360 degrees shows green for an available room, yellow for a room booked but unoccupied or with a meeting about to begin, and red for a meeting under way or an unbooked room in use.
The integrated wall bracket works across glass walls, brick walls and dry walls, sitting at a 15-degree tilted angle for ergonomic reach and accessibility.
The panel deploys as a standalone scheduling and control display for spaces that have no video device, or pairs to a Cisco endpoint when one is present.
A single Ethernet RJ-45 at 100 Mbps carries the network connection and 802.3af Class 0 PoE, so a PoE run can serve the wall position on its own; Cisco also publishes a 100 to 240 VAC option at 0.5A maximum.
Cisco Scheduler connects to O365, Exchange and Google Calendar through the Webex Hybrid Calendar service, covering ad-hoc reservation, check-in, auto ghost meeting release and meeting extension.
Onboard sensors measure temperature from 0 to 35 degrees C, relative humidity from 20 to 90 percent and TVOC air quality on a 1 to 5 index, exported through RoomOS cloud APIs to Control Hub and third-party analytics.
Application Scenarios
Fitted beside meeting room doors where the 360-degree LED tells passing staff whether a room is free before they reach the doorway.
Installed on glass partitions using the integrated bracket, in offices where no solid mounting surface is available beside the room entrance.
Used across focus rooms, phone booths and bookable desks that carry no video endpoint, running the Cisco scheduler or a third-party booking web app on PoE alone.
Selection Guide
1. The Availability LED Is The Reason To Choose This Version
CS-T10-WM-L-K9 supplies the First Light wall-mount Room Navigator with bracket, sticker and template, CS-T10-WM-C-K9 the Carbon Black equivalent, and CS-T10-TS-L-K9 the table-stand version; all three share compliance model TTC5-15, the same 10.1-inch 1920 x 1200 panel, the same sensor set and the same single-port PoE feed. The functional split is that the wall version carries the multicolor 360-degree room availability LED and mounts at a fixed 15-degree tilt, while the table version instead rotates its user interface 180 degrees when tilted and can drop to a 3.85-inch profile on the table. Wall mounting commits the cable route before the wall is closed, because the one Ethernet port is the only data path and also carries 802.3af Class 0 power. Registering to the Webex Cloud instead of pairing to a local video device requires a Room Navigator licence ordered separately, software support starts at RoomOS 9.14.3, and the wall bracket has its own spares, CS-T10-WM-BR= in First Light and CS-T10-WM-BR-C= in Carbon Black.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-T10-WM-L-K9 | Cisco ordering description | Cisco Room Navigator – Wall-Mount (First Light) |
| Compliance model number | TTC5-15 | Default components | Room Navigator touch panel plus wall mounting bracket, sticker and template in First Light |
| Display | Capacitive touch LCD at 10.1-inch diagonal with anti-glare and anti-fingerprint finish | Resolution | 1920 x 1200 |
| Memory | 4 GB | Room availability display | Multicolor 360-degree viewable LED activated automatically by native or third-party room booking functionality, showing green for available, yellow for booked but unoccupied or an upcoming meeting, and red for a meeting in progress or unbooked use |
| Wall mounting | Integrated mounting for glass walls, brick walls and dry walls at a 15-degree tilted angle for ergonomic use and accessibility | Product compatibility | Cisco Room Series, Cisco Board Series including Board S Series, Board Pro and Board Pro G2 Series, and Cisco Desk Series |
| Software compatibility | RoomOS 9.14.3 or later, certified for Microsoft Teams Rooms Console and Microsoft Teams panel | Call control compatibility | Hosted deployments controlled by the codec, Cisco Unified Communications Manager 10.5.2 or newer and Webex Cloud; cloud deployments on Webex Cloud |
| Cisco Scheduler | Integrates with O365, Exchange and Google Calendar through the Webex Hybrid Calendar service, with ad-hoc or ahead reservation, room calendar view, check-in, auto ghost meeting release, meeting extension and touchless booking with Cisco AI Assistant | Third-party web applications | Persistent web applications for room booking, wayfinding and digital signage, with access to room sensor data and the Webex hybrid calendar |
| Sensors | Temperature, relative humidity and air quality (TVOC), combined with general noise, ambient noise and RT60 reverberation from the video endpoint sensors | Sensor ranges | Ambient temperature 0 to 35 degrees C at 0.1 degree resolution and plus or minus 2 degrees accuracy; relative humidity 20% to 90% at 1% resolution and plus or minus 10% accuracy; air quality index 1 to 5 at 0.1 resolution and plus or minus 1 accuracy |
| Pairing | Direct connection to a PoE-enabled network port on the Cisco video device, or remote pairing over LAN by IP | Registration | Registers to a Cisco video device by direct or remote pairing, or to the Webex Cloud with a Room Navigator licence |
| Power | Power over Ethernet 802.3af Class 0 at 100 to 240 VAC, 0.5A maximum, 50/60 Hz | Power management | Configurable office hours to save energy and extend touchscreen life where digital signage, booking and wake-on-motion are active |
| Interfaces | One Ethernet RJ-45 at 100 Mbps for LAN or direct pairing, one microUSB service port and one factory reset pinhole | Signaling protocols | TCP/IP |
| Physical dimensions | 2.8 x 9.53 x 6.3 in (6.9 x 24.2 x 16.4 cm) with a maximum height of 6.5 in (16.4 cm) in the vertical position | Weight | 2.03 lb (0.920 kg) |
| Storage temperature | -20 to 60 degrees C (-4 to 140 degrees F) | Storage humidity | 10% to 90% relative humidity, noncondensing |
| Security | HTTPS and SSH management, password protection for IP administration and administration access, network settings protection, SRTP media encryption using AES-128-GCM or AES-256-GCM, WPA3 and WPA3-Enterprise with CCMP128, and 802.1x authentication for directly or remotely paired devices | Digital signage | Configurable in Control Hub |
| Language support | English, Arabic, Catalan, Czech, Danish, Dutch, Finnish, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazilian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish and Ukrainian | Accessory part numbers | CS-T10-WM-BR= wall bracket, adhesive and plugs spare in First Light and CS-T10-WM-BR-C= in Carbon Black |
| Regulatory compliance | Directives 2014/30/EU, 2014/35/EU, 2011/65/EU and 2002/96/EU, NRTL approved, EMC EN 55032 Class A and EN 55024, safety EN 60950-1 and EN 62479, FCC CFR 47 Part 15B Class A |
