CS-DESKPRO-K9 – 27-inch 4K Touch Display – 12 MP Camera and USB-C BYOD – Cisco Desk Pro
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

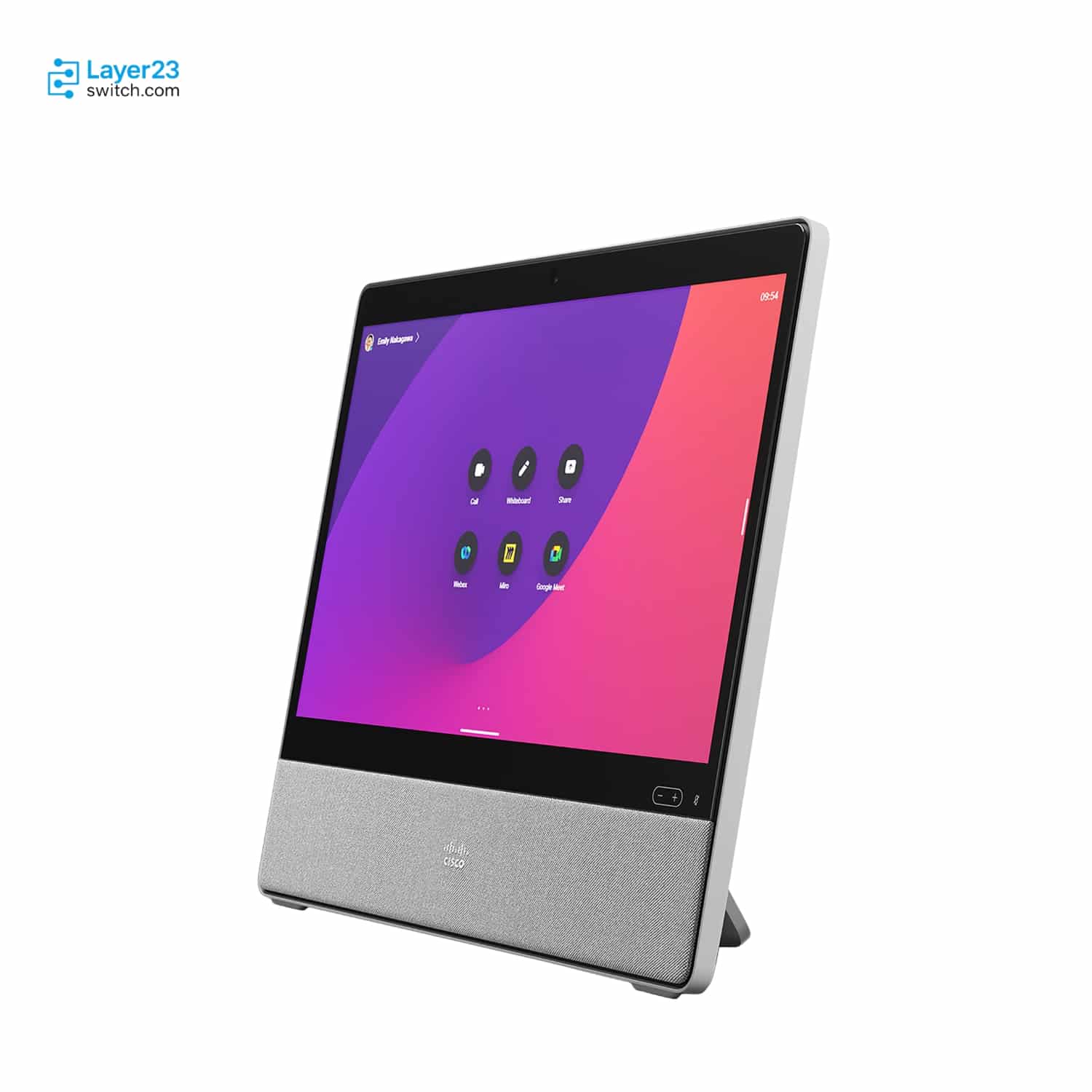

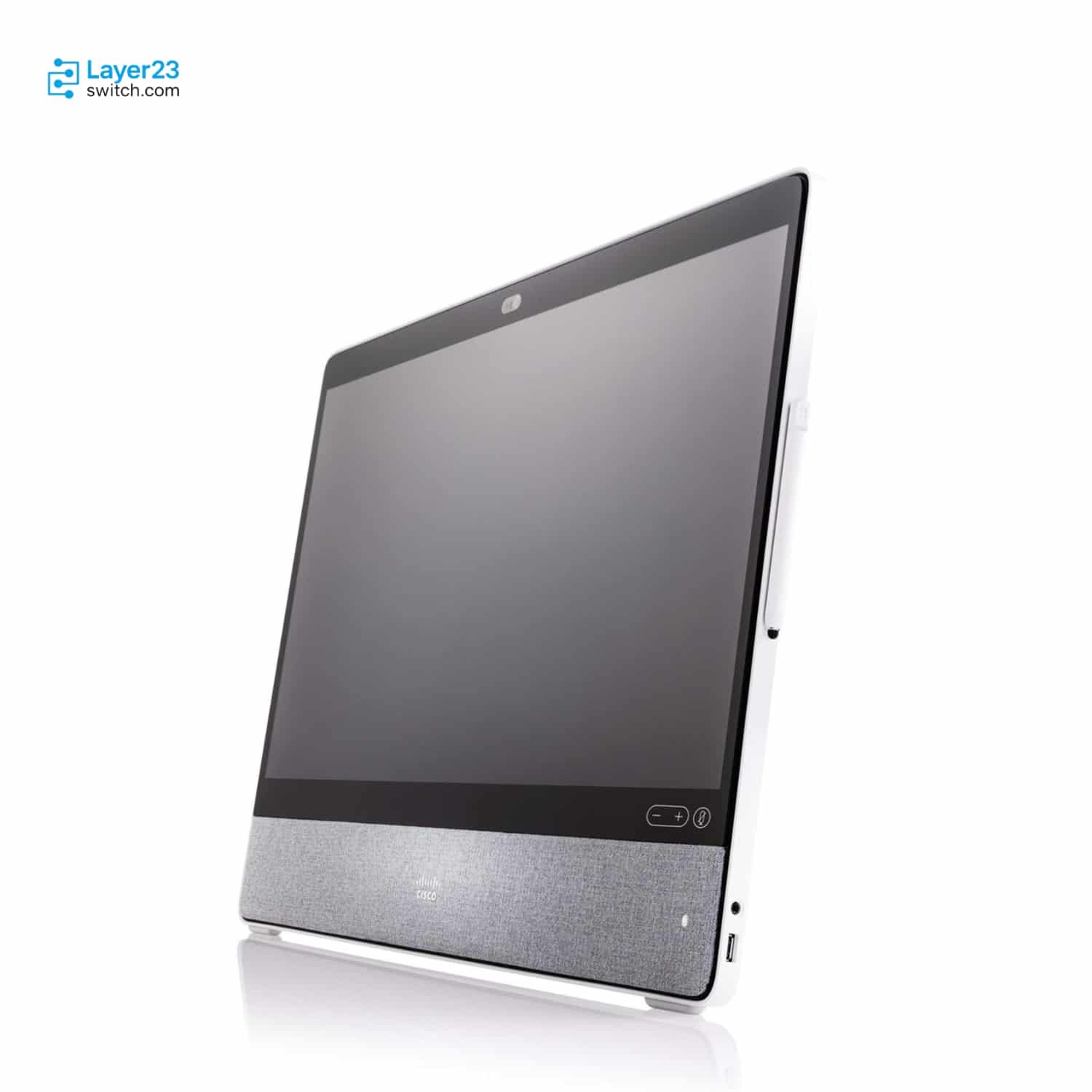

CS-DESKPRO-K9 Description
The CS-DESKPRO-K9 is the Cisco Desk Pro, an all-in-one video collaboration endpoint built around a 27-inch 4K touch display for personal desks and single-occupant meeting spaces. It pairs a 4K Ultra HD camera carrying a 12 MP sensor and a 71-degree horizontal field of view with an internal 8-element microphone array and left, center and right loudspeakers backed by dual woofers, so a desk position needs no separate camera, headset or speakerphone. One USB-C connection turns the unit into a laptop dock that extends the display at 3840 x 2160 at 60 fps, forwards touch input, passes the camera and audio through to any software client, and charges the notebook at up to 60W. Network attachment runs through an internal 2-port Cisco Ethernet switch on 10/100/1000BASE-T, with 802.11a/b/g/n/ac Wi-Fi on 2.4 GHz and 5 GHz as the wireless alternative, and the endpoint runs RoomOS 11 or later or Microsoft Teams Rooms on Android while registering natively to Cisco Unified Communications Manager, Cisco Expressway or Webex Service. Each unit ships with its desk stand, stylus, network, USB-C and HDMI cables, and the Cisco Desk Pro power supply.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-DESKPRO-K9 |
|
Display |
27-inch IPS LED touch panel at 3840 x 2160 4K resolution |
|
Camera |
4K Ultra HD with 12 MP sensor and 71-degree horizontal field of view |
|
Audio system |
Internal 8-element microphone array with left, center and right speakers plus dual woofers |
|
USB-C BYOD |
4Kp60 display extension, touch forwarding, camera and audio passthrough, and 60W laptop charging |
|
Network interface |
Internal 2-port 10/100/1000BASE-T Cisco Ethernet switch with RJ-45 |
|
Wireless |
Wi-Fi 802.11a/b/g/n/ac on 2.4 GHz and 5 GHz |
|
Rated power |
200W maximum with 15W standby |
|
Software compatibility |
RoomOS 11 or later and Microsoft Teams Rooms on Android |
Product Performance
Key Features
One USB-C run carries 4Kp60 display extension, touch forwarding, camera and audio passthrough, and 60W charging at the same time, so the endpoint replaces a separate monitor, dock and headset at each desk position.
The internal 2-port Cisco Ethernet switch lets the Desk Pro and a co-located PC share a single 10/100/1000BASE-T run, which avoids pulling a second structured cable to every desk that gets an endpoint.
The same hardware runs RoomOS 11 or later or Microsoft Teams Rooms on Android, so a mixed estate can standardize on one purchased PID and decide the meeting platform at provisioning time instead of at ordering time.
The endpoint registers natively to Unified CM at Version 10.5 or later with the latest device pack, to Cisco Expressway, or to Webex Service, and interoperates with third-party H.323 gatekeepers and standards-based SIP proxies, which keeps it deployable on premises, in cloud, or in hybrid call control.
A physical camera privacy shutter with LED light works alongside microphone-mute and camera-on indicators, giving open-plan users a hardware-level privacy signal rather than a software toggle they have to trust.
With the MultiSite option the device hosts 5-way SIP/H.323 conferences on its own at 3-way 1080p30 or 5-way 720p30 with content, which removes the need to route small ad-hoc calls through a separate conferencing bridge.
Application Scenarios
Installed at individual desks where one user joins scheduled video meetings from a dedicated endpoint instead of a laptop camera, with the 27-inch panel serving as the primary work display at the same position.
Deployed in single-occupant focus rooms booked for calls, where the integrated camera, microphone array and loudspeakers cover the room without a separate camera, ceiling microphone or speaker install.
Placed at home or remote office positions that need the same registered endpoint behavior as an in-office desk, attaching over the RJ-45 interface or over 802.11a/b/g/n/ac Wi-Fi where a wired drop is unavailable.
Product Comparison
|
Parameter |
CS-DESKPRO-K9 |
CS-DESKPRO-NR-K9 |
CS-DESKPRO-NR-K7 |
|---|---|---|---|
|
Cisco ordering description |
Cisco Desk Pro – Upfront GPL |
Cisco Desk Pro – No radio |
Cisco Desk Pro – No radio, no encryption |
|
Compliance model number |
TTC7-27 |
TTC7-27 |
TTC7-27 |
|
Wi-Fi 802.11a/b/g/n/ac |
Included on 2.4 GHz and 5 GHz |
Not included |
Not included |
|
Embedded encryption |
Webex end-to-end, H.235 v3 and AES |
Webex end-to-end, H.235 v3 and AES |
Not included |
|
Display |
27-inch 4K 3840 x 2160 touch panel |
27-inch 4K 3840 x 2160 touch panel |
27-inch 4K 3840 x 2160 touch panel |
|
Camera |
4K Ultra HD, 12 MP, 71-degree horizontal field of view |
4K Ultra HD, 12 MP, 71-degree horizontal field of view |
4K Ultra HD, 12 MP, 71-degree horizontal field of view |
|
Wired network |
Internal 2-port 10/100/1000BASE-T switch |
Internal 2-port 10/100/1000BASE-T switch |
Internal 2-port 10/100/1000BASE-T switch |
|
Rated power |
200W maximum |
200W maximum |
200W maximum |
- The radio boundary is the only hardware difference between CS-DESKPRO-K9 and CS-DESKPRO-NR-K9: both carry the same 27-inch 4K panel, 12 MP camera and 200W rating, so a site whose security policy bans on-board wireless gives up nothing except the 802.11a/b/g/n/ac radio by taking the no-radio PID.
- CS-DESKPRO-NR-K7 drops embedded encryption on top of the radio, which narrows it to jurisdictions or import cases that specifically require an unencrypted endpoint; Webex end-to-end, H.235 v3 and AES support is absent in hardware and cannot be enabled later in software.
- For deciding which SKU to order, settle wireless policy first and encryption policy second, because display, camera, wired network and power rating are identical across all three PIDs and do not separate this group.
Selection Guide
1. When On-Board Wireless Is Permitted
CS-DESKPRO-K9 carries 802.11a/b/g/n/ac on both bands, which keeps desk placement independent of where structured cabling lands; a site policy that forbids wireless endpoints has to move to CS-DESKPRO-NR-K9 and accept a wired-only position for the same panel and camera.
2. Encryption Scope Decided Before PID Lock
CS-DESKPRO-NR-K7 removes embedded encryption together with the radio, so it belongs only where regulation requires an unencrypted endpoint; ordering it for an ordinary deployment permanently gives up Webex end-to-end, H.235 v3 and AES on that unit.
3. Government Orders Take The TAA PID
CS-DESKPRO-K9++ is the TAA line for U.S. Government purchases of the same endpoint, and it is a separate product ID rather than a flag on CS-DESKPRO-K9, so a contract with TAA obligations cannot be satisfied by the standard PID.
4. Spare PID Scope For Replacements
CS-DESKPRO-K9= is the service spare of the same endpoint and Cisco ships it with the main unit and desk stand only; a replacement that also has to restore cables, stylus or power supply needs those as their own lines, which makes the spare cheaper than a new unit but not a like-for-like swap.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Compliance model number |
Confirm the delivered unit reports TTC7-27. |
Separates genuine Desk Pro hardware from other Cisco desk endpoints that carry different compliance models. |
|
Unified CM baseline |
Confirm Unified CM runs Version 10.5 or later with the latest device pack before turn-up. |
An older cluster cannot register the endpoint natively, which strands delivered hardware at commissioning. |
|
Registration entitlement |
Confirm A-FLEX-C-DEVICE, A-FLEX-P-DEVICE or A-FLEX-P-DEV-11X is allocated for the target platform. |
Without a device registration license the endpoint cannot join the call-control service it was bought for. |
|
Wall mount requirement |
Confirm CS-DESKPRO-VESA= is on the order for any unit that will not sit on the included desk stand. |
The VESA adapter and wall mount kit is outside the default shipped set, so a wall rollout halts at installation. |
|
Separately ordered software |
Confirm LIC-DESKPRO-MS is added when MultiSite is required and L-DESK-SERIES-RM when remote monitoring is required. |
Both are ordered apart from the hardware PID and cannot be assumed present on the delivered device. |
|
Speaker grille finish |
Confirm whether CS-DESKPRO-FG= fabric or CS-DESKPRO-MG= metal grille is specified. |
The grille is a replaceable optional component, so a required finish has to be carried as its own order line. |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-DESKPRO-K9 | Cisco ordering description | Cisco Desk Pro – Upfront GPL |
| Compliance model number | TTC7-27 | Spare part number | CS-DESKPRO-K9= |
| Display | 27-inch LCD monitor at 3840 x 2160 4K resolution (16:9) | Display panel | High-contrast IPS LED |
| Contrast ratio | 1000:1 typical | Viewing angle | Plus or minus 89 degrees typical |
| Brightness | 300 cd/m2 | Color depth | 1.07B colors |
| Color gamut | 72% NTSC (100% sRGB) | Touch interface | Projected capacitive multi-touch with optically bonded cover glass |
| Supported PC resolutions | 1080p60, 1440p60, 2160p30 and 2160p60 | Camera | 4K Ultra HD with automatic tilt adjustment, focus, brightness and white balance |
| Camera field of view | 71 degrees horizontal and 59 degrees vertical | Image sensor | 12 MP supporting up to 30 fps, 1/2.8 in CMOS with Dual Pixel Technology |
| Camera aperture | f/2.0 | Focus distance | 20 cm to infinity |
| Camera privacy | Privacy shutter with LED light | Video standards | H.264 AVC with H.263 compatibility for TANDBERG MXP endpoints |
| Video inputs | USB-C DisplayPort Alternate Mode and HDMI 2.0 type A, both up to 3840 x 2160p60 | Video output | HDMI 2.0 type A up to 3840 x 2160p60 |
| Video stream | 1920 x 1080 at 30 fps | Content stream | 3840 x 2160 at 15 fps |
| Audio standards | G.711, G.722, G.722.1, G.729, AAC-LD and Opus | Audio features | 20-kHz audio, automatic gain control, automatic noise reduction, active lip synchronization and keyclick suppression |
| Audio inputs | Internal 8-element microphone array, USB and Bluetooth | Audio outputs | Analog stereo minijack, USB and Bluetooth headset |
| Integrated loudspeakers | Left, center and right channels for directional audio plus dual woofers in balanced configuration | Speaker frequency response | 60 Hz to 20 kHz |
| Amplifier power | 4 x 14W | USB-C BYOD | 3840 x 2160 at 60 fps display extension, touch forwarding, camera and audio passthrough, and 60W laptop charging |
| USB ports | Three standard type A ports plus one Micro-B service port | Network interface | Internal 2-port Cisco Ethernet switch on 10/100/1000BASE-T with RJ-45 |
| Wireless | Wi-Fi 802.11a/b/g/n/ac on 2.4 GHz and 5 GHz | Bandwidth requirement | Up to 6 Mbps point-to-point |
| Call control | Unified CM, Cisco Expressway, Webex Service, third-party H.323 gatekeepers and standards-based SIP proxies | Unified CM baseline | Version 10.5 or later with the latest device pack |
| Embedded encryption | Webex end-to-end, H.235 v3 and AES with automatic key generation and exchange | Wireless sharing | Webex, Miracast, Apple AirPlay in native Webex Meetings, and Microsoft Teams Cast in MTR mode |
| Multipoint support | 5-way embedded SIP/H.323 conferencing with the MultiSite option | MultiSite capacity | 3-way up to 1080p at 30 fps, 4-way up to 720p at 30 fps, 5-way up to 720p at 30 fps with content |
| Sensors | Ambient light sensor, 1D Time-of-Flight LiDAR presence detection under 80 cm at 25 degrees, plus temperature and humidity reporting | Rated power | 200W maximum |
| Standby power | 15W | Operating temperature | 0 to 35 degrees C (32 to 104 degrees F) |
| Operating humidity | 20% to 90% relative humidity | Storage and transport | -20 to 60 degrees C at 10% to 90% RH noncondensing |
| Dimensions | 24.8 x 20.1 x 3 in (63 x 51 x 7.5 cm), 7.1 in depth with desk stand attached | Weight | 24.4 lb (11.6 kg) |
| Packaged dimensions | 30.7 x 30.7 x 8.6 in (78 x 78 x 22 cm) | Packaged weight | 35.2 lb (16 kg) |
| Controls and indicators | Power button, touch volume up and down with LED, microphone mute with LED, and camera-on LED | Locking mechanism | Kensington security lock |
| Software compatibility | RoomOS 11 or later and Microsoft Teams Rooms on Android | Web engine | Chromium-based RoomOS engine supporting digital signage, WebRTC and web-based applications |
| Default shipped components | Desk stand, stylus with two spare tips, 3 m network cable, 1.8 m USB-C cable, 1.5 m HDMI 2.0 presentation cable and Cisco Desk Pro power supply | Optional hardware | VESA adapter and wall mount kit, replaceable metal speaker grille |
| Accessory part numbers | CS-DESKPRO-STAND=, CS-DESKPRO-VESA=, CS-DESKPRO-FG=, CS-DESKPRO-MG=, CS-PWR-CUBE-7= and CS-DESK-STYLUSKIT= | Software options | L-DESK-SERIES-RM for Remote Monitoring and LIC-DESKPRO-MS for MultiSite |
| Product registration | A-FLEX-C-DEVICE, A-FLEX-P-DEVICE or A-FLEX-P-DEV-11X | Approvals and compliance | Directive 2014/53/EU, 2014/30/EU, 2014/35/EU, RoHS 2011/65/EU, WEEE 2002/96/EU, NRTL safety, FCC CFR 47 Part 15B Class A, Part 15C and Part 15E |
