CS-CAM-PTZ4K Description

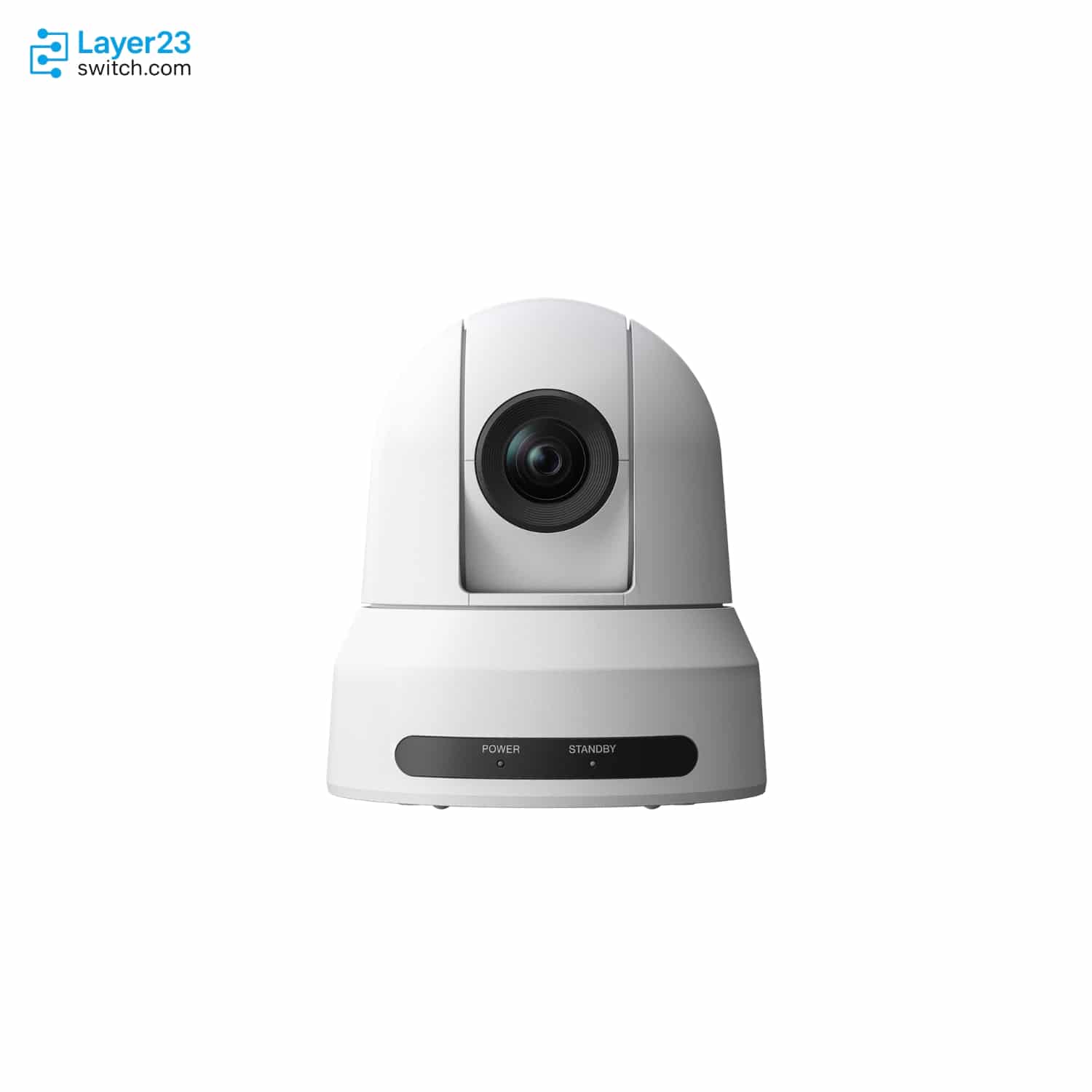

The CS-CAM-PTZ4K is the Cisco PTZ 4K Camera sold as a spare unit at compliance model EVI-X200C, the long-reach optic in the Cisco collaboration camera range. It resolves 3840 x 2160 at 30 fps or 1920 x 1080 at 60 fps behind an f/2.0 to f/3.8 lens with a 70-degree horizontal field of view, and its defining number is reach rather than width: 20x optical zoom compounds with 12x digital to a 240x total, four times the 60x that Cisco publishes for the Room Vision PTZ. A motorised head pans plus or minus 170 degrees and tilts from -20 to +90 degrees for manual control and stored presets, focus runs from 1.0 metre to infinity at the wide end, and focus, white balance and brightness each switch between manual and automatic. Video leaves over HDMI 2.0 while control arrives separately as Visca over IP on the LAN port, and the camera supports PresenterTrack with digital cropping when paired to a compatible codec. Power comes either from 12V at 3A on mains or from PoE+ under IEEE 802.3at, and Cisco names three qualified supplies. Wall and upside-down ceiling mounts are both available.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-CAM-PTZ4K |
|
Cisco ordering description |
Cisco PTZ 4K Camera – SPARE |
|
Compliance model number |
EVI-X200C |
|
Resolution |
1920 x 1080 at 60 fps or 3840 x 2160 at 30 fps |
|
Zoom |
240x total, combining 20x optical and 12x digital |
|
Pan range |
Plus or minus 170 degrees, used for manual control and presets |
|
Horizontal field of view |
70 degrees |
|
Camera control |
Visca over IP on the LAN port, with video over HDMI 2.0 |
|
Power |
12V at 3A, or PoE+ under IEEE 802.3at |
Product Performance
Key Features
A 20x optical stage compounding with 12x digital to 240x total reaches four times further than the Room Vision PTZ’s 60x, at the cost of a 70-degree horizontal field of view against that camera’s 80.5 degrees.

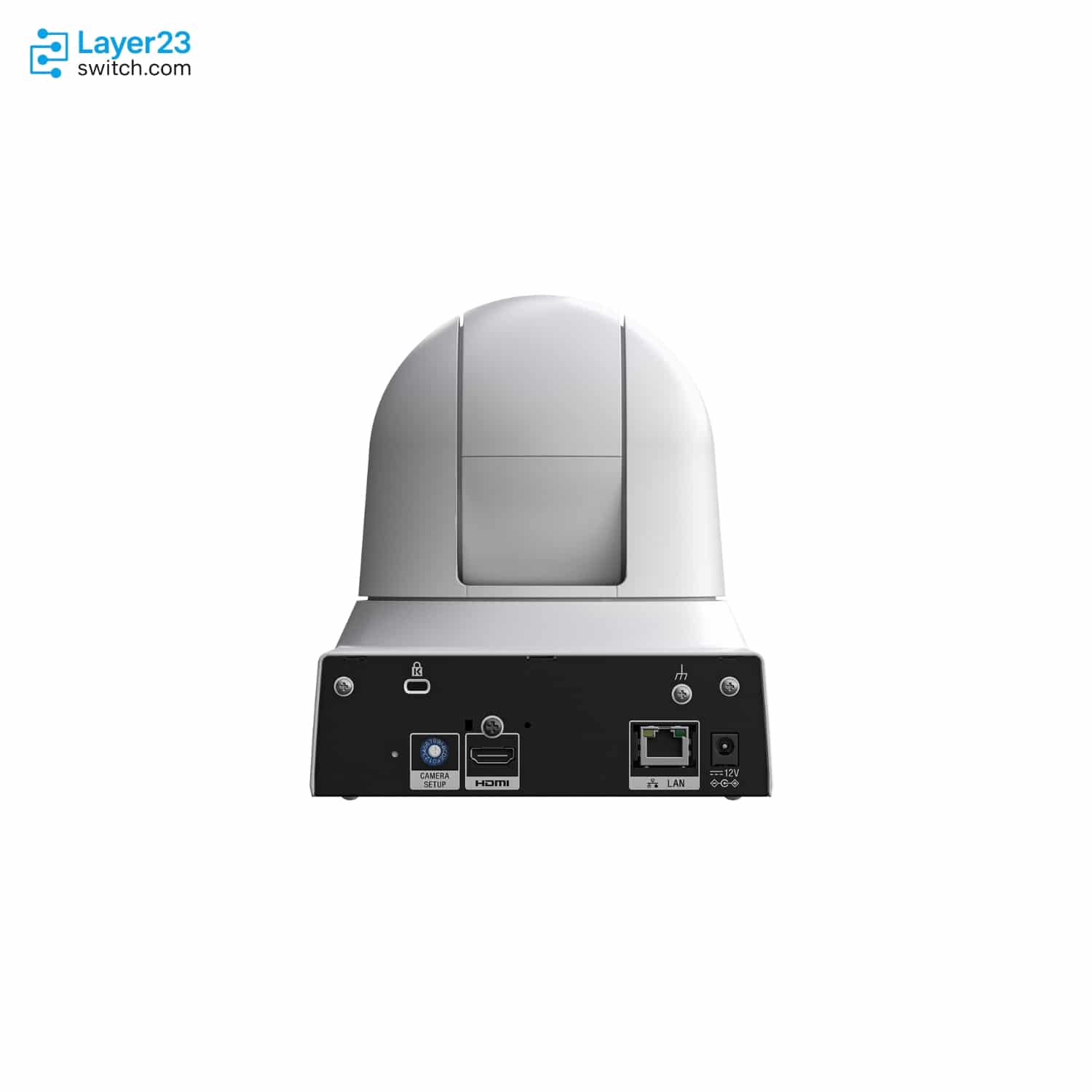

Video leaves the camera over HDMI 2.0 while pan, tilt, zoom and preset commands arrive as Visca over IP on the LAN port, so the control network and the video run are cabled independently.
PresenterTrack support lets the camera follow a moving presenter within a configured zone using digital cropping rather than continuous mechanical movement.
Focus, white balance and brightness each run either automatically or under manual control, which matters in rooms with fixed stage lighting or mixed colour temperature.
The camera runs from 12V at 3A on 100 to 120 or 200 to 240 VAC mains, or from PoE+ under IEEE 802.3at, so the mounting position can be chosen before the power strategy is settled.
Wall mounting and upside-down ceiling mounting are both supported, using the CS-PTZ4K-BRKT and CS-PTZ4K-CLNGMNT brackets respectively.
Application Scenarios
Installed in auditoriums, training rooms and long boardrooms where participants sit well beyond the reach of a fixed wide-angle bar and the 20x optical stage is what makes faces legible.
Used where a speaker moves across a configured presentation zone and PresenterTrack keeps them framed through digital cropping.
Deployed inverted on a ceiling bracket where wall space above or beside the screen is occupied by displays or acoustic treatment.
Selection Guide
1. Choose By Reach Against Field Of View
CS-CAM-PTZ4K is the spare part number for the Cisco PTZ 4K Camera at compliance model EVI-X200C, and it is also the camera fitted in the CS-KIT-EQ-4K-K9 Room Kit EQ PTZ 4K bundle, so ordering both the bundle and this PID delivers two cameras rather than a bundle with a spare lens. The decision against the Cisco Room Vision PTZ is a genuine trade: the PTZ 4K reaches 240x total zoom through a 20x optical stage but sees only 70 degrees horizontally, while the Room Vision PTZ opens to 80.5 degrees with a faster f/1.8 to f/3.6 lens and adds RTSP streaming and video over IP, at 60x total zoom. Control method differs too, Visca over IP here against plain IP on the Room Vision PTZ. Power must be resolved before install, because Cisco names three qualified supplies for this camera, FSP040-RHAN3, Phihong POE29U-1AT(PL) and Microsemi PD-9001GR/AT/AC, with PSU-12VDC-40W2= listed as an optional part; PoE+ under IEEE 802.3at is the alternative. Mounting brackets CS-PTZ4K-BRKT for walls and CS-PTZ4K-CLNGMNT for ceilings are separate line items.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-CAM-PTZ4K | Cisco ordering description | Cisco PTZ 4K Camera – SPARE |
| Compliance model number | EVI-X200C | Resolution | 1920 x 1080 at 60 fps and 3840 x 2160 at 30 fps |
| Optical zoom | 20x | Digital zoom | 12x |
| Total zoom | 240x | Pan range | Plus or minus 170 degrees, used for manual camera control and presets |
| Tilt range | -20 degrees to +90 degrees, used for manual camera control and presets | Horizontal field of view | 70 degrees |
| Focus distance | 1.0 m to infinity at the wide end | F-value | 2.0 to 3.8 |
| Camera control | Visca over IP on the LAN port | Imaging controls | Focus, white balance and brightness each selectable as manual or automatic |
| Video interface/standard | Video over HDMI 2.0 | Presenter tracking | Supports PresenterTrack with digital cropping |
| Power | 12V at 3A, from 100 to 120 or 200 to 240 VAC at 50/60 Hz, or PoE+ compatible with IEEE 802.3at | Qualified power supplies | Must be used with FSP040-RHAN3, Phihong POE29U-1AT(PL) or Microsemi PD-9001GR/AT/AC |
| Optional power supply | PSU-12VDC-40W2= | Mounting | Available with wall mount and upside-down ceiling mount |
| Mounting part numbers | CS-PTZ4K-BRKT wall-mount bracket and CS-PTZ4K-CLNGMNT ceiling-mount bracket | Bundle membership | Supplied as the camera in the CS-KIT-EQ-4K-K9 Room Kit EQ PTZ 4K bundle alongside CS-CODEC-EQ-K9 and CS-T10-TS-L |
| Physical dimensions | 6.3 in wide by 7.0 in high at maximum tilt by 8.0 in deep (15.8 x 17.7 x 20.0 cm) | Weight | 3.75 lb (1.7 kg) |
