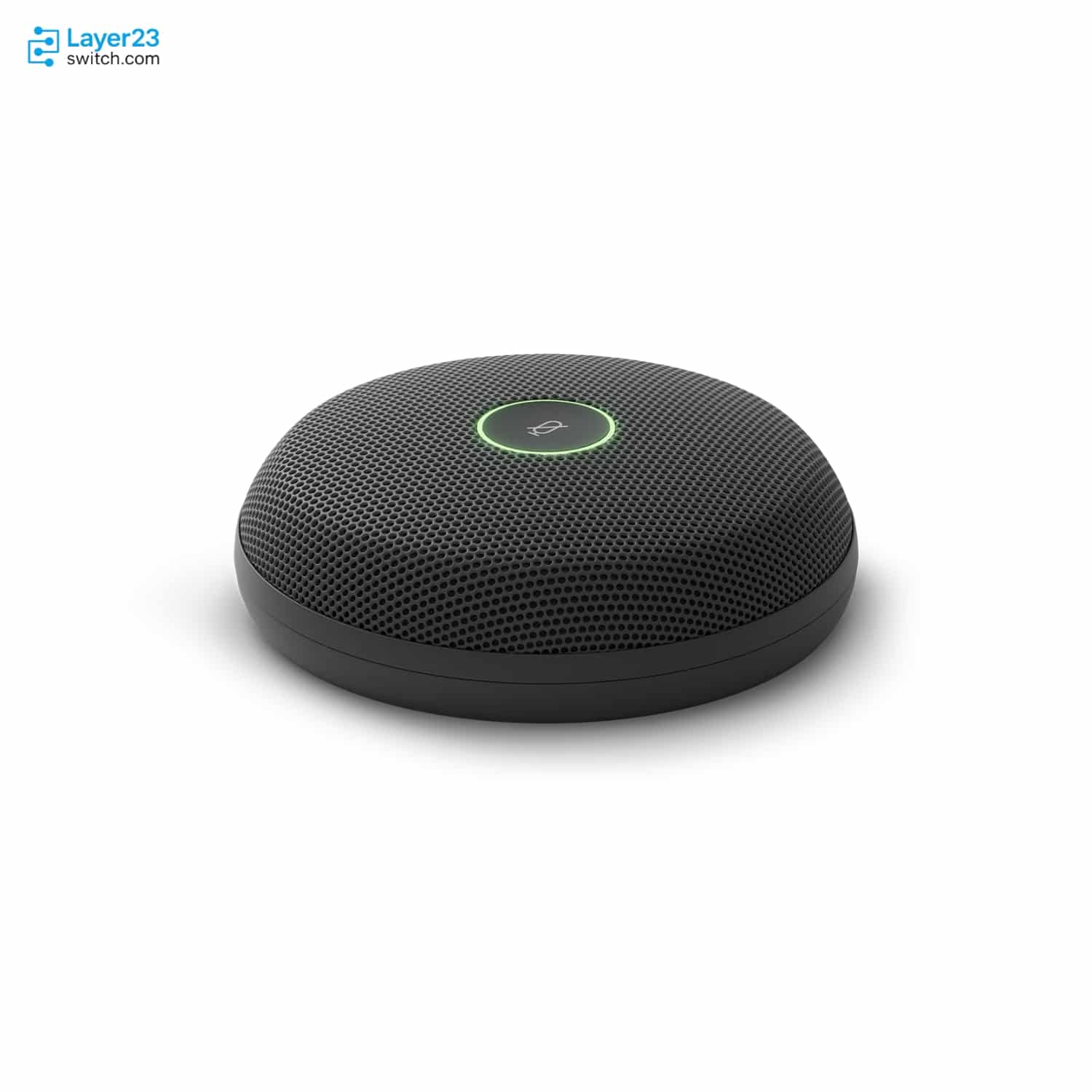

CS-MIC-ARRAY-T – Four Microphone Channels – 5W PoE Over RJ45 – Cisco Table Microphone Pro
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
CS-MIC-ARRAY-T Description
The CS-MIC-ARRAY-T is the Cisco Table Microphone Pro in First Light at compliance model TTC5-17, a digital conferencing microphone carrying four independent channels behind a cardioid pickup pattern. What separates it from analogue table microphones is how it connects: an attached 11-metre cable terminates in RJ45 and the unit draws 5W over Power over Ethernet, so the same run carries audio and power and the audio deployment extends through an ordinary Ethernet switch rather than a phantom-powered analogue chain. Directional microphone lobes give it adaptive voice capture over a 1.5-metre radius across 360 degrees, and the device is optimized for both single-camera and multi-camera speaker tracking. Onboard processing runs acoustic echo cancellation, automatic handling noise attenuation, AI-powered noise removal and automatic gain control under Cisco proprietary encryption, with AES-128 protecting the audio itself. Frequency response is 100 Hz to 16 kHz within plus or minus 6 dB on axis, free-field sensitivity -22 dBFS and signal-to-noise ratio at least 70 dB. It mounts flush into the table or sits on top, and appears in Control Hub alongside the video endpoints for unified management and diagnostics.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-MIC-ARRAY-T |
|
Cisco ordering description |
Cisco Table Microphone Pro – First Light |
|
Compliance model number |
TTC5-17 |
|
Description |
Digital conferencing table microphone with cardioid pickup and four independent microphone channels |
|
Pickup range |
1.5 m radius with 360-degree coverage |
|
Frequency range |
100 Hz to 16 kHz, plus or minus 6 dB on axis |
|
Connector |
Attached 11 m (36 ft) cable with RJ45 Ethernet connector |
|
Power consumption |
5W over Power over Ethernet |
|
Weight |
0.29 lb (0.3 kg) |
Product Performance
Key Features
The unit captures on four independent microphone channels with a cardioid pickup pattern, delivering multiple streams of audio rather than a single mixed signal.
An attached 11-metre cable terminates in RJ45 and the microphone draws 5W over Power over Ethernet, so no separate phantom power supply or analogue input is consumed on the codec.
Because the audio path is IP, the deployment can be extended using an ordinary Ethernet switch instead of being limited by analogue cable runs.
Adaptive voice capture uses directional microphone lobes, and the device is optimized for both single-camera and multi-camera speaker tracking.
Acoustic echo cancellation, automatic handling noise attenuation, AI-powered noise removal and automatic gain control execute on the device, under Cisco proprietary encryption with AES-128 audio encryption.
The supplied mounting kit covers both assemblies, recessing the microphone into the table or seating it on top with the cable routed through a drilled hole or along the surface.
Application Scenarios
Added where seating extends past the coverage published for a bar’s built-in array, putting capture within a 1.5-metre radius of the participants who sit furthest out.
Deployed across large tables where several units attach through a switch, keeping the audio layout independent of the codec’s analogue input count.
Specified into joinery where the microphone is recessed flush with the table surface and the 11-metre cable is routed out of sight through the table.
Selection Guide
1. Choose On Connection Method Before Acoustics
CS-MIC-ARRAY-T is the First Light Table Microphone Pro and CS-MIC-ARRAY-T-C the Carbon Black version, both at compliance model TTC5-17 with identical acoustics. Against the analogue Cisco Table Microphone the split is structural rather than tonal: this unit is IP, powered over Ethernet at 5W through RJ45, scalable through a switch, visible in Control Hub, and it carries AES-128 audio encryption, speaker-tracking support and adaptive voice capture, none of which the analogue product provides. The analogue unit reaches wider in raw frequency terms, 80 Hz to 20 kHz against 100 Hz to 16 kHz here, so the case for the Pro is processing and deployment rather than bandwidth. Compatibility is narrower than the analogue range as well: Room Bar, Room Bar Pro, Room Kit EQ, Room Kit EQX, Room Kit Pro, Board Pro 55 and 75, Board Pro 55 and 75 G2 and the Room Panorama series, with no support for the older SX, MX or Room 55 and Room 70 platforms. The 11-metre attached cable sets the maximum distance from the switch port, and the operating envelope is 0 to 35 degrees C at 20 to 90 percent relative humidity.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-MIC-ARRAY-T | Cisco ordering description | Cisco Table Microphone Pro – First Light, with CS-MIC-ARRAY-T= as the spare |
| Compliance model number | TTC5-17 | Description | Digital conferencing table microphone supporting a cardioid pickup pattern and four independent microphone channels, available in First Light and Carbon Black |
| Product compatibility | Cisco Room Bar, Room Bar Pro, Room Kit EQ and EQX, Room Kit Pro, Room Panorama, Room 70 Panorama, Room 70 Dual Panorama Upgrade, Board Pro 55 and 75, and Board Pro 55 and 75 G2 | Connector | Attached 11 m (36 ft) cable with RJ45 Ethernet connector |
| Other ports | One micro USB service port and one factory reset pinhole | Software features | Acoustic echo cancellation, automatic handling noise attenuation, Cisco proprietary encryption, AI-powered noise removal and automatic gain control |
| Frequency range | 100 Hz to 16 kHz, plus or minus 6 dB on axis | Free field sensitivity | -22 dBFS plus or minus 3 dB rel 1V/Pa at 1 kHz |
| Signal-to-noise ratio | Minimum 70 dB | Pickup range | 1.5 m radius with 360-degree coverage |
| Adaptive voice capture | Supported, using directional microphone lobes | Speaker tracking support | Supported and optimized for single and multi-camera tracking |
| Scalability via switch | The audio deployment can be extended using an Ethernet switch | Audio encryption | AES-128 audio encryption |

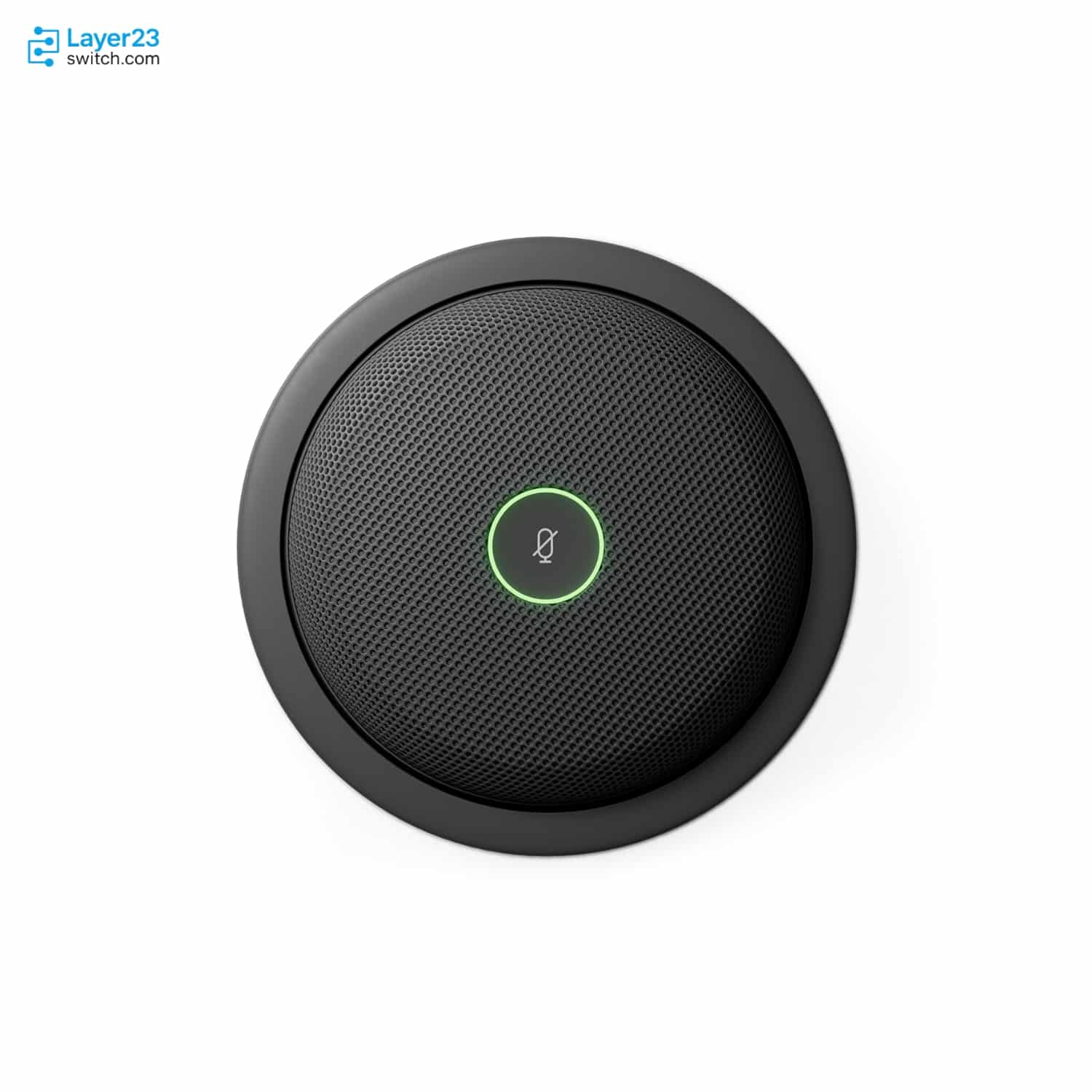

| User interface | Capacitive touch mute button on the top of the microphone, a multi-color LED showing mute status and a power light | Mounting options | Flush mounted and recessed into the table, or on top of the table with cabling routed through a drilled hole or along the surface |
| Device management | Unified cloud device management, device controls, monitoring and analytics in Control Hub alongside Cisco video endpoints and peripherals | Automatic positioning | Not supported on this model |
| Physical dimensions | 9.8 cm diameter by 2.9 cm high (3.85 x 3.85 x 1.15 in) | Attached cable length | 11 m (36 feet) |
| Weight | 0.29 lb (0.3 kg) | Power consumption | 5W over Power over Ethernet |
| Default components | Microphone unit in First Light or Carbon Black, an 11 m Ethernet cable and a mounting kit for on-table and in-table assembly | Colour options | First Light as CS-MIC-ARRAY-T and Carbon Black as CS-MIC-ARRAY-T-C, both at TTC5-17 |
| Operating temperature | 0 to 35 degrees C (32 to 95 degrees F) ambient | Operating humidity | 20% to 90% relative humidity, noncondensing |
| Storage temperature | -20 to 60 degrees C (-4 to 140 degrees F) ambient | Storage humidity | 10% to 90% relative humidity, noncondensing |
| Regulatory compliance | FCC CFR 47 Part 15B for EMC, Directive 2014/30/EU, Directive 2014/35/EU, Directive 2011/65/EU, Directive 2002/96/EU and NRTL approval for product safety |
