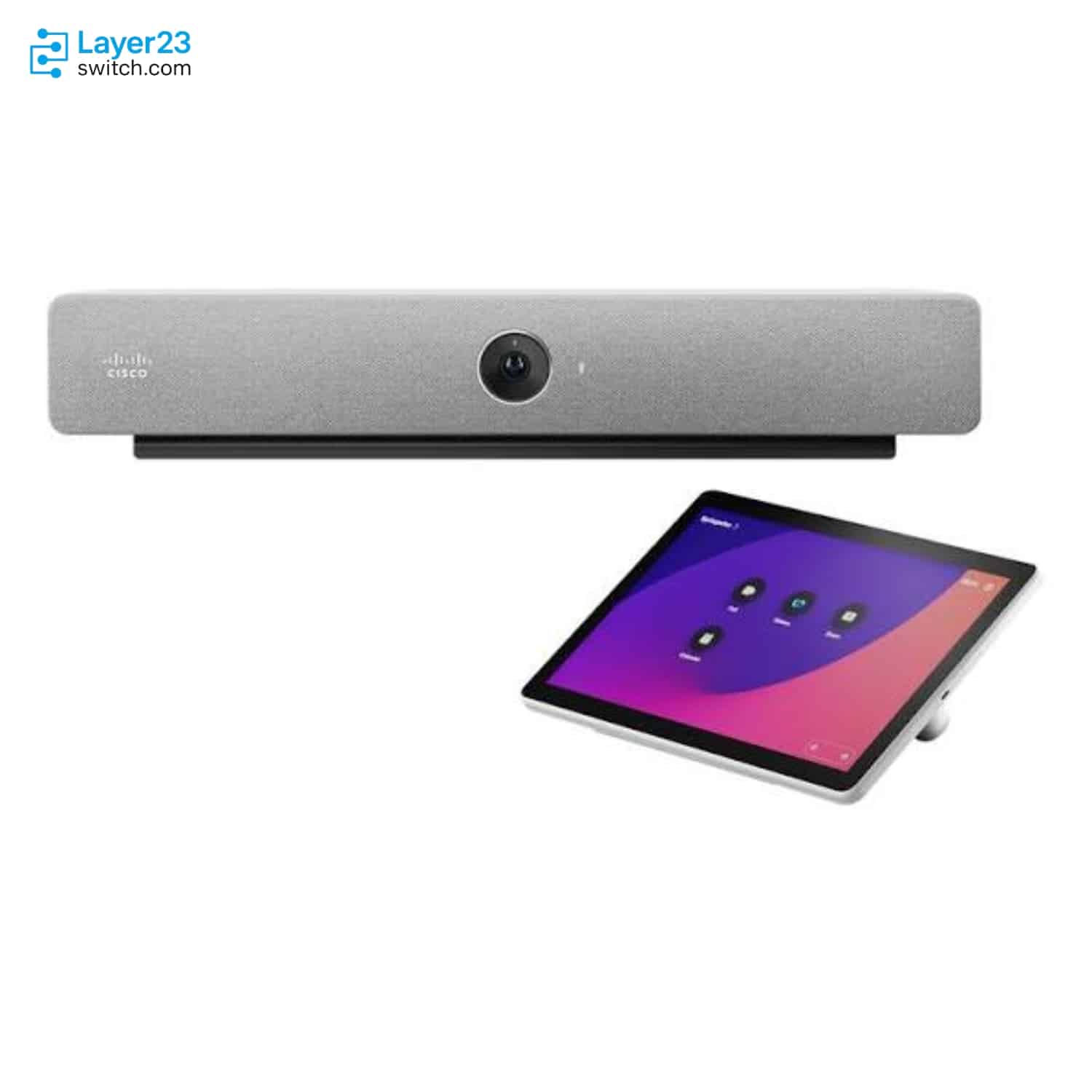

CS-BAR-W-C-K9 – Carbon Finish – Wall-Mount Navigator – Cisco Room Bar
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
CS-BAR-W-C-K9 Description
The CS-BAR-W-C-K9 is the Carbon ordering finish of the Cisco Room Bar supplied with the wall-mount Cisco Room Navigator, sharing compliance model TTC7-28 with every other Room Bar bundle. Because the controller mounts to the wall rather than standing on the table, this part number turns the bar and its control surface into a single fixed-position install decided during fit-out. The bar itself uses a consolidated mounting unit that fits both walls and displays, closes the mounting seam with a gap bar, and can sit above or beneath the screen line; when mounted beneath, the whole unit inverts for cable routing and the speaker grille detaches and flips to match. Imaging comes from a 12 MP camera on a 1/2.3 inch CMOS sensor at 30 fps with a 120-degree horizontal field of view, a fixed f/2.5 lens, 5x digital zoom and automatic image rotation that corrects the picture when the bar is inverted. A 4-element beamforming array plus a dedicated front-facing tracking microphone feeds a stereo directional loudspeaker pair rated to 93 dB maximum sound pressure level, two HDMI outputs drive displays at 3840 x 2160 at 60 fps, and one dedicated PoE Ethernet port carries the Navigator. The bundle draws a peak 86W through the required PSU-12VDC-86W supply.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-BAR-W-C-K9 |
|
Cisco ordering description |
Cisco Room Bar in Carbon colour with wall-mount Room Navigator |
|
Camera |
12 MP on a 1/2.3 in CMOS sensor at 30 fps with a fixed f/2.5 lens |
|
Camera field of view |
120 degrees horizontal and 95 degrees vertical with 5x digital zoom |
|
Audio system |
4-element beamforming array with stereo directional speakers at 93 dB maximum SPL |
|
Video outputs |
Two HDMI outputs up to 3840 x 2160 at 60 fps |
|
Controller port |
One PoE Ethernet RJ-45 at 100/1000 Mbps dedicated to Room Navigator pairing |
|
Mounting |
Consolidated wall and screen unit with gap bar, mountable above or beneath the screen and invertible |
|
Power |
86W peak, 14.3W in call, 7W networked standby, requires PSU-12VDC-86W |
Application Scenarios
Installed where display height or ceiling clearance puts the bar under the screen rather than over it, using the inverted orientation, the flipped speaker grille and the automatic image rotation that corrects the camera picture.
Specified into rooms where the display wall, the bar and the wall-mounted controller are all detailed as one dark finish package by the AV designer before the room is built.
Chosen where the Navigator Ethernet run is pulled into the wall during construction and terminates at a fixed controller position that is not intended to move for the life of the room.
Selection Guide
1. Wall Mounting Fixes The Controller Position Permanently
CS-BAR-W-C-K9 ships the Carbon Room Bar with the wall-mount Room Navigator, where CS-BAR-T-C-K9 ships the same Carbon bar with the table-stand version and CS-BAR-W-K9 is the First Light equivalent of this wall bundle; the bar, its camera, its array and its TTC7-28 compliance model are identical across all of them, so the split is entirely about where the controller ends up and what colour the enclosure is. The wall Navigator pairs over the single dedicated PoE Ethernet port on the bar rather than over the room LAN, which means the cable run to the chosen wall position has to be planned before the wall is closed. Two limits apply regardless of mounting. Cisco publishes the built-in array as optimized for up to 5 people within 3 metres, so larger rooms need external microphones budgeted alongside the bundle, and the bar has no internal power supply, requiring PSU-12VDC-86W both at install and as the later spare.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-BAR-W-C-K9 | Cisco ordering description | Cisco Room Bar in Carbon colour with wall-mount Room Navigator |
| Compliance model number | TTC7-28 | Camera | 12 MP on a 1/2.3 in CMOS sensor at 30 fps |
| Camera lens | Fixed focus at f/2.5 aperture | Camera field of view | 120 degrees horizontal and 95 degrees vertical |
| Camera zoom | 5x digital zoom | Camera intelligence | Auto framing with face detection, speaker tracking, automatic brightness and white balance, automatic image rotation when inverted, Frames mode for single-person framing |
| Video standards | H.263, H.264 and AV1 | Video input | One HDMI up to 3840 x 2160 at 30 fps including 1920 x 1080 at 60 fps, and one USB-C up to 3840 x 2160 at 30 fps, both with CEC 2.0 |
| Video outputs | Two HDMI up to 3840 x 2160 at 60 fps with CEC 2.0, supporting touch screens when a USB-A touch signal is attached | Live video resolutions | Encode and decode up to 1920 x 1080 at 30 fps and 60 fps |
| Video stream | 1920 x 1080 at 30 fps | Content stream | 3840 x 2160 at 15 fps, with 3840 x 2160 at 15 fps content decode from Webex |
| Audio standards | G.711, G.722, G.722.1, G.729, AAC-LD and Opus | Audio features | Acoustic echo cancellation, active lip sync, AI noise removal, automatic gain control, beamforming microphone, dereverberation, full duplex, full-band audio, Self-Hear, spatial audio and ultrasound |
| Loudspeaker system | Stereo pair of two full-range drivers with directional audio | Loudspeaker response | 100 Hz to 20 kHz within plus or minus 3 dB at 93 dB maximum sound pressure level |
| Microphone array | 4-element beamforming array with an additional front-facing microphone for speaker tracking | Published room coverage | Optimized for huddle and small meeting rooms with up to 5 people within 3 metres; rooms above 5 people need external microphones, and speaker tracking assumes the furthest participant is within 3 metres |
| Audio inputs | One HDMI, one analogue microphone input, one DisplayPort over USB-C, one USB-A, Bluetooth, and one PoE port carrying audio over IP for a single Cisco IP microphone | Audio outputs | One DisplayPort over USB-C, one USB-A and Bluetooth |
| Network interface | One Ethernet RJ-45 at 100/1000 Mbps for LAN | Controller port | One Ethernet RJ-45 at 100/1000 Mbps with PoE, dedicated to direct pairing of the Cisco Room Navigator |
| Wireless | Wi-Fi 802.11a/b/g/n/ac on 2.4 and 5 GHz with 2×2 MIMO | USB-C passthrough | Camera, microphone and speakers over one USB-C cable with simultaneous content sharing and 3840 x 2160 at 30 fps display extension, requiring Alt-mode DisplayPort on the computer |
| Other interfaces | Bluetooth and Bluetooth Low Energy, one USB 2.0 type A, one micro-USB service port and a factory reset pinhole | Power input | 100 to 240 VAC at 50/60 Hz with 12V DC input, requiring the PSU-12VDC-86W power supply |
| Power consumption | 86W peak, 14.3W in call, 8.2W idle and 7W networked standby | Main unit dimensions | 21 x 3.2 x 2.5 in (53.4 x 8.2 x 6.4 cm) at 3.3 lb (1.5 kg) |
| Mounting | Consolidated mounting unit for walls and screens with a gap bar closing the seam, mounted above or beneath the screen and invertible for cable routing with a de-attachable flipped speaker grille | Software compatibility | RoomOS 11 or later for native Webex meetings with interoperability for Microsoft Teams, Zoom and Google Meet |
| Operating temperature | 0 to 35 degrees C at 10% to 90% relative humidity | Accessory part number | PSU-12VDC-86W= power supply spare |
Get More Information
Need pricing, stock, or shipping details for the CS-BAR-W-C-K9 ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
