CS-KIT-EQ-C-K9 Description
The CS-KIT-EQ-C-K9 is a Cisco Room Kit EQ collaboration bundle for large conference rooms and boardrooms finished in dark tones. The bundle pairs a Codec EQ with the Carbon Black Quad Camera of four 20MP sensors, drives three HDMI displays at 3840 x 2160 at 60 fps and shares a 90W budget across four PoE++ ports. The Room Navigator for Table remains in First Light finish, and AES67 audio from third-party systems requires the AV Integrator License.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-KIT-EQ-C-K9 |
|
Bundle scope |

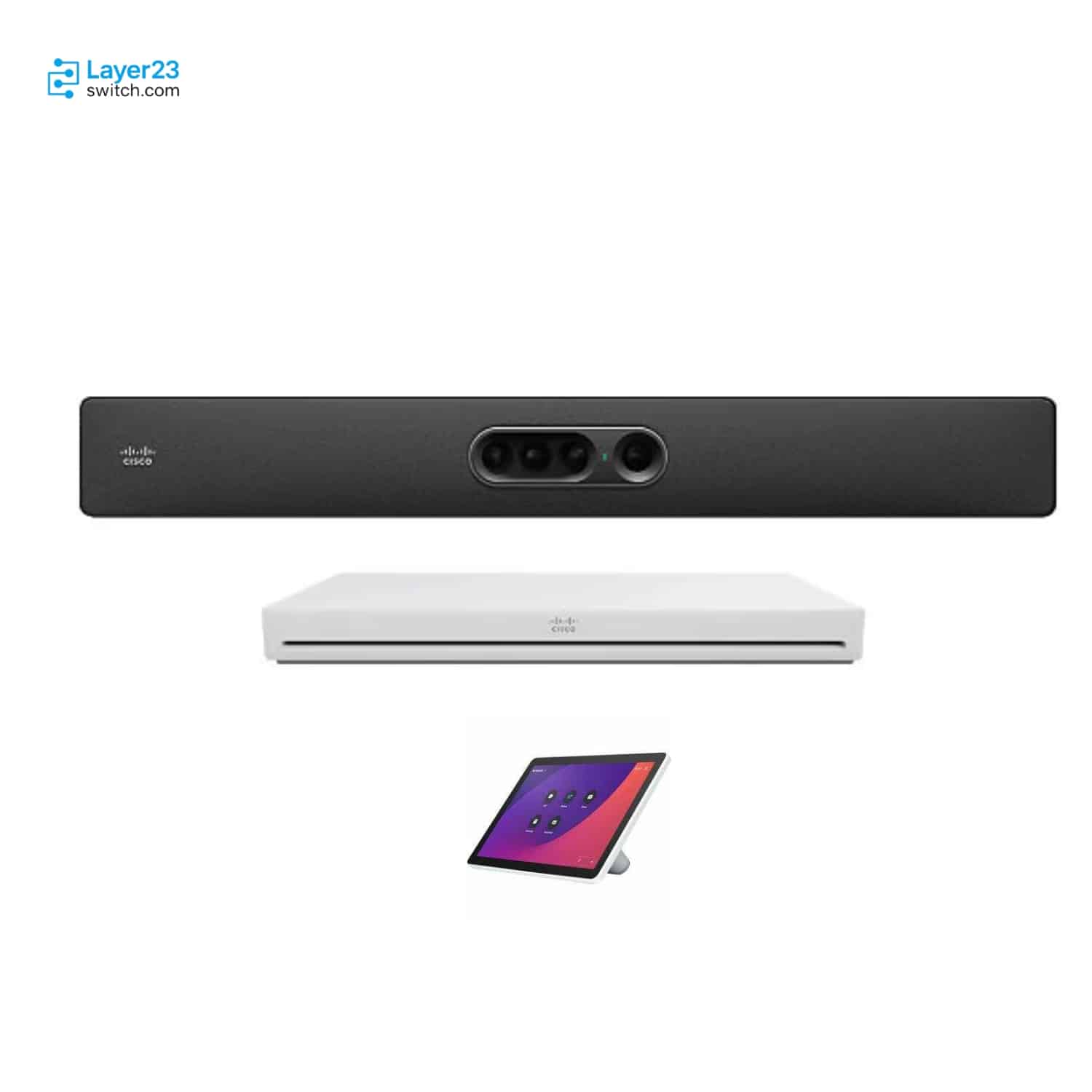

Codec EQ CS-CODEC-EQ-K9, Carbon Black Quad Camera CS-QUADCAM2-C and Room Navigator for Table CS-T10-TS-L |
|
Camera |
Four CMOS sensors at up to 20MP each with single 1080p output |
|
Camera optics |
7x zoom with 83-degree wide lens and three 50-degree tele-lenses |
|
Video outputs |
Three HDMI outputs up to 3840 x 2160 at 60 fps |
|
PoE++ ports |
Four 802.3bt Ethernet ports sharing a 90W power budget |
|
Audio inputs |
Three analog mini jack, three HDMI, USB-C, USB-A and up to eight Cisco IP microphones |
|
Wireless |
Wi-Fi 802.11a/b/g/n/ac/ax on 2.4 GHz, 5 GHz and 6 GHz with 2×2 MIMO |
|
Power consumption |
18W in meeting, 18W idle and 15W display-off standby |
Application Scenarios
In a boardroom with dark millwork, the Carbon Black camera bar sits above or beneath the screens, and the Codec EQ drives up to three displays over HDMI.
A glass-walled room that faces a corridor uses meeting zones, which limit the four-sensor camera to people inside the defined boundary and keep passers-by out of the shot.
A training room can attach up to eight Cisco IP microphones to the PoE++ ports of the Codec EQ while the camera follows speakers with automatic group framing.
Selection Guide
CS-KIT-EQ-C-K9 suits boardrooms that want a Carbon Black Quad Camera: it differs from CS-KIT-EQ-K9 only in the camera, CS-QUADCAM2-C in place of CS-QUADCAM2. The Room Navigator CS-T10-TS-L still ships in First Light, so an all-dark room handles the controller finish separately. Rooms that need a motorised camera with 20x optical zoom move to CS-KIT-EQ-4K-K9.
Ordering Checklist
- Quad Camera power supply: Add PSU-12VDC-70W-GR= if the order does not already carry it. The Quad Camera requires this supply, so a missing unit leaves the camera unpowered.
- Codec mounting: Add CS-CODEC-EQ-RCK= rack ears or CS-CODEC-EQ-WMK= wall-mount kit if the codec is not free-standing. Rack and wall positions each need their own accessory.
- AV integrator options: Add the AV Integrator License for AES67 third-party audio, the AV Integrator option key for Audio Console, or L-KITEQ-AV. Third-party audio and the full Audio API stay locked without them.
- CUCM registration: Use CUCM 12.5 or later with the Room Kit EQ device pack. Native CUCM registration needs both.
- Ethernet cable: Select CAB-ETH-1.5M-GR, CAB-ETH-3M-GR or CAB-ETH-5M-GR for the PoE++ runs, or CAB-CAT5E-CMP-20M or CAB-CAT5E-CMP-30M where plenum-rated cable is required. Each run needs a cable PID of the right length and rating.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-KIT-EQ-C-K9 | Cisco ordering description | Cisco Room Kit EQ – Carbon Black |
| Bundle scope | CS-CODEC-EQ-K9 Codec EQ, CS-QUADCAM2-C Carbon Black Quad Camera and CS-T10-TS-L Room Navigator for Table | Compliance model numbers | TTC6-15, TTC8-10 and TTC5-15 |
| Camera sensors | Four CMOS image sensors with machine intelligent switching at up to 20MP per sensor, combined into a single 1080p output | Camera optics | 7x zoom from 5x native optical zoom with digital enhancement, f/2.0 aperture, 1/1.7 CMOS |
| Camera field of view | 83 degrees horizontal on the wide lens and 50 degrees horizontal on the three tele-lenses | Camera resolution | 5056 x 3888 pixels |
| Camera intelligence | Automatic group framing with audio and face detect, speaker tracking, Frames camera mode and meeting zones | Camera focus | Automatic focus, brightness and white balance with focus distance 1 m to infinity, up to 60 fps |
| Camera control | Ethernet (LAN) | Video standards | H.264, H.265, H.263 and AV1 |
| Video inputs | One USB-C up to 3840 x 2160 at 30 fps, three HDMI up to 3840 x 2160 at 30 fps including 1920 x 1080 at 60 fps with HDCP 1.4 on one input, and four PoE++ 1 Gb Ethernet ports for video over IP | Video over IP capacity | Up to three streams at 1920 x 1080 at 60 fps or one stream at 3840 x 2160 at 30 fps |
| Video outputs | Three HDMI outputs up to 3840 x 2160 at 60 fps with CEC 2.0 and interactive touch screen support over HDMI out plus USB-A | Main video | 1920 x 1080 at 60 fps |
| Presentation channel | 3840 x 2160 at 15 fps | USB passthrough | One USB 3.2 gen1 at up to 5 Gbps carrying camera, microphone and speakers over a single USB-C cable |
| Bandwidth | Up to 20 Mbps, with 1472 kbps minimum for 1080p30 and 2560 kbps for 1080p60 | Audio standards | G.711, G.722, G.722.1, G.729, AAC-LD and Opus |
| Audio features | 20 kHz full-band audio, acoustic echo cancellation, active lip synchronization, AI-powered adaptive noise removal, automatic gain control, full duplex, Self-Hear and Ultrasound Technology | Audio inputs | Three mini jack analog, three HDMI, one USB-C, one USB-A, four PoE++ Ethernet for audio over IP, up to eight Cisco IP microphones and AES67 third-party systems with the AV Integrator License |
| Audio outputs | One analog line out, three HDMI audio outputs, one USB-A, one USB-C and four PoE++ Ethernet for audio over IP | Loudspeakers | Quad Camera loudspeaker system with a single full-range driver and dual low-frequency drivers |
| Network interface | One Ethernet RJ-45 10/100/1000 for LAN plus four PoE++ 802.3bt RJ-45 10/100/1000 ports | PoE++ power budget | Up to 90W total across the four 802.3bt ports for camera, Room Navigator and AV over IP peripherals |
| Wireless | Wi-Fi 802.11a/b/g/n/ac/ax on 2.4 GHz, 5 GHz and 6 GHz with 2×2 MIMO; Wi-Fi 6E absent in non-radio versions | Other interfaces | Four USB-A 3.0 ports at up to 1.5A charging each, Bluetooth and Bluetooth Low Energy absent in non-radio versions, Micro USB service port and factory reset pinhole |
| Call control | Native CUCM registration requiring version 12.5 or later with the Room Kit EQ device pack, native Cisco Expressway registration, Webex, third-party H.323 gatekeepers and SIP proxies | Firewall traversal | Cisco Expressway technology with H.460.18 and H.460.19 |
| Wireless sharing | Webex App up to 3840 x 2160 at 7.5 fps including 1920 x 1080 at 30 fps, Miracast and Apple AirPlay | Network diagnostics | Network-level diagnostics and observability with Cisco ThousandEyes integration |
| Power input | 100 to 240 VAC at 50/60 Hz | Power consumption | 18W in an active meeting, 18W idle and 15W with display off in standby |
| Camera power supply | Quad Camera must be used with PSU-12VDC-70W-GR= | Operating temperature | 0 to 35°C for Quad Camera; 0 to 40°C for Room Navigator and Codec EQ |
| Operating humidity | 10% to 90% relative humidity | Storage temperature | -20 to 60°C |
| Storage humidity | 10% to 90% RH noncondensing | Quad camera dimensions | 37.4 x 4.7 x 4.0 in (95.0 x 12.0 x 10.3 cm) at 4.8 kg (10.6 lb) |
| Codec EQ dimensions | 18.6 x 1.7 x 8 in (47.3 x 4.4 x 20.2 cm) at 2.33 kg (5.1 lb) | Mounting | Quad Camera above or beneath the screens or wall mounted; Codec EQ wall mounted, rack eared or free-standing |
| Camera color options | First Light and Carbon Black | Locking mechanism | Kensington security lock on the Codec EQ |
| Advanced audio unlock | Full Audio API and Audio Console with the AV Integrator option key, also required for AES67 | Accessory part numbers | CS-CODEC-EQ-ANT=, PSU-12VDC-70W-GR=, CAB-ETH-1.5M-GR, CAB-ETH-3M-GR, CAB-ETH-5M-GR, CAB-CAT5E-4M, CAB-CAT5E-8M, CAB-CAT5E-12M, CAB-CAT5E-CMP-20M and CAB-CAT5E-CMP-30M |
| Directives for radio versions | Directive 2014/53/EU | Directives for non-radio versions | Directives 2014/30/EU and 2014/35/EU |
| RoHS compliance | RoHS 2011/65/EU | WEEE compliance | WEEE 2002/96/EU |
| Safety certifications | NRTL product safety |
