CS-KIT-MINI-K9 Description

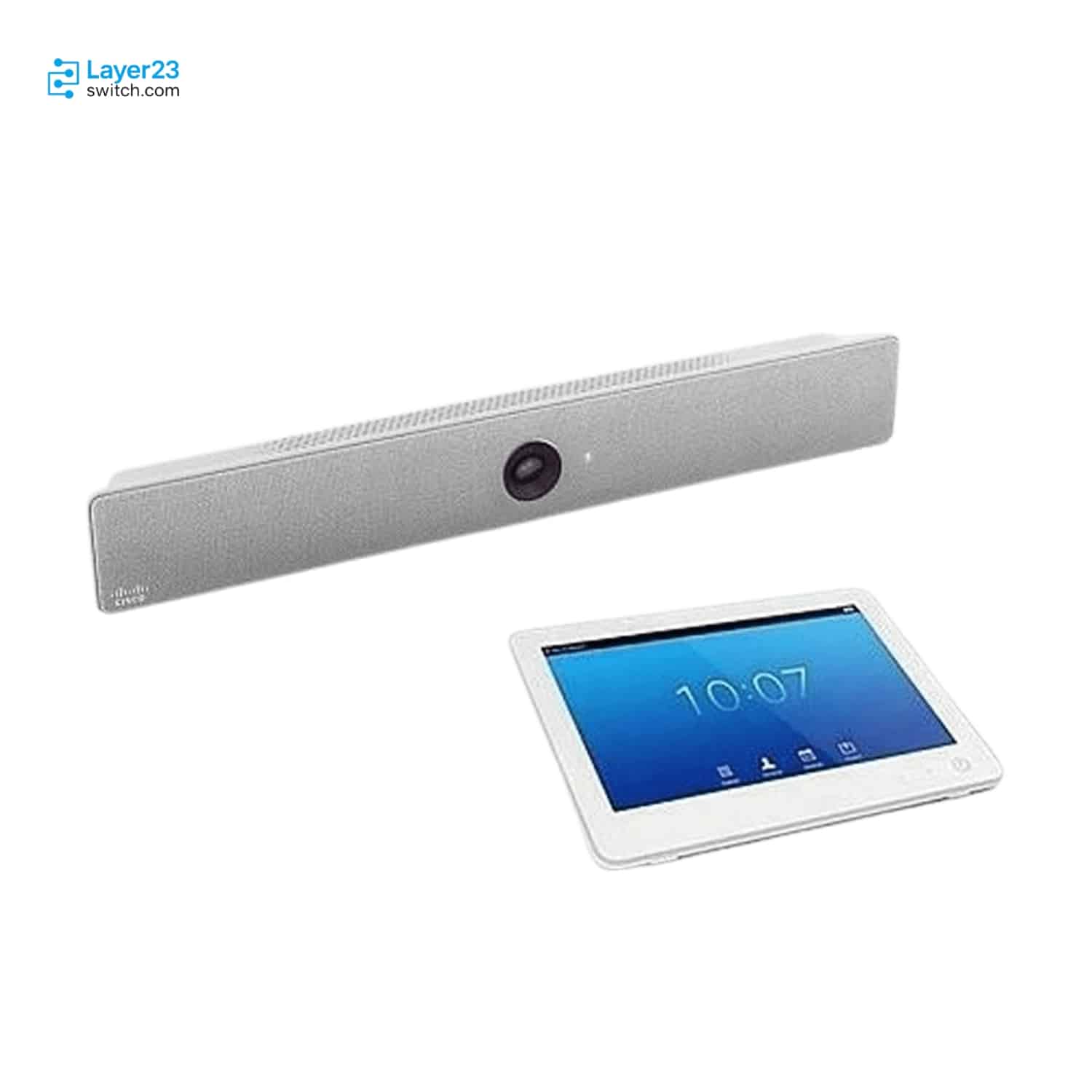

The CS-KIT-MINI-K9 is the Webex Room Kit Mini upfront pricing bundle, pairing the Room Kit Mini unit with a Webex Room Navigator under component part numbers CS-KIT-MINI and CS-T10-TS at compliance models TTC7-26 and TTC5-15. It is an all-in-one huddle-room video system that folds camera, microphones, speakers and codec into a 19.7-inch bar weighing 4 lb. The camera is a 4K UltraHD unit with an 8 MP sensor on 1/2.5 inch CMOS, 5x zoom and an f/1.4 aperture across a 120-degree horizontal field of view, with auto framing on face detect and best overview handling participant framing. Integrated audio pairs a full-range driver with dual woofers in balanced configuration, rated 100 Hz to 20 kHz at 24W amplifier power and 84 dB maximum output. One HDMI input and one HDMI output at up to 3840 x 2160 at 60 fps connect the room display, and USB passthrough lets the same hardware host any web conferencing service by running a USB cable to the monitor and HDMI to the computer. Networking covers a LAN port, a dedicated port for direct Cisco Touch 10 pairing and Wi-Fi 802.11a/b/g/n/ac, and the system runs Cisco Collaboration Endpoint Software 9.14.5 or later and Cisco Webex RoomOS.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-KIT-MINI-K9 |
|
Bundle scope |
Webex Room Kit Mini unit CS-KIT-MINI and Webex Room Navigator CS-T10-TS |
|
Camera |
4K UltraHD with 8 MP sensor, 5x zoom and 120-degree horizontal field of view |
|
Audio system |
Internal microphones with full-range driver plus dual woofers at 24W and 84 dB maximum SPL |
|
Video output |
One HDMI up to 3840 x 2160 at 60 fps |
|
USB passthrough |
Camera, microphones and speakers shared to a connected computer at 720p |
|
Network interface |
One Ethernet RJ-45 10/100/1000 LAN plus one port for Cisco Touch 10 direct pairing |
|
Power |
100 to 240 VAC at 50/60 Hz with 12V DC input |
|
Software compatibility |
Cisco Collaboration Endpoint Software 9.14.5 or later and Cisco Webex RoomOS |
Product Performance
Key Features

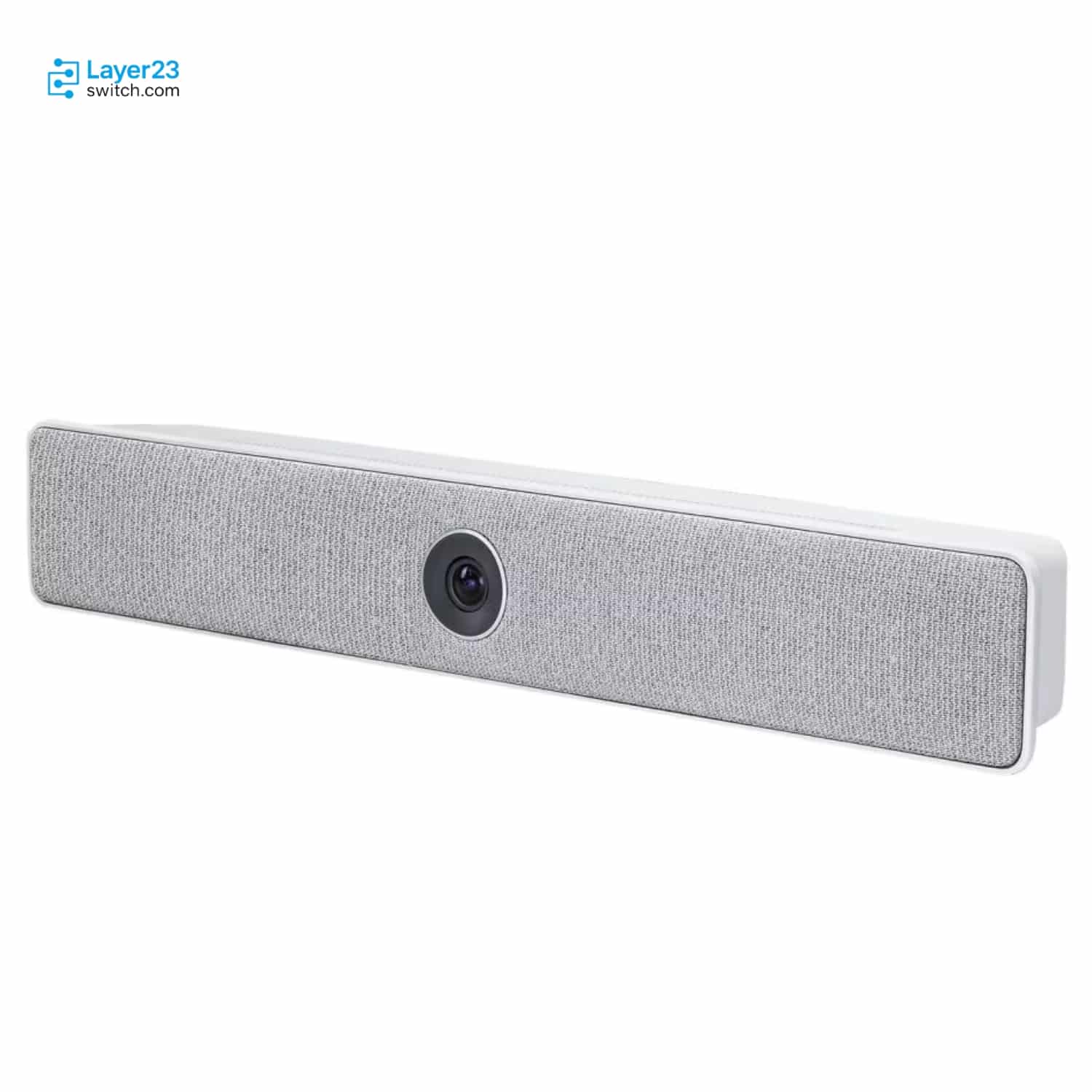

Camera, microphones, speakers and codec sit in a single 19.7-inch unit, so a huddle room is equipped from one mounting position rather than a camera, a speakerphone and a separate compute box.
A 120-degree horizontal field at f/1.4 frames people seated close to the display, which is the geometry of a small room where a narrower lens would cut off the end seats.
USB passthrough shares the camera, microphones and speakers with a connected computer at 720p, so a room standardized on one platform can still host guest sessions on another without swapping hardware.
A dedicated Ethernet port pairs the Cisco Touch 10 directly to the unit, keeping the controller off the corporate switch and out of the room’s LAN port count.
The single HDMI output drives a display at up to 3840 x 2160 at 60 fps while live video encodes and decodes at up to 1920 x 1080, matching the panel resolution typically fitted in small rooms.
The speaker set pairs a full-range driver with dual woofers in balanced configuration across 100 Hz to 20 kHz, which keeps speech intelligible in a hard-surfaced small room without adding external audio.
Application Scenarios
Installed in huddle rooms where a 4 lb bar under the display covers the whole seating area and no separate camera or speakerphone is fitted.
Deployed in small rooms converted from offices or phone booths, where a single wall or screen mount is the only available fixing point.
Placed in rooms that must host external meeting services from a visitor laptop, using the USB passthrough path to keep the room camera and audio in play.
Product Comparison
|
Parameter |
CS-KIT-MINI-K9 |
CS-KIT-MINI-NR-K9 |
CS-KIT-MINI-K9++ |
|---|---|---|---|
|
Cisco ordering description |
Webex Room Kit Mini upfront pricing bundle |
Webex Room Kit Mini no radio bundle |
Webex Room Kit Mini TAA bundle |
|
Room Kit Mini component |
CS-KIT-MINI |
CS-KIT-MINI-NR |
CS-KIT-MINI-UNIT++ |
|
Wi-Fi 802.11a/b/g/n/ac |
Included on 2.4 GHz and 5 GHz |
Not included in non-radio versions |
Included on 2.4 GHz and 5 GHz |
|
Camera |
4K UltraHD with 8 MP sensor and 120-degree horizontal field of view |
4K UltraHD with 8 MP sensor and 120-degree horizontal field of view |
4K UltraHD with 8 MP sensor and 120-degree horizontal field of view |
|
Bundled controller |
Webex Room Navigator |
Webex Room Navigator |
Webex Room Navigator |
- CS-KIT-MINI-K9 and CS-KIT-MINI-NR-K9 carry the same camera, audio and display capability, and the split is the on-board radio: the no-radio unit suits sites whose policy forbids wireless endpoints and gives up Wi-Fi and Bluetooth rather than any meeting function.
- CS-KIT-MINI-K9++ exists to satisfy TAA procurement on the same hardware, so it is a contract requirement rather than a technical choice and cannot be substituted by the standard bundle when TAA terms apply.
- For deciding which SKU to order, check procurement terms and wireless policy first, since the camera, controller and room capability are identical across all three bundles.
Selection Guide
1. Wireless Policy Sets The Bundle
CS-KIT-MINI-K9 keeps Wi-Fi 802.11a/b/g/n/ac available for rooms without a convenient wired drop; a site that bans on-board radios has to take CS-KIT-MINI-NR-K9 and provision Ethernet to every room position instead.
2. TAA Contracts Need Their Own PID
CS-KIT-MINI-K9++ is the separate TAA line, so an order under U.S. Government terms cannot be met by relabeling the standard bundle, and a commercial order gains nothing from the TAA PID.
3. Software Baseline Before Deployment
The unit requires Cisco Collaboration Endpoint Software 9.14.5 or later or Cisco Webex RoomOS, so a room joining an older on-premises estate needs its software plan settled before the bundle is placed into service.
4. Cables And Mount Are Separate Lines
The 8 m HDMI presentation cable, the 4 m USB cable for passthrough and the Screen Mount Kit are optional hardware components rather than bundle contents, so a screen-mounted room using passthrough carries all three as their own order lines.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Compliance models |
Confirm the delivered components report TTC7-26 and TTC5-15. |
Confirms both the Room Kit Mini unit and the Room Navigator are accounted for under the single bundle PID. |
|
Power supply |
Confirm PSU-12VDC-70W-GR= is available for the unit. |
This is the specified Room Kit Mini power supply, and a missing unit leaves the bar unpowered at commissioning. |
|
USB passthrough cabling |
Confirm the 4 m USB cable and an HDMI run are provisioned when passthrough will be used. |
Passthrough needs a USB cable to the monitor and HDMI to the computer, so a room without both cannot use the feature. |
|
Screen mount kit |
Confirm the Screen Mount Kit is ordered when the unit mounts to a display rather than a shelf. |
The mount is an optional component, so a screen-mounted rollout stops at installation without it. |
|
Software baseline |
Confirm the target software is Cisco Collaboration Endpoint Software 9.14.5 or later or Cisco Webex RoomOS. |
An older software plan cannot run the delivered hardware, which strands the room at turn-up. |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-KIT-MINI-K9 | Bundle scope | Webex Room Kit Mini unit CS-KIT-MINI and Webex Room Navigator CS-T10-TS |
| Compliance model numbers | TTC7-26 and TTC5-15 | Camera | 4K UltraHD supporting up to 30 fps with 8 MP image sensor on 1/2.5 in CMOS |
| Camera optics | 5x zoom at f/1.4 with 120 degrees horizontal field of view | Camera intelligence | Auto framing with face detect and best overview |
| Video standard | H.264 | Video input | One HDMI up to 3840 x 2160 at 30 fps including HD1080p60 with CEC 2.0 |
| Video output | One HDMI up to 3840 x 2160 at 60 fps with CEC 2.0 | Encode and decode | Live video up to 1920 x 1080 at 30 and 60 fps |
| Audio standards | G.711, G.722, G.722.1, G.729, AAC-LD and Opus | Audio features | High-quality 20 kHz audio, automatic gain control, automatic noise reduction and active lip synchronization |
| Audio inputs | One audio in from HDMI, internal microphones and Bluetooth on radio versions | Integrated speakers | Full range speaker plus dual woofers in balanced configuration at 100 Hz to 20 kHz, 24W amplifier power and 84 dB maximum SPL |
| Network interface | One Ethernet RJ-45 10/100/1000 for LAN and one Ethernet RJ-45 for Cisco Touch 10 direct pairing | Wireless | Wi-Fi 802.11a/b/g/n/ac on 2.4 GHz and 5 GHz, absent in non-radio versions |
| USB passthrough | Joins any web conferencing service and shares content using the Room Kit Mini camera, microphones and speakers at 720p, with a USB cable to the external monitor and HDMI to the computer | Other interfaces | One USB 2.0 type A port |
| Bandwidth | Up to 6 Mbps point to point, with 1472 kbps minimum for 1080p30 and 2560 kbps for 1080p60 | Firewall traversal | Cisco Expressway technology with H.460.18 and H.460.19 |
| MultiSite | H.239 H.323 dual stream | Software compatibility | Cisco Collaboration Endpoint Software Version 9.14.5 or later and Cisco Webex RoomOS |
| Power input | 100 to 240 VAC at 50/60 Hz with 12V DC input | Power supply part number | PSU-12VDC-70W-GR= |
| Optional hardware | 8 m HDMI presentation cable, 4 m USB cable for USB passthrough and Screen Mount Kit | Main unit dimensions | 19.7 x 3.2 x 3 in (50.0 x 8.1 x 7.7 cm) at 4 lb (2 kg) |
| Packaged dimensions | 23.8 x 12.8 x 8.5 in (60.5 x 32.6 x 21.6 cm) at 7 lb (3.2 kg) | Operating temperature | 0 to 35 degrees C ambient |
| Storage and transport | -20 to 60 degrees C at 10% to 90% RH noncondensing |
